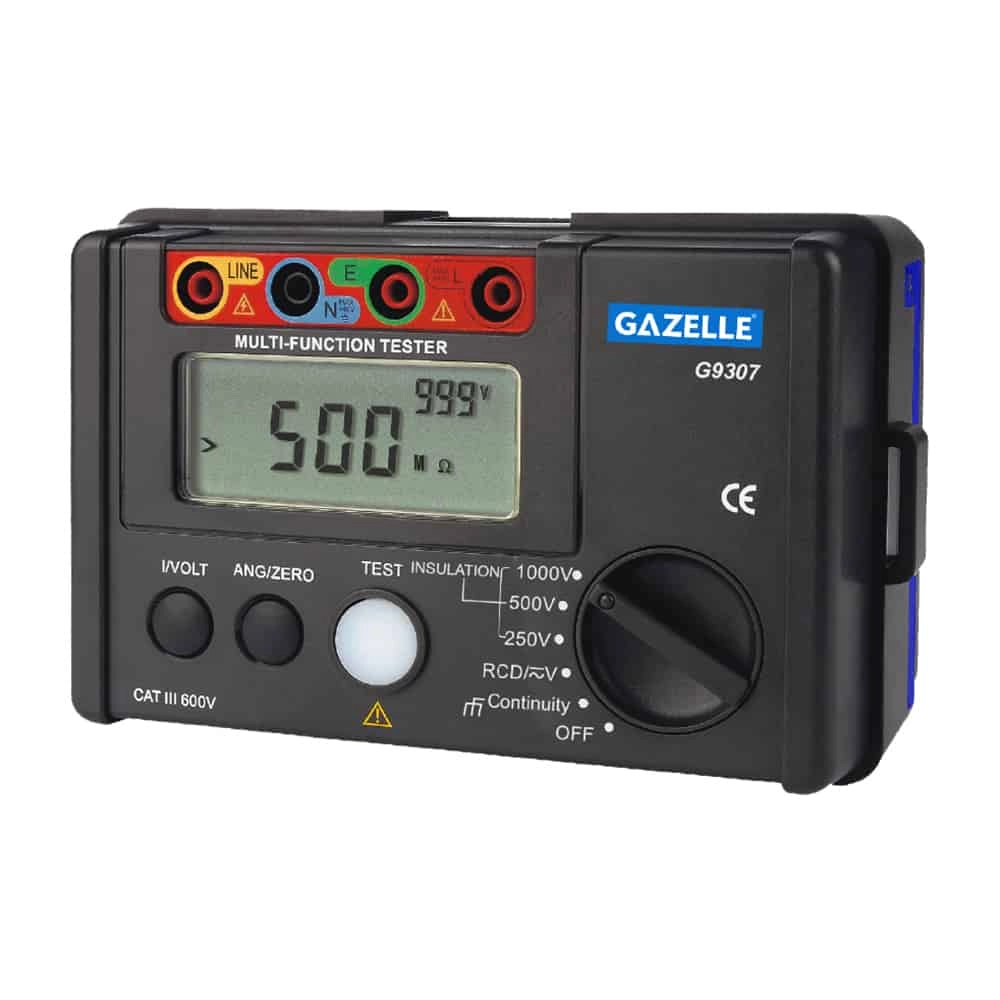

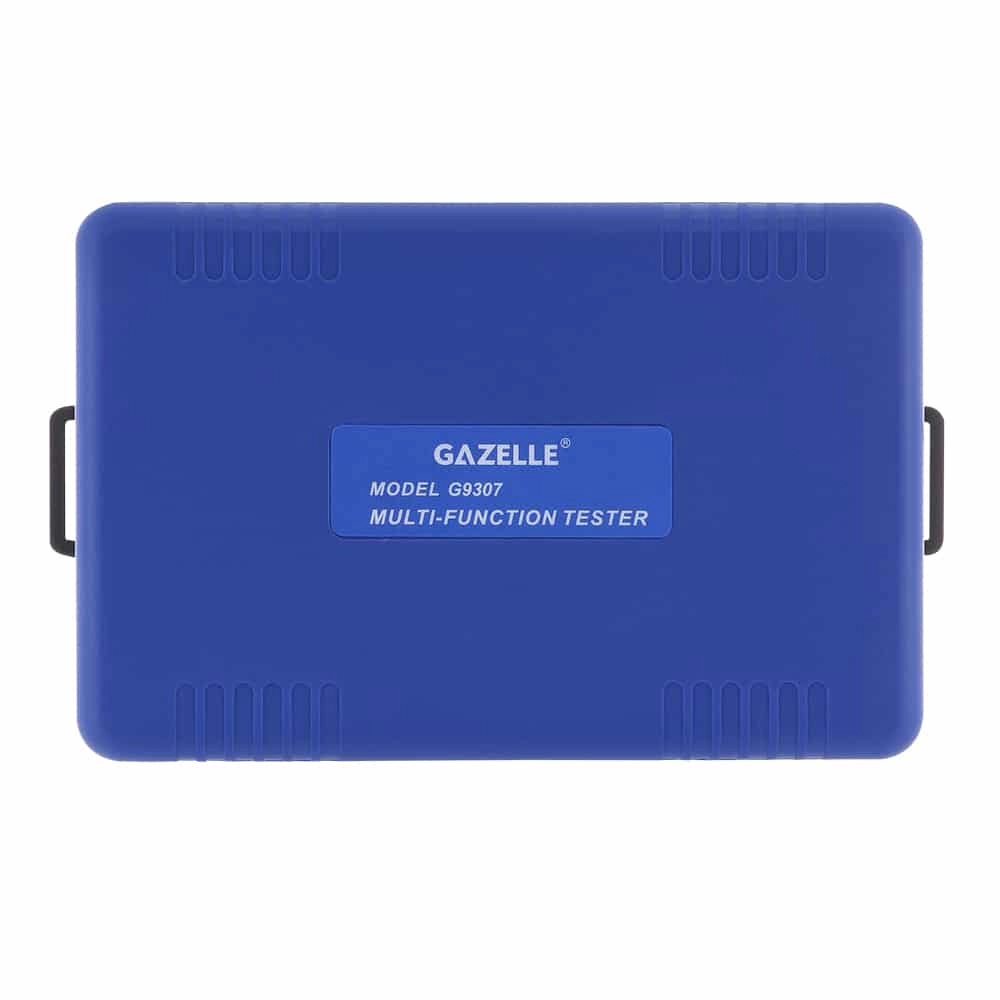

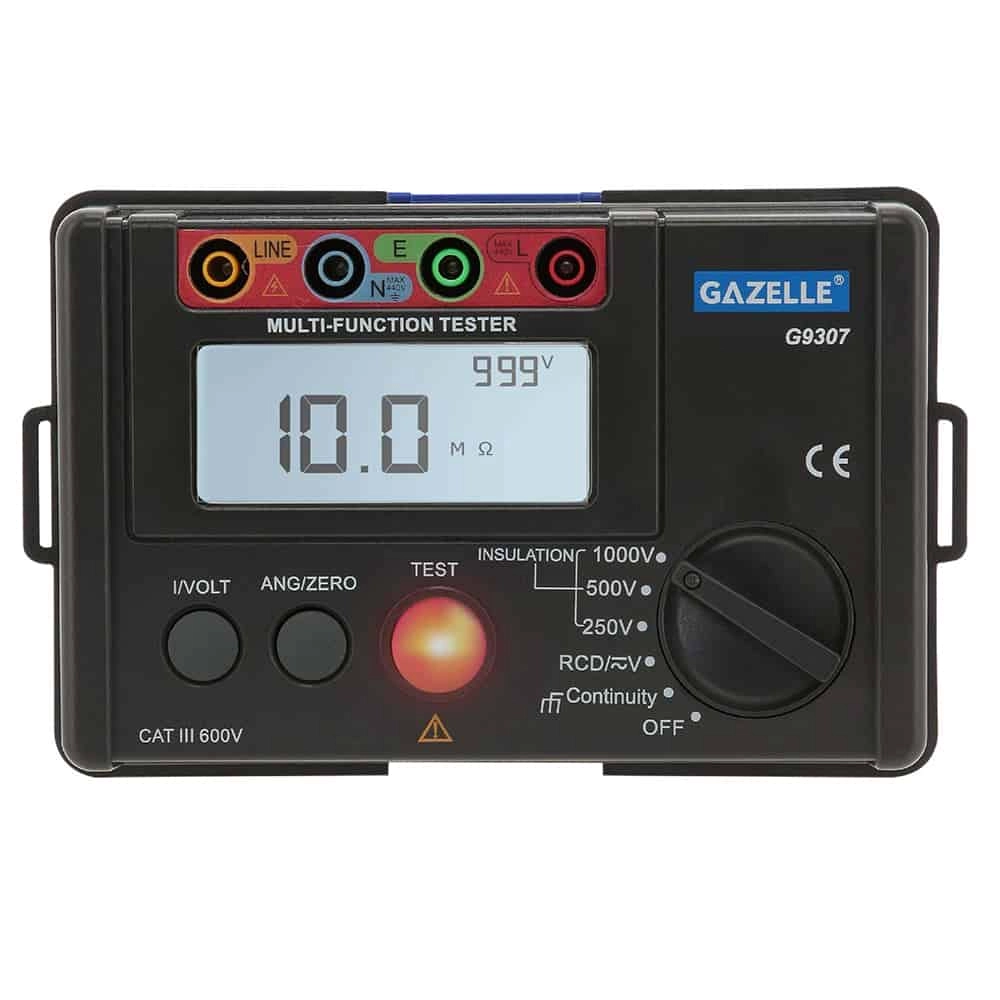

GAZELLE G9307 Multifunction Electrical Tester
# G9307
- Over range indication, test lead connection alarm
- TEST button for fast capture of measurement values
- Backlight for better visibility
The Gazelle G9307 puts the power of insulation and RCD testing capability in a single tool. The G9307 multi-function electrical tester is capable for insulation testing plus has the capability RCD/ELCB testing that can be used both for troubleshooting and for preventive maintenance activities. The combined capabilities makes the G9307 an ideal tool for all electrical contractors and facility management electricians.
- Over range indication, test lead connection alarm
- TEST button for fast capture of measurement values
- Backlight for better visibility
- Data hold feature
- Auto power off/battery check for safe operation
- Earth voltage measurement
| Specifications | Range/Accuracy |
|---|---|
| Insulation Resistance (Ω) | Test Voltage – 250V/500V/1000V ±10% |
| Insulation Resistance (Ω) | 250V – 0.05MΩ~200MΩ / ±(5%+5) 500V – 0.05MΩ~300MΩ / ±(5%+5) 1000V – 0.05MΩ-500MΩ /±(5%+5) |
| RCD Operational Voltage (Freq.) | 220V (45Hz–65Hz) ±10% |
| RCD Test Current | 10mA/30mA/100mA/300mA 0~20% |
| RCD Test Current | 10mA/30mA/100mA/300mA 0~20% |
| RCD Trip Time | 0ms~2000ms, (10mA) 0ms~500ms, (30mA) 0ms~300ms, (100mA, 300mA) ±(5%+2) |
| Low Resistance Continuity | Range: 0.00Ω~2000Ω / ±(2%+5) (V): Around 5.0V (C): >200mA (R<2Ω) |
| Voltage Measurement (V) | DC Voltage: 0~440V AC Voltage: 0~440V ±(5%+2) Frequency (For reference only) |

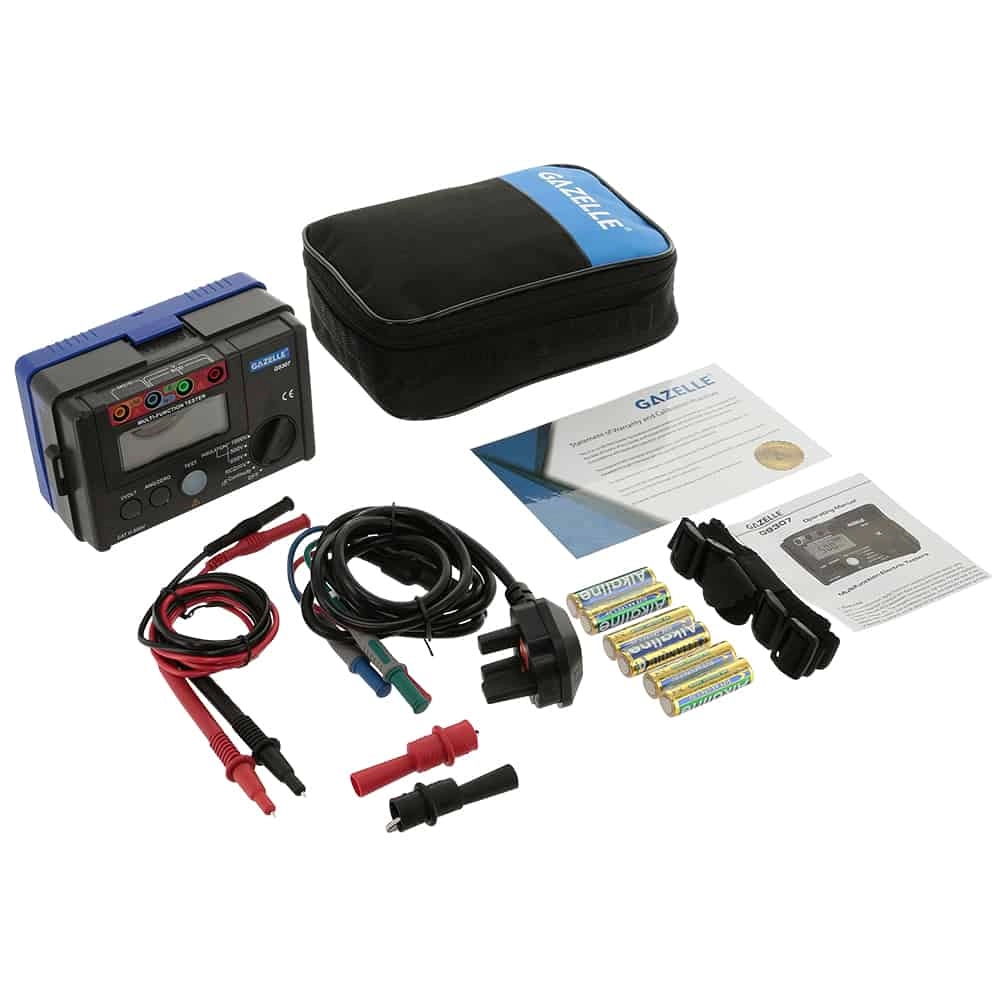

- Operating Manual
- Test Lead
- Carrying Case
