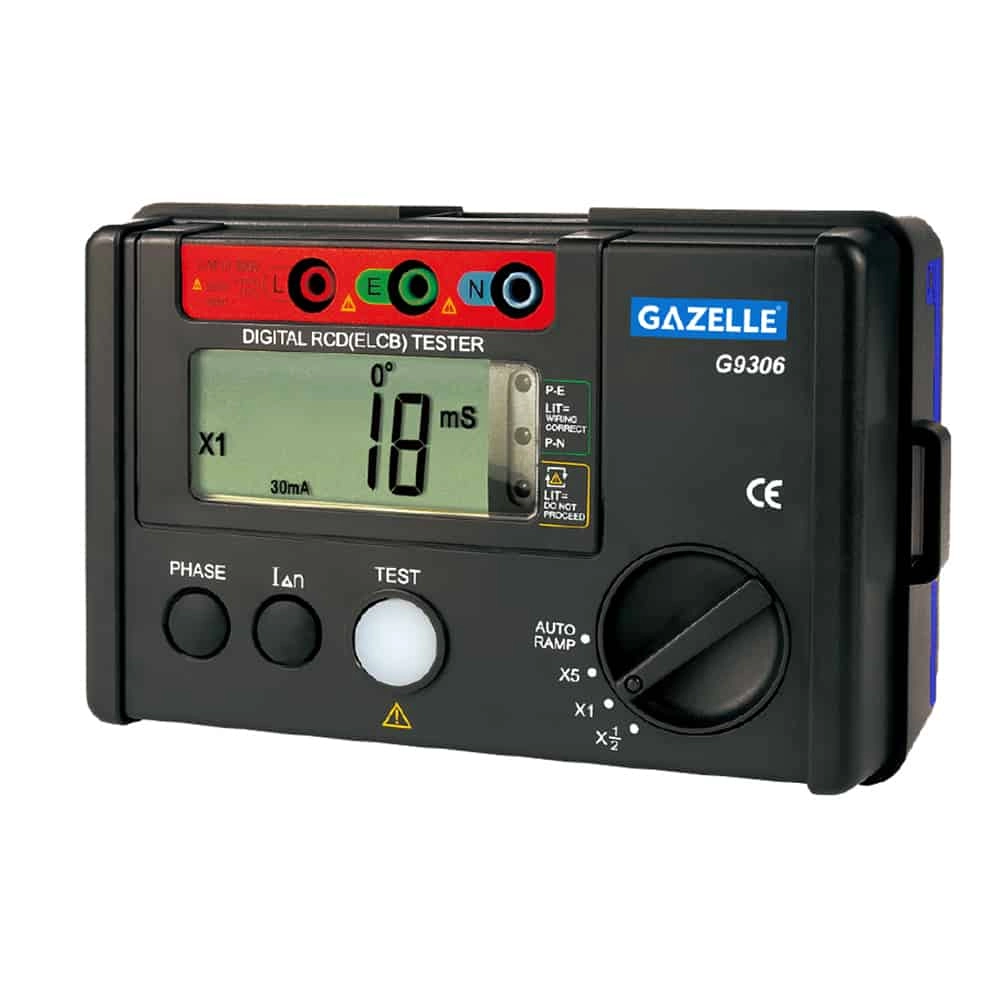

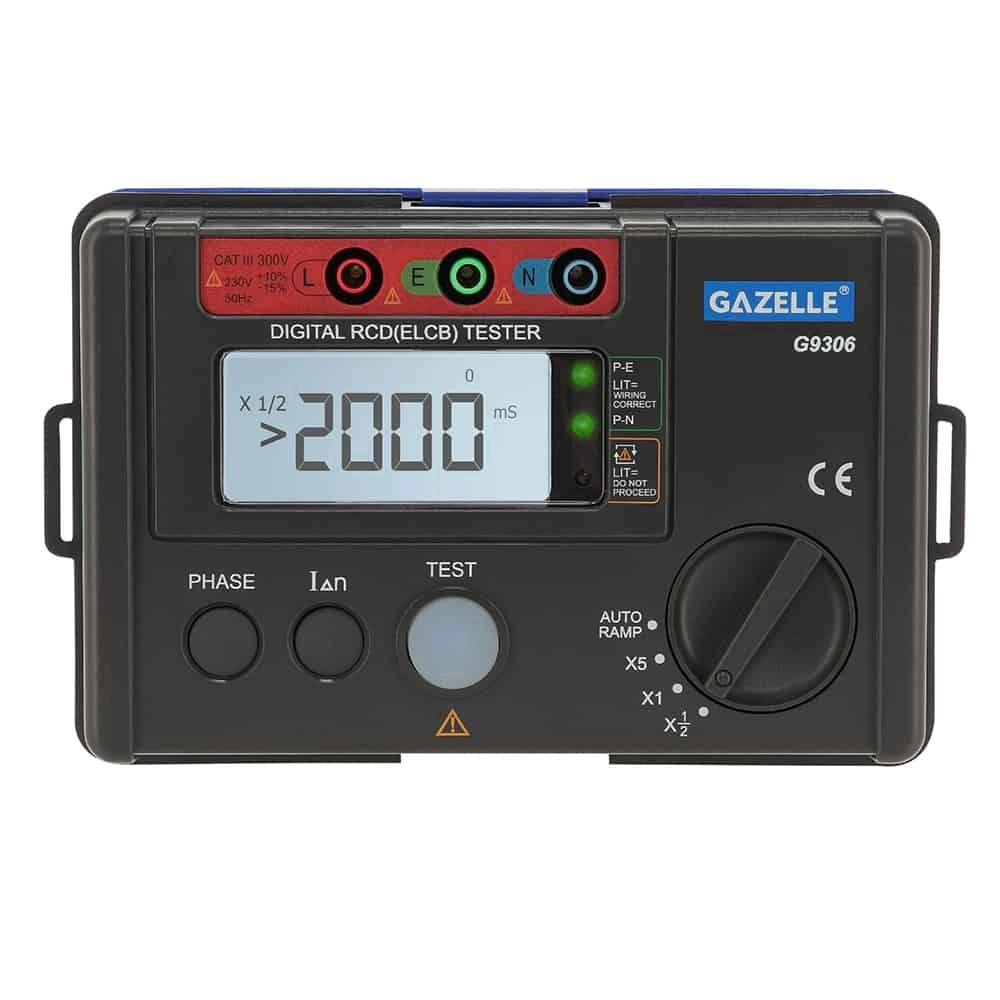

GAZELLE G9306 RCD-ELCB Tester, 500mA, 300ms
# G9306
- Lock measurement
- 1000-count LCD display of all measurement indicators
- Lead sequence check with 3 LED indication lights
G9306 is a 1000-count digital RCD (ELCB) tester with phase switch, connections check, AUTO RAMP, disconnect buzzer, over-range display and more. It meets IEC61557 standard.
- Lock measurement
- 1000-count LCD display of all measurement indicators
- Lead sequence check with 3 LED indication lights
- Phase angle selection (0°and 180°), can detect the fastest trigger time
- AUTO RAMP measurement, trip current and time real-time display
- Fuse protection; data hold, over range indication, double insulation
| Specifications | Range/Accuracy |
|---|---|
| Measurement – X 1/2 | 10mA/20mA/30mA/100mA/300mA/500mA 1000ms |
| Measurement – X 1 | 10mA/20mA/30mA/100mA/300mA/ 500mA 1000ms / 300ms |
| Measurement – X 5 | 10mA/20mA/30mA 1000ms |
| AUTO RAMP | 10mA/20mA/30mA/100mA/300mA/500mA 300ms |
| Trip Current Accuracy | ±10 |
| Trip Time Accuracy | ±(0.6%+4) |
| Trip Time Resolution | 1ms |
| Operational Voltage (Freq.) | 195V~253V (50Hz) |

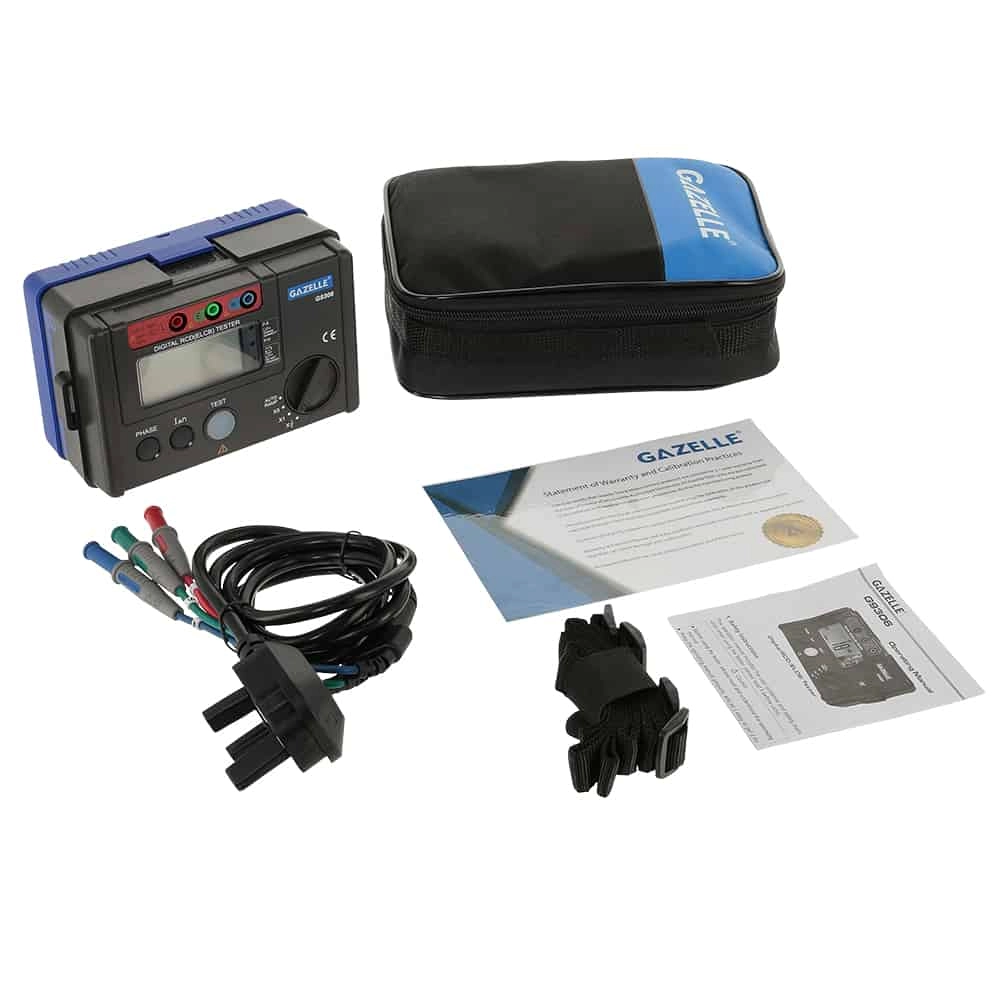

- Operating Manual
- Test Lead

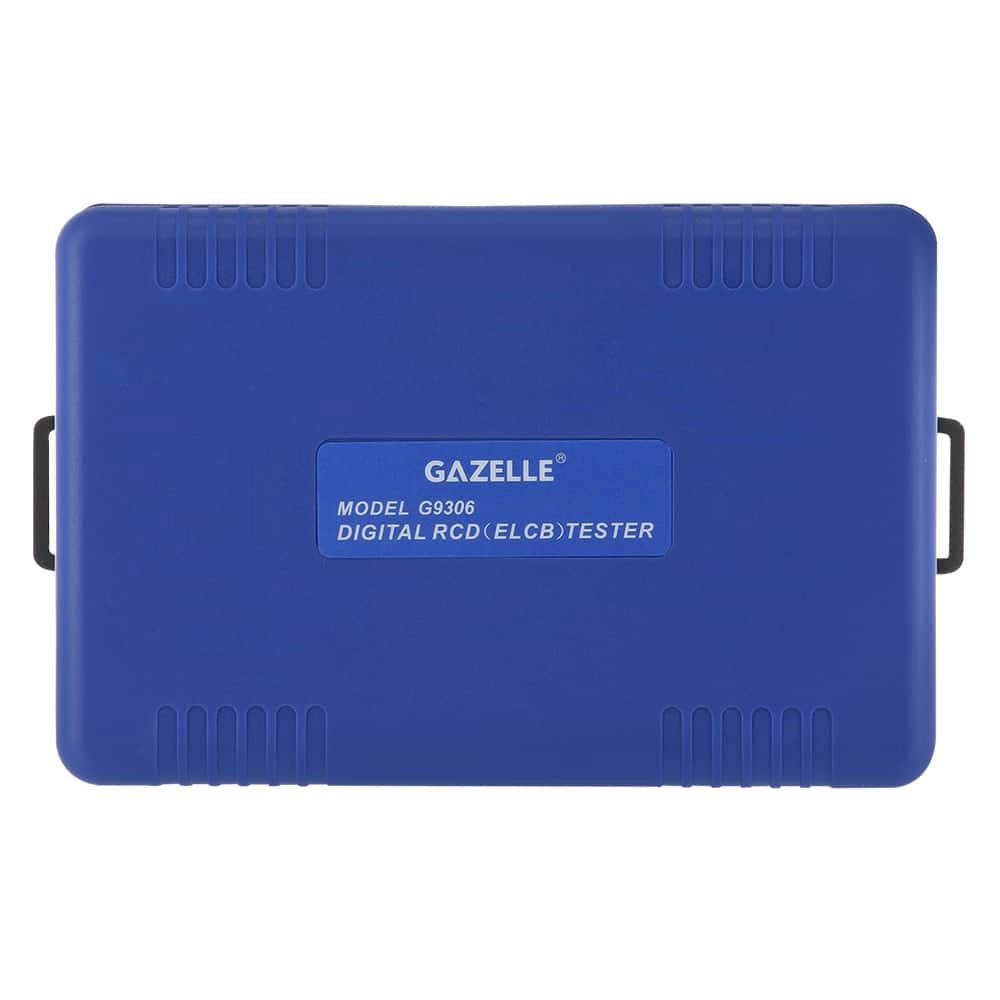

- Carrying Case
