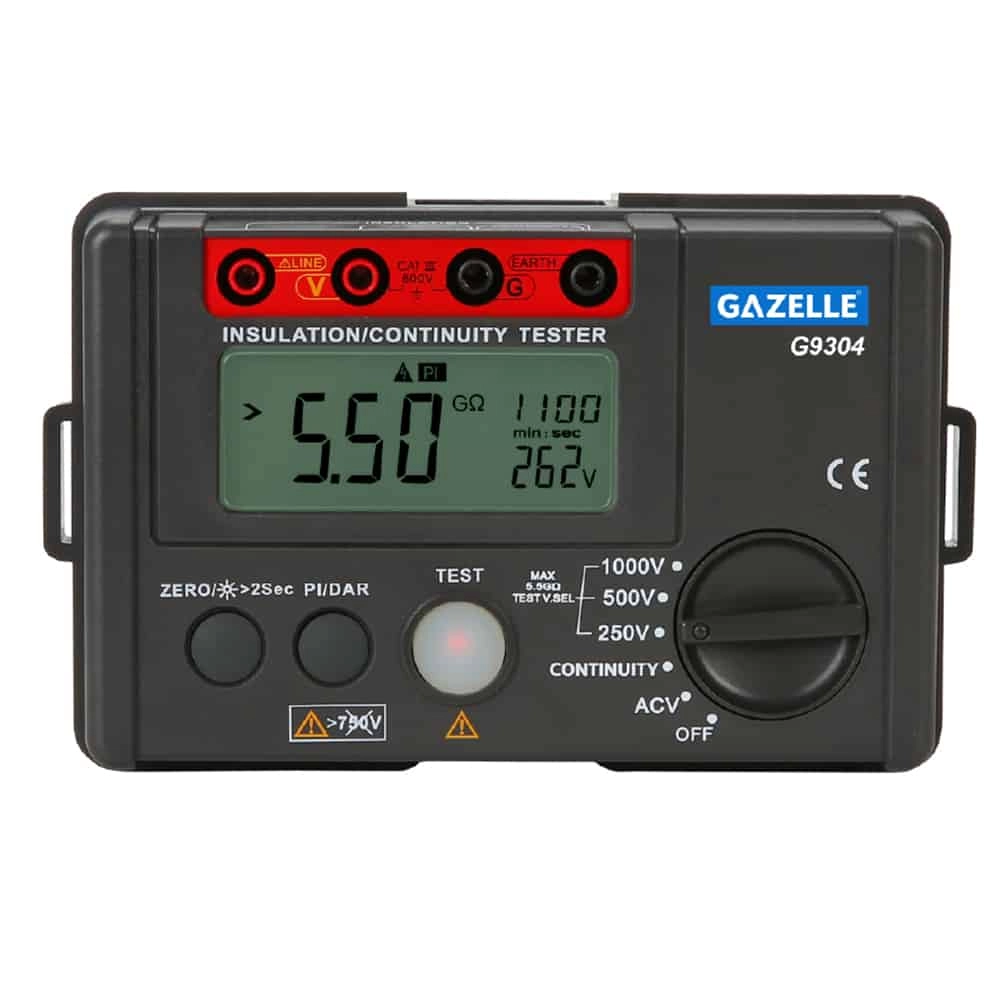

Gazelle G9304 Insulation Resistance Tester, 1kV

Model #   G9304

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • Insulation Resistance: Measures insulation resistance up to 5.5GΩ with high accuracy.
  • Test Voltage Options: Offers three selectable test voltages—250V, 500V, and 1000V—for versatile applications.
  • Voltage & Resistance Measurement: Measures AC voltage up to 600V and low resistance from 0.01Ω to 200Ω.
  • Advanced Diagnostics: Includes PI (Polarization Index) and DAR (Dielectric Absorption Ratio) test measurements.
  • Safety Rating: CAT III 600V safety rating with double insulation for enhanced safety.
  • Portability: Compact and lightweight design with a Gazelle-branded carrying case for portability.
  • Power Efficiency: Auto power-off feature to conserve battery life during inactivity.
  • Durability: Rugged construction for reliable performance in demanding industrial environments.

Technical Information

  • Insulation Resistance5.5GΩ
  • Test Voltage250/500/1000V
  • AC Voltage30-600V
  • Low Resistance0.01Ω-200Ω
  • DAR60s/15s and 60s/30s

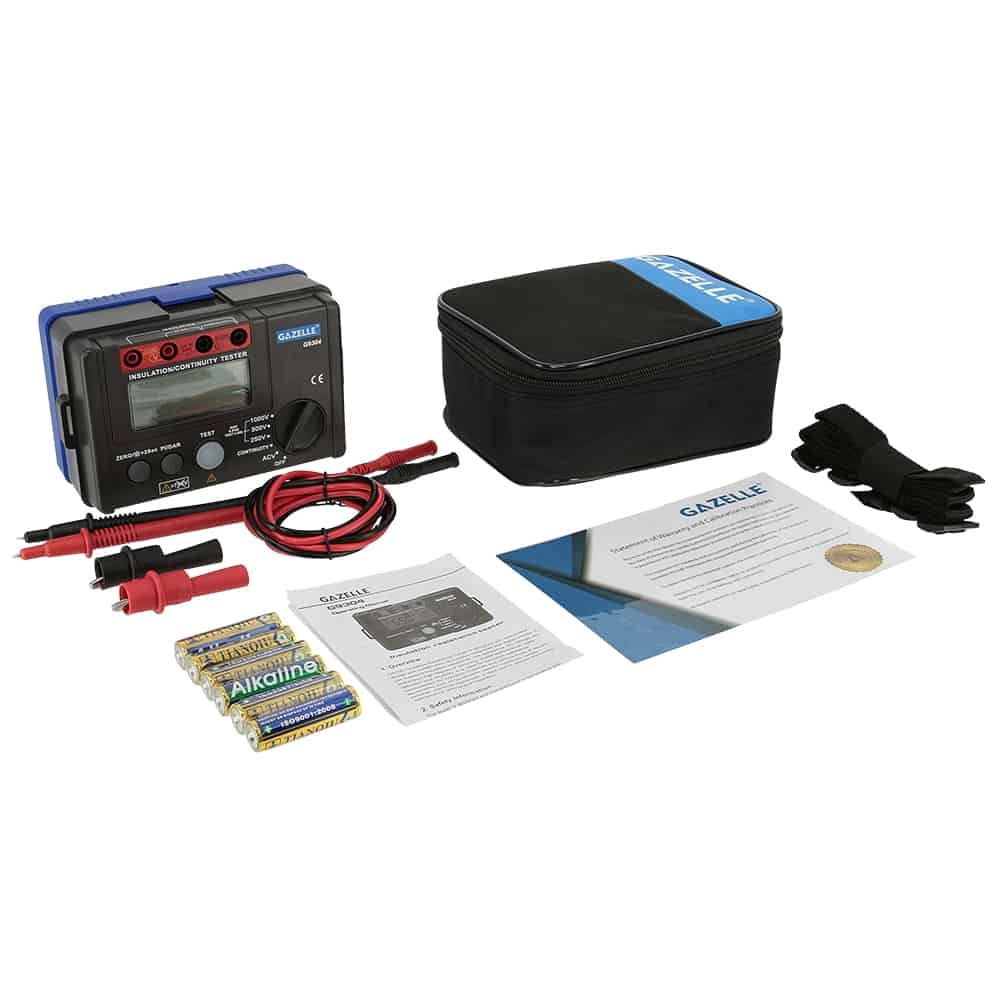

Items Included

  • Operating Manual
  • Test Leads - 3pcs

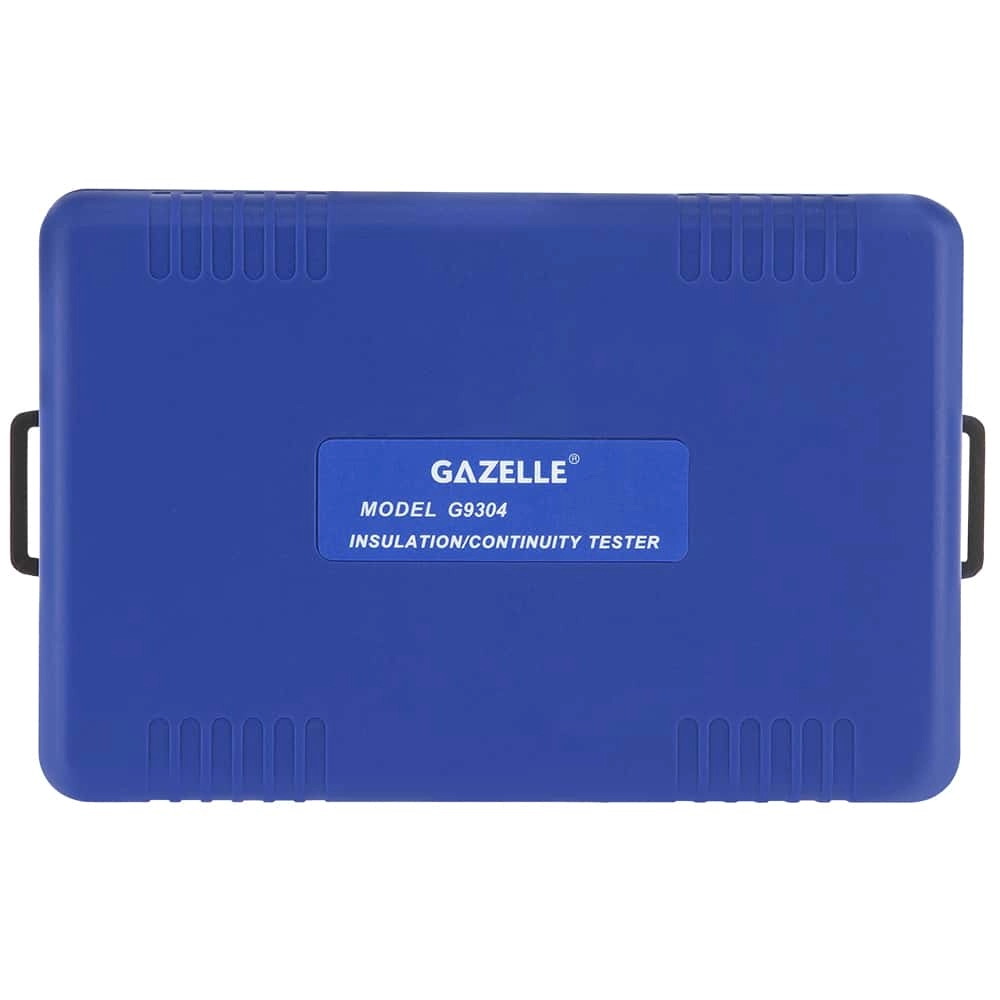

  • Carrying Bag
  • 1.5V AA - 6pcs
