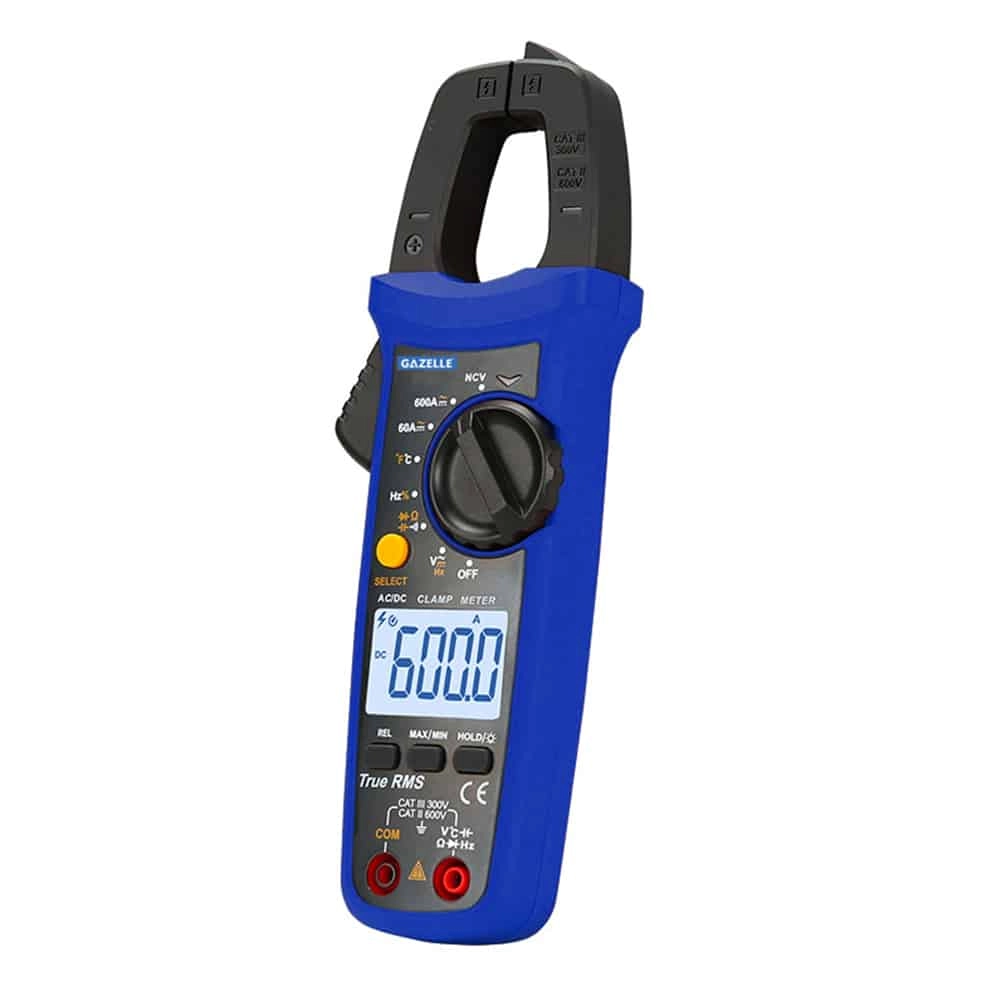

Gazelle Clamp Meters G9205 Thumbnail 0

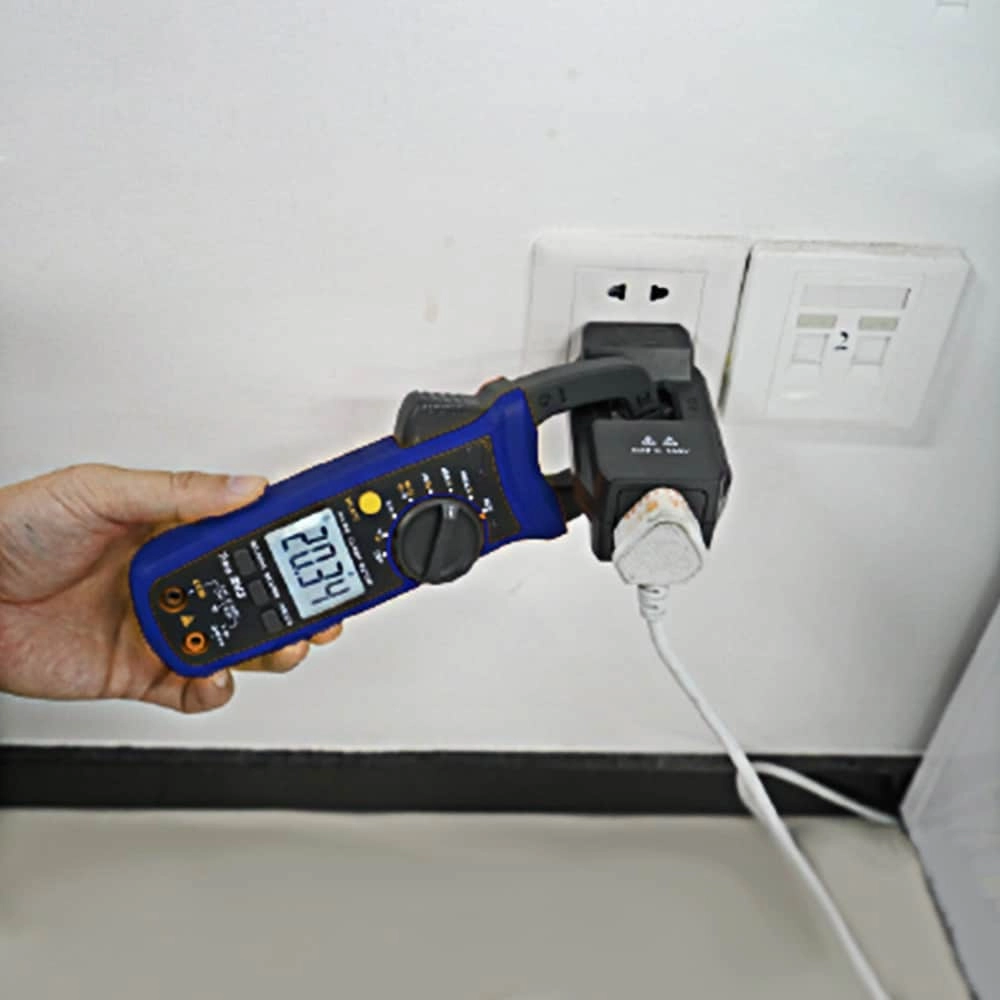

Gazelle Clamp Meters G9205 Thumbnail 1

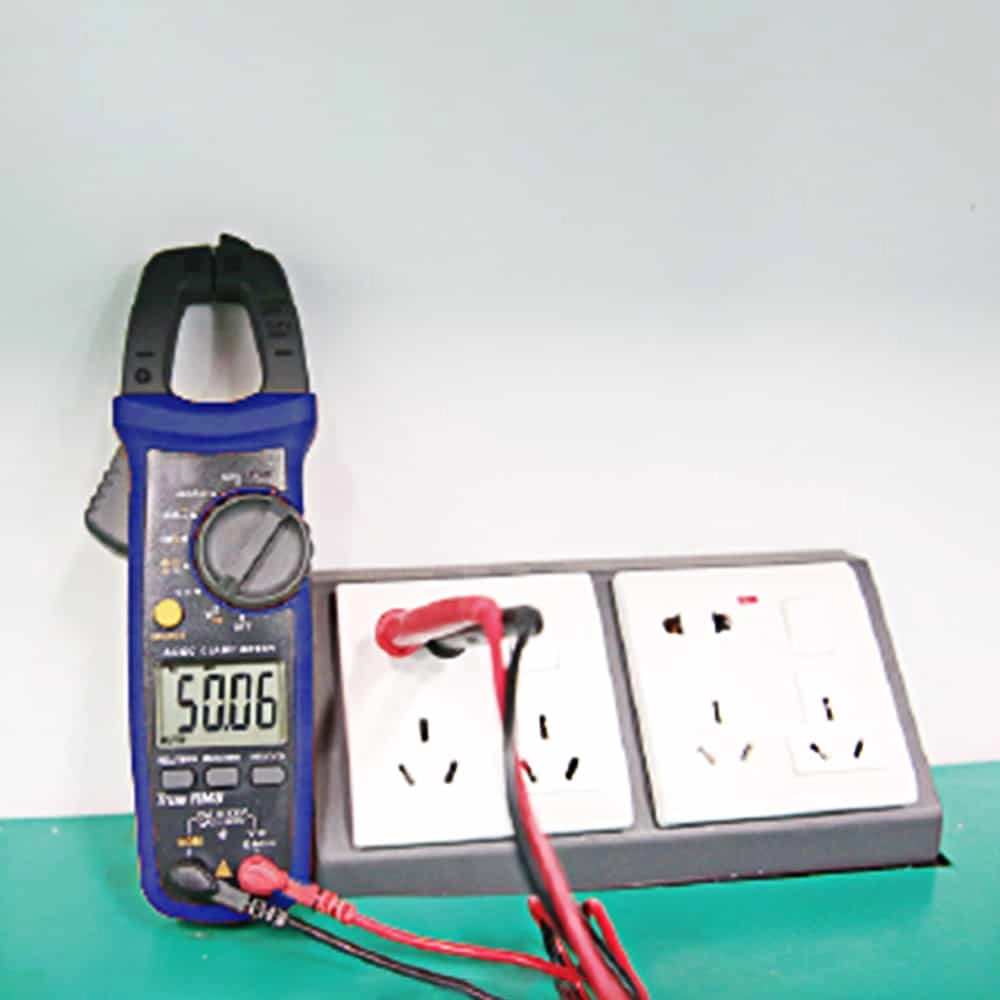

Gazelle Clamp Meters G9205 Thumbnail 2

Gazelle G9205 True RMS AC/DC Clamp Meter, 600A, 20mm Jaw, CAT III 600V

Model # G9205

Key Features

Brand: Gazelle
Model: G9205
AC Current:0.06-600 A
AC Voltage:600V
Jaw Capacity:28mm
Safety Rating:CAT III 600V
Warranty: 1 year
Learn how to use

Qty:

Qty:

Add ISO/ IED 17025 accredited calibration to this quote.Learn more.

?

Question about this product?

Speak to an expert

Learn how to use

Features

Current Measurement: Measures both AC and DC current up to 600A with precision.
True RMS: True RMS technology ensures accurate readings for complex waveforms.
Voltage Range: High voltage measurement capability up to 600V for both AC and DC.
Resistance Range: Wide resistance range up to 60MΩ for versatile testing needs.
Frequency Range: Frequency measurement range from 10Hz to 60kHz for diverse applications.
Capacitance: Capacitance measurement up to 60mF for advanced diagnostics.
Jaw Capacity: Compact jaw capacity of 28mm for easy use in tight spaces.
Safety Rating: Safety rated at CAT III 600V for reliable operation in demanding environments.
Display: Large 6000-count display for clear and detailed readings.
NCV Detection: NCV (Non-Contact Voltage) detection with audio/visual alarms for added safety.

Technical Information

AC Current0.06-600 A
AC Voltage600V
Jaw Capacity28mm
Safety RatingCAT III 600V
DC Voltage600V
Resistance60MΩ
Frequency10Hz-60khz
Capacitance60mF
Display Count6000
DC Current0.06-600A
True RMSYes

Items Included

Batteries
Test Leads
Thermocouple
