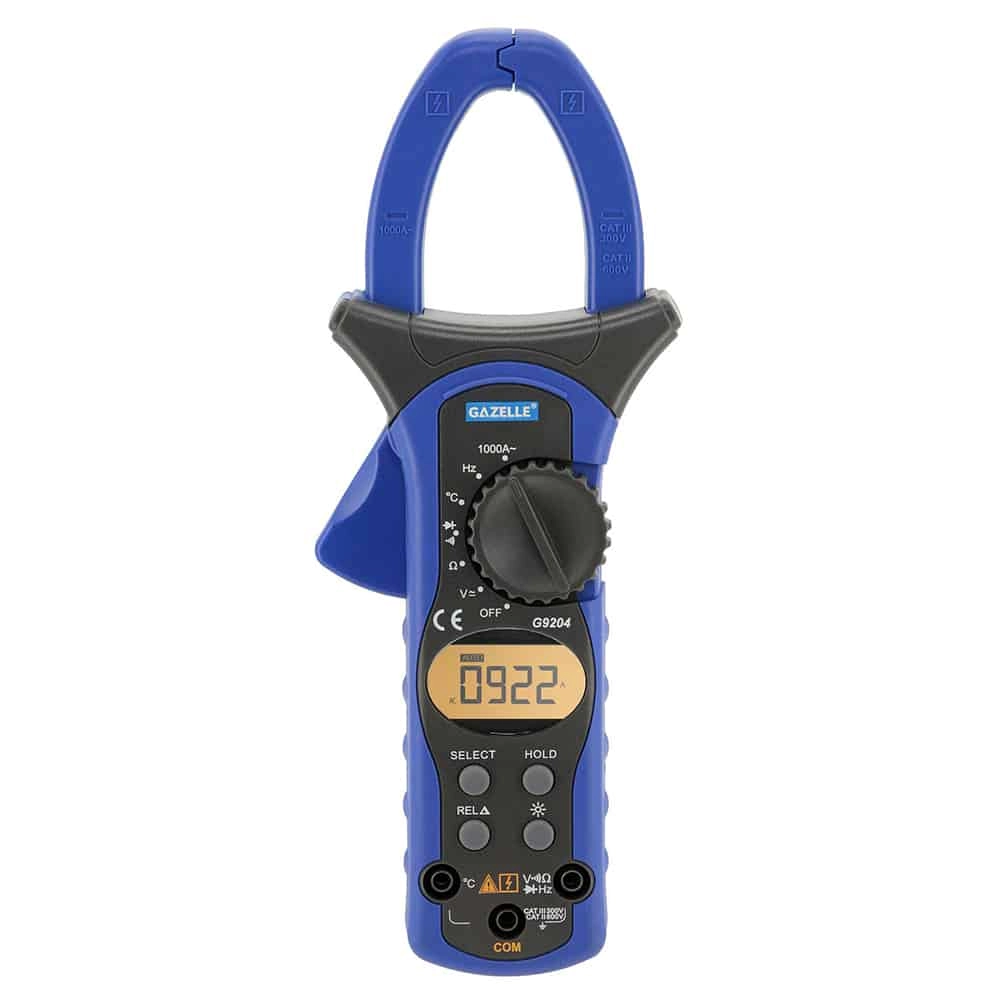

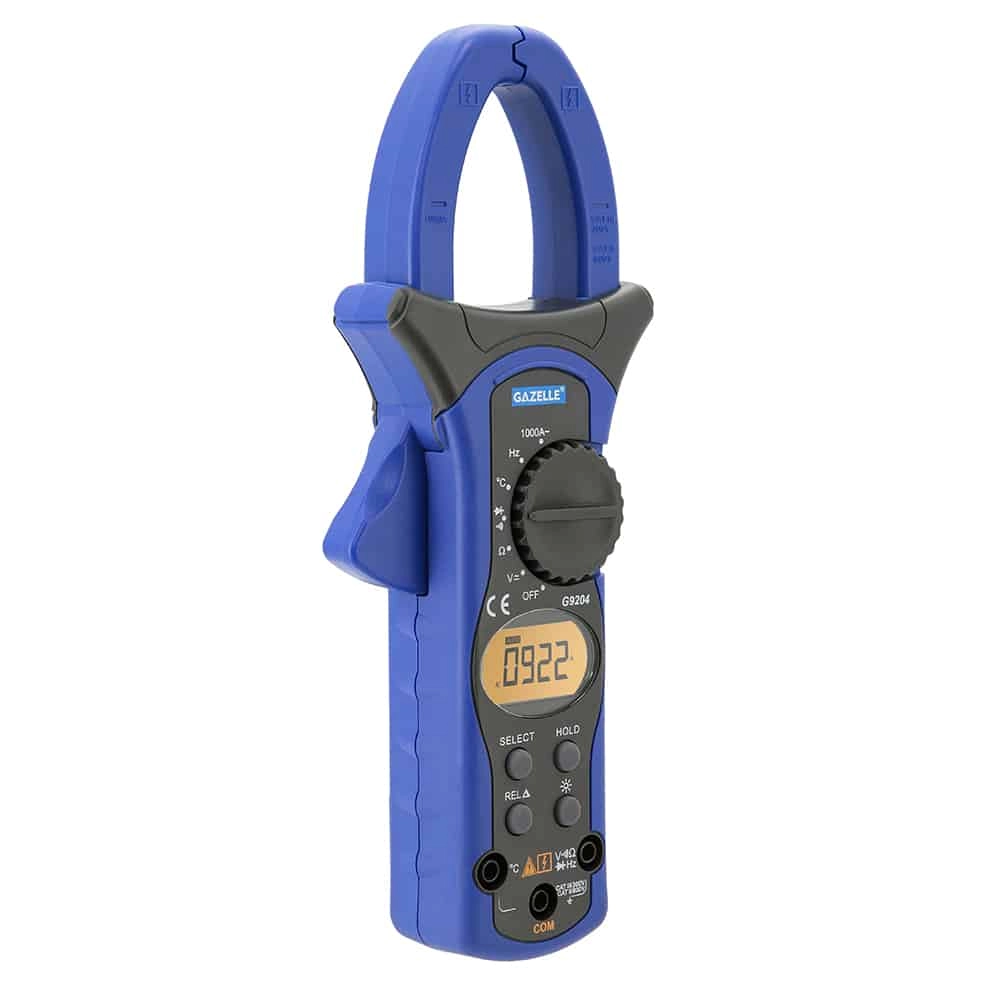

    GAZELLE G9204 1000A Auto Range Digital Clamp Meter

    # G9204

    • Multi function for AC-DC Voltage, AC current, Resistance, Diode, Continuity, Frequency, Temperature measurements
    • 1000A full range overload protection for additional safety during measurement
    • CAT II 600V / CAT III 300V safety rating with double insulation
    GAZELLE
    • GAZELLE
    • G9204

    Quantity:

    - +
      ADD TO MY TOOLBOX
    Where to buy this product?

    The Gazelle G9204 1000A clamp meter can measure Hi current range, capable to  AC/DC voltage, AC Current, resistance, capacitance, frequency and temperature. It’s simple, one handed operation and optimized ergonomics and a large backlight display fulfils the need of a wide variety of test and measurement requirements.



    • Multi function for AC-DC Voltage, AC current, Resistance, Diode, Continuity, Frequency, Temperature measurements
    • 1000A full range overload protection for additional safety during measurement
    • CAT II 600V / CAT III 300V safety rating with double insulation

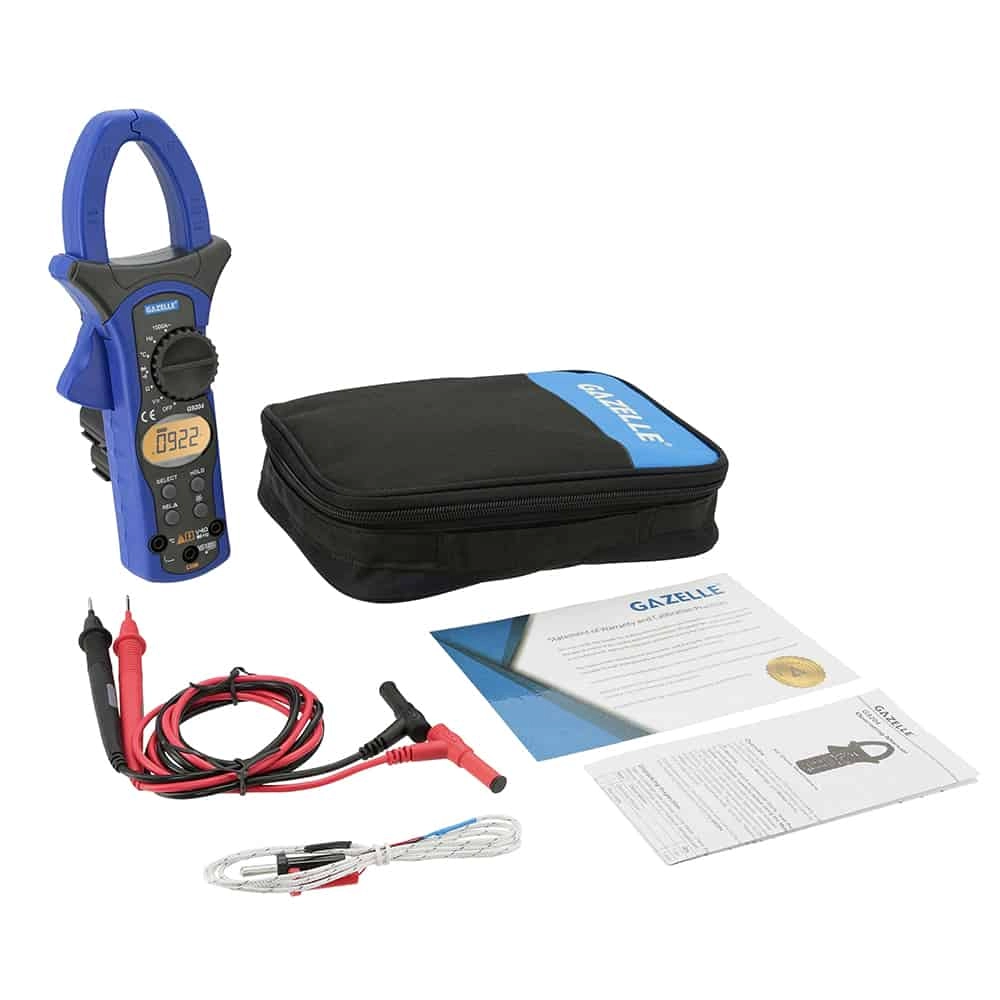

    • Includes Gazelle branded carrying case
    Specifications Range/Accuracy
    Ac Current (A) 400A/1000A
    ±(1.5%+5)
    AC Voltage (V) 4V/40V/400V/600V
    ±(1.2%+5)
    DC Voltage (V) 400mV/4V/40V/400V/600V
    ±(0.8%+5)
    Resistance (Ω) 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40mΩ
    ±(1%+2)
    Frequency (Hz) 10Hz-10Mhz
    ±(0.1%+3)
    Temperature (°C) -40°C-1000°C
    ±(2%+8)
    Jaw Capacity 40mm
    Input Impedance for DCV Around 10MΩ
    Battery 9V Battery (6F22)
