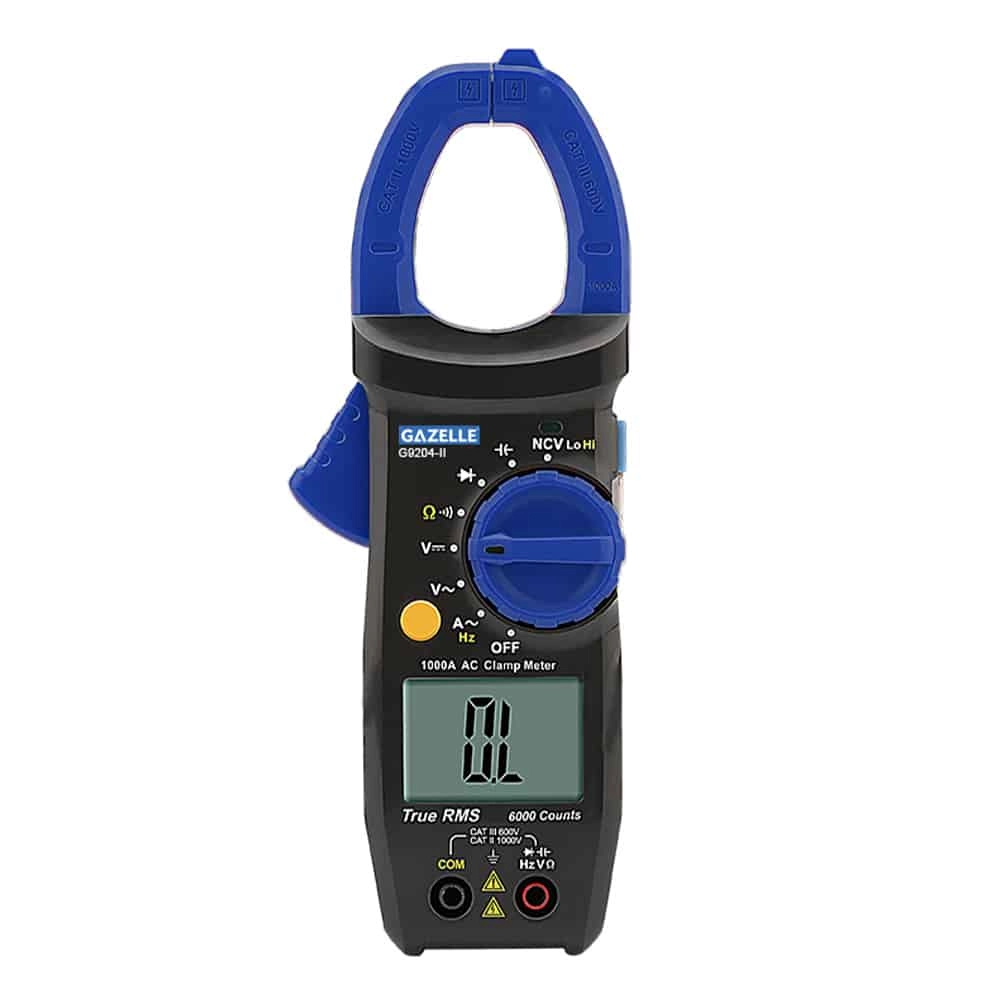

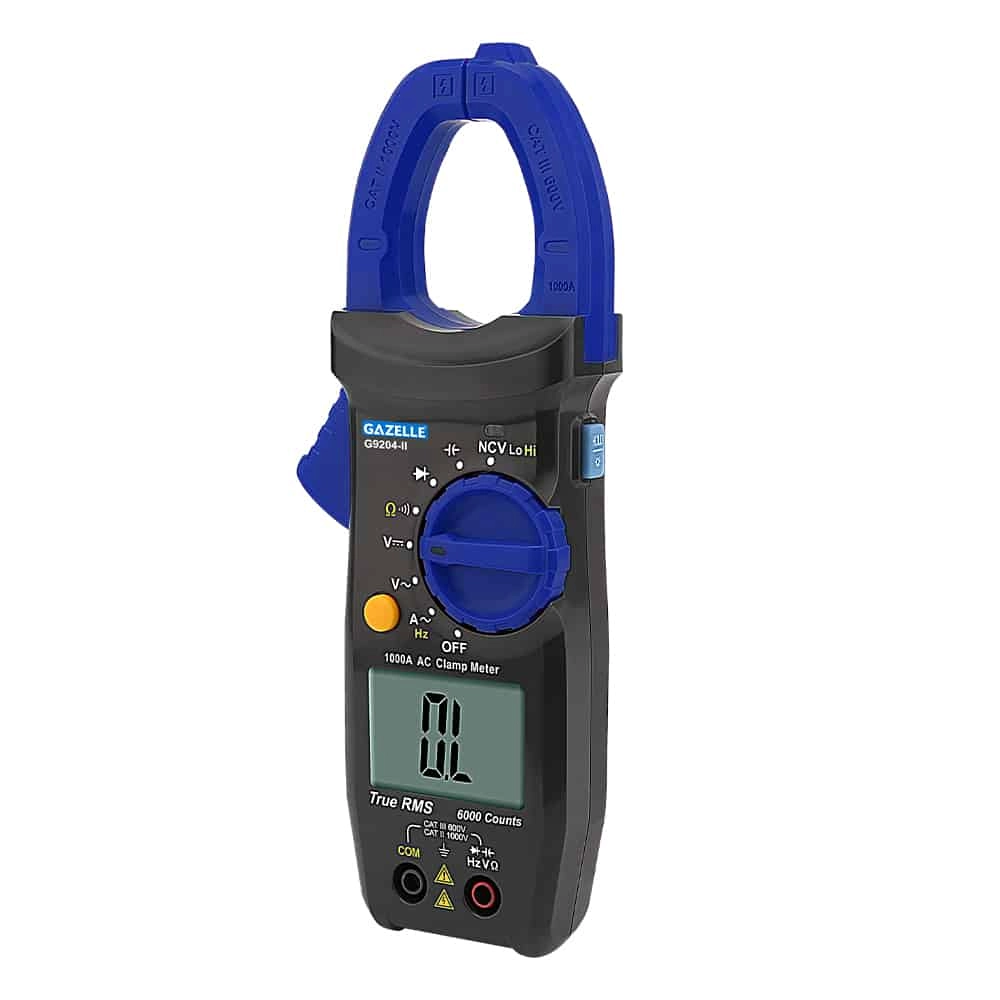

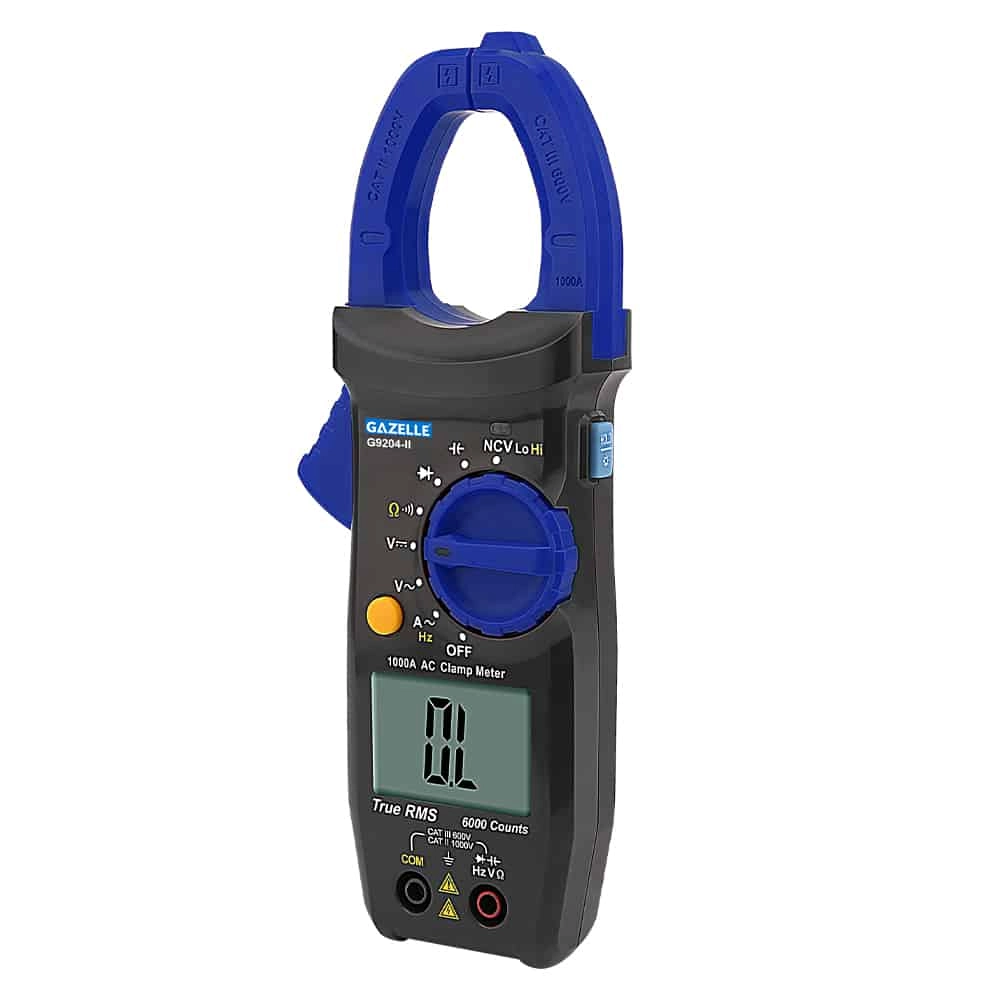

Gazelle G9204-II AC Digital Clamp Meter, 1000A, 33mm Jaw, CAT II 1000V/CAT III 600V

Model #   G9204-II

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • Current Measurement: Measures AC and DC current up to 1000A for high-capacity applications.
  • True RMS: True RMS technology ensures precise readings for complex electrical systems.
  • Voltage Range: High voltage measurement capability up to 1000V for both AC and DC.
  • Resistance Range: Wide resistance range up to 60MΩ for versatile testing needs.
  • Frequency Range: Frequency measurement range from 20Hz to 10kHz for diverse applications.
  • Capacitance: Capacitance measurement up to 6mF for advanced diagnostics.
  • Jaw Capacity: Compact jaw capacity of 33mm for easy use in tight spaces.
  • Safety Rating: Safety rated at CAT II 1000V and CAT III 600V for reliable operation in demanding environments.
  • Display: Large 6000-count display with backlight for clear and detailed readings.
  • Input Impedance: High input impedance (≥10MΩ) for accurate DC voltage measurements.
  • NCV Detection: NCV (Non-Contact Voltage) detection with dual-mode (High/Low) for added safety.

Technical Information

  • AC Current1000A
  • AC Voltage1000V
  • Jaw Capacity33mm
  • Safety RatingCAT II 1000V, CAT III 600V
  • DC Voltage1000V
  • Resistance60MΩ
  • Frequency20Hz-10khz
  • Capacitance6mF
  • Display Count6000
  • Input Impedance for DCV≥10MΩ

Items Included

  • 1 pair Test Leads
  • AAA 1.5V batteries x 2
  • Carrying bag
  • User Manual
