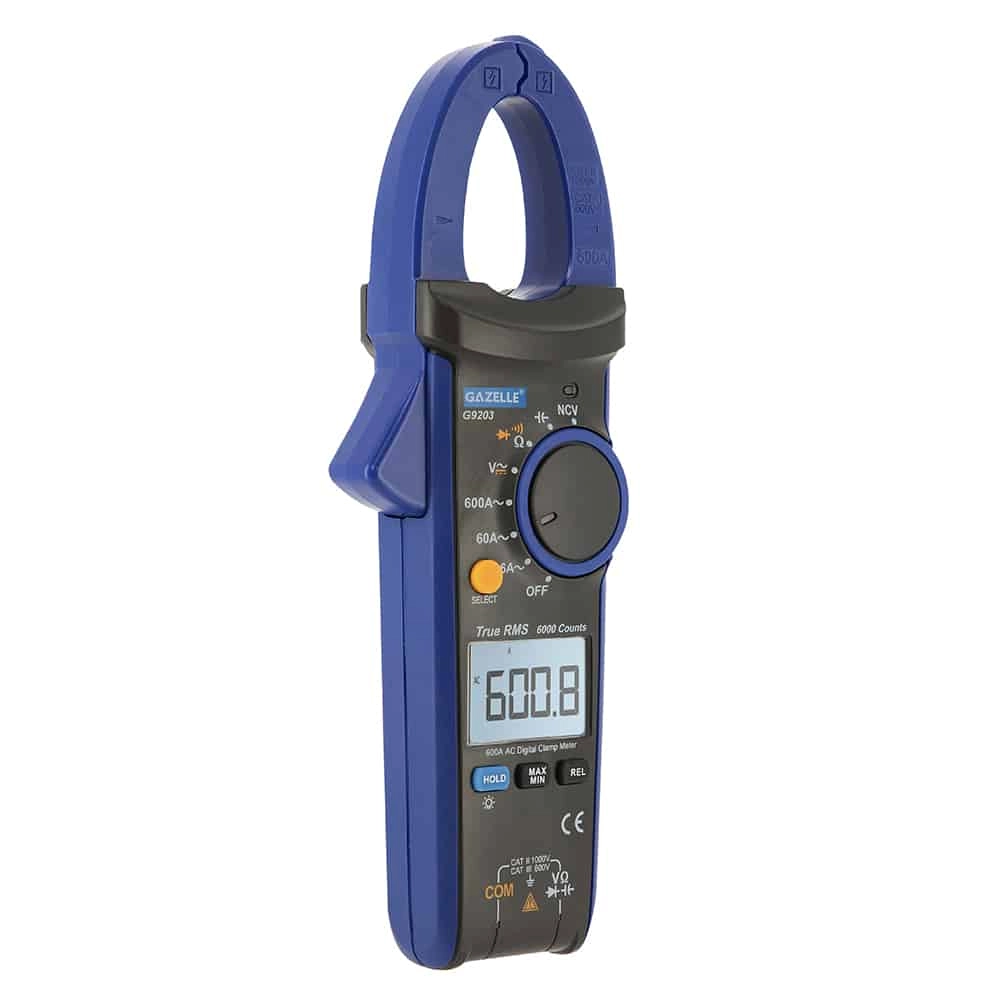

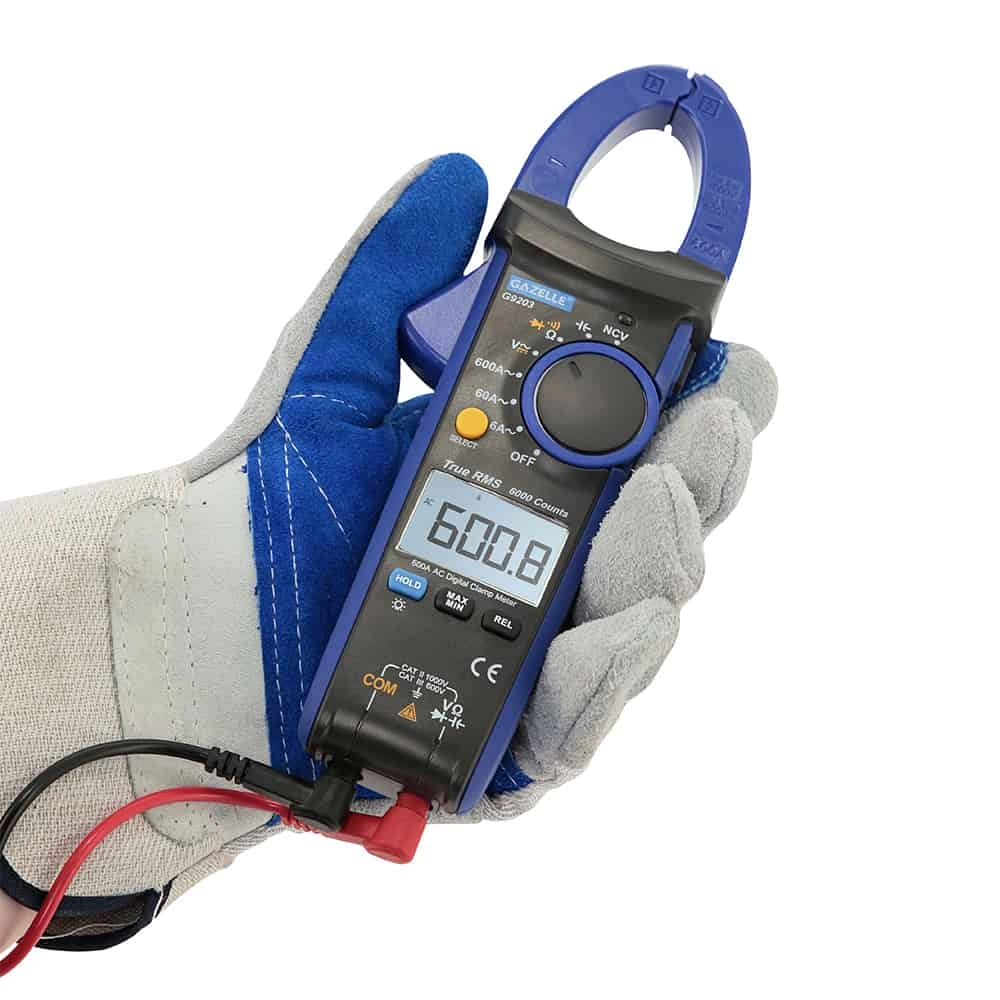

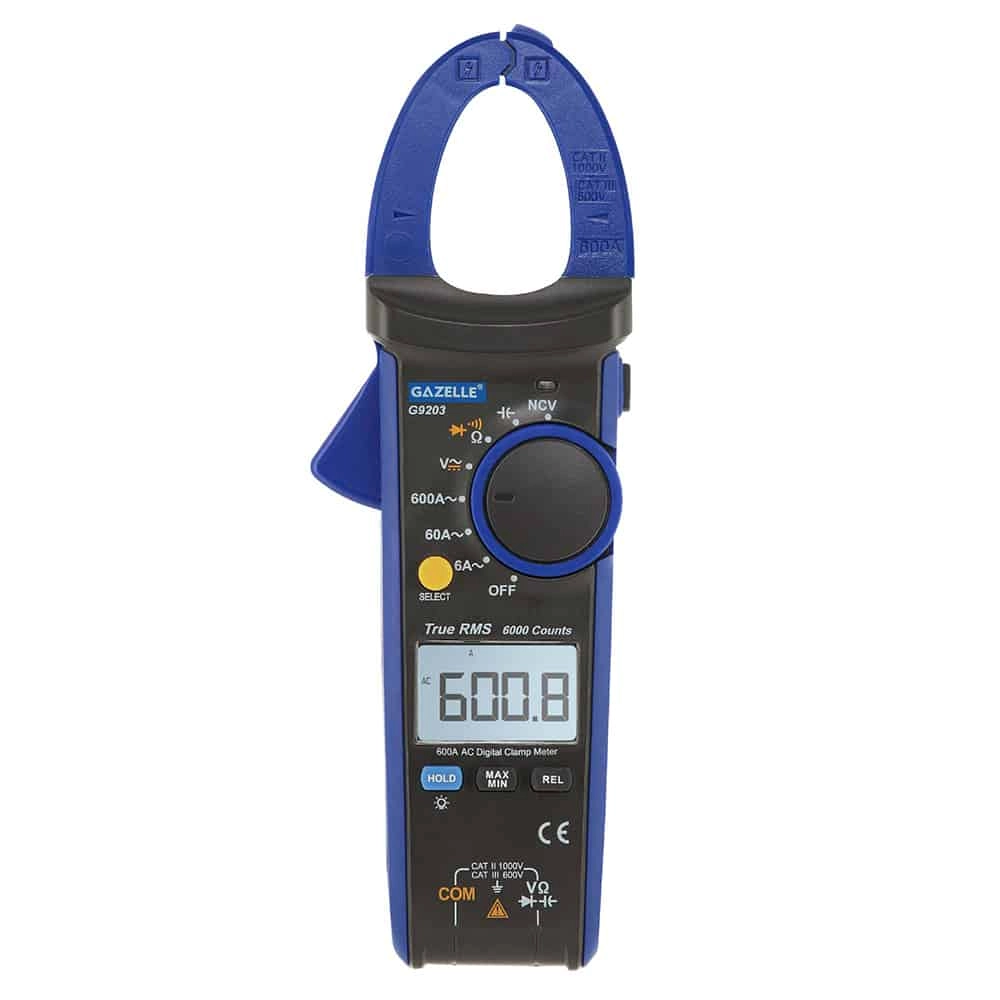

Gazelle G9203 TRMS Digital Clamp Meter, 600A AC, 30mm Jaw, CAT III 600V

Features

• Current Measurement: Measures AC current up to 600A with multiple range options (6A/60A/600A).
• True RMS: True RMS technology ensures accurate readings for complex electrical systems.
• Voltage Range: High voltage measurement capability up to 750V for AC and 1000V for DC.
• Resistance Range: Wide resistance range up to 60MΩ for versatile testing needs.
• Frequency Range: Frequency measurement range from 10Hz to 10MHz for diverse applications.
• Capacitance: Capacitance measurement up to 60mF for advanced diagnostics.
• Jaw Capacity: Compact jaw capacity of 30mm for easy use in tight spaces.
• Safety Rating: Safety rated at CAT III 600V for reliable operation in demanding environments.
• Input Impedance: High input impedance (≥10MΩ) for accurate DC voltage measurements.
• Display: Large LCD display with a clear white backlight for visibility in dark areas.
• Lighting: Built-in torch for working in low-light conditions.
• NCV Detection: NCV (Non-Contact Voltage) detection for added safety.

Technical Information

• AC Current6/60/600A
• AC Voltage6/60/600/750V
• Jaw Capacity30mm
• Safety RatingCAT III 600V
• DC Voltage600mV/6/60/600/1000V
• Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
• Frequency10Hz-10Mhz
• Capacitance99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/60mF
• Input Impedance for DCV≥10MΩ

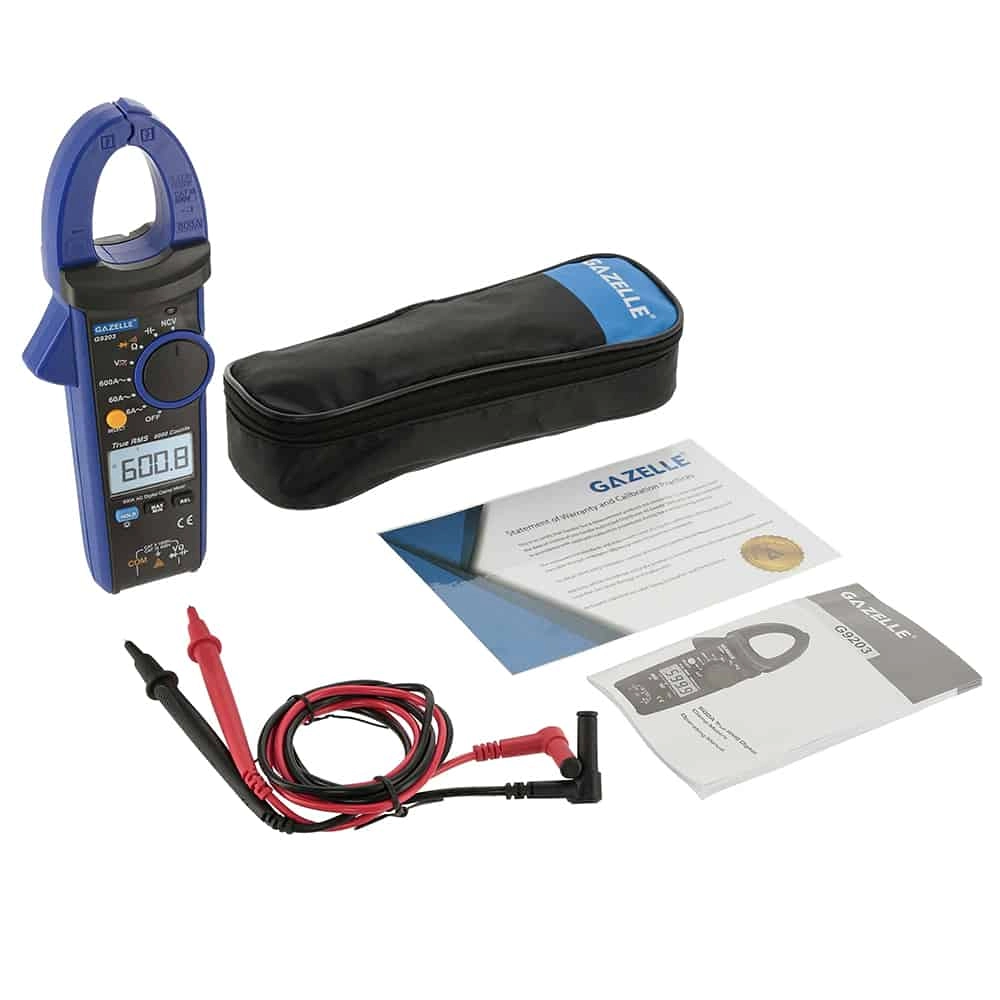

Items Included

• Operating Manual
• Carrying Case
• Test Lead

Downloads

Datasheet
