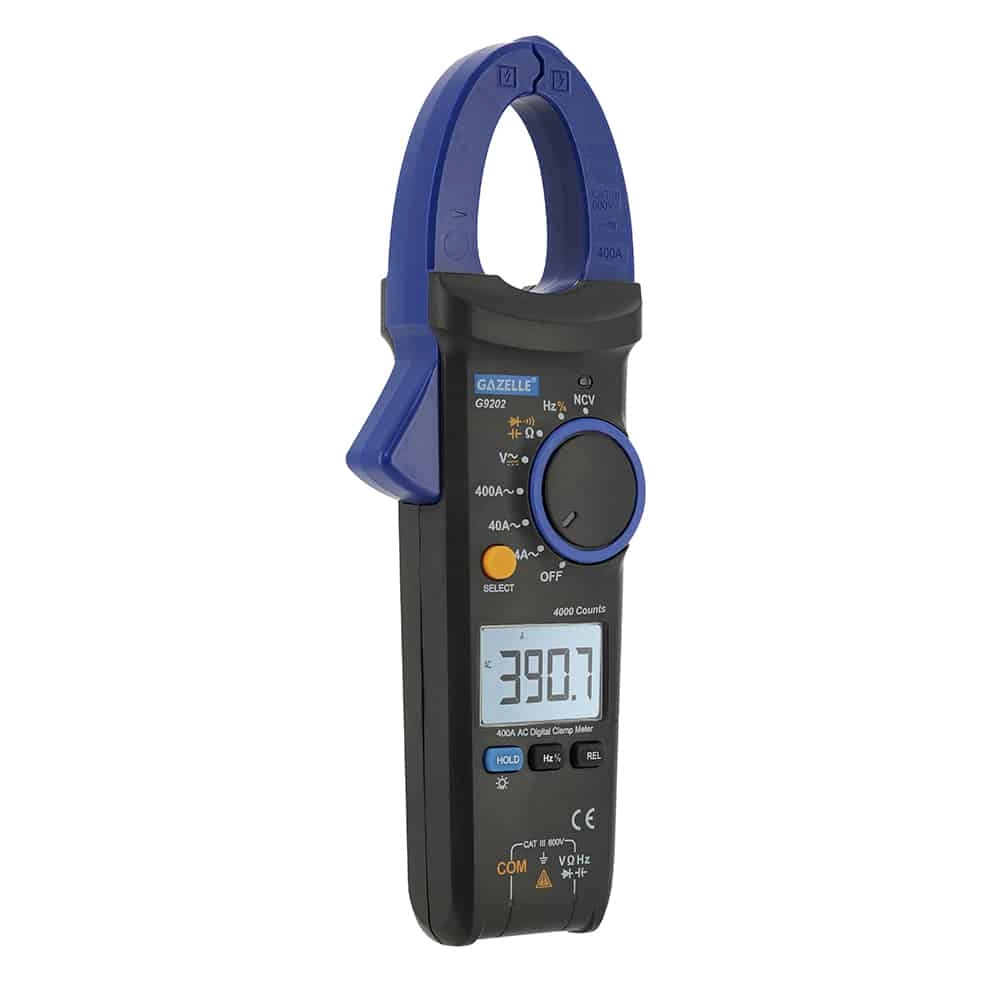

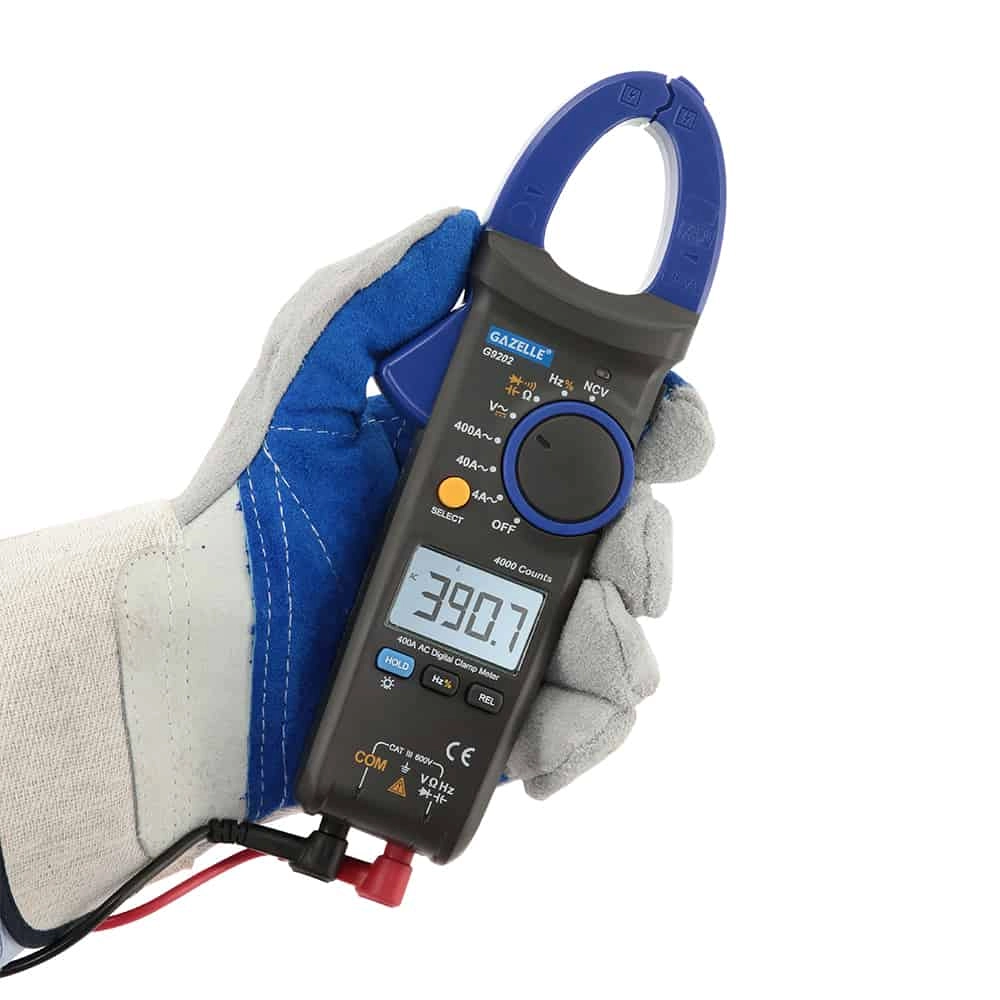

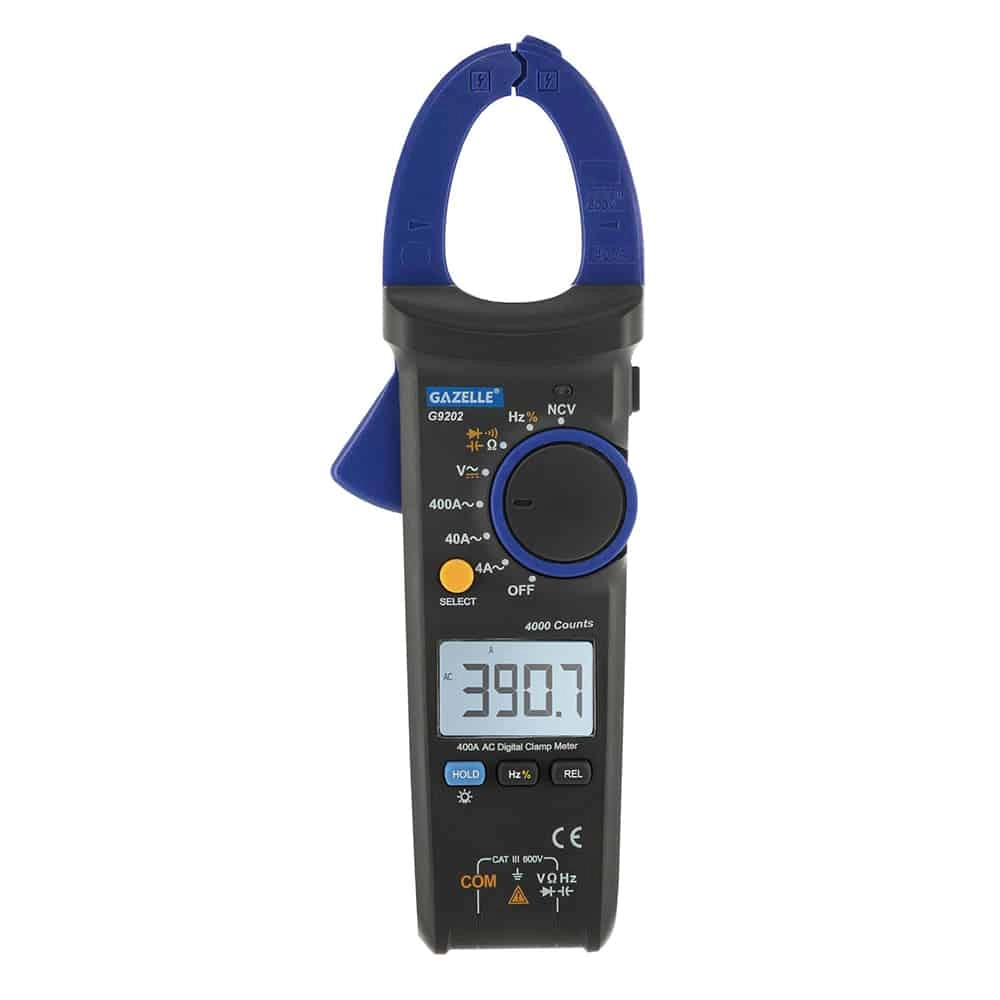

Gazelle G9202 TRMS Digital Clamp Meter, 400A AC, 30mm Jaw, CAT III 600V

Features

• Current Measurement: Measures AC current up to 400A with multiple range options (4A/40A/400A).
• True RMS: True RMS technology ensures accurate readings for complex electrical systems.
• Voltage Range: High voltage measurement capability up to 600V for both AC and DC.
• Resistance Range: Wide resistance range up to 40MΩ for versatile testing needs.
• Frequency Range: Frequency measurement range from 10Hz to 10MHz for diverse applications.
• Capacitance: Capacitance measurement up to 100µF for advanced diagnostics.
• Jaw Capacity: Compact jaw capacity of 30mm for easy use in tight spaces.
• Safety Rating: Safety rated at CAT III 600V for reliable operation in demanding environments.
• Input Impedance: High input impedance (≥10MΩ) for accurate DC voltage measurements.
• Display: Large LCD display with a clear white backlight for visibility in dark areas.
• Lighting: Built-in torch for working in low-light conditions.
• NCV Detection: NCV (Non-Contact Voltage) detection for added safety.

Technical Information

• AC Current4/40/400A
• AC Voltage4/40/400/600V
• Jaw Capacity30mm
• Safety RatingCAT III 600V
• DC Voltage400mV/4/40/400/600V
• Resistance400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
• Frequency10Hz-10Mhz
• Capacitance50nF/500nF/5µF/50µF/100µF
• Input Impedance for DCV≥10MΩ

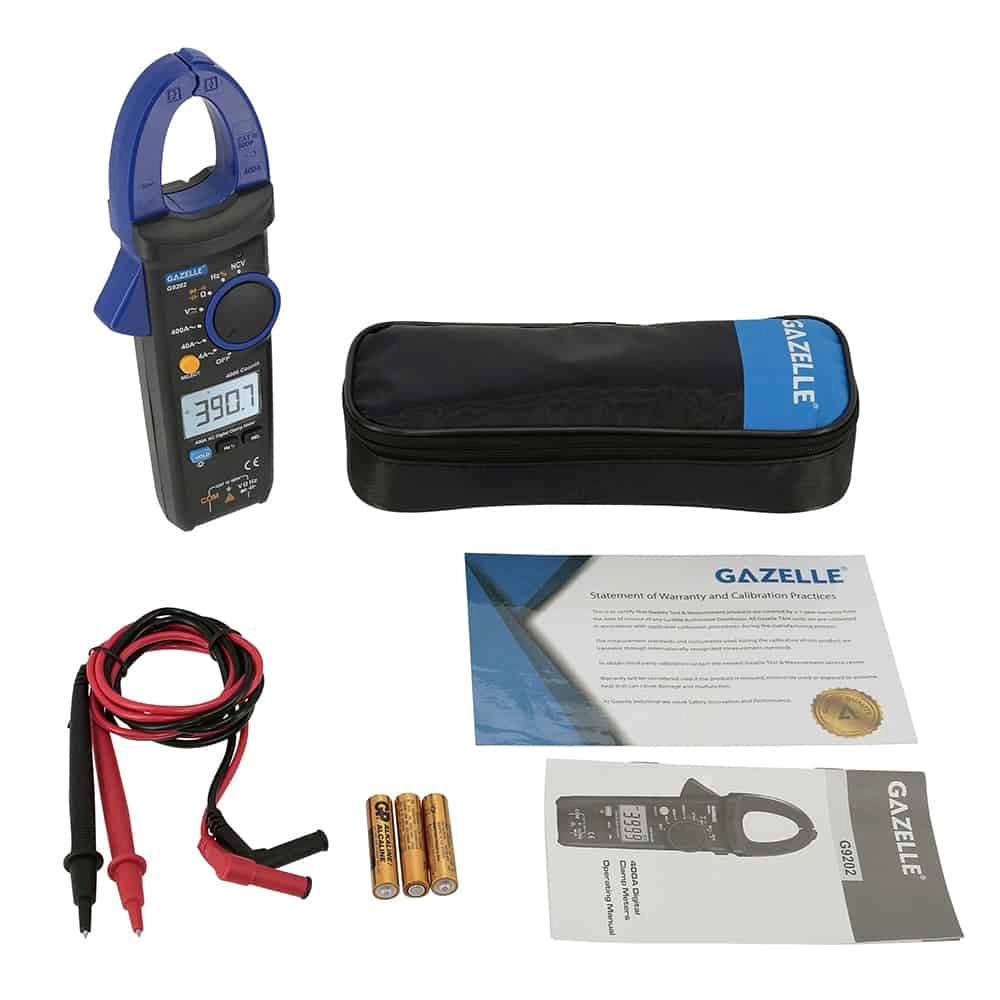

Items Included

• Operating Manual
• Carrying Case
• Test Lead
