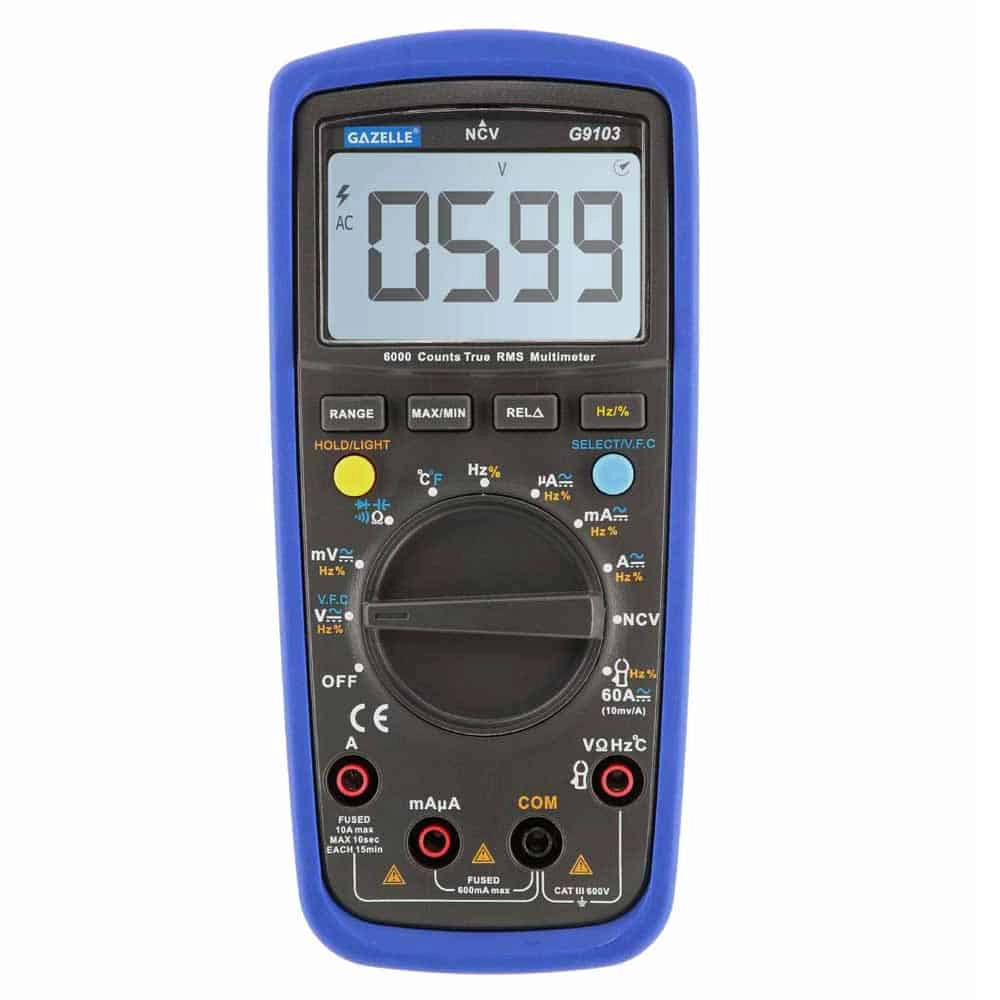

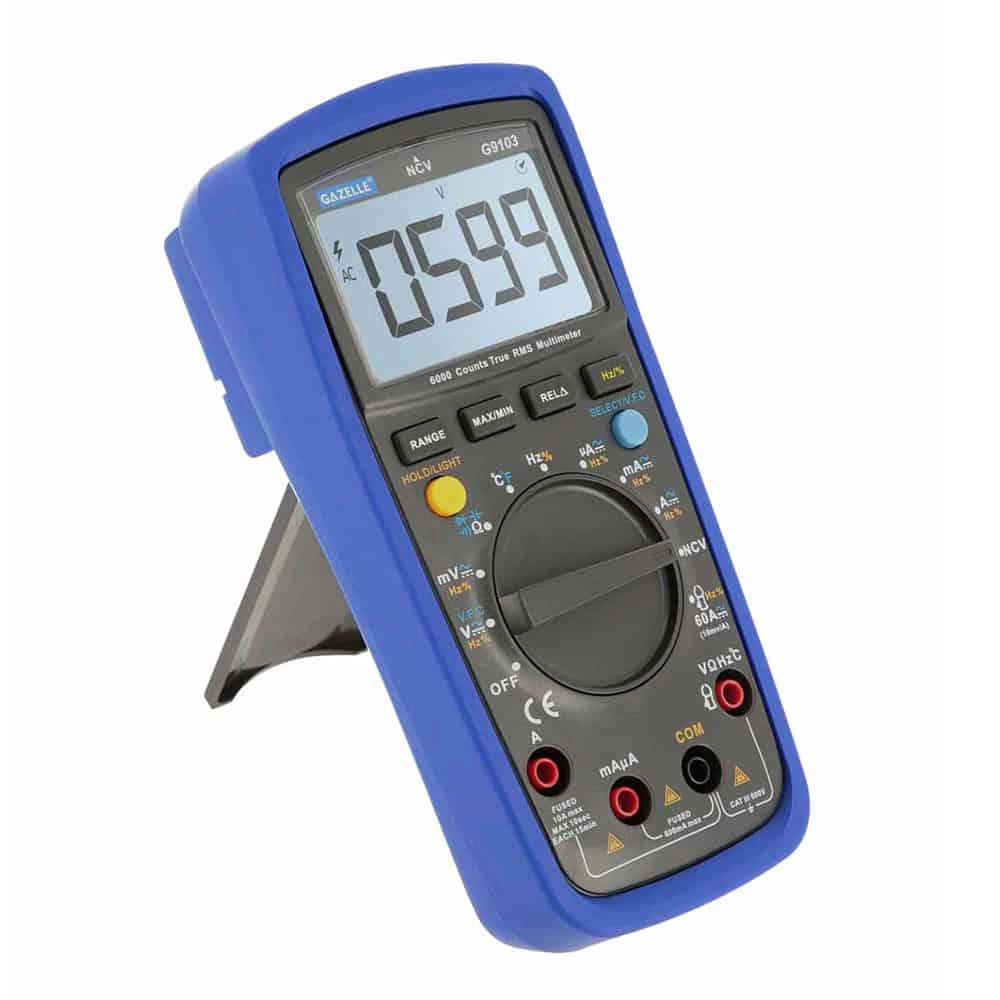

Gazelle G9103 True RMS Auto Ranging Digital Multimeter, CAT III 600V, 10A

Features

• True RMS: True RMS technology for precise measurements of AC voltage and current.
• Voltage Measurement: Measures DC voltage up to 600V and AC voltage up to 600V.
• Current Range: DC and AC current measurement range from 600μA to 10A for versatile applications.
• Resistance Range: Wide resistance range up to 60MΩ for comprehensive testing needs.
• Capacitance: Capacitance measurement range from 9.999nF to 99.99mF for advanced diagnostics.
• Frequency Range: Frequency measurement range from 10Hz to 10MHz for diverse applications.
• Temperature Capability: Measures from -40°C to 1000°C (-40°F to 1832°F) with a thermocouple probe.

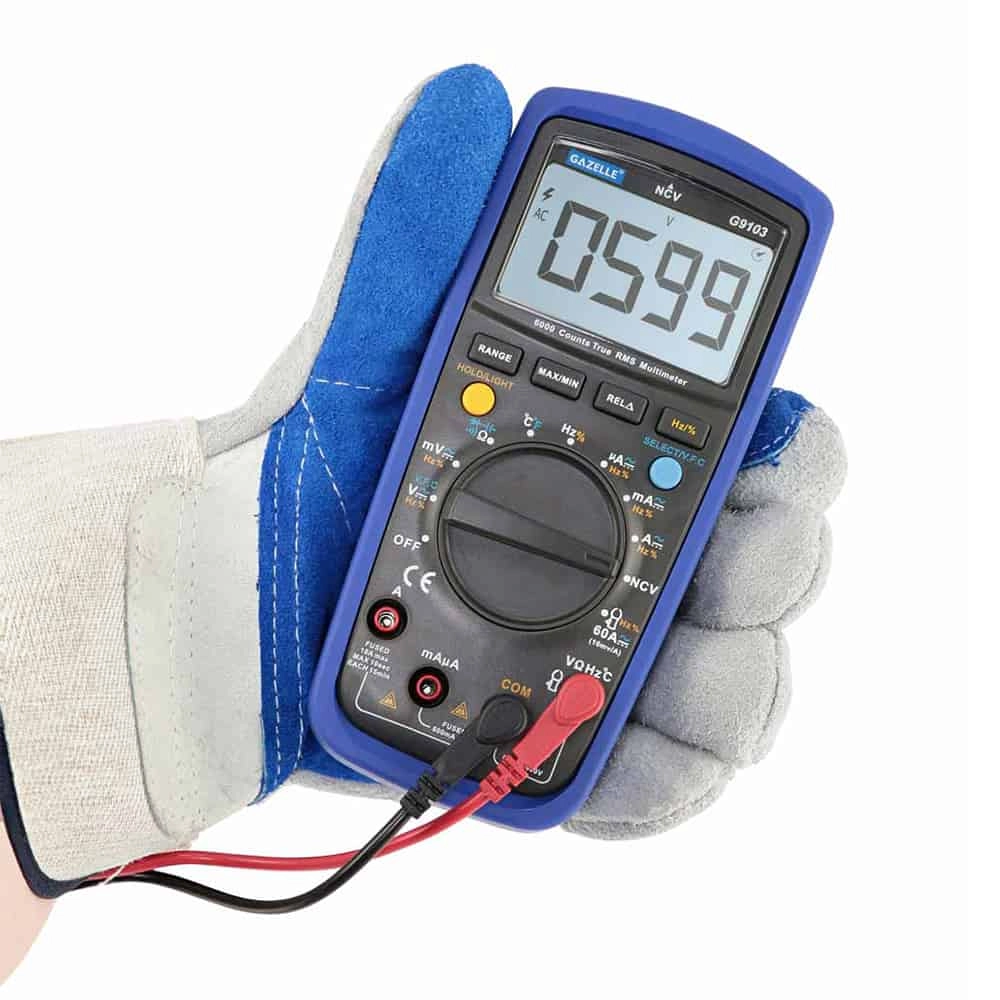

• Durability: Rugged design that passes a 2-meter drop test for durability in demanding environments.
• NCV Detection: Non-Contact Voltage detection for added safety during operations.
• Operating Range: Broad operating temperature range from 0°C to 40°C for reliable performance.
• Functionality: Multi-functional digital multimeter offering value for professional use.

Technical Information

• DC Voltage60mV-600V
• AC Voltage60mV-600V
• DC Current600μA-10A
• AC Current600uA-10A
• Resistance600Ω-60MΩ
• Capacitance9.999nF-99.99mF
• Temperature-40 to 1000°C (-40 to 1832°F)
• Frequency10Hz-10MHz

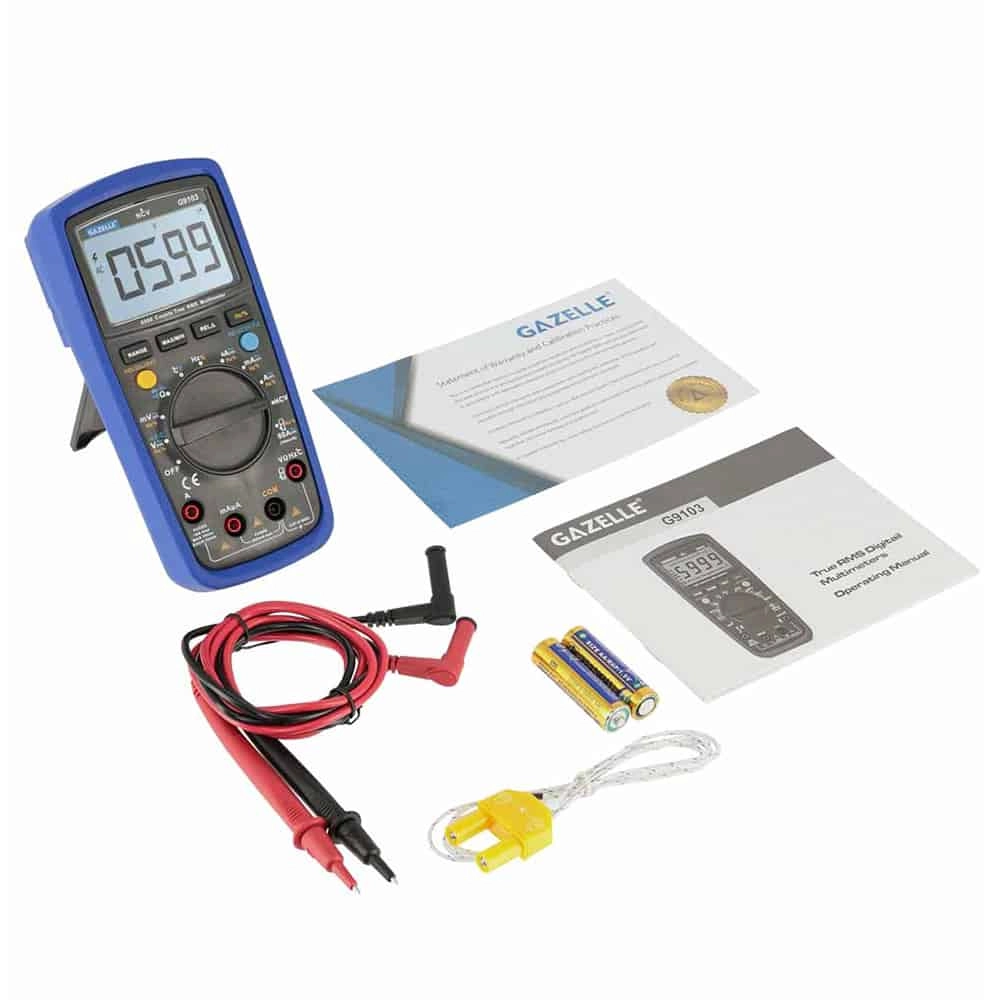

Items Included

• User Manual
• Test Lead
• K-Type Thermocouple

Downloads

Datasheet
