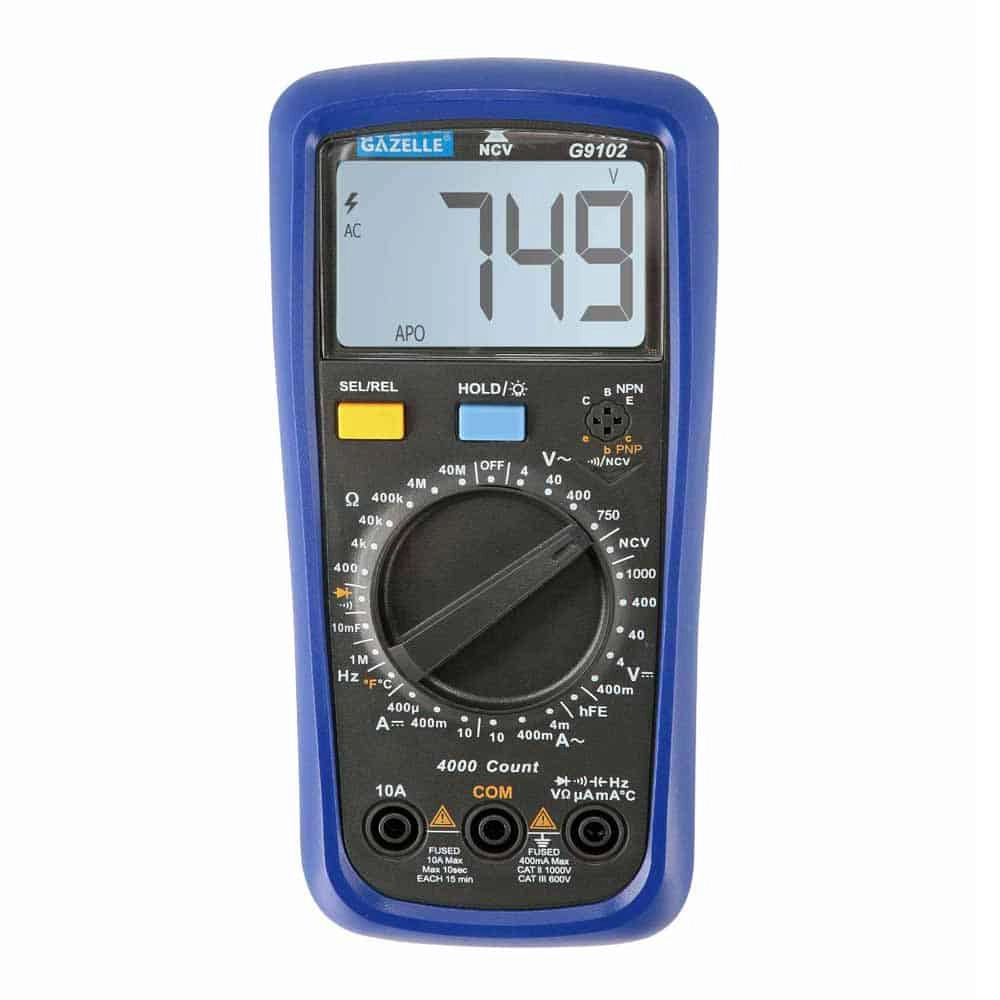

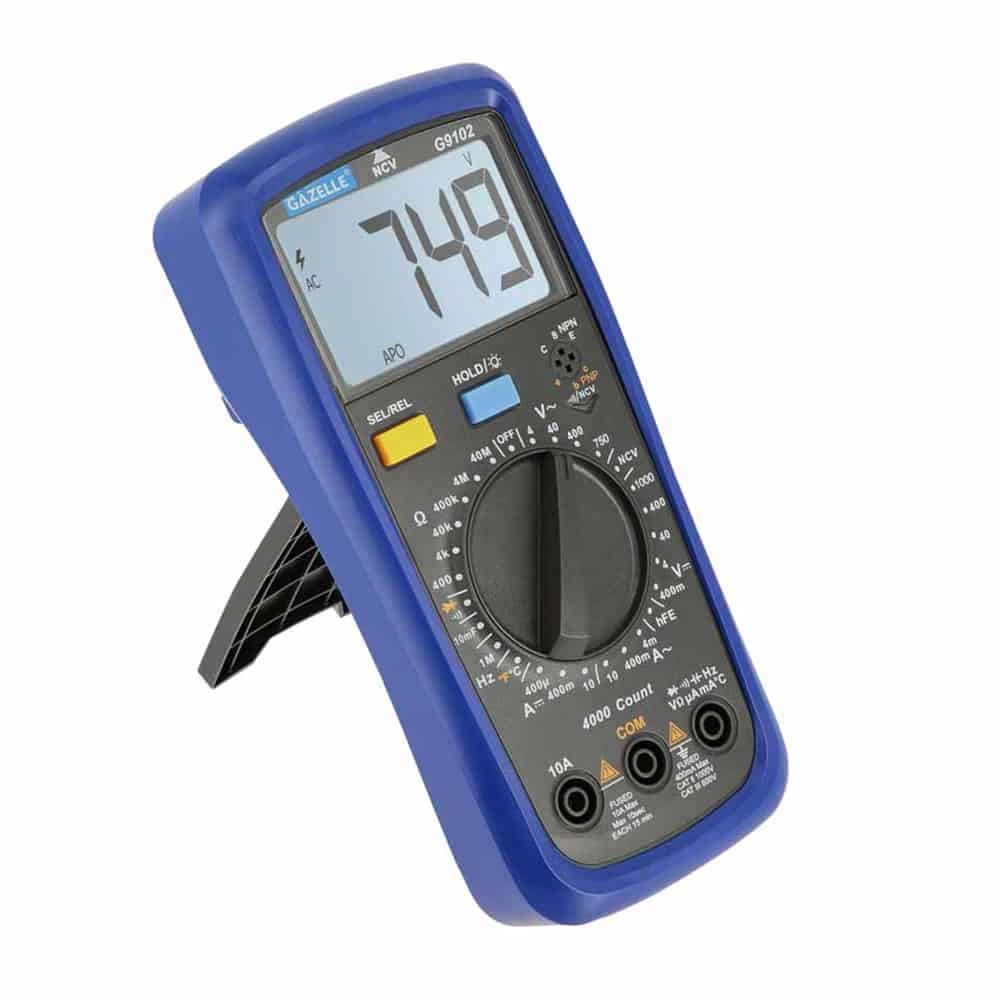

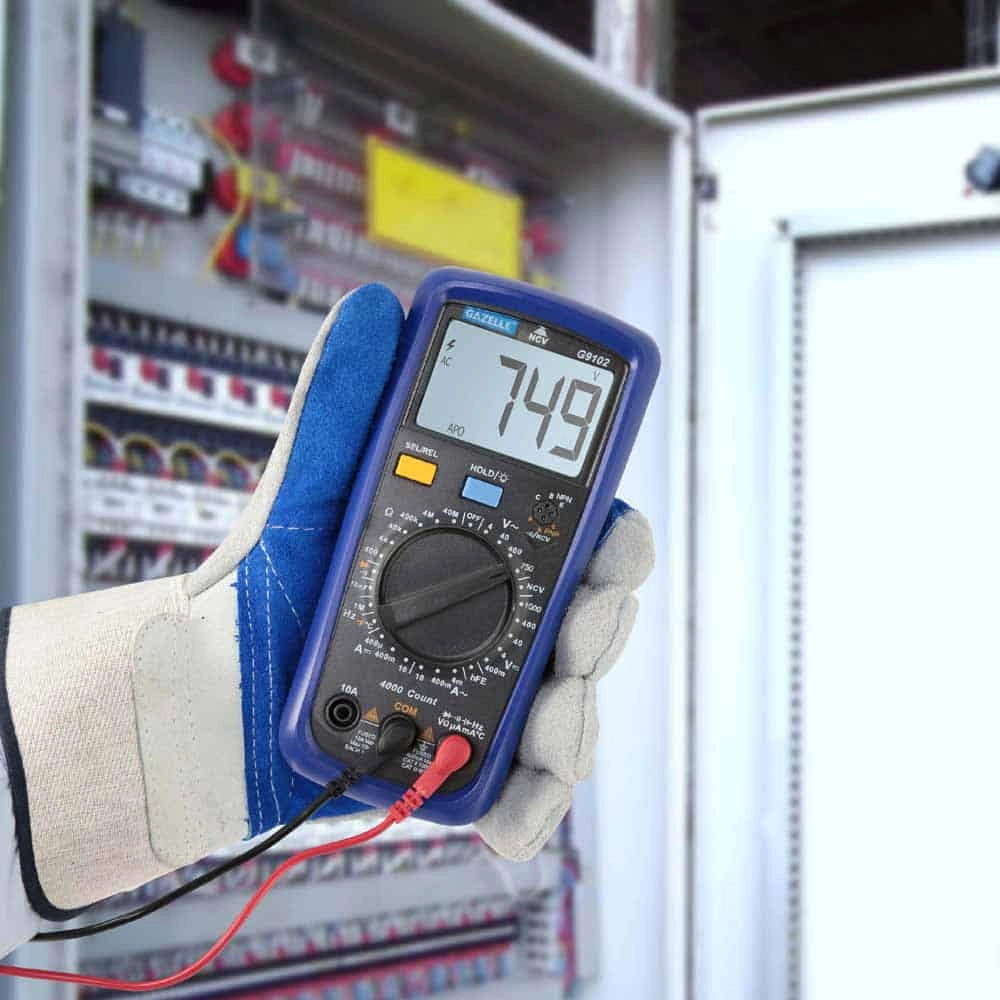

Gazelle G9102 Digital Multimeter, CAT III 600V, 10A

Features

• Voltage Measurement: Measures DC voltage up to 1000V and AC voltage up to 750V for versatile applications.
• Current Range: DC current measurement from 400μA to 10A and AC current up to 10A.
• Resistance Range: Wide resistance range up to 40MΩ for comprehensive testing needs.
• Capacitance: Capacitance measurement range from 4nF to 10mF for advanced diagnostics.
• Frequency Range: Frequency measurement range from 10Hz to 1MHz for diverse applications.
• Temperature Capability: Measures from -40°C to 1000°C (-40°F to 1832°F) with a thermocouple probe.
• Durability: Rugged design that passes a 2-meter drop test for durability.
• NCV Detection: Non-Contact Voltage detection for added safety.
• Operating Range: Broad operating temperature range from 0°C to 40°C for reliable performance.
• Functionality: Multi-functional digital multimeter offering value for money.
• Display: Includes a large LCD display for clear and accurate readings.

Technical Information

• DC Voltage400mV-1000V
• AC Voltage4V-750V
• DC Current400μA-10A
• AC Current4mA-10A
• Resistance400Ω-40MΩ
• Capacitance4nF-10mF
• Temperature-40 to 1000°C (-40 to 1832°F)
• Frequency10Hz-1MHz

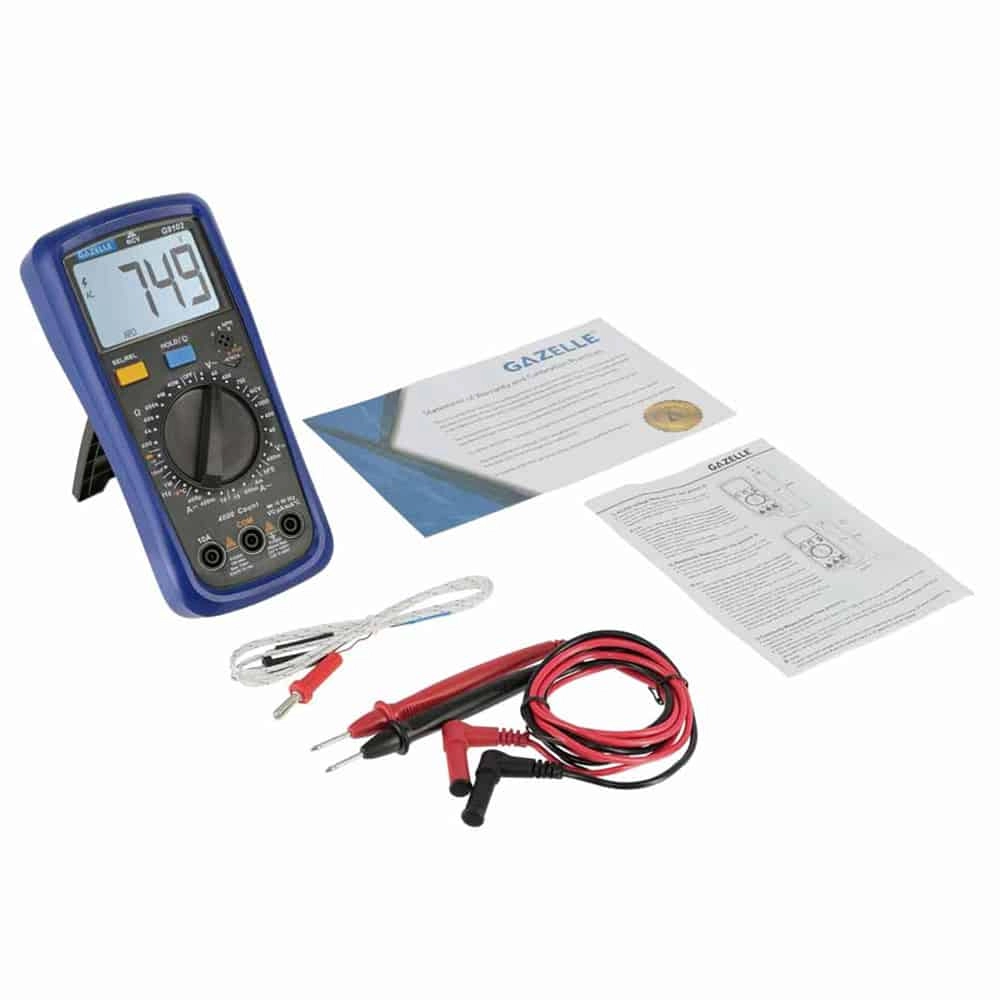

Items Included

• User Manual
• Test Lead
• K-Type Thermocouple

Downloads

Datasheet
