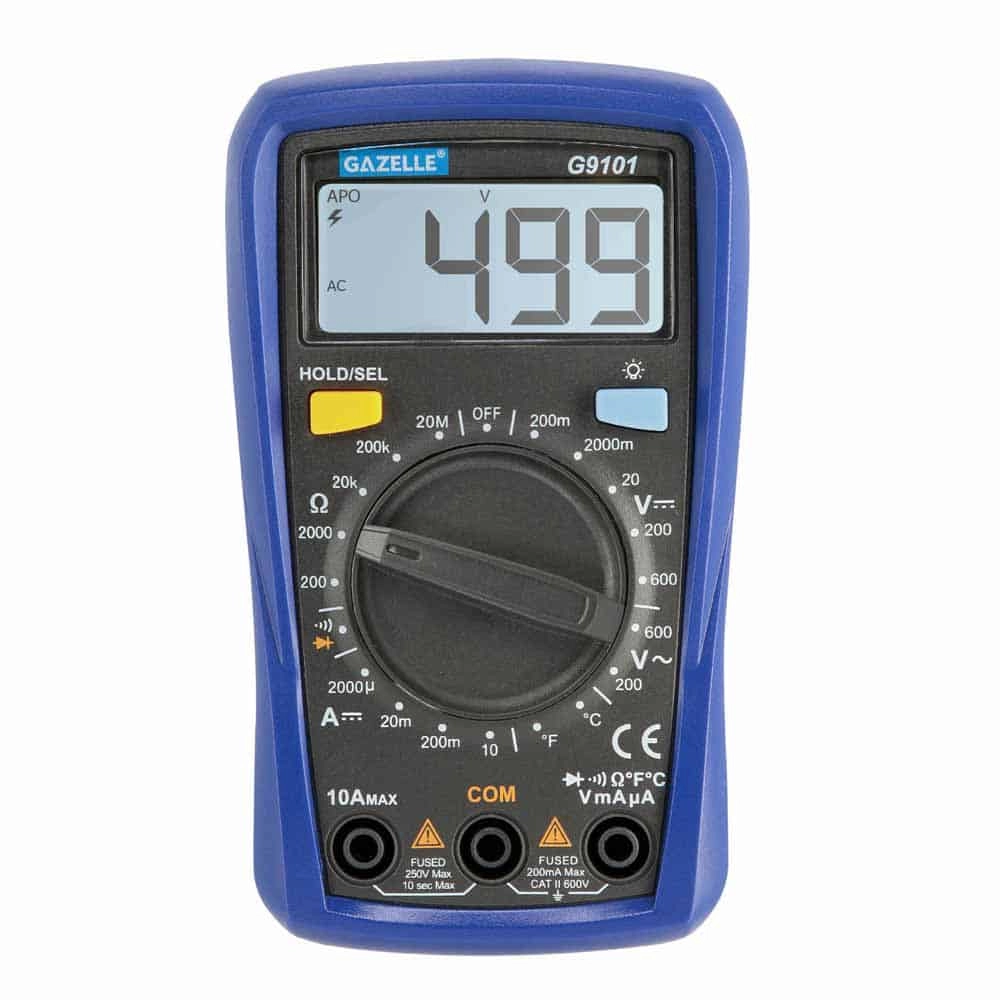

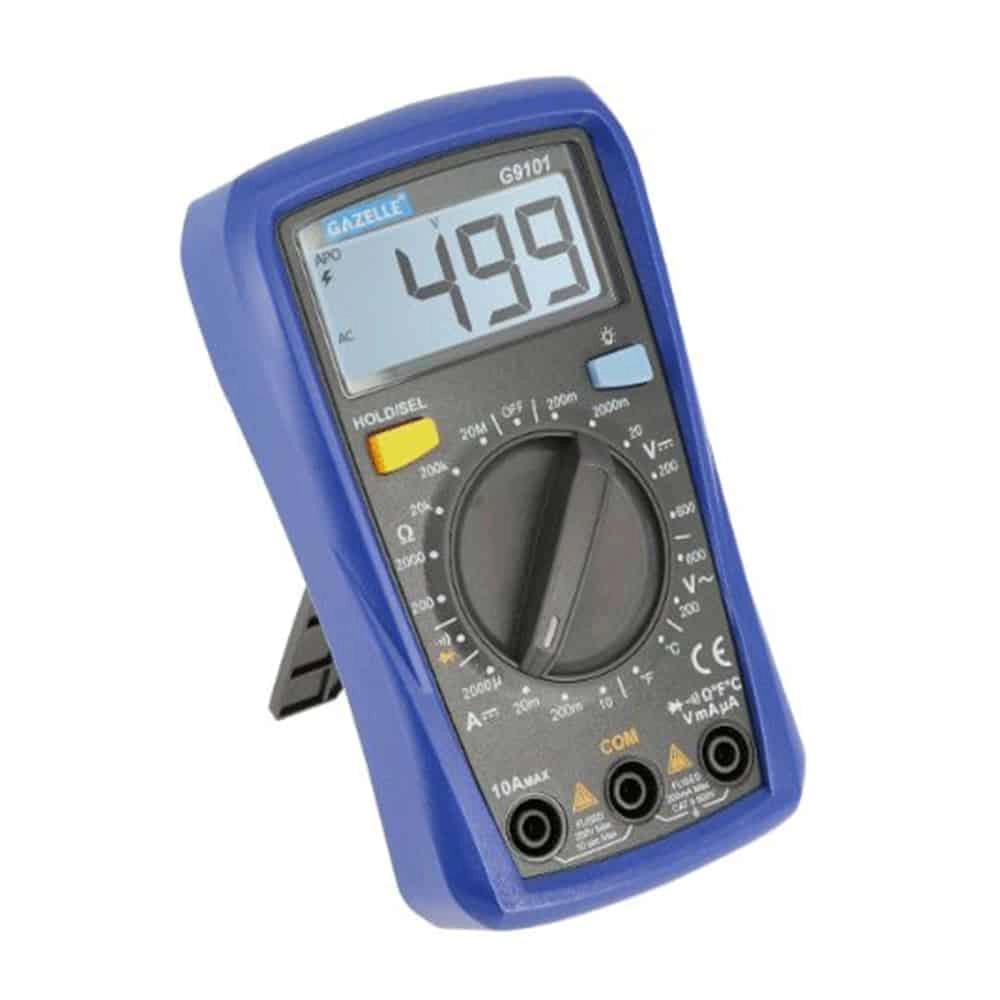

Gazelle G9101 Palm Size Digital Multimeter, CAT II 600V, 10A

Features

• Design: Compact and lightweight design for easy portability and use.
• Voltage Measurement: Measures DC voltage up to 600V and AC voltage up to 600V.
• Current Range: DC current measurement range from 2000μA to 10A for versatile applications.
• Resistance Range: Wide resistance range up to 20MΩ for comprehensive testing needs.
• Temperature Capability: Temperature measurement from -40°C to 1000°C (-40°F to 1832°F).
• Display: Large LCD display with bright white backlight for clear visibility.
• Safety Rating: Safety rated at CAT II 600V for reliable operation in various environments.
• Durability: Rubber holster for extra protection against drops and impacts.
• Power Efficiency: Auto-off feature to conserve battery during inactivity.
• Functionality: Entry-level digital multimeter with functions for continuity, diode, and temperature testing.

Technical Information

• DC Voltage200mV-600V
• AC Voltage200V-600V
• DC Current2000μA-10A
• Resistance200Ω-20MΩ
• Temperature-40 to 1000°C (-40 to 1832°F)
• Dimensions134x76.5x47mm

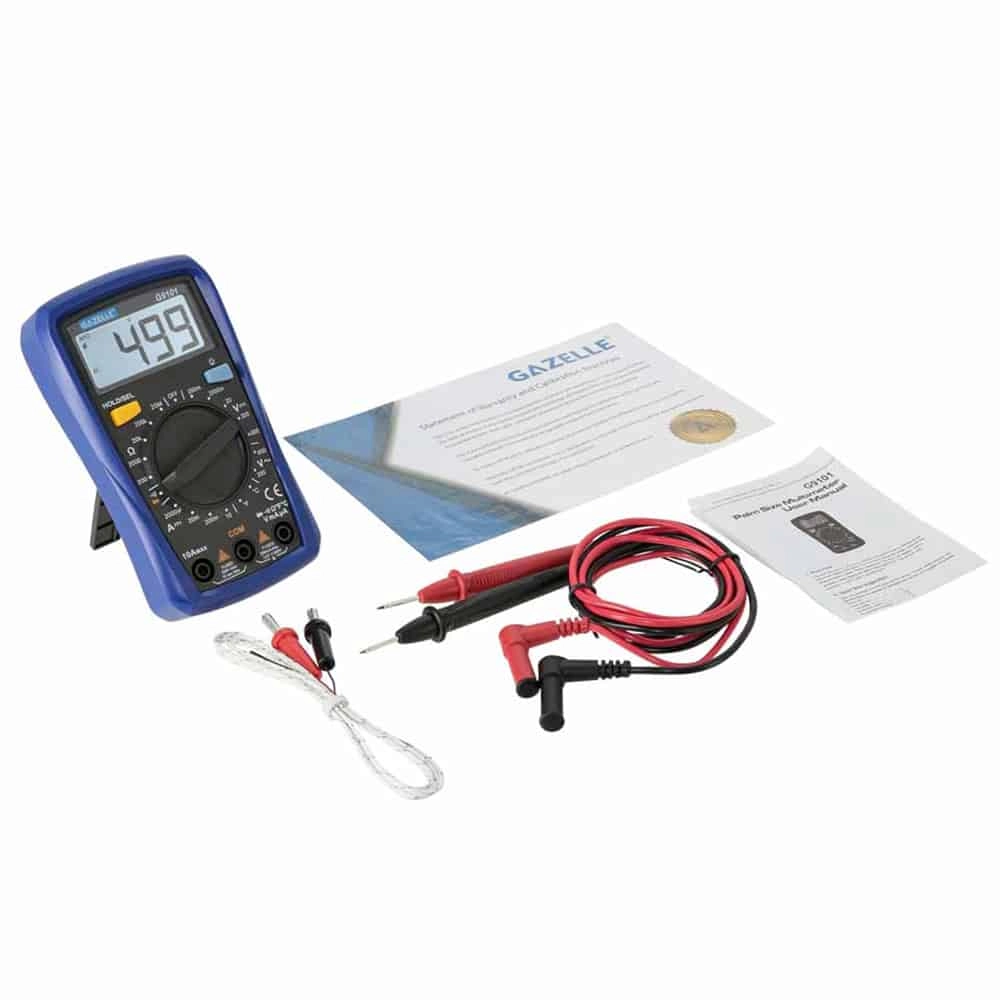

Items Included

• User Manual
• Test Lead
• K-Type Thermocouple

Downloads

Datasheet
