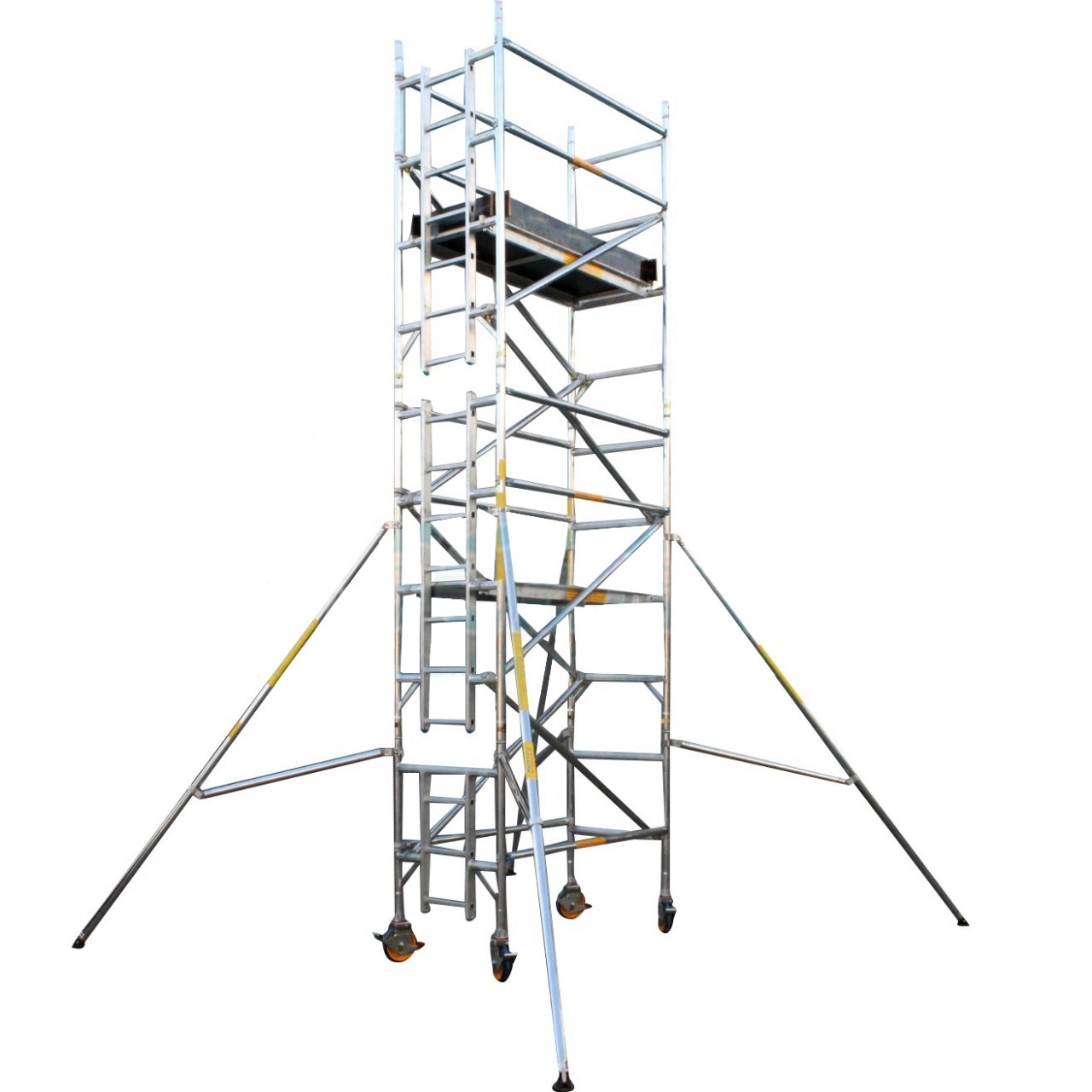

Gazelle G6104 Single Width Scaffold Tower, 80x180cm, 5m
Model # G6104Key Features
?
Question about this product?
Features
- Working Height: Provides secure elevated access for tasks requiring up to 6 meters of working height.
- Compact Width: Single-width 80cm frame design allows easy access through narrow pathways and confined spaces.
- Platform Size: 80cm x 180cm platform delivers sufficient space for technicians and necessary tools.
- Load Capacity: Supports a 600kg load capacity to handle workers and heavy-duty equipment simultaneously.
- Mobility: Fitted with 15cm heavy-duty wheels for smooth relocation across industrial surfaces.
- Assembly: Simple modular construction allows quick assembly and disassembly with minimal tools.
- Durability: Constructed for durability and reliability under demanding on-site conditions.
Technical Information
- Tower Height5.0m
- Platform Height4.0m
- Working Height6.0m
- Platform Size80cm x 180cm
- Tower Width80cm
- Wheel Size15cm
- Load Capacity600kg
Items Included
- 4 x 20 cm Wheel 60 cm Adjustable Jack & Nut
- 2 x 80 cm Wide 2 Rung Guardrail Frame 100 cm High
- 2 x 80 cm Wide 4 Rung Ladder Frame 200 cm High
- 2 x 80 cm Wide 4 Rung Span Frame 200 cm High
- 1 x 179.2 cm Long Trapdoor Platform
- 6 x 178 cm Long Horizontal Brace
- 4 x 205 cm Long Diagonal Brace
- 2 x 168 cm Long Wooden Side Toe- Board
- 2 x 68 cm Long Wooden End Toe- Board
- 4 x 200 cm Long Stabilizer With Extruded Clamp
- 8 x Snappins
