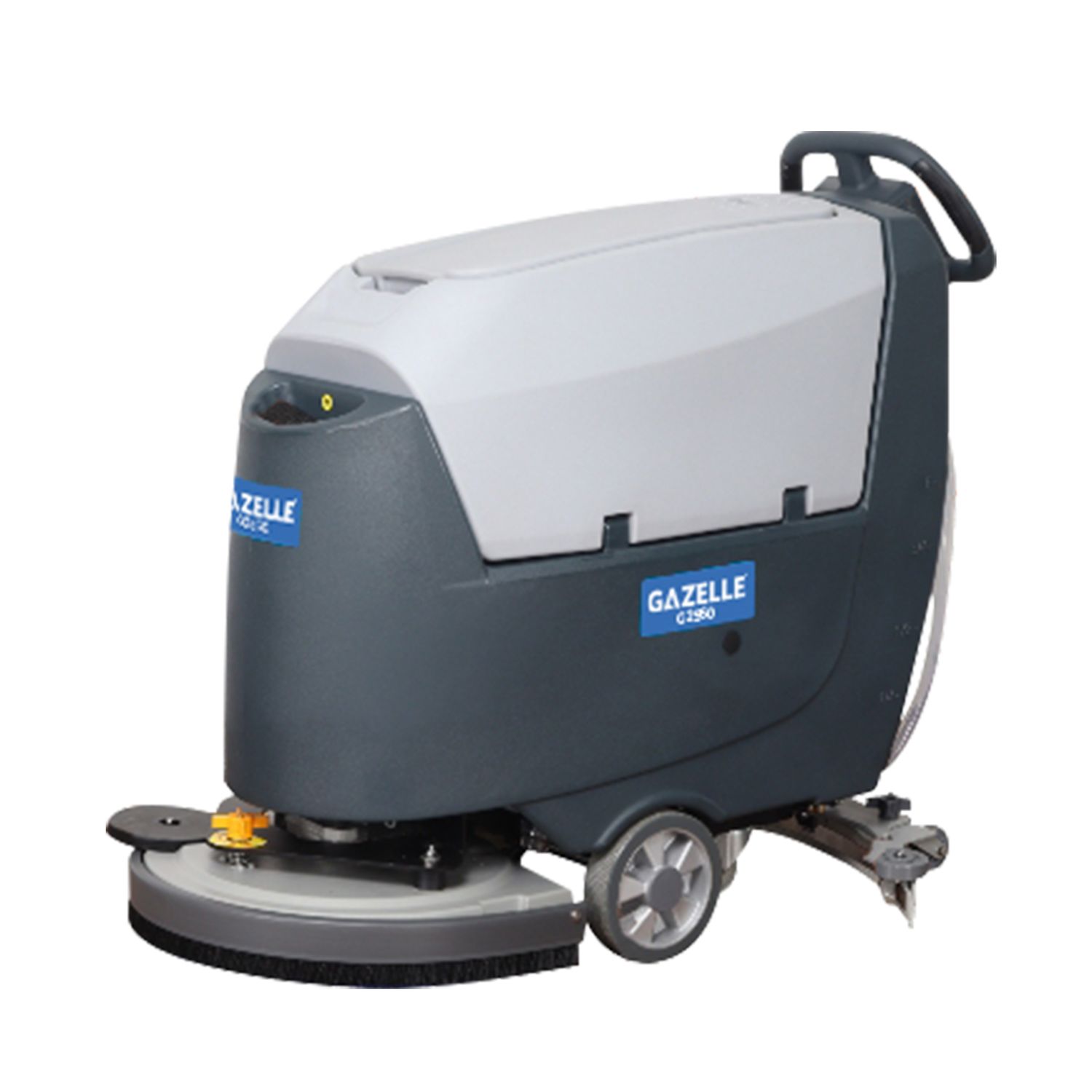

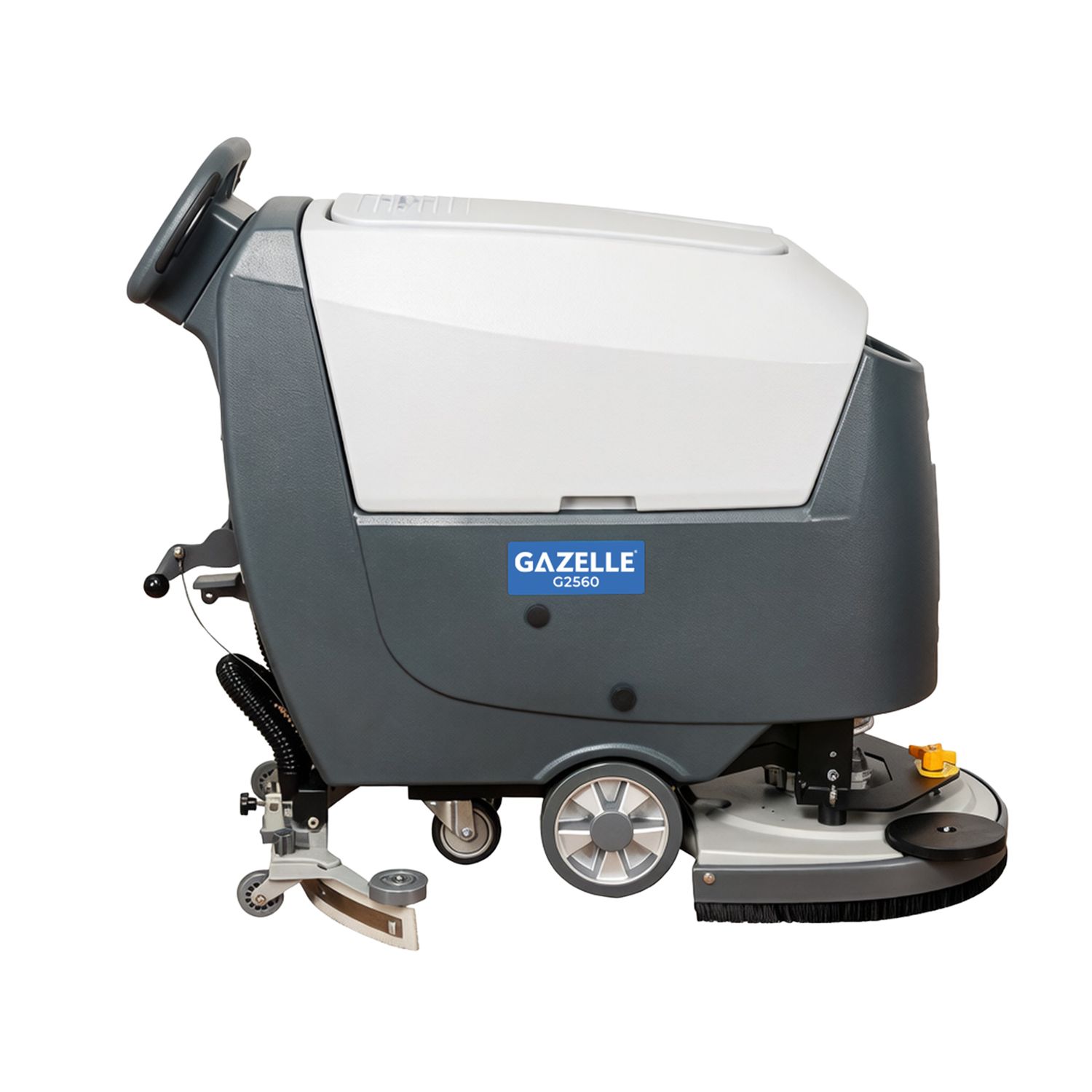

Gazelle G2560 Intelligent Push-Type Single-Bursh Floor Washer

Features

• Filtered Water Inlet: Wide water inlet equipped with a filter sponge to effectively block debris and protect internal components
• Tool-Free Recovery Tank Access: Easily remove and clean the recovery tank without the need for tools, saving time on maintenance
• Advanced Wastewater Filtration System: Efficiently separates wastewater and debris, with automatic suction shut-off when the tank reaches full capacity
• Waterproof Control Panel: Durable, waterproof button panel ensures safe and reliable operation in wet environments
• High-Efficiency Brush Deck (530 mm): Wide 530 mm brush plate delivers powerful cleaning performance, covering more area in less time
• Integrated Control Console: User-friendly console provides real-time water level monitoring and seamless control of key machine functions
• Stable Mobility Wheels: Designed for smooth maneuverability with enhanced stability, minimizing the risk of tipping during operation
• Efficient Squeegee System: Wear-resistant C-shaped squeegee ensures thorough water recovery, leaving floors clean and streak-free

Technical Information

• Efficiency 2200 m2/hour
• Purging Tank 50 L
• Slop Tank 55 L
• Wiper Width 760 mm
• Washing Width 530 mm
• Operating Voltage 24V
• Brush Motor Power 550W
• Suction Motor Power 400W
• Brush Disc Diameter ⌀530 mm
• Dial Diameter ⌀530 mm
• Brush Speed 153 RPMBrush Pressure
• Suction 12.5 Kpa
• Working Noise <70 dB(A)
• Battery Compartment Size 340 x 340 x 230 mm
• Standard Battery Capacity 2 x 12V 100Ah
• Continuous Working Hours 3-5 hour
• Overall Size 1200 x 540 x 1058 mm
• Weight 190 kg

Downloads

Datasheet
