Gazelle G2540 7.9M Portable Material Duct Lifter
Key Features
?
Question about this product?
Features
- Space-Saving Design: The compact structure allows for easy storage, with foldable legs that minimize storage space

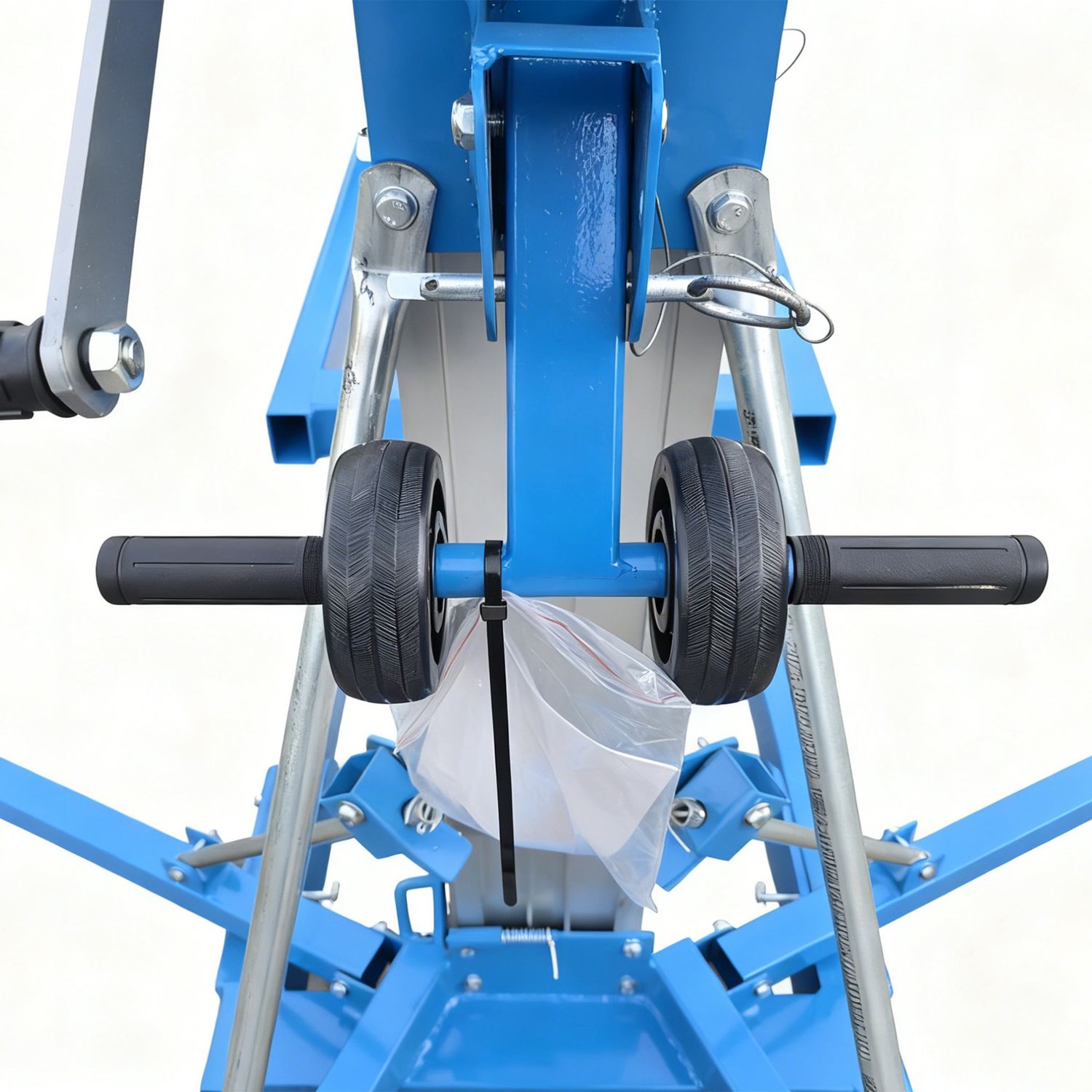

- Easy Mobility: Equipped with roller wheels for effortless transport, even when in the stowed position
- Perfect for Small Ducts: Engineered specifically for lifting and positioning small ducts, providing reliable performance in HVAC applications
- Portable and Versatile: Designed to easily roll through standard single doorways, making it perfect for use in various environments
- Ideal for HVAC Professionals: Optimized for both installation and ongoing maintenance of HVAC equipment and appliances
Technical Information
- Max Platform Height 7900mm
- Fork Dimensions720 x 510mm
- Working Height (Fork Top)7900 mm
- Working Height (Fork Bottom) 7400mm
- Working Length 2030 x 1820 x 2010mm
- Ground Clearance40 mm
- Load Center (40cm) 250kg
- Load Capacity (60cm) 200kg
- Load Capacity (80cm) 150kg
- Storage Length (mm)L 740 x W 840 x H 2050
| Lifting Height | 3.5 Mtr | 5 Mtr | 6.5 Mtr | 7.9 Mtr |
|---|---|---|---|---|
| 40 cm | 400 kgs | 350 kgs | 300 kgs | 250 kgs |
| 60 cm | 350 kgs | 300 kgs | 250 kgs | 200 kgs |
| 80 cm | 300 kgs | 250 kgs | 200 kgs | 150 kgs |
