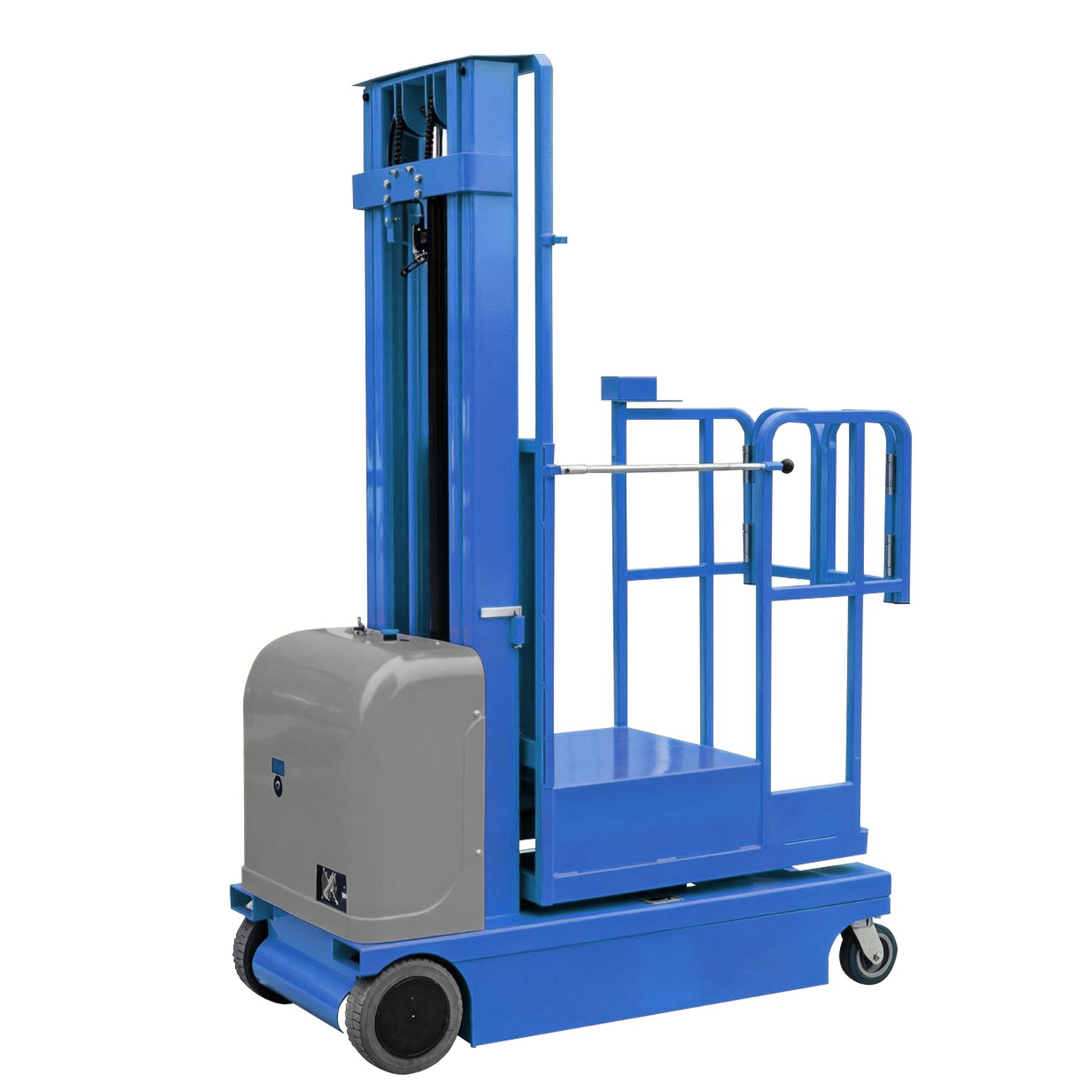

Gazelle G2517 6.5m Electric Order Picker, 300KG

Features

• Automatic walking function for smooth and efficient movement
• Performs lifting, forward and backward travel, and steering while elevated
• Designed for convenient single-person operation
• Compact size for easy use in narrow working spaces
• Large-capacity traction batteries for extended working time
• Circuit fault code display for quick diagnostics and easier maintenance
• Suitable for high-altitude operations across multiple industries and facilities
• Ideal for use in electric power, communication, airports, exhibition centers, hotels, supermarkets, factories, stations, docks, and subway stations

Technical Information

• Working Height (H2) 6500 mm
• Platform Height (H3) 4500 mm
• Load Capacity 300 kg
• Platform Size 900 x 640 mm
• Weight 675 kg
• Overall Length (L1) 1530 mm
• Overall Width (W1) 700 mm
• Overall Height (H1) 1980 mm
• Ground Clearance 50 mm
• Wheelbase 1240 mm
• Front Wheels 60 in
• Drive Wheel 250 x 80 mm
• Maximum Slope 1.5 - 3º
• Max Drive Speeds (Stowed) 4 km/h
• Max Drive Speeds (Raised) 1.1 km/h
• Up/Down 23/25 sec
• Gradeability 30%
• Drive Motors 2 x 24V / 0.5kW
• Lifting Motor 24VDC / 1.5kW
• Battery 2 x 12V / 105Ah
• Charger 24V / 15A
