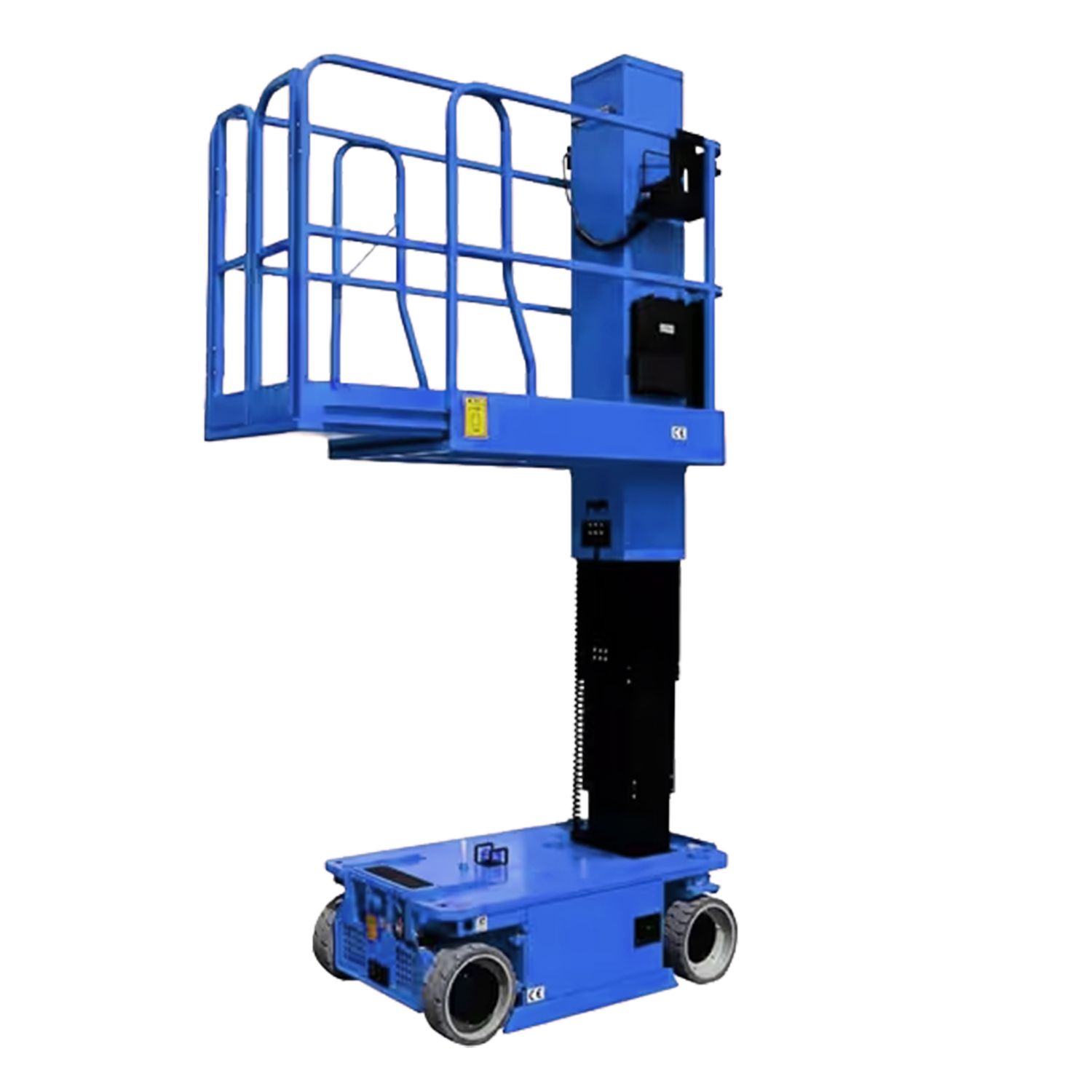

Gazelle G2516 6.8m Self-Propelled Vertical Mast Lift, 227kg

Features

• Powerful electric drive system provides exceptional duty cycles. The fully proportional drive and lift controls, superior drive efficiency, improved controllability, and consistent torque
• 90° front wheel steering provides zero turning radius and excellent performance and around job site maneuverability
• Low gross vehicle weight and wide non-marking tires provide low ground pressures and help protect finished flooring
• Electrical brake release system, lift/tie down points, makes loading and transportation safe and easy
• Compact size and low weight allow passage through a standard doorway and carriage in a passenger elevator
• Simple, maintenance-free, fixed pothole protection system has no moving parts but allows drive over typical site debris due to improved ground clearance
• Forklift fork pockets located at the rear with the tie down and lift points at rear of machine
• Top of the mast is in-line with the platform rails, which is beneficial for overhead working, especially drop ceilings
• All components are located inside the base, the maintenance hatch provides easy, unrestricted access to all major components and batteries. Commonality of components and approach across the mast range which increases familiarity making it easy to service and maintain

Technical Information

• Max Working Height 6800 mm
• Max Platform Height4800 mm
• Load Capacity227 kg
• Ext Platform Capacity114 kg
• Weight980 kg
• Inner Turing Radius0 mm
• Outer Turing Radius1400 mm
• Travel Seep (Stowed)4 km/h
• Travel Seep (Raised)1.1 km/h
• Up/Down41.5/42 sec
• Gradeability25%
• Overall Length1360 mm
• Overall Width760 mm
• Overall Height1980 mm
• Platform Dimension1300 x 700 mm
• Ext Platform Length510 mm
• Wheel Base1040 mm
• Drive Tyre305 x 100 mm
• Drive Motors2 x 24VDC / 0.5kW
• Lifting Motor24DC / 1.3kW
• Battery2 x 12V / 100Ah
• Charger24V / 15A
