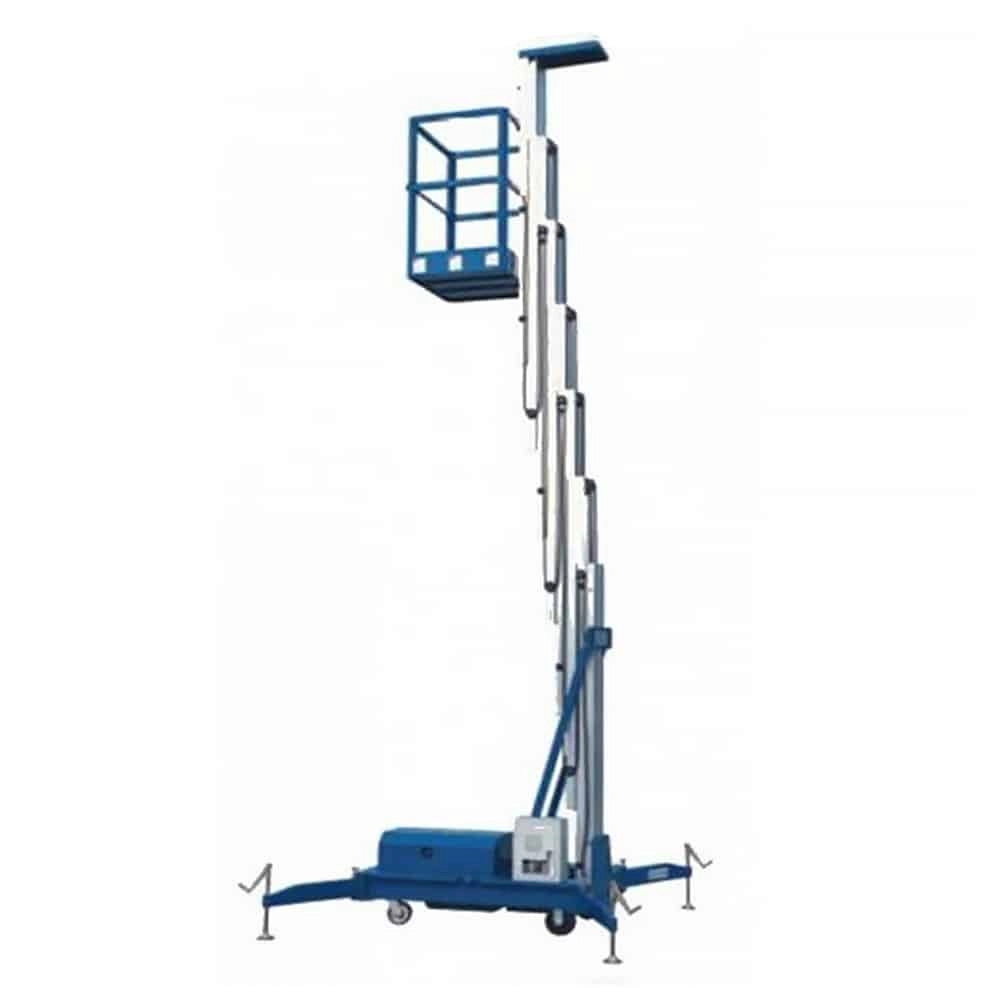

Gazelle G2510 10m Single Mast Aerial Work Platform

Model #   G2510

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • Load Capacity: High load capacity of 125kg supports a variety of industrial tasks.
  • Platform Height: Maximum platform height of 10m provides excellent vertical reach for elevated work.
  • Working Reach: Working height of 11.7m allows easy access to high areas.
  • Platform Size: Compact platform size of 0.6x0.55m ensures operator stability and safety.
  • Stabilizing Legs: Support legs expand to 1.93x1.77m for enhanced stability during operation.
  • Ground Clearance: Ground clearance of 80mm ensures smooth movement over flat and even surfaces.
  • Compact Dimensions: Compact overall size of 1.5x0.8x1.95m allows for easy storage and transportation.
  • Power Options: Dual voltage compatibility with 220V AC and 24V DC offers versatile power options.
  • Build Quality: Sturdy construction with a total weight of 400kg ensures durability and reliability.

Technical Information

  • Load Capacity125kg
  • Max Platform Height10m
  • Working Height11.7m
  • Platform Size0.6x0.55m
  • Support Leg Expand1.93x1.77m
  • Ground Clearance80mm
  • Overall Size (LxWxH)1.5x0.8x1.95m
  • Voltage (AC)220V
  • Voltage (DC)24V
  • Weight400kg
