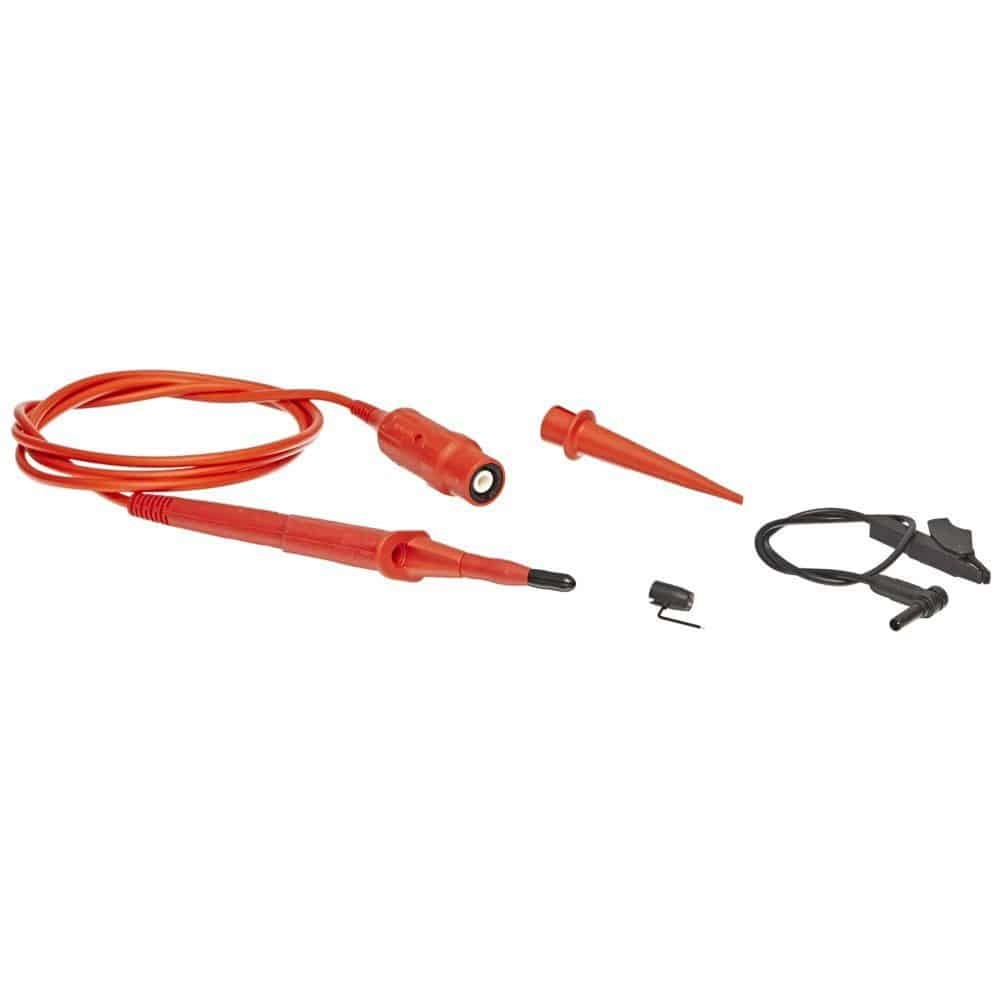

Fluke VPS212-R 10:1 Voltage Probe Set, Red, 200 Mhz, 2.5M
Model # VPS212-R
Key Features
?
Question about this product?
Features
- Attenuation: 10x
- Bandwidth: 200 MHz
- Max. Input Voltage 1000 V CAT II or 600 V CAT III
- Max. Voltage to ground: 1000 V CAT II or 600 V CAT III per IEC / EN61010-031
- Input Resistance: 10 MΩ
Technical Information
- Attenuation 10x
- Bandwidth 200 MHz
- Max. input voltage 1000 V CAT II or 600 V CAT III
- Max. voltage to ground 1000 V CAT II or 600 V CAT III per IEC / EN61010-031
- Input resistance 10 MΩ
- Input capacitance 18 pF
- Compensation range 10 to 30 pF
- Cable length 2.5 m
