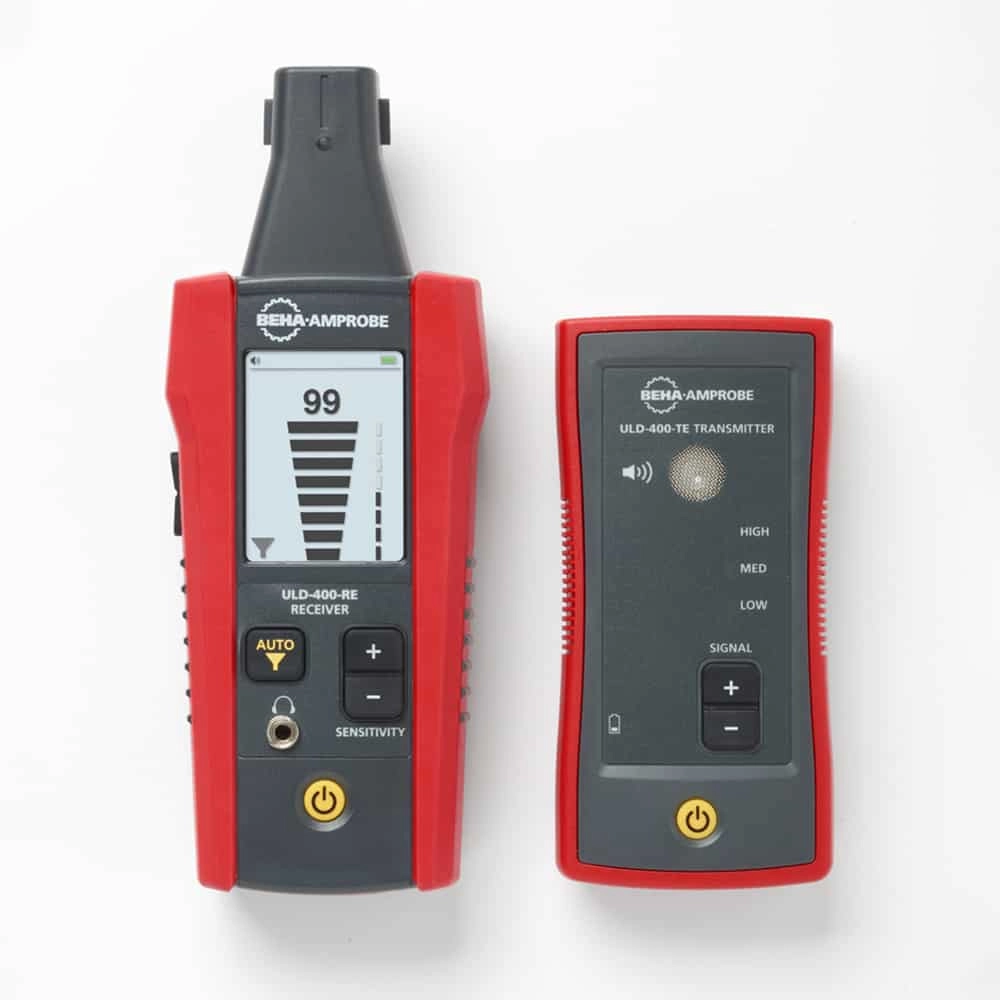

Fluke ULD-420 Amprobe Ultrasonic Leak Detector, 20-90KHz, 240x320 Pixels

Features

• Transmitter generates an ultrasonic signal when working in unpressurized systems
• Three Receiver filters to remove main noise frequencies in noisy environments
• Adjustable Receiver sensitivity for accurate leak pinpointing
• 20 kHz to 90 kHz frequency range: optimal range for detecting a variety of leakage events
• 2.5” LCD display with bargraph
• Quality headphones to help identify the source of the leak
• Parabola accessory directs the ultrasound towards the sensor
• Detachable Tubular Extension provides additional reach in hard to reach areas

Technical Information

• Sensitivity Adjustment (Receiver)Yes
• Volume Adjustment (Receiver)Yes
• Signal Level Adjustment (Transmitter)Yes
• Earphone Jack (3.5 mm) (Receiver)Yes
• Display Size (Receiver)LCD 2.5 in (6.35 cm)
• Display Dimensions (Receiver)1.45 x 1.93 in (36.72 x 48.96 mm)
• Display Resolution (Receiver)240(RGB) x 320 pixels
• Display Type (Receiver)TFT-LCD (262 K)
• Display Color (Receiver)True, 16bit/color
• Battery Life (typical) (Receiver)105 hours (Alkaline)
• Battery Life (typical) (Transmitter)60 hours (Alkaline)
• Weight (Receiver)Approx. 0.518 lb (0.235 kg)
• Weight (Transmitter)Approx. 0.335 lb (0.152 kg)
• APO function (Receiver)60 minutes when in idle
• Operating Temperature (Receiver)-4 °F to 122 °F (-20 °C to 50 °C)
• Storage Temperature (Receiver)-4 °F to 158 °F (-20 °C to 70 °C)
• Operating Humidity (Receiver)<80% RH
• Pollution Degree (Receiver)2
• Protection (Receiver)IP40
• Dimensions (Receiver)7.547 x 2.984 x 1.791 in (183 x 75 x 43 mm)
• Dimensions (Transmitter)5.295 x 2.559 x 1.326 in (137 x 65 x 33 mm)

Downloads

Datasheet
