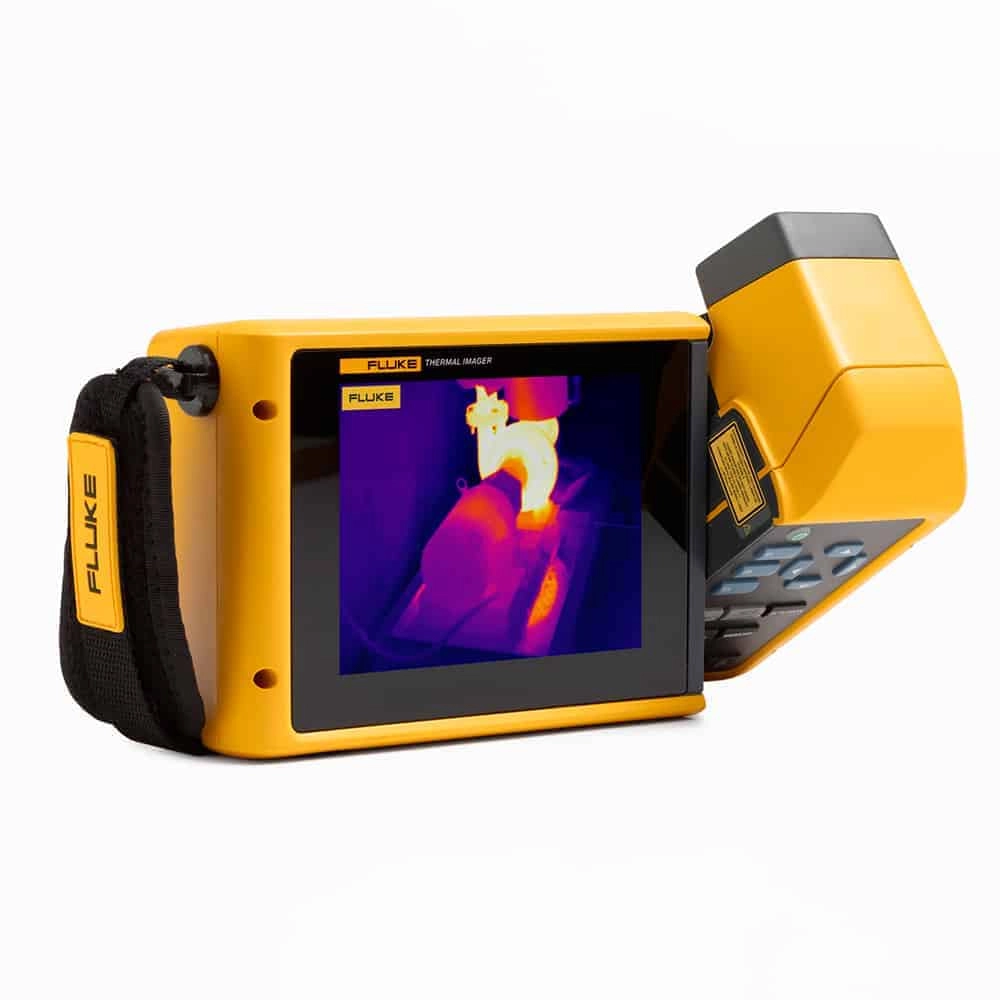

Fluke TIX580 9Hz/NFC Thermal Imaging Camera, 640 x 480, 9Hz, NFC, -20 to 1000 °C
Model # TIX580 9Hz/NFC
Key Features
?
Question about this product?
Features
- 5.7-inch screen provides 150 % more viewing area than a standard 3.5-inch screen
- 240 degree rotating screen provides unmatched shooting flexibility
- The ergonomic design and neck strap make long inspection days a lot easier
- LaserSharp¨ Auto Focus calculates distance to your designated target with pinpoint1 accuracy
- Provides 4x the pixel data with on-camera SuperResolution to create a 1280 x 960 resolution image
- Rugged, superbly engineered 640 x 480 thermal imaging camera
- Provides large 5.7-inch responsive LCD touchscreen with 150% more viewing area than 3.5-inch screen
- Real-time temperature graphs
- Radiometric video recording
Technical Information
- IFOV (spatial resolution)0.93 mRad, D:S 1065:1
- Detector resolution640 x 480 (307,200 pixels)
- SuperResolutionYes, on camera and in software. Captures and combines 4x the data to create a 1280 x 960 image
- Frame rate60 Hz or 9 Hz versions
- Temperature-20 °C to 1000 °C
- Thermal sensitivity (NETD)≤ 0.05 °C at 30 °C target temp (50 mK)
- Laser pointerYes
- LED light (torch)Yes
- Color alarms (temperature alarms)High temperature, low temperature, and isotherms (within range)
- Spot temperatureHot and cold spot markers
Items Included
- Thermal imager with standard infrared lens AC power supply and battery pack charger (including universal AC adapters) Two
- rugged lithium ion smart battery packs USB cable HDMI video cable Bluetooth headset (where available) Rugged
- hard carrying case Adjustable neck and hand strap
- Available by free download Fluke Connect¨ SmartView desktop software and users manual
