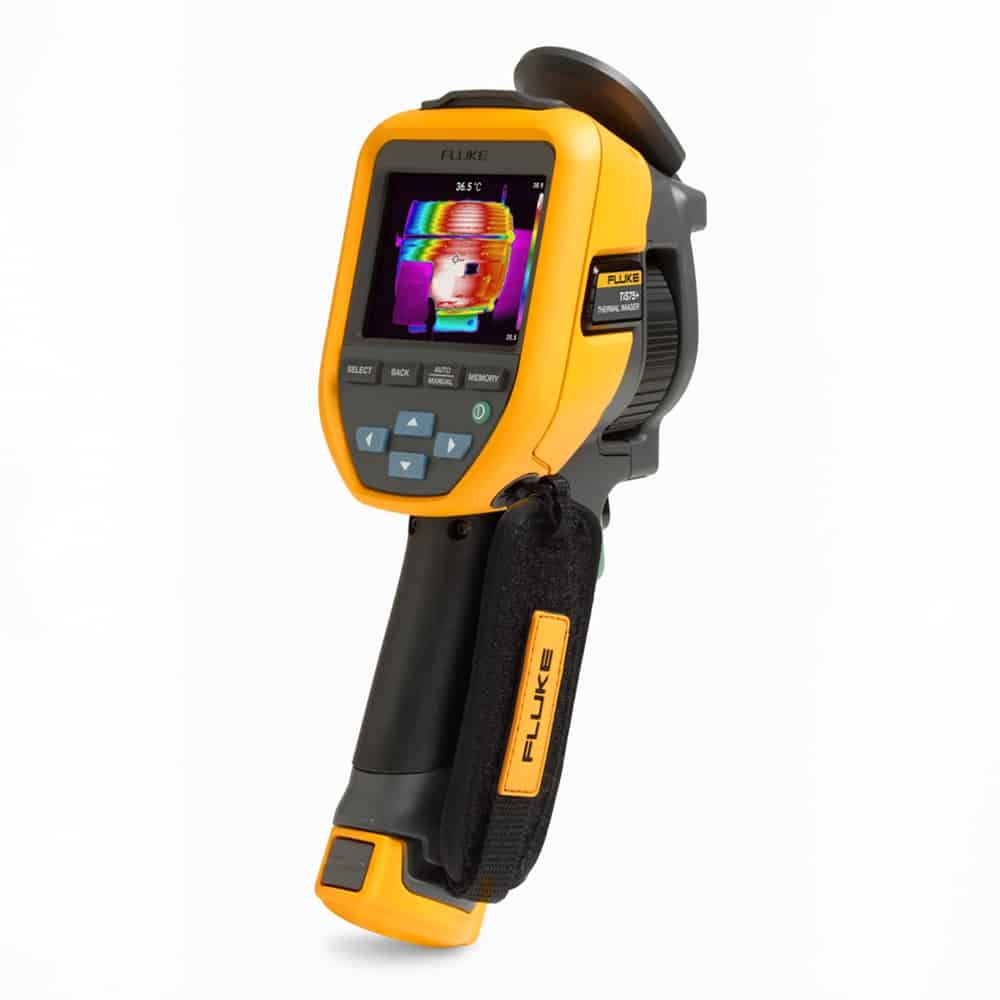

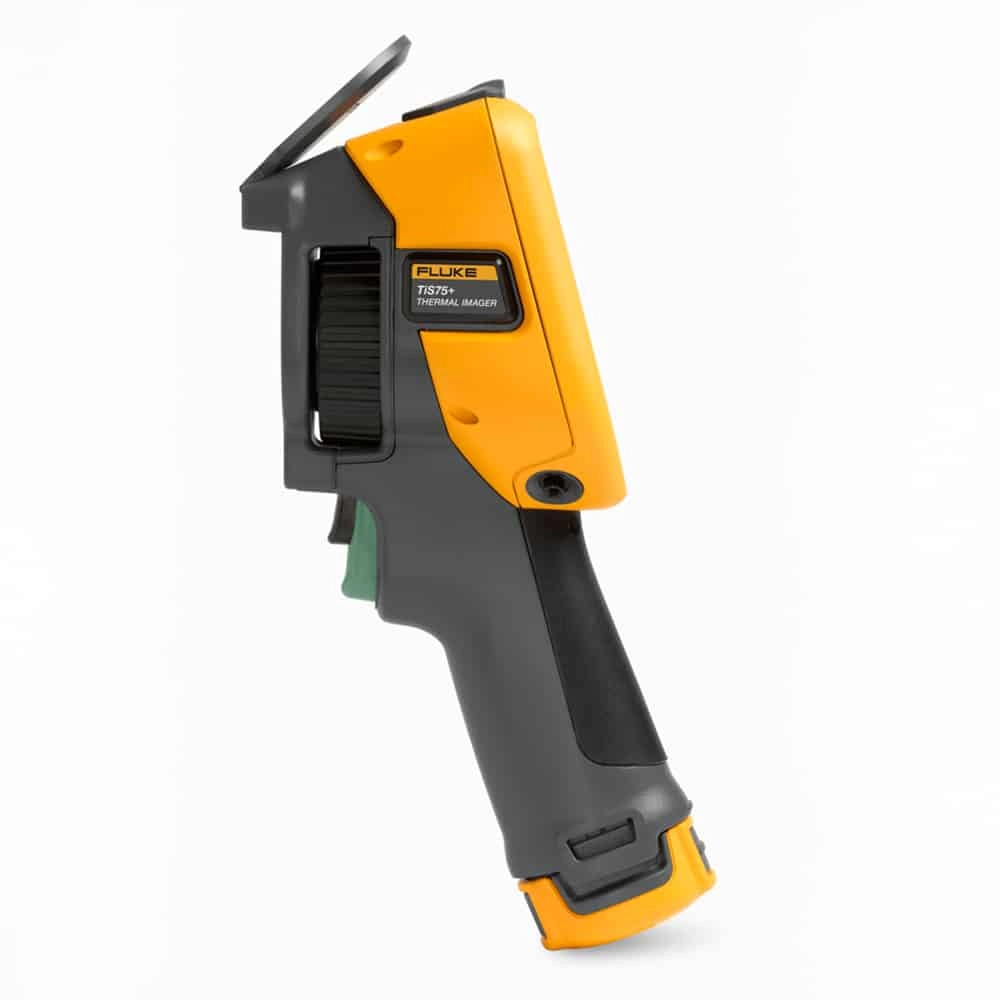

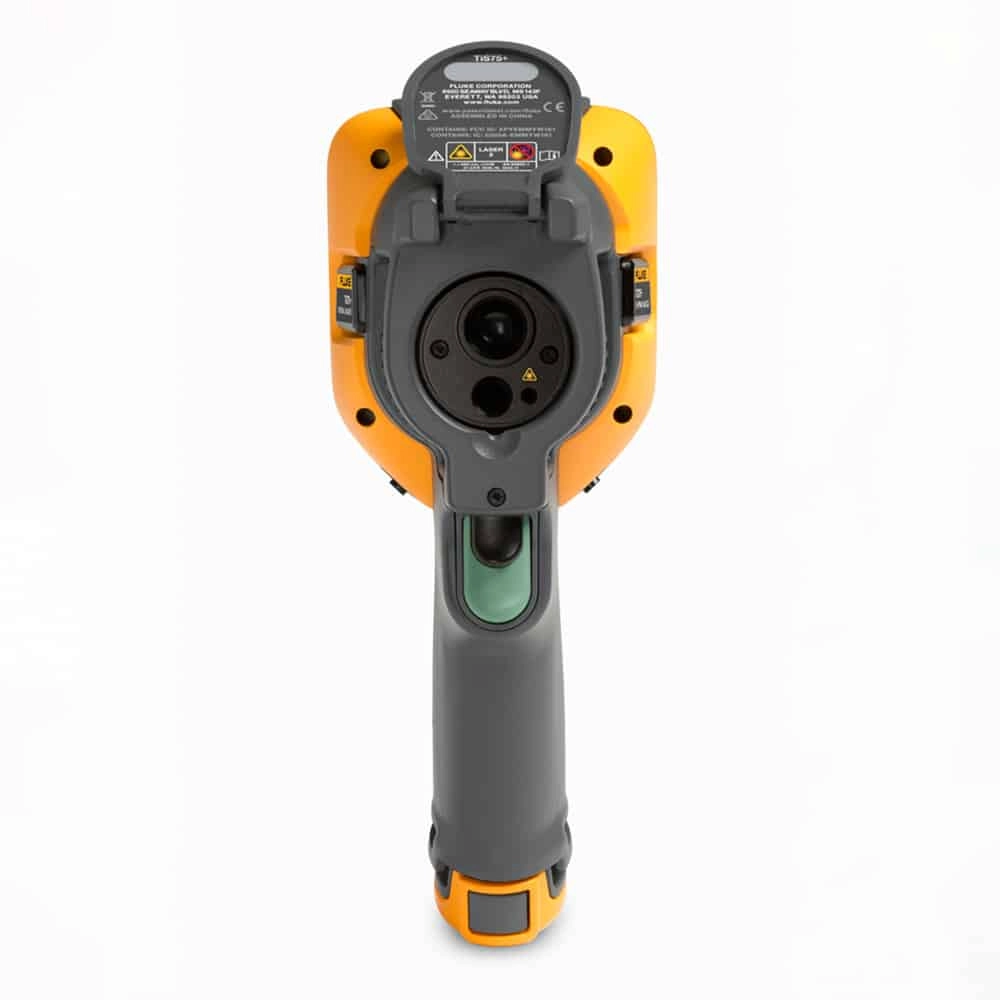

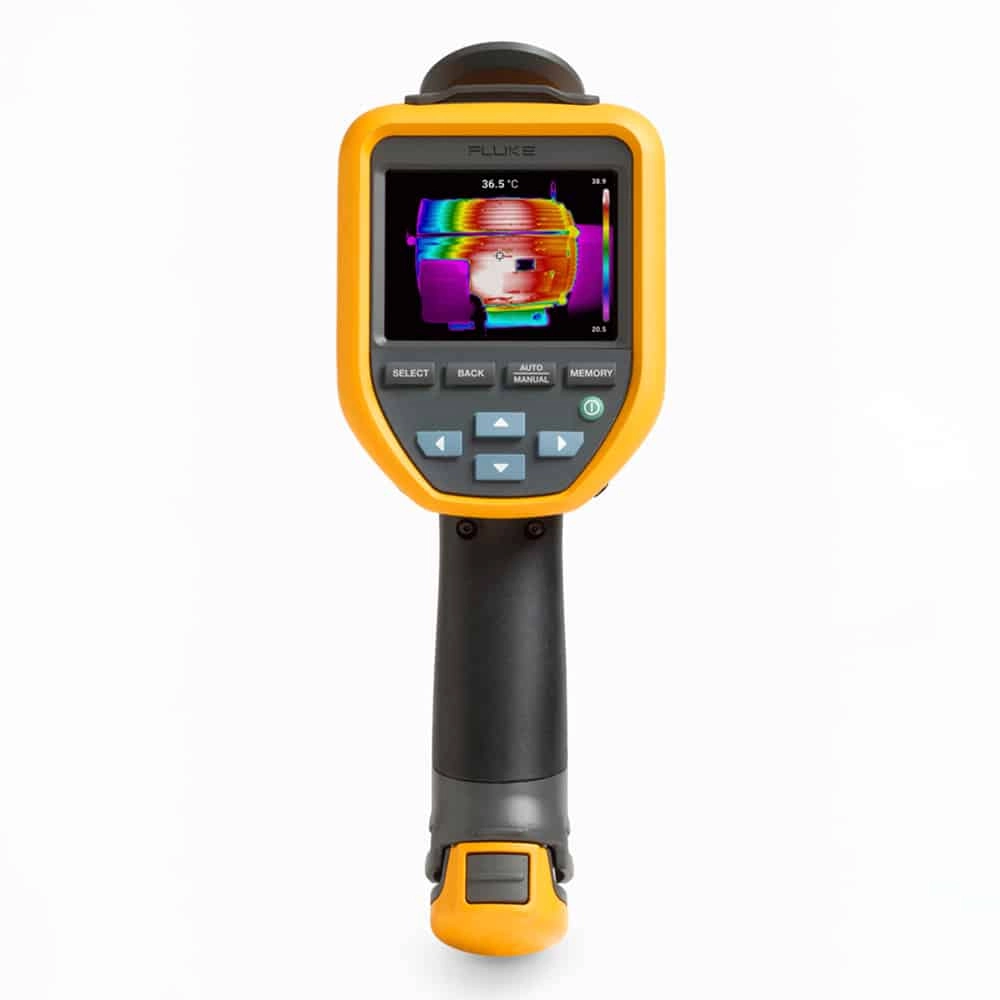

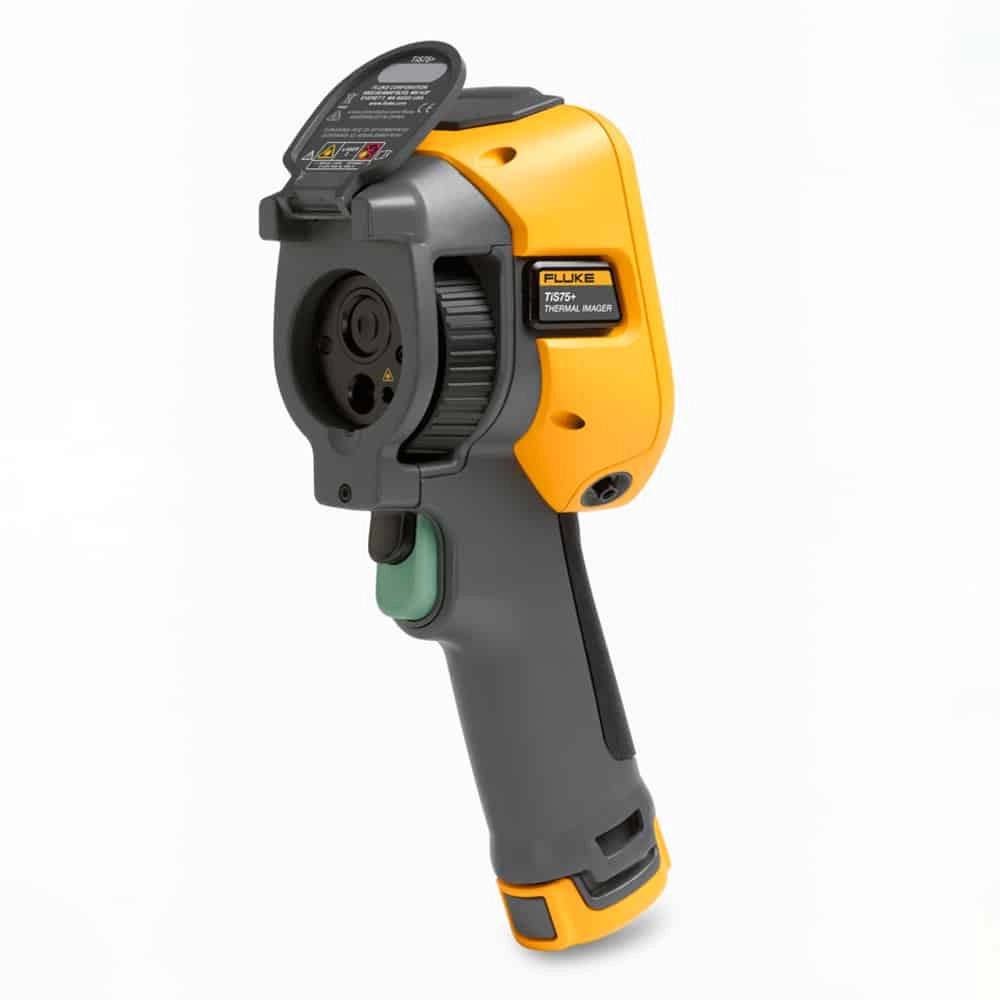

    FLUKE TIS75+ 9HZ Thermal Imager

    # TIS75+ 9HZ

    • 384 x 288 infrared resolution
    • Asset Tagging
    • Touchscreen IR Fusion™
    • IS3 and AVI video recording
    • Measure up to 550 °C
    • Dew-point calculation

    Ready to see it in action? Please provide us with your contact information, and one of our technical experts will contact you to schedule your product demonstration.

    Be proactive instead of reactive

    Take your plan for a proactive maintenance (PM) program and turn it into reality. To get started, you need features that make it easy to set up your image organization and inspection routines. With the TiS75+ you’re well on your way to implementing a successful PM program.

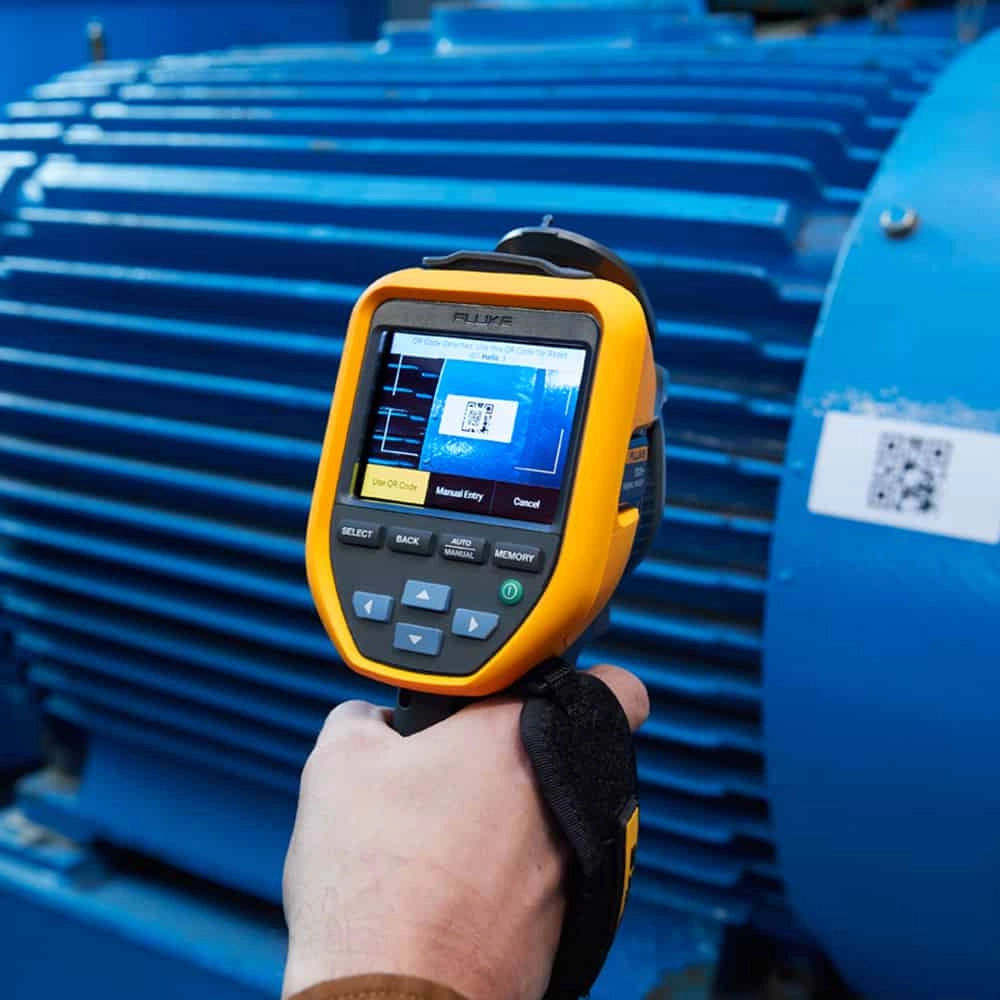

    • Asset Tagging allows you to easily compare asset images over time.
    • Scanning the QR code on each asset creates a timeline of your inspections.
    • Use the time saved (25% on average spent organizing thermal images) to analyze asset images for trends, diagnosing issues and fixing problems before they become failures.



    Step up to the TiS75+

    This new Fluke thermal camera stays true to our mantra of giving the customer more than they paid for. The Fluke TiS75+ offers features to help you tackle almost anything you’ll face in the field. In addition to the features noted above, the TiS75+ also includes:

    • IS3 and AVI video recording
    • Data streaming
    • 384 x 288 thermal resolution
    • High temperature range—up to 550 °C
    • Dew-point calculation
    Key FeaturesTiS75+
    Infrared resolution384 x 288 (110,592 pixels)
    IFOV1.91 mRad
    Field of view42° x 30°
    Minimum focus distance0.5 m
    Focus systemManual focus and fixed focus detent at 1 meter focus position
    Wireless connectivityYes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi and LAN (where available)
    Fluke Connect app compatibleYes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
    Fluke Connect Assets optional softwareYes*, assign images to assets and create work orders. Easily compare measurement types – whether mechanical, electrical or infrared images – in one location
    Asset TaggingScan a QR code to automatically organize and file thermal images with Fluke Connect™
    IR-Fusion technologyAutoBlend continuous 0 % to 100 %. Adds the context of the visible details to your infrared image
    Picture-InPicture (PIP)Yes
    Display3.5″ (8.9 cm landscape) touchscreen 640 x 480 LCD

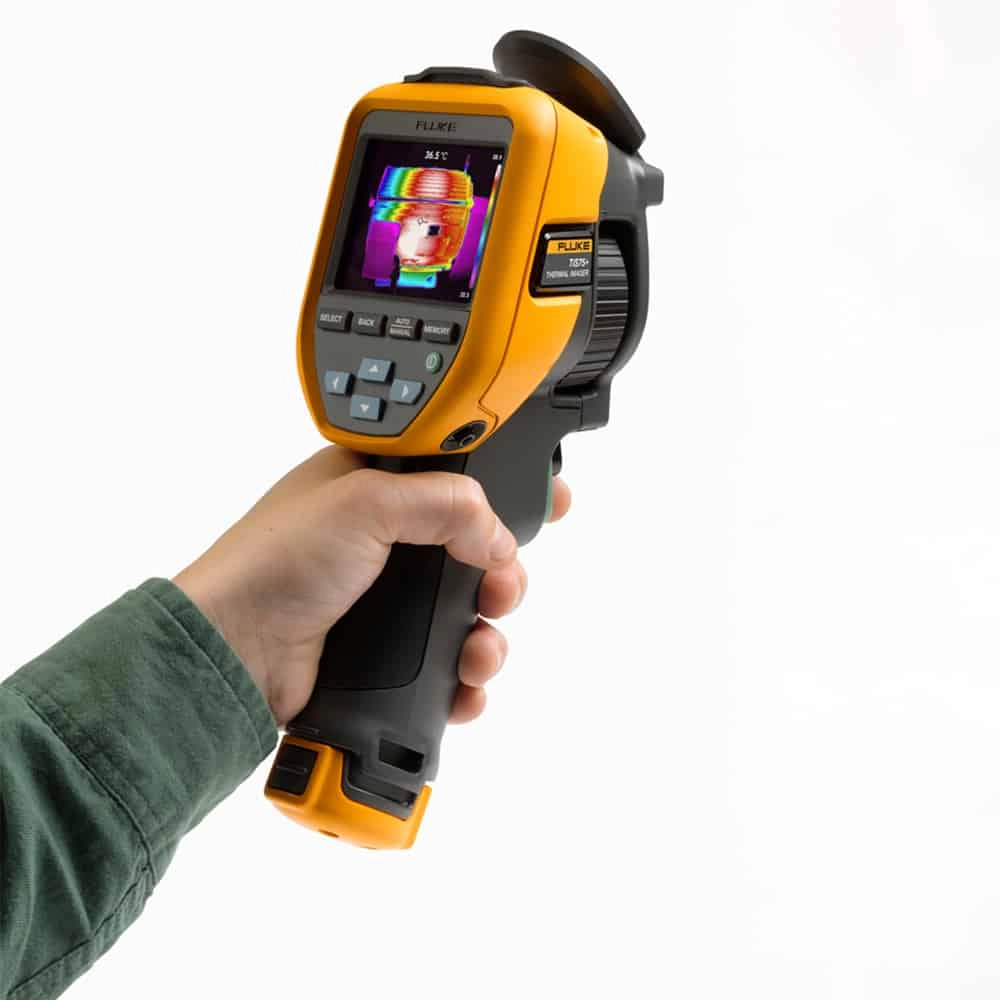

    Ergonomic designDesigned for one-handed use
    Thermal sensitivity40mk
    Level and spanSmooth auto and manual scaling
    Fast auto-rescale in manual modeYes
    Minimum span (in manual mode)3° °C (4.5 °F)
    Minimum span (In auto mode)5°C (9.0 °F)
    Built-in digital camera (visible light)640 x 480
    Frame rate9 Hz or 27 Hz models
    Dew point calculationYes
    Data storage and image capture
    Internal memory∼500 images
    External memory≥4 GB SD card (>1000 images)
    Image capture, review, save mechanismOne-handed image capture, review, and save capability
    Image file formatsNon-radiometric BMP or JPEG or fully-radiometric is2
    Memory reviewYes
    SoftwareFluke Connect software—full analysis and reporting software with access to the Fluke Connect
    Analyze and store radiometric data on a PCYes
    Export file formats with Fluke Connect softwareis2, BMP, GIF, JPEG, PNG, TIFF
    Voice annotationYes, 60 second maximum audio recording via Bluetooth Audio Headset Profile (HSP) connection to external device.
    IR-PhotoNotesYes. Up to 3 extra user-selectable visible light image capture to be included in IS2 file.
    Text annotationsAfter IS2 capture, user can type in a note using on-screen keyboard.
    Video recording and formatsStandard and radiometric video. Up to 5 minute recording length. avi and is3
    Remote control operationsYes
    Auto capture (temperature and interval)Yes. User-selectable time interval for capturing IS2 or Jpeg files.
    Battery
    Batteries (field-replaceable, rechargeable)Lithium-ion rechargeable battery
    Battery life≥3.5 hours continuous without WiFi (Actual life depends on settings and usage)
    Battery charging time≤2.5 hours to full charge
    Battery charging systemTi SBC3B Two-Bay Battery Charger or in-Imager charging.
    AC operationAC operation with included power supply, universal adapters included Output: 15 VDC, 2 A
    Power savingUser-selectable sleep and power off
    Temperature measurement
    Temperature range (not calibrated below -10 °C)-20 °C to 550°C (not calibrated below -10 °C)
    Accuracy±2 °C or 2 % (whichever is greater) at 25 °C ambient temperature
    On-screen emissivity correctionYes, “top ten” material list plus numerical adjustment between 0.01 and 1.00
    Color palettes
    Standard palettes6
    General specifications
    Color alarmsYes. User-selectable hot and cold point and internal/external range color alarms. Modifies palettization of IR image by limiting which pixels are drawn using palette colors based on the pixel temperature.
    Infrared spectral band~8-14μm
    Operating temperature-10 °C to 50 °C (14 °F to 122 °F)
    Storage temperature-20 °C to 50 °C (-4 °F to 122 °F) without batteries
    Relative humidity10 % to 95 % non-condensing
    Spot temperatureCenter spot (unmovable)
    User-definable spot markersYes, 5 user-adjustable spot markers for a single pixel each. Position is adjustable. Temperature value for marker shown on screen. User can choose to switch display on/off for each marker.
    User defined measurement boxesYes, 5 user-adjustable rectangles. Size and position are adjustable. Rectangle statistics shown on screen: Min, Max, Average temperature. User can choose to switch display on/off for each marker.
    Hard caseRugged hard carrying case with soft transport bag, including adjustable strap
    Safety standardsIEC 61010-1: Pollution Degree 2
    Electromagnetic combabilityIEC 61326-1: Portable Electromagnetic Environment;
    IEC 61326-2-2 CISPR 11: Group 1, Class A
    Australian RCMRCM IEC 61326-1
    US FCC47 CFR 15 Subpart C Sections 15.207, 15.209, 15.249
    Vibration10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6
    Shock30 g, 11 ms, IEC 60068-2-27
    DropEngineered to withstand 2m drop
    Sized (H x W x L)∼(26.7 cm x 10.1 cm x 14.5 cm)
    ∼ (10.5 in x 4.0 in x 5.7 in)
    Weight (battery included)≤2.27 kg (5 lb)
    Enclosure ratingIP54
    WarrantyTwo-years (standard)
    Recommended calibration cycleTwo-years (assumes normal operation and normal aging)
    Supported languagesCzech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
    RoHS compliantYes
    • 1 x Thermal imager
    • 1 x AC power supply (including universal AC adapters)
    • 1 x Two-bay smart battery charger
    • 2 x Rugged lithium ion smart batteries
    • 1 x USB cable
    • 1 x 4 GB micro SD card
    • 1 x Rugged hard carrying case with soft transport bag and adjustable hand strap
