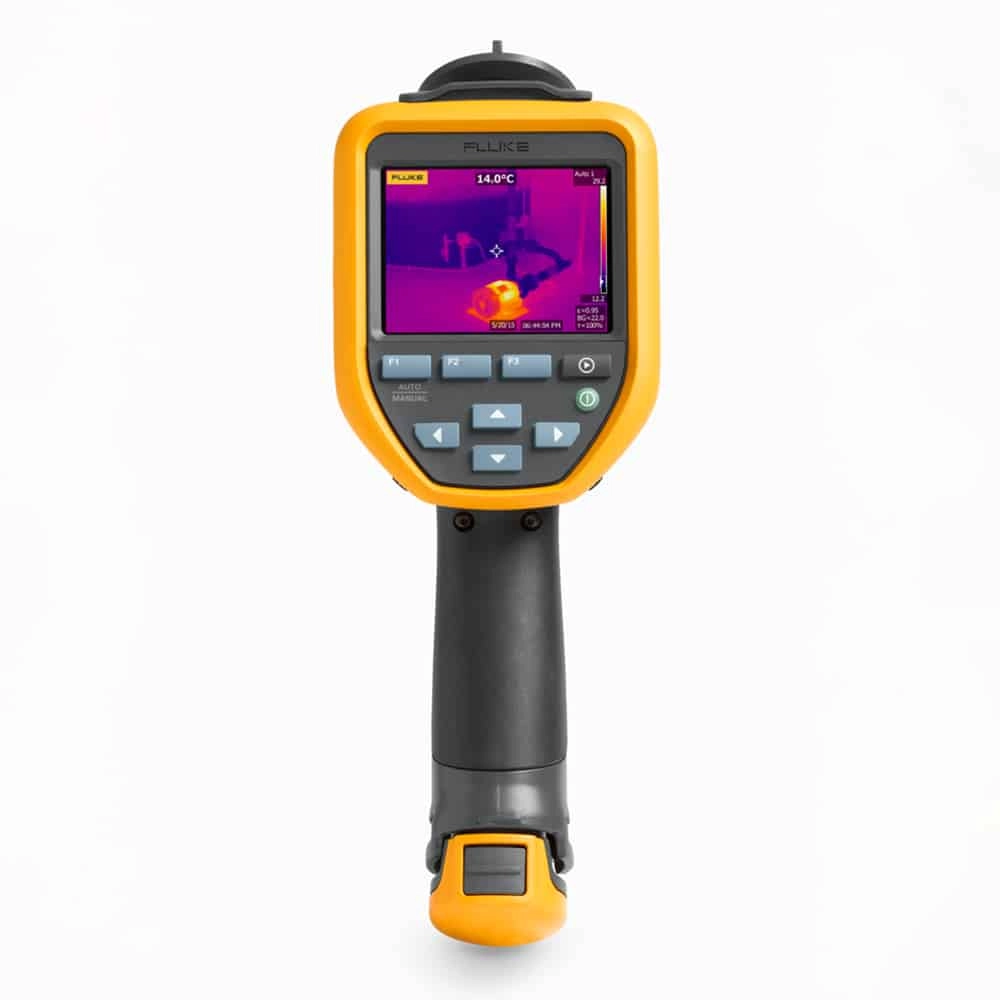

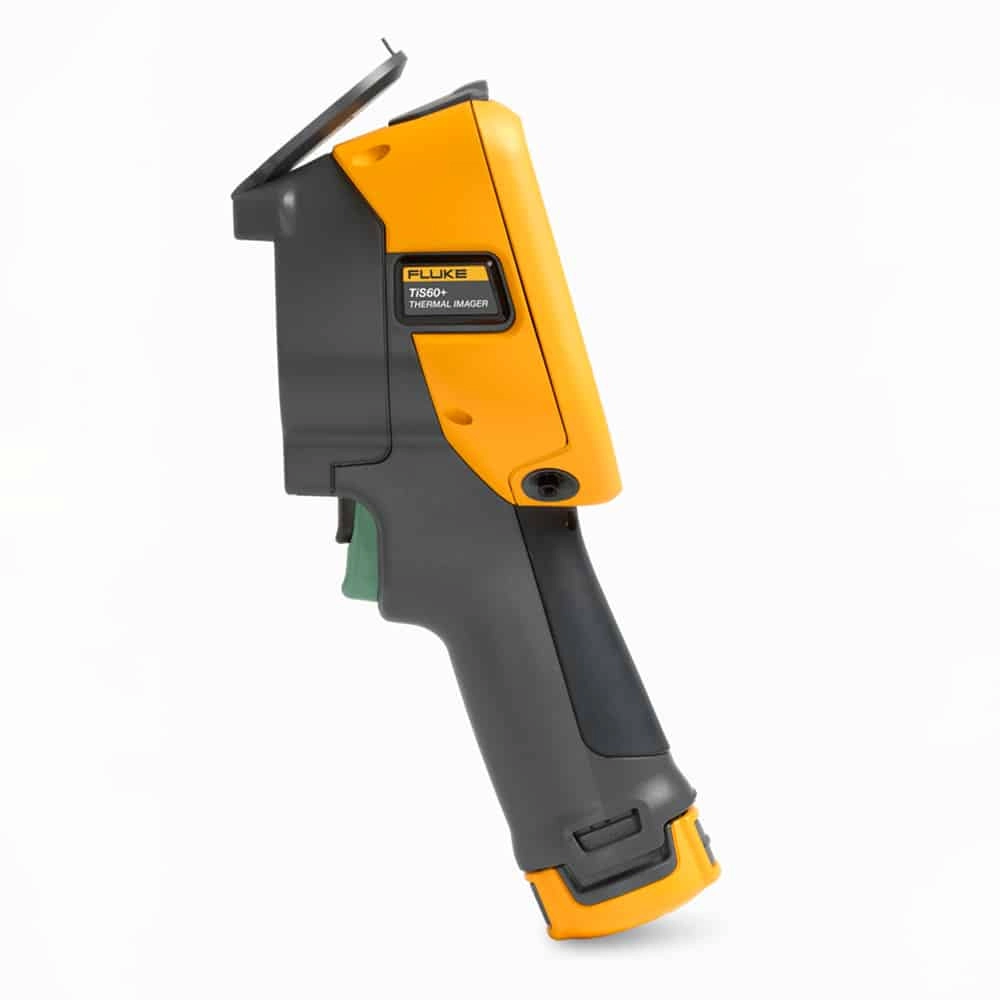

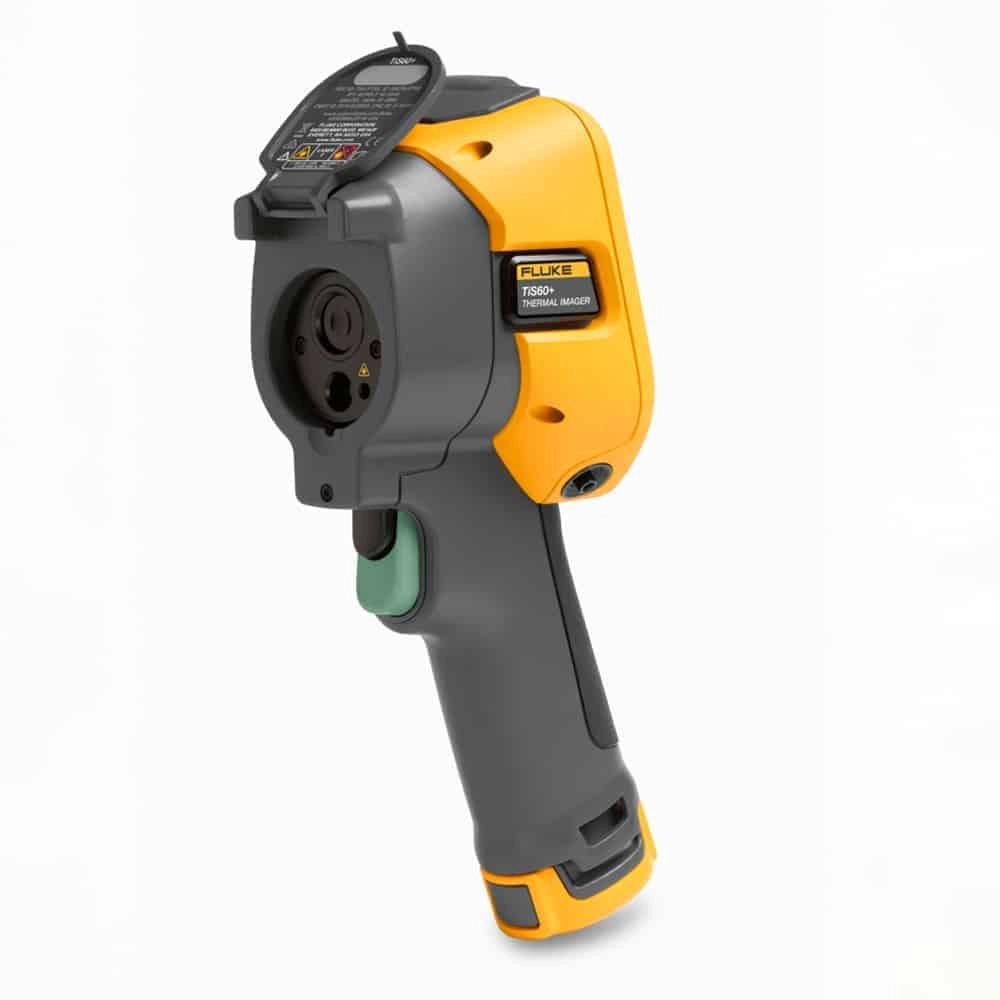

    FLUKE Tis60+ 9Hz Thermal Camera 9HZ – 320×240 (D:S 532:1)

    # Tis60+ 9Hz

    • 320 x 240 resolution
    • 2 meter drop test
    • IR Fusion™ technology for context

    Ready to see it in action? Please provide us with your contact information, and one of our technical experts will contact you to schedule your product demonstration.

    Product overview: Fluke TiS60+ Thermal Camera

    Boost you or your team’s performance with 320 x 240 resolution. Infrared images taken with the TiS60+ capture smaller temperature differences from farther away. If you are new to thermal imaging or if your camera is being used by a team with varying levels of thermal imaging experience, the TiS60+ offers fixed focus with the ability to capture quality images from farther.



    The TiS60+ allows you to see things that are invisible to the eye and reveal problems that cannot be detected with other technologies. It is a simple to use, dependable tool that the team can rely on.



    • Easy to use fixed focus
    • 3.5 inch LCD screen
    • One-handed image capture, review and save capability
    • Fluke Connect™ compatibility for sharing wirelessly



    Often the next big challenge with infrared images is to make sure that the images taken by the team can quickly be added to work orders. The TiS60+ features IR Photo Notes making this easy. They give the camera operator a simple way to add pictures associated with the image documenting the equipment name or the room location associated with the thermal image so that the person creating the work order can send the technicians to the right location for repairs.



    Be prepared with everything you need to establish a baseline for your equipment, establish a preventive maintenance program and set standard work. The Fluke TiS60+ gives you the thermal data needed to get the job done.



    Key Features:

    • 320 x 240 resolution
    • 2 meter drop test
    • IR Fusion™ technology for context
    • Fixed focus
    • Measure up to 400 °C
    Key features
    IFOV (spatial resolution)1.86 mRad, D:S 532:1
    Infrared resolution320 x 240 (76,800 pixels)
    Field of view34.1 °H x 25.6 °H
    Focus systemFixed
    Minimum focus distance46 cm (18 in)
    Ruggedized display3.5 inch (8.9 cm landscape) 320 x 240 LCD
    Ergonomic designDesigned for one-handed use



    Temperature measurement
    Temperature range (not calibrated below -10 °C)-20 °C to 400 °C (-4 °F to 752 °F)
    Accuracy± 2 °C or 2 % (at 25 °C nominal, whichever is greater)
    Thermal sensitivity (NETD)≤ 0.045 °C at 30 °C target temp (45 mK)
    On-screen emissivity correctionYes (both value and table)
    On-screen reflected background temperature compensationYes
    On-screen transmission correctionNo



    Wireless connectivity
    Wireless connectivityYes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi and LAN (where available)
    Fluke™ Connect app compatibleYes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
    Fluke Connect Assets optional softwareYes*, assign images to assets and create work orders. Easily compare measurement types – whether mechanical, electrical or infrared images – in one location



    IR Fusion® technology
    IR Fusion® technologyYes
    AutoBlend™ modeYes
    Picture-In-Picture (PIP)Yes
    Built-in digital camera (visible light)5MP



    Level and span
    Level and spanSmooth auto and manual scaling
    Fast auto-rescale in manual modeYes
    Minimum span (in manual mode)2.5 °C (4.5 °F)
    Minimum span (in auto mode)5 °C (9.0 °F)



    Data storage and image capture
    Extensive memory optionsInternal 4GB memory and 4GB micro SD card
    Image capture, review, save mechanismOne-handed image capture, review, and save capability
    Image file formatsNon-radiometric BMP or JPEG or fully-radiometric is2
    Memory reviewYes
    SoftwareFluke Connect desktop software – full analysis and reporting software with access to the Fluke Connect system
    Analyze and store radiometric data on a PCYes
    Export file formats with Fluke Connect softwareis2, BMP, GIF, JPEG, PNG, TIFF
    Voice annotation60 seconds maximum recording time per image; reviewable playback on camera; Bluetooth headset required (sold separately)
    IR-PhotoNotesYes – 3 images
    Auto capture (temperature and interval)Yes



    Battery
    Batteries (field-replaceable, rechargeable)Two lithium ion smart battery pack with five-segment LED display to show charge level
    Battery life4 hours continuous use per battery pack
    Battery charging time2.5 hours to full charge
    Battery charging systemTwo-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
    AC operationAC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
    Power savingUser selectable



    Color palettes
    Standard palettes8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
    Ultra contrast palettes8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra



    General specifications
    Laser pointerYes
    Frame rate< 9 Hz
    Color alarmsHigh temperature, low temperature, isotherms (within range)
    Infrared spectral band7.5 μm to 14 μm
    Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
    Storage temperature-20 °C to +50 °C (-4 °F to 122 °F) without batteries
    Relative humidity10 % to 95 %, non-condensing
    Center-point temperature measurementYes
    Spot temperatureHot and cold spot markers
    User-definable spot markers3
    User defined measurement boxesExpandable-contractible measurement box
    Hard caseRugged hard carrying case with soft transport bag, including adjustable strap
    Safety standardsIEC 61010-1: Overvoltage category II, Pollution Degree 2
    Electromagnetic compatibilityIEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
    Australian RCMRCM IEC 61326-1
    US FCCEN61326-1; FCC Part 5, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3
    Vibration2G, IEC 68-2-6
    Shock25G, IEC 68-2-29
    DropEngineered to withstand 2 meter (6.5 feet) drop
    Sized (H x W x L)26.7 cm x 10.1 cm x 14.5 cm (10.5 in x 4.0 in x 5.7 in)
    Weight (battery included)0.72 kg (1.6 lb.)
    Enclosure ratingIP54 (protected against dust, limited ingress; protection against water spray from all directions)
    Manufacturer WarrantyTwo-years (standard)
    Recommended calibration cycleTwo-years (assumes normal operation and normal aging)
    Supported languagesCzech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
    RoHS compliantYes
    • Thermal imager
    • AC power supply (including universal AC adapters)
    • Two-bay smart battery charger
    • Two rugged lithium ion smart batteries
    • USB cable
    • 4 GB micro SD card
    • Rugged hard carrying case with soft transport bag and adjustable hand strap
    • Available by free download: Fluke Connect™ software and user manual
