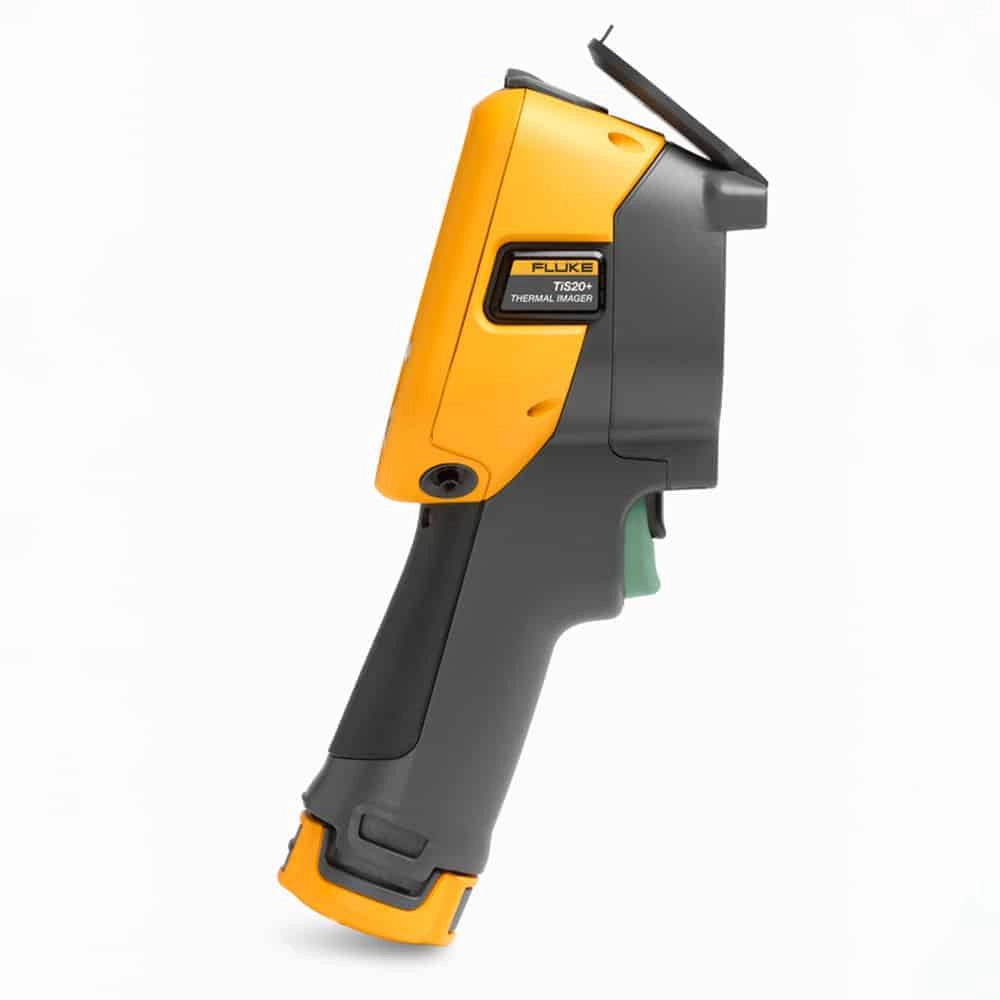

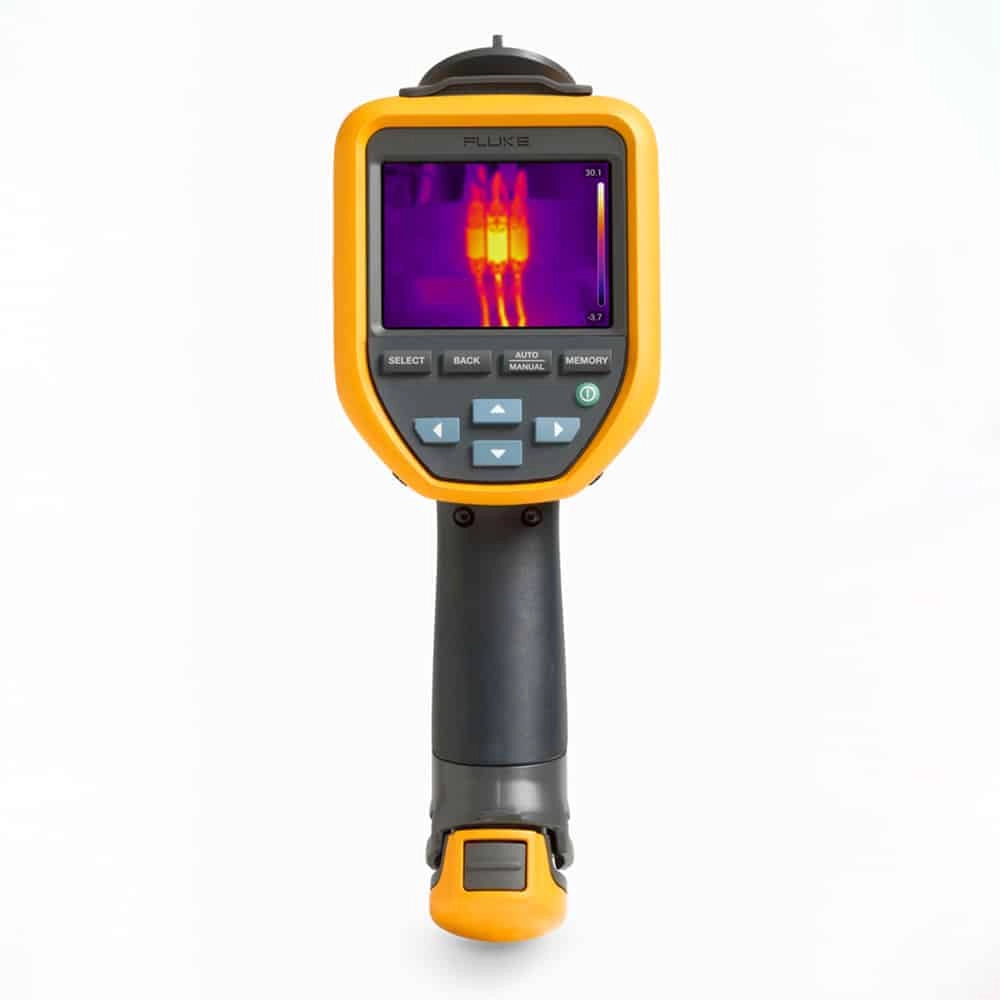

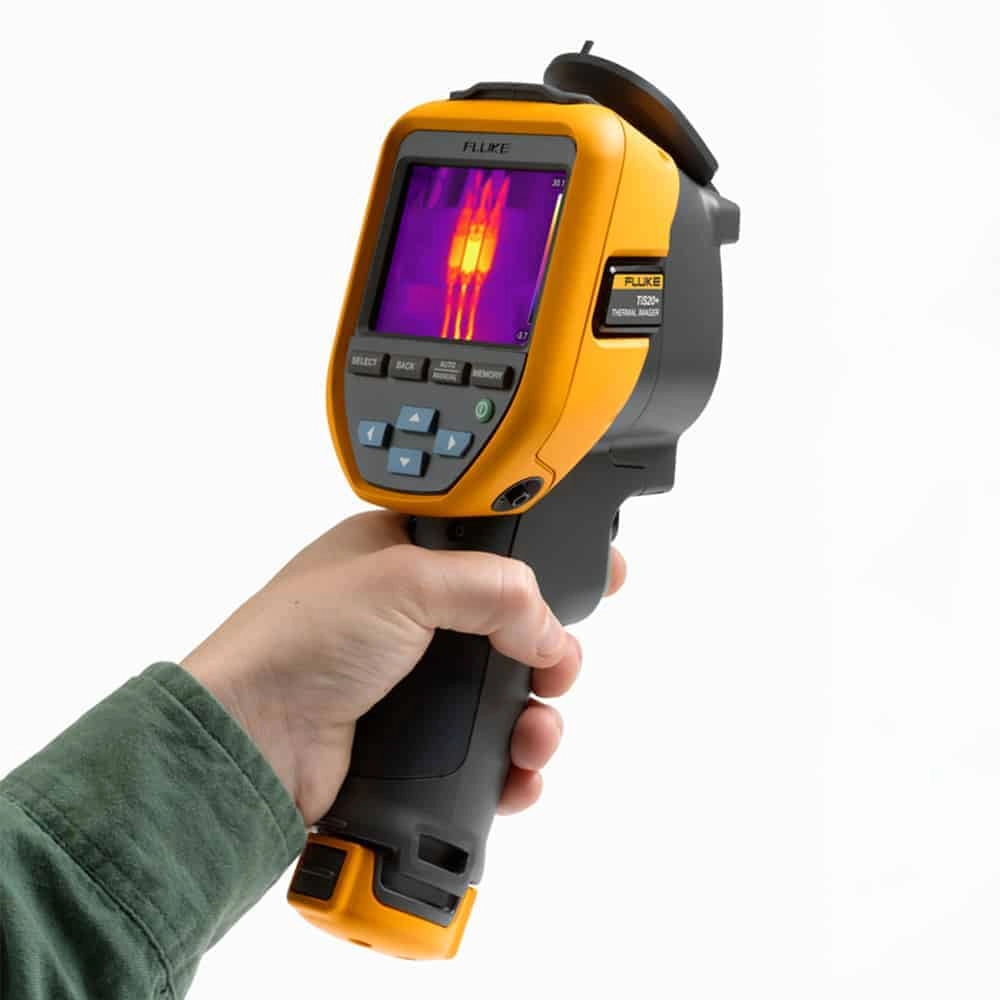

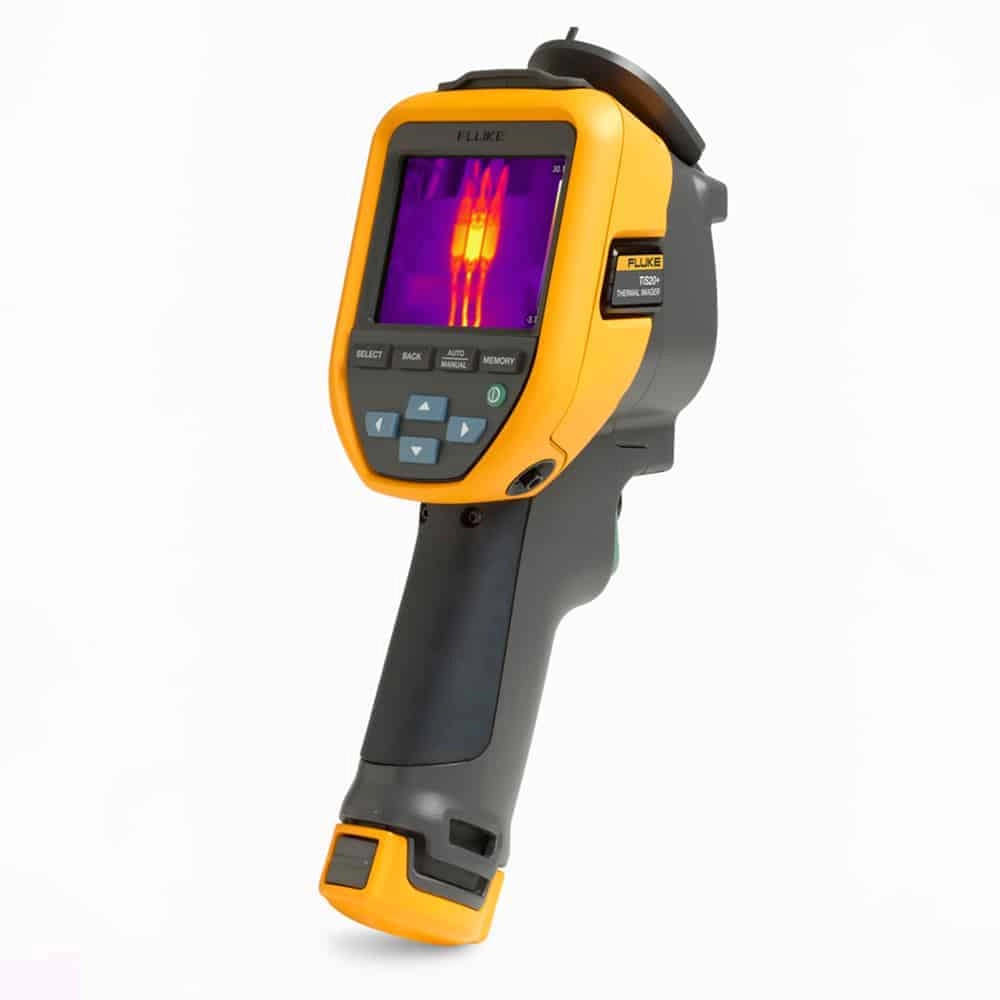

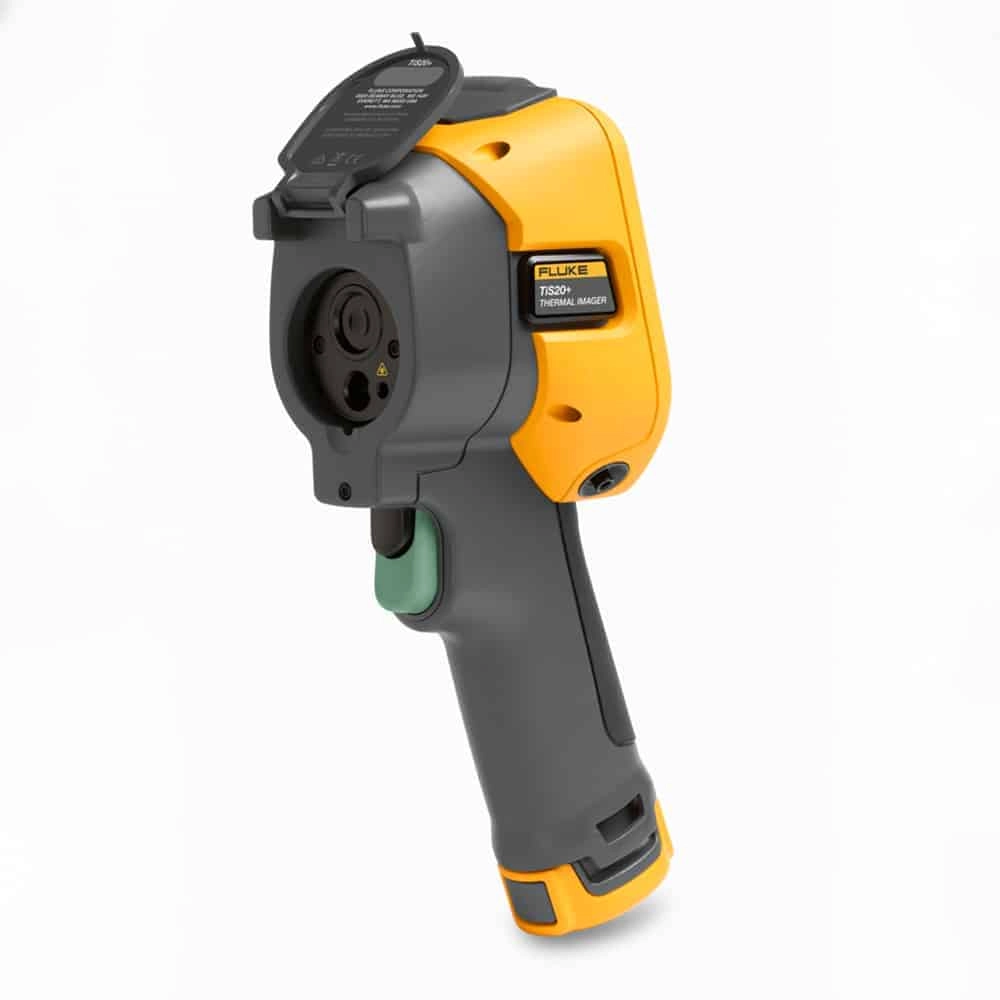

    FLUKE TiS20+ 9Hz Thermal Imaging Camera 9HZ – 120×90 (D:S 130:1)

    # TiS20+ 9Hz

    • 5 hours battery life
    • Can withstand drop up to 2 meter
    • Water and dust resistant—IP54 enclosure rating

    Ready to see it in action? Please provide us with your contact information, and one of our technical experts will contact you to schedule your product demonstration.

    Product overview: Fluke TiS20+ Thermal Imaging Camera


    Save time with the right level of infrared and analysis

    Whether you are up on the roof inspecting heating, ventilation and air conditioning, deep in the plant scanning a motor, or if you are locking out an electrical panel, you rely on your tools to have the power and features to get your job done fast.

    The Fluke TiS20+ handheld thermal camera puts the power of thermal imaging at your fingertips. Designed to make your job quicker and easier, this thermal imager is the right tool for:

    • Commercial electricians
    • Heating, ventilation, air conditioning, and refrigeration technicians
    • Maintenance technicians


    Get context with a combined visual light and infrared image

    In thermography, context matters. Let Fluke IR-Fusion™ make your job easier by using a thermal image overlaid on a visual light image to give you the full picture of where the issue is before it becomes a problem. Simply slide your finger across the screen to adjust the level of infrared. Whether you are finding an uneven load on a switchgear or inspecting a ventilation system, the Fluke TiS20+ helps you detect issues quickly.


    You work hard all day, so should your tools

    You cannot afford to have your thermal imager fail due to your environment. You can sleep easy at night knowing that your camera will hold up to whatever the day throws at you.

    • 2 meter drop tested
    • Water resistant (IP54)
    • Dust resistant (IP54)


    Stop sorting, start analyzing with Fluke Connect Asset Tagging

    Eliminate hours at the computer organizing your thermal images, let Asset Tagging do all that work for you No more dragging and dropping or renaming files in the office, just scan a QR code on your asset, capture your thermal images and they automatically are sorted by asset. Start spending your time analyzing your images and creating reports instead of sorting your files one at a time.


    Longest battery life in a Fluke thermal camera ever

    The TiS20+ can work without a break, with a battery life of over 5 hours of continuous use making it the longest battery life in a Fluke thermal camera ever. Save your battery life in-between inspection points with sleep mode. Simply press the power button one time and you are back up and running.

    Get the most out of your TiS20+ with Fluke Connect™ desktop software. Create professional reports in minutes while efficiently capturing full radiometric data to support your maintenance program.

    • Edit and optimize images
    • Combine infrared and visible images for simpler analysis
    • Create detailed reports
    • Access thermal images from cloud storage

    Organize and search images by asset, severity, and title


    Key features

    • Continuous touchscreen IR-Fusion™
    • 5 hours battery life
    • Can withstand drop up to 2 meter
    • Water and dust resistant—IP54 enclosure rating
    • Automatically organize and file thermal images with Fluke Connect™ Asset Tagging
    • 120 x 90 infrared resolution



    Key features
    Infrared resolution120 x 90 (10,800pixels)
    IFOV (spatial resolution)7.6 mRad, D:S 130:1
    Field of view50° H x 38° V
    Minimum focus distance50cm (20 inches)
    Focus systemFixed focus
    Data transferMini USB used to transfer image to PC
    Wireless connectivityYes, (802.11 b/g/n (2.4 GHz))
    Fluke Connect instant uploadYes, connect your camera to your building’s WiFi network (802.11 b/g/n (2.4 GHz)), and images taken automatically upload to the Fluke Connect system for storage and viewing on your PC


    Image quality
    IR-Fusion technologyAutoBlend continuous 0 % to 100 %. Adds the context of the visible details to your infrared image
    Display3.5″ LCD touchscreen (landscape)
    Display resolution320 x 240 LCD
    Thermal sensitivity (NETD)60 mK
    Frame rate9 Hz


    Data storage and image capture
    MemoryInternal 4GB memory (includes slot for optional micro SD card up to 32GB)
    Image capture, review, save mechanismOne-handed image capture, review, and save capability
    Image file formatsNon-radiometric (jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (jpeg) files
    SoftwareFluke Connect desktop software—full analysis and reporting software with access to the Fluke Connect system
    Export file formats with softwareJPG, IS2


    Batteries (field-replaceable, rechargable)Lithium ion smart battery pack with five-segment LED display to show charge level
    Battery life≥ 5 hours continuous (without WiFi)
    Battery charging time2.5 hours to full charge
    Battery charging systemIn-imager charging. Optional 12 V automotive charging adapter
    AC operationAC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
    Power savingAutomatic Shutdown: 5, 10, 15 and 20 minutes or never


    Temperature measurement
    Temperature measurement range (not calibrated below 0 °C)-20 °C to 150 °C (-4°F to 302°F)
    AccuracyTarget temp at or over 0 °C: Accuracy: ± 2 °C or ± 2 % at 25 °C, whichever is the greater.
    On-screen emissivity correctionYes, material table
    On-screen reflected background temperature compensationYes
    Center-point temperatureYes
    Spot temperatureHot and cold spot markers
    Color palettes
    Standard palettes6: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale


    General specifications
    Infrared spectral band8 μm to 14 μm (long wave)
    Operating temperature-10 °C to 50 °C (14 °F to 122 °F)
    Storage temperature-40 °C to 70 °C (-40 °F to 158 °F)
    Relative humidity95 % non-condensing
    SafetyIEC 61010-1: Pollution Degree 2
    Electromagnetic compatibilityEN 61326-1, CISPR 11: Group 1, Class A
    US FCCCFR, Part 15C
    Vibration and shock10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6; 30 g, 11 ms, IEC 60068-2-27
    DropEngineered to withstand 2 meter drop
    Size (H x W x L)26.7 cm x 10.1 cm x 14.5 cm (10.5 in x 4.0 in x 5.7 in)
    Weight0.72 kg (1.6 lb)
    Enclosure ratingIP54 (protected against dust, limited ingress; protection against water spray from all directions)
    Manufacturer WarrantyTwo-years (standard)
    Supported languagesCzech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
    • Thermal imager
    • AC power supply
    • Rugged lithium ion smart battery
    • USB cable
    • Soft transport bag
