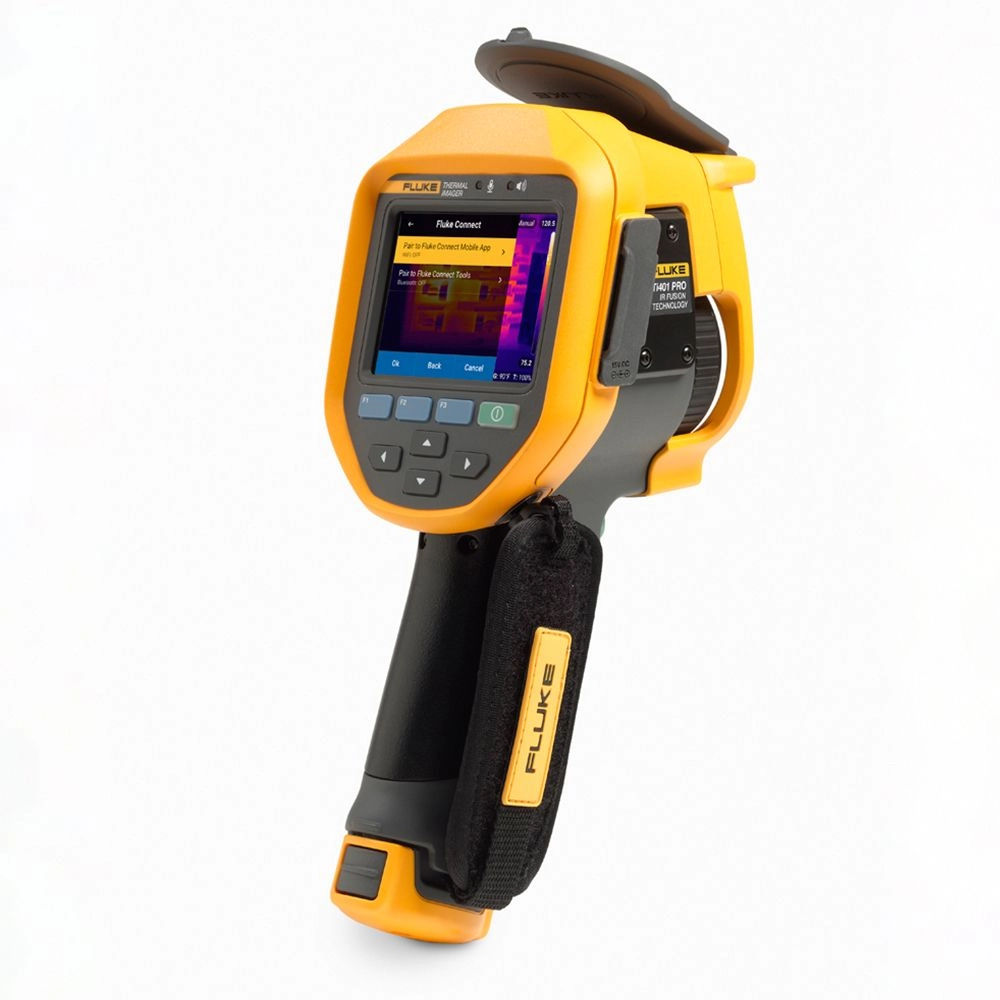

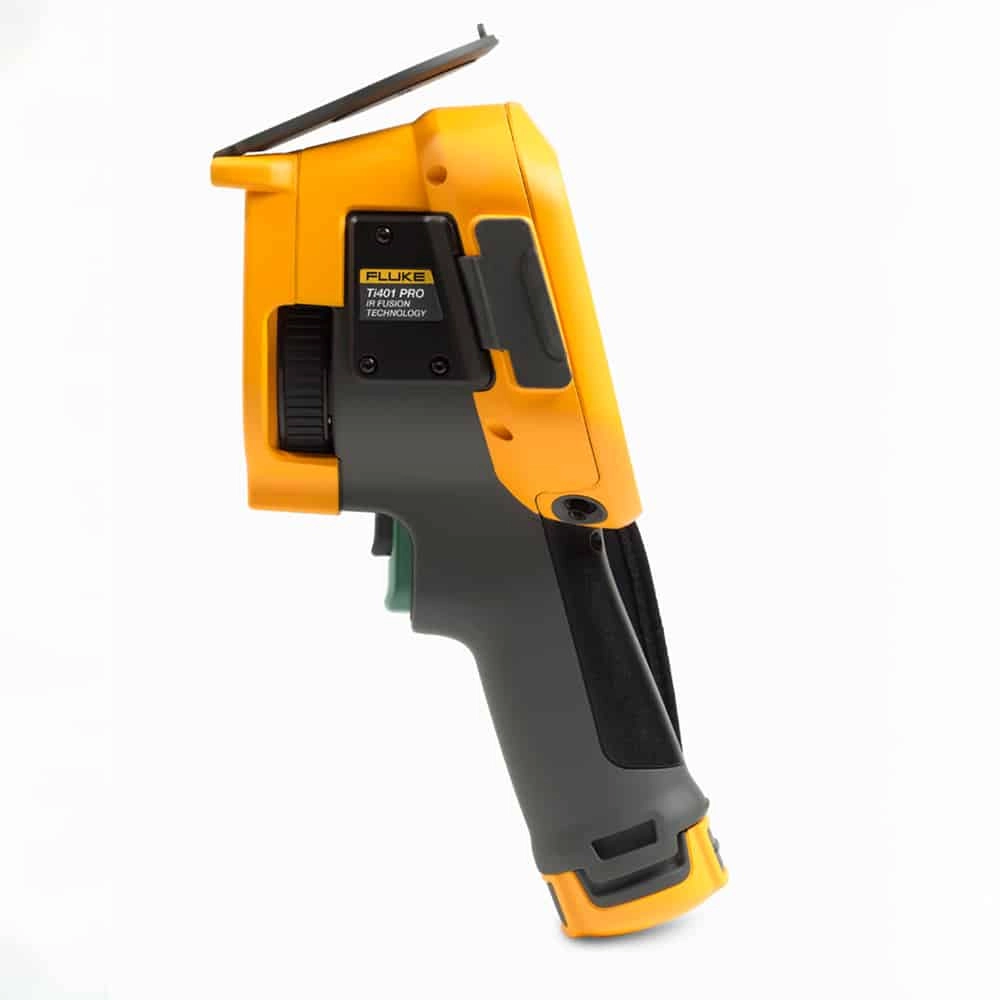

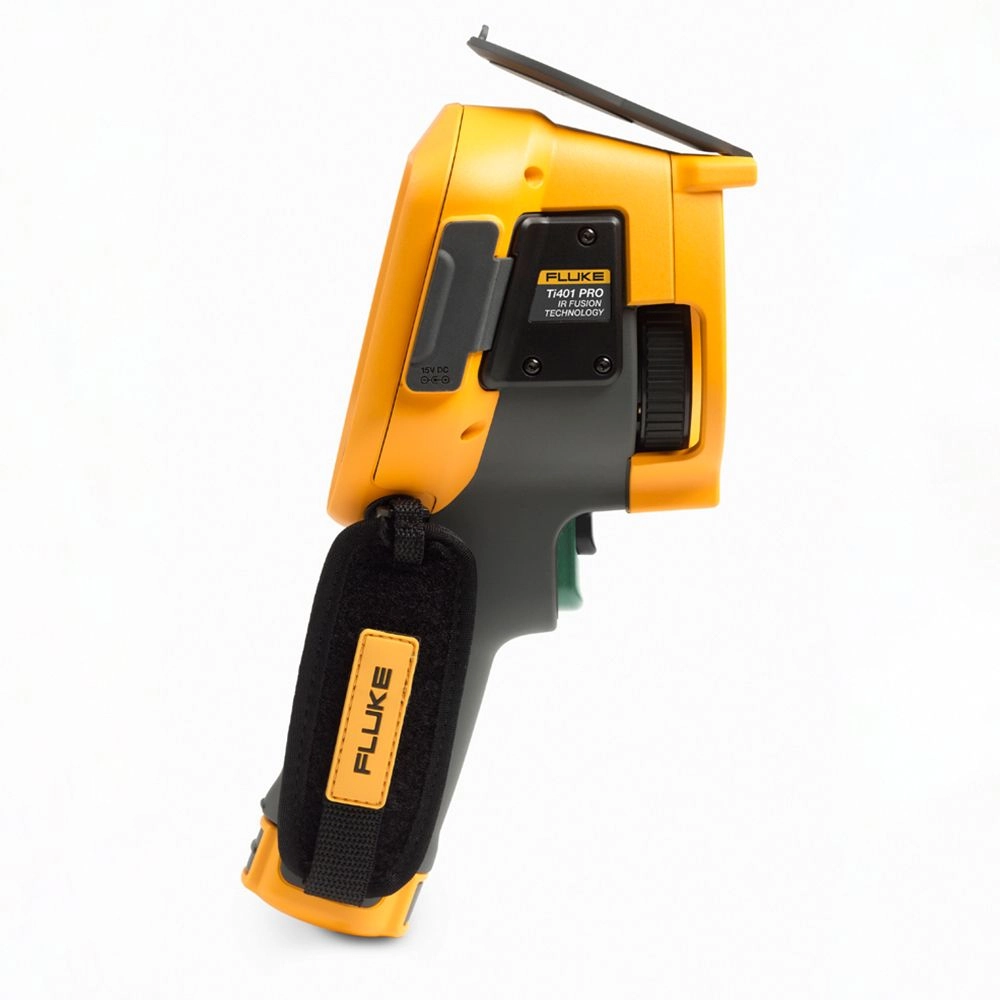

    FLUKE Ti401 PRO 9Hz 9HZ Thermal Camera 640 x 480 (307,200 pixels)

    # Ti401 PRO 9Hz

    • Infrared resolution of 640 x 480 (307,200 pixels)
    • IFOV with standard lens (spatial resolution) of 0.93 mRad, D:S 1065:1
    • Field of view of 34°H x 24°V

    Ready to see it in action? Please provide us with your contact information, and one of our technical experts will contact you to schedule your product demonstration.

    The rugged tool you need to establish and maintain a preventive maintenance program.

    • Splash resistant
    • Dust resistant
    • 2-meter drop tested


    Capture more than you’d expect, at a price you wouldn’t


    Equipped with a unique combination of 640 x 480 resolution and field of view that offers the flexibility to capture measurements in tight spaces or from a distance, even the novice thermographer can capture images of critical issues before they become failures. This well priced camera offers the highest resolution in its class along with the best-selling features from Fluke. With temperature measurements up to 650 °C, it is suitable for most industrial environments.

    Get the most out of your Ti401 PRO with Fluke Connect™ desktop software. Create professional reports in minutes while efficiently capturing full radiometric data to support your maintenance program.

    • Edit and optimize images
    • Combine infrared and visible images for simpler analysis
    • Create detailed reports
    • Organize and search images by asset, severity, and title



    • Choose the thermal camera that gives you in-focus images in a matter of seconds. LaserSharp™ Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target and immediately adjusts the focus.
    • See small details in the image and discover anomalies faster with 640 x 480 resolution thermal images
    • On the thermal camera, adjust the level of infrared and visible light with patented IR-Fusion™ technology
    • Manage data, capture multiple measurements (mechanical, electrical and thermal) and organize them by piece of equipment with Fluke Connect™ software
    • Simply the best optics to transmit energy and produce high quality infrared images. Fluke thermal cameras use only 100% diamond-turned germanium lenses with specialty coatings.
    Key features
    Infrared resolution640 x 480 (307,200 pixels)
    IFOV with standard lens (spatial resolution)0.93 mRad, D:S 1065:1
    Field of view34 °H x 24 °V
    Minimum focus distance15 cm (approx. 6 in)
    MultiSharp FocusNo
    LaserSharp Auto FocusYes, for consistently in-focus images. Every. Single. Time.
    Laser distance meterYes, calculates distance to the target for precisely focused images and displays distance on screen
    Advanced manual focusYes
    Wireless connectivityYes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
    Fluke Connect app compatibleYes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
    Fluke Connect AssetsThrough the desktop, assign images to assets, easily compare measurement types in one location and create reports.
    Fluke Connect instant cloud uploadYes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
    Fluke Connect instant server uploadYes**
    IR-Fusion technologyYes, adds the context of the visible details to your infrared image
    Ruggedized touchscreen display3.5 inch (landscape), 640 x 480 LCD
    Ergonomic designPistol-grip design for one-handed use
    Thermal sensitivity (NETD)**≤0.075 °C at 30 °C target temp (75 mK)
    Level and spanSmooth auto and manual scaling
    Touchscreen adjustable level/spanYes. Span and level can be easily and quickly set by simply touching the screen
    Fast auto toggle between manual and auto modesYes
    Fast auto-rescale in manual modeYes
    Minimum span (in manual mode)2.0 °C (3.6 °F)
    Minimum span (in auto mode)3.0 °C (5.4 °F)
    Built-in digital camera (visible light)5MP
    Frame rate9 Hz versions
    Laser pointerYes
    LED light (torch)Yes
    Digital zoomNo
    Data storage and image capture
    Extensive memory optionsRemovable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload for permanent storage
    Image capture, review, save mechanismOne-handed image capture, review, and save capability
    Image file formatsbmp, jpeg, is2
    Memory reviewThumbnail and full screen review
    SoftwareFull analysis and reporting software with access to the Fluke Connect system
    Analyze and store radiometric data on a PCYes
    Export file formats with Fluke Connect softwareBitmap (.bmp), GIF, JPEG, PNG, TIFF
    Voice annotation60 seconds maximum recording time per image; reviewable playback on camera, optional Bluetooth headset available but not required
    IR-PhotoNotesYes – 2 images
    Text annotationsYes. Including standard shortcuts as well as user programmable options
    Video recording and formatsNo
    Remote control operationsRemote display through Fluke Connect
    Auto capture (temperature and interval)No
    Batteries (field-replaceable, rechargeable)Two lithium ion smart battery packs with five-segment LED display to show charge level
    Battery life2-3 hours per battery (actual life varies depending on settings and usage)
    Battery charging time2.5 hours to full charge
    Battery charging systemTwo-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
    AC operationAC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
    Power savingUser selectable sleep and power off modes
    Temperature measurement
    Temperature measurement range (not calibrated below -10 °C)-20 °C to +650 °C
    (-4 °F to +1,202 °F)
    Accuracy±2 °C or 2 % (at 25 °C nominal, whichever is greater)
    On-screen emissivity correctionYes (both value and table)
    On-screen reflected background temperature compensationYes
    On-screen transmission correctionYes
    Line temperature graphNo
    Color palettes
    Standard palettes9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
    Ultra Contrast palettes9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
    Smart lenses
    Macro-25 micron lens: 25 MAC2Yes
    2 x telephoto lens: TELE 2Yes
    4 x telephoto lens: TELE4Yes
    Wide angle lens: WIDE 2Yes
    General specifications
    Color alarms (temperature alarms)High temperature, low temperature, and isotherms (within range)
    Infrared spectral band7.5 μm to 14 μm (long wave)
    Operating temperature-10 °C to +50 °C (+14 °F to +122 °F)
    Storage temperature-20 °C to +50 °C (-4 °F to +122 °F) without batteries
    Relative humidity10 % to 95 % non-condensing
    Center-point temperature measurementYes
    Spot temperatureHot and cold spot markers
    User-definable spot markersNo
    User defined measurement boxes1 expandable-contractible measurement box with MIN-MAX-AVG temp display
    Hard CaseRugged, hard carrying case; soft transport bag
    SafetyIEC 61010-1: Overvoltage category II, Pollution Degree 2
    Electromagnetic compatibilityIEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
    Australian RCMIEC 61326-1
    US FCCCFR 47, Part 15 Subpart B
    Vibration0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6
    Shock25 g, IEC 68-2-29
    DropEngineered to withstand 2 meter (6.5 feet) drop with standard lens
    Size (H x W x L)27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in)
    Weight (battery included)1.04 kg (2.3 lb)
    Enclosure ratingIEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)
    Manufacturer WarrantyTwo-years (standard), extended warranties are available
    Recommended calibration cycleTwo-years (assumes normal operation and normal aging)
    Supported languagesCzech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
    RoHS compliantYes
    • Thermal imager with standard infrared lens
    • AC power supply and battery pack charger (including universal AC adapters)
    • Two, rugged lithium ion smart battery packs
    • USB cable
    • HDMI video cable
    • 4 GB micro SD card
    • Rugged, hard carrying case
    • Soft transport bag
    • Adjustable hand strap
    • Available by free download Fluke Connect® SmartView® desktop software and users manual
