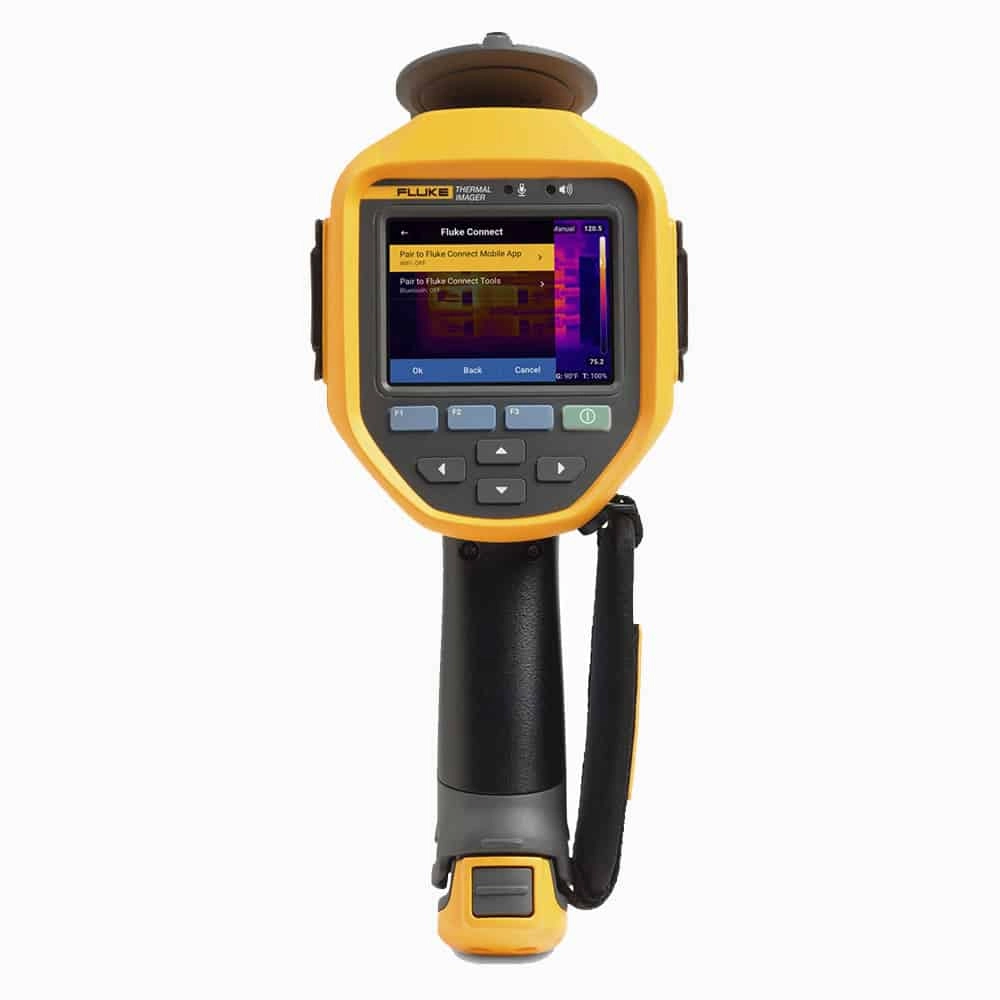

Fluke Ti300-PRO 9 Hz Thermal Imaging Camera Pro Series, 240x180, 9Hz,

Model #   Ti300-PRO 9 Hz
Flr img

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • Increased sensitivity to visualize temperature differences, NETD for the Ti300 PRO is 0.04 at 30 °C target temp (40 mK)
  • Easier to visualize and diagnose issues with sharper onscreen images, multiple rectangle markers and 9 color palettes
  • More intuitive visual interface, improved, user-tested, touch screen interface
  • More flexibility to visualize target, tiny-to-large with interchangeable smart lenses - no calibration required, 2x and 4x telephoto, wide angle and macro lens compatibility
  • Get an instant in-focus image of your designated target. LaserSharp ™ Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target.
  • Save time - wirelessly sync images directly from your camera to the Fluke Connect ™ system, and attach to an asset record or work order
  • Reduce the need take notes in the field with IR-PhotoNotes™ and voice annotations
  • Sharper onscreen images with better visual color differentiation
  • Multiple rectangle markers in-camera - identify min/max temperatures for an area of the equipment or an equipment array

Technical Information

  • Temperature-20 to +650 °C
  • IFOV (spatial resolution)1.75 mRad
  • Detector Resolution240 x 180 pixel
  • Display Resolution640 x 480 pixel
  • ApplicationThermal Investigation
  • Thermal Sensitivity40mK
  • Temperature Accuracy±2 °C, 2 %
  • Focus TypeAutomatic, Manual
  • Minimum Focus Distance15cm

Items Included

  • 9 Hz Thermal imaging camera
  • Bolometer matrix
