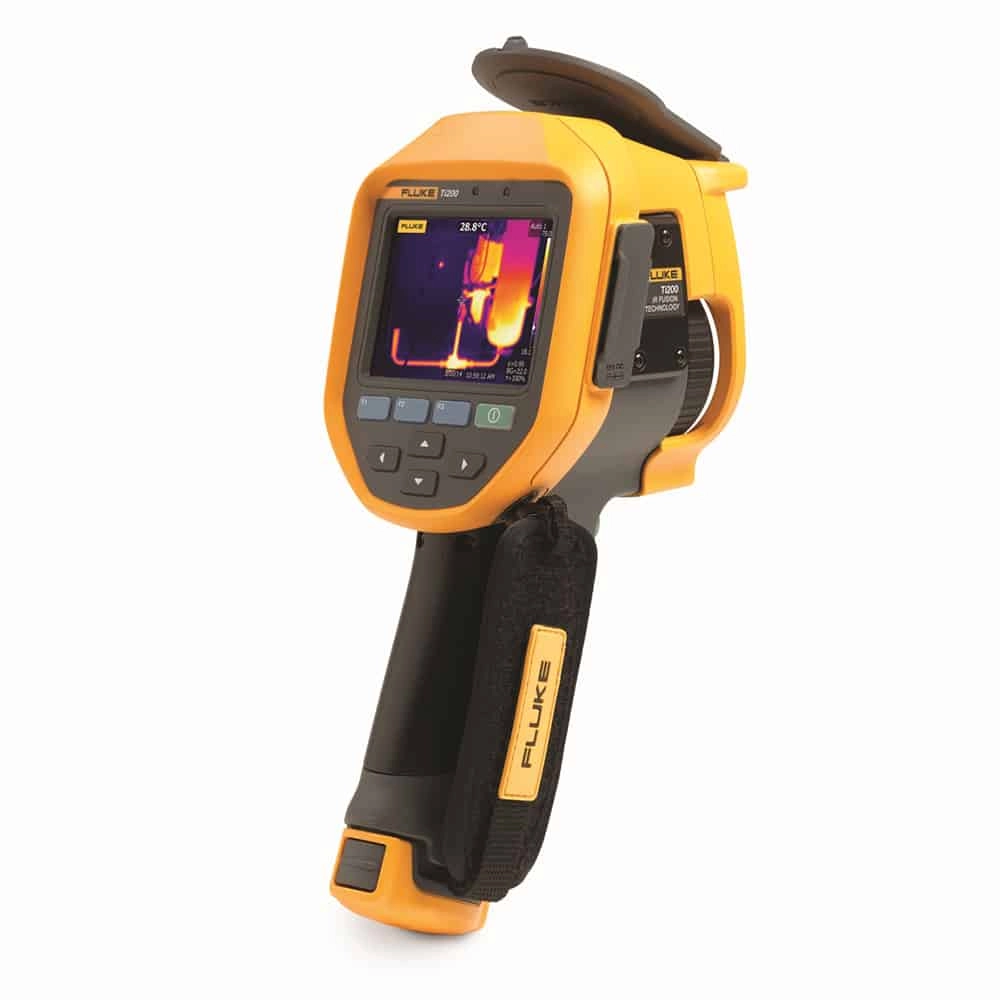

Fluke Ti200 9Hz Thermal Imaging Camera, 200x150 Pixels, 9Hz, -20°C to 650°C
Model # Ti200 9Hz
Key Features
?
Question about this product?
Features
- Detect and communicate issues faster with patented Fluke IR-Fusion® technology with AutoBlend™ mode
- Faster communication with wireless image transfer directly to your PC; Apple® iPhone® or iPad®
- Capture up to 5 additional measurements with the CNX™ Wireless System*
- One-handed; easy-to-use user interface
- Ruggedized Touchscreen Display (Capacitive) 8.9 cm (3.5 in) diagonal landscape color VGA (640 x 480) LCD with backlight for quick menu navigation
- Capture additional digital images to show location or additional site details with IR-PhotoNotes™ Annotation System
- Voice recording and annotation gets additional details saved with the image file
- Optional interchangeable lenses for greater flexibility in additional applications
- Rechargeable, field replaceable smart batteries with five-segment LED display to show charge levels
Technical Information
- Temperature Range-20 °C to +1200 °C (-4 °F to +2192 °F)
- Temperature Accuracy± 2 °C or 2 % (at 25 °C nominal, whichever is greater)
- Image capture frequency9 Hz refresh rate or 60 Hz refresh rate depending upon model variation
- Thermal sensitivity (NETD)< 0.05 °C at 30 °C target temp (50 mK)
- Total pixels76,800
- Field of view24 ° x 17 °
- Spatial resolution (IFOV)1.31 mRad
- Minimum focus distance15 cm (approx. 6 in)
- Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
- Storage temperature-20 °C to +50 °C (-4 °F to 122 °F) without batteries
- Relative humidity10 % to 95 % non-condensing
Items Included
- Fluke Ti200 9hz Thermal Imager
