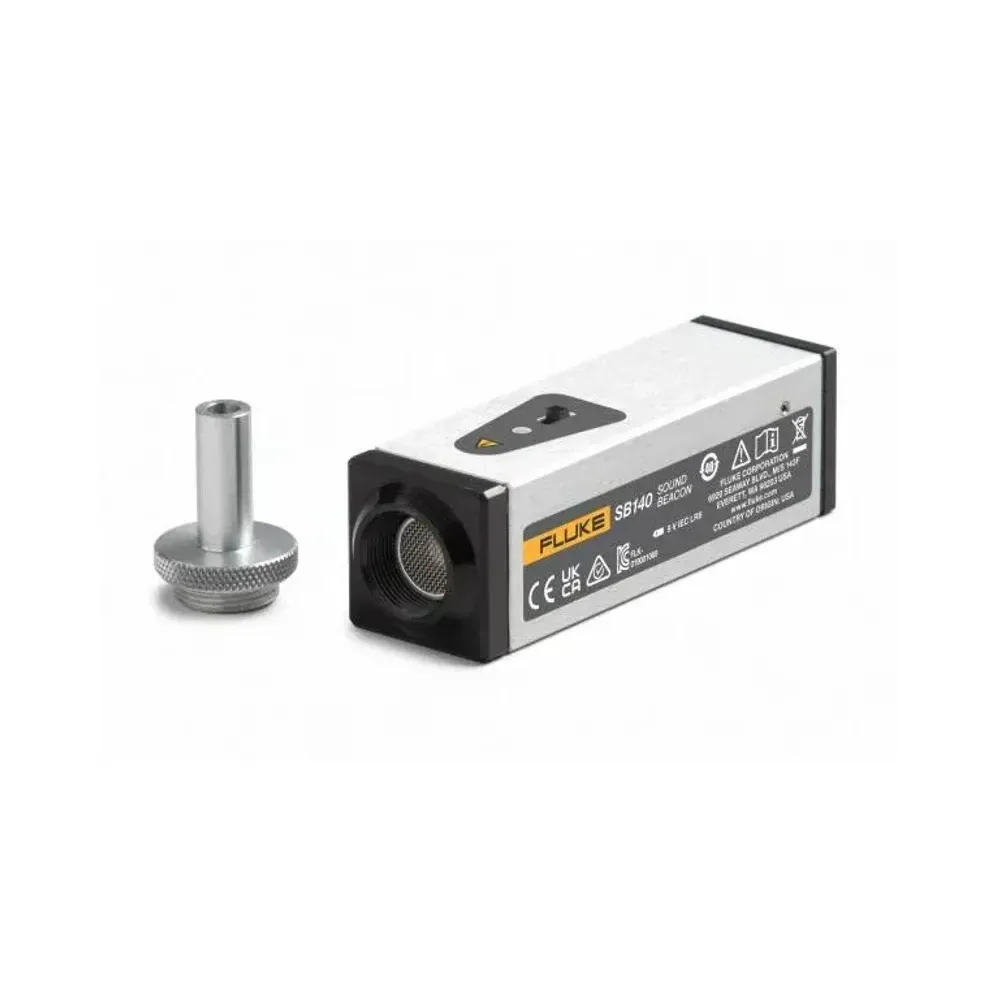

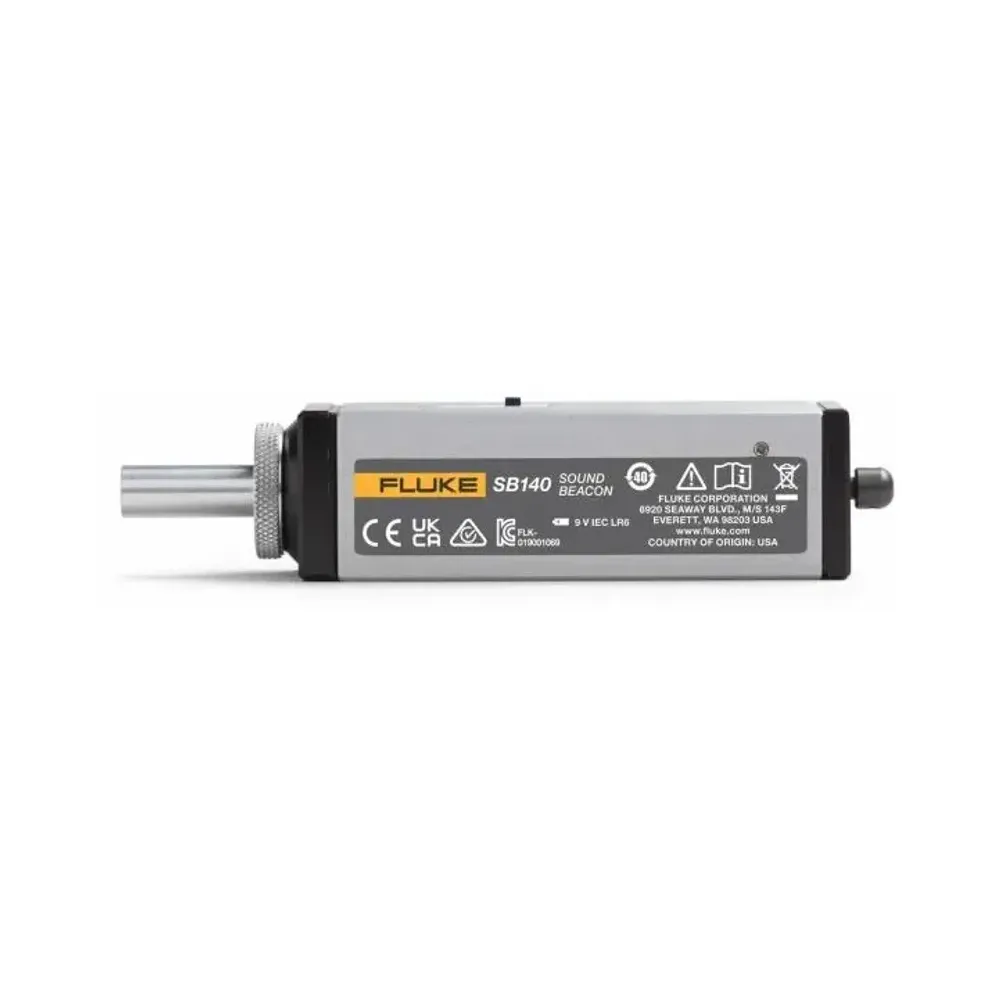

Fluke SB140 Industrial Acoustic Imager Sound Beacon 40khz

Features

• Accessory for non-pressurized applications
• Detect leaks with Fluke acoustic imagers
• Save time and labor efficiently
• Operate easily with minimal training
• Ensure the integrity of your non-pressurized vessels with the Fluke SB140 Sound Beacon
• Transforms leak detection and tightness testing by placing the SB140 Sound Beacon inside the vessel and using Fluke Acousti Imagers from the outside to visually locate escaping ultrasound through weld beads, gaskets, seals, hatches, or windows
• It is ideal for quality control in aviation, automotive, railroads, clean rooms, and more
• The Fluke SB140 Sound Beacon is specifically designed for tightness applications and works seamlessly with Fluke acoustic imagers
• The selected ultrasound frequency travels long distances through air with minimal signal attenuation, allowing the sound inside a vessel to effectively escape through any openings and be visualized by the Fluke camera
• The ultrasound frequency of the SB140 Sound Beacon is also easily detected by Fluke acoustic imagers, enabling precise visual pinpointing of potential leak points

Technical Information

• Operating temperature -20 °C to +54 °C (-4 °F to 130 °F )
• Storage temperature -40 °C to +55°C (-40 to 131 °F), without battery
• Relative humidity 10 to 95 %, non-condensing
• Sound Frequency 40 kHz ±1.5 kHz
• Ingress protection (IP) IEC 60529
• Size of device (H x W x L) (32x32x105) mm, (1.26x1.26x4.125) in
• Housing Extruded aluminum
• Weight Sound Beacon
• Weight (acoustic probe) 12 g (0.45 oz)
• Battery life > 300 hours
• Power supply 9-volt alkaline (included)
• Controls on/off switch

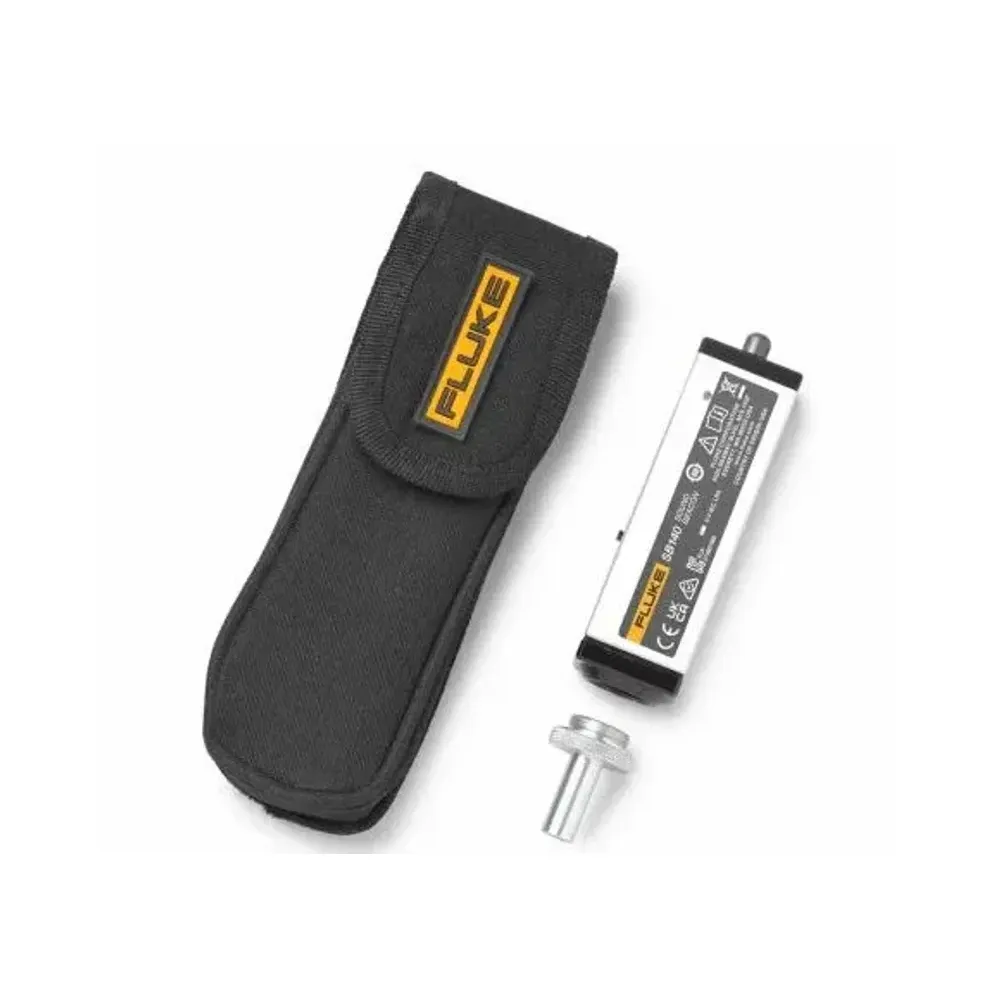

Items Included

• Sound Beacon unit
• 9V Battery
• Soft case
• Accessory 1-inch probe
• Instruction sheet
• Warranty card
