FLUKE i800 AC Current Clamp (800 A)

Model # i800

Measures AC current from 100mA to 800 A rms
30 Hz to 10 kHz frequency range
CAT III 600 V rating

BrandFLUKE
Model Numberi800

ADD TO MY RFQ LIST Add to your requistion list to get a quote.

Features
Specifications

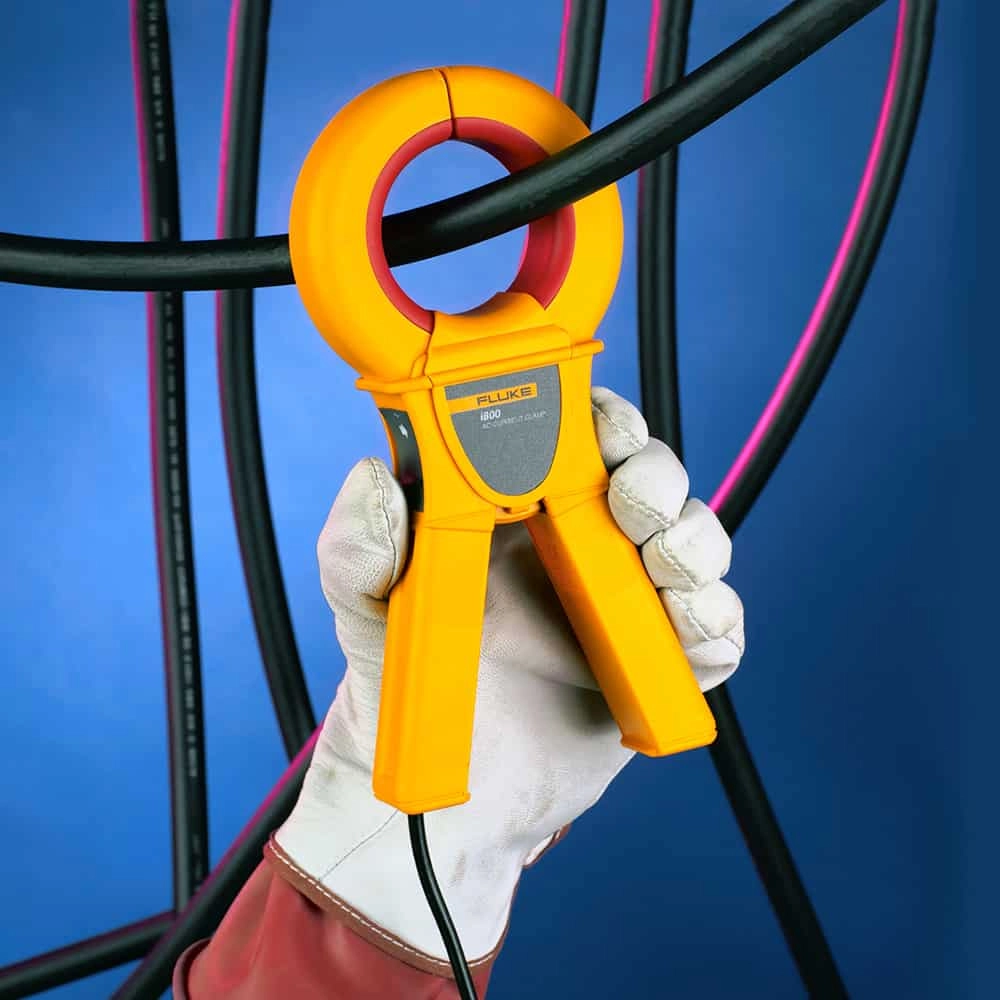

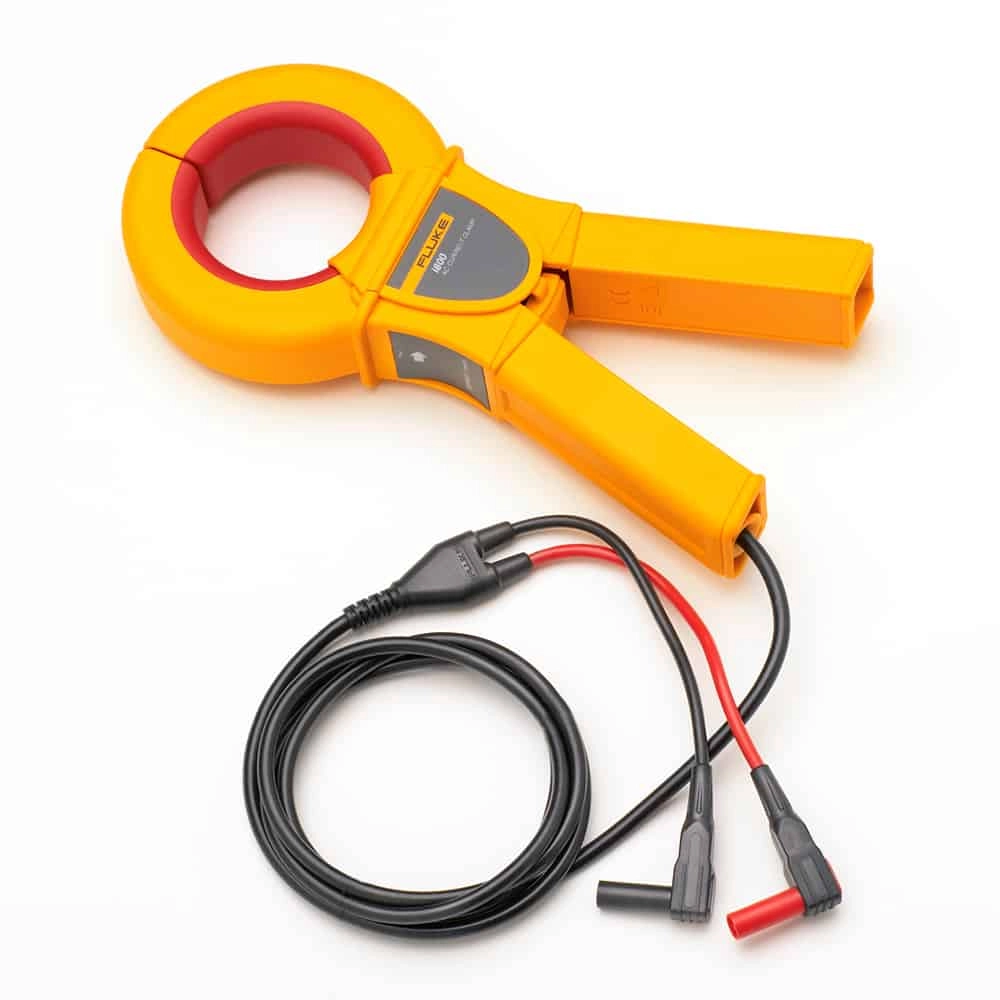

The Fluke i800 AC Current Clamp Probe is a clamp-on AC current probe designed to extend the current measuring capability of a digital multimeter to 800 amperes AC.

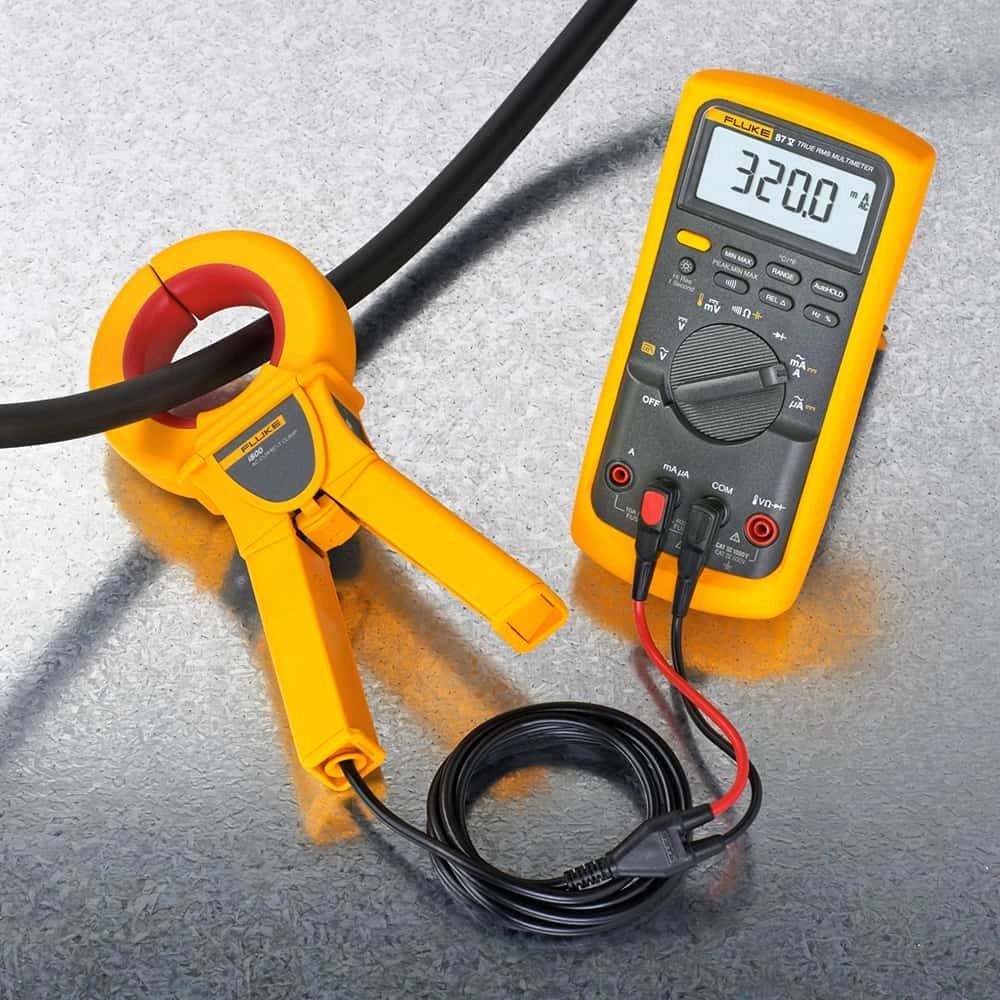

The clamp is compatible with a DMM that accepts 4mm shrouded banana plugs and has an AC milliamp range.
Features:

Measures AC current from 100mA to 800 A rms
30 Hz to 10 kHz frequency range
CAT III 600 V rating
Accepts up to 54 mm (2.1 in) diameter conductor size
1000:1 conversion factor for easy calculation
Rugged positive action design
Weight : .85 kg (1.87 lb)
Dimensions (L x W x H) : 11.8 x 26.67 x 7.6 cm (4.6 x 10.5 x 3 in)

Specifications

Nominal current range

800 A rms

Continuous current range

100 mA to 800 A rms

Maximum Non-Destrucive Current

1500 A rms (50/60 Hz)

Lowest measurable current

100 mA

Basic accuracy

±1% of reading

Useable frequency

30 Hz – 10 kHz (-3dB)

Output level(s)

1 mA / A

Safety Specifications

Safety

CAT III 600 V

Maximum voltage

600 V ac rms or dc

Mechanical & General Specifications

Warranty

1 year

Maximum conductor diameter

54 mm (2.13 inches)

Output cable length

1.6 m (63 inches)

Lead connector

Shrouded banana plugs
