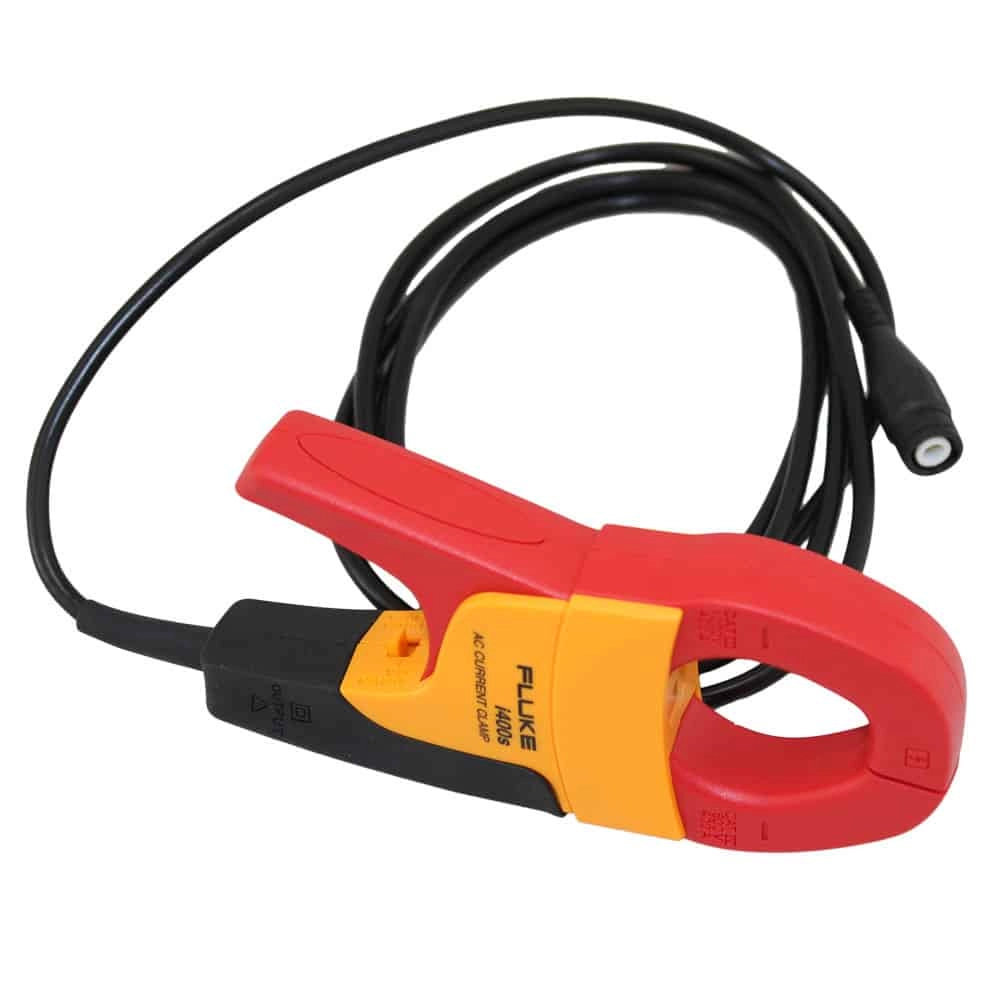

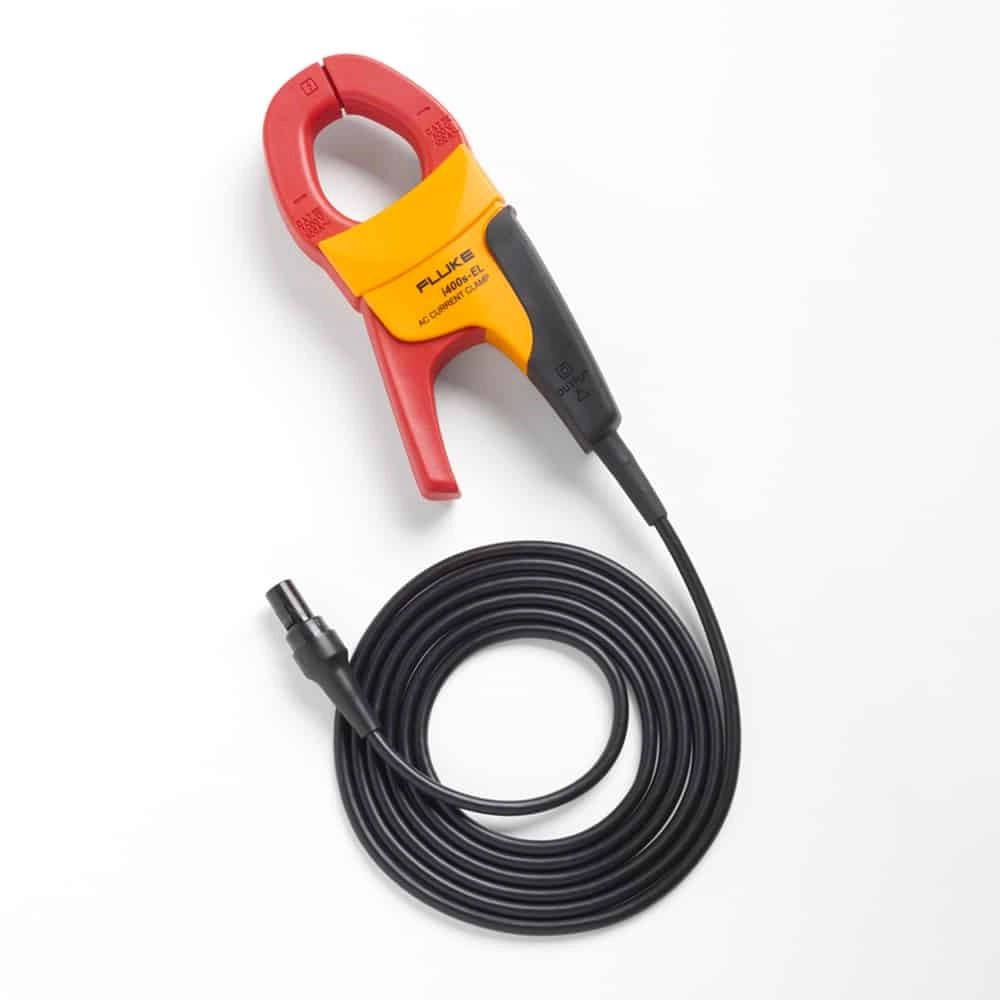

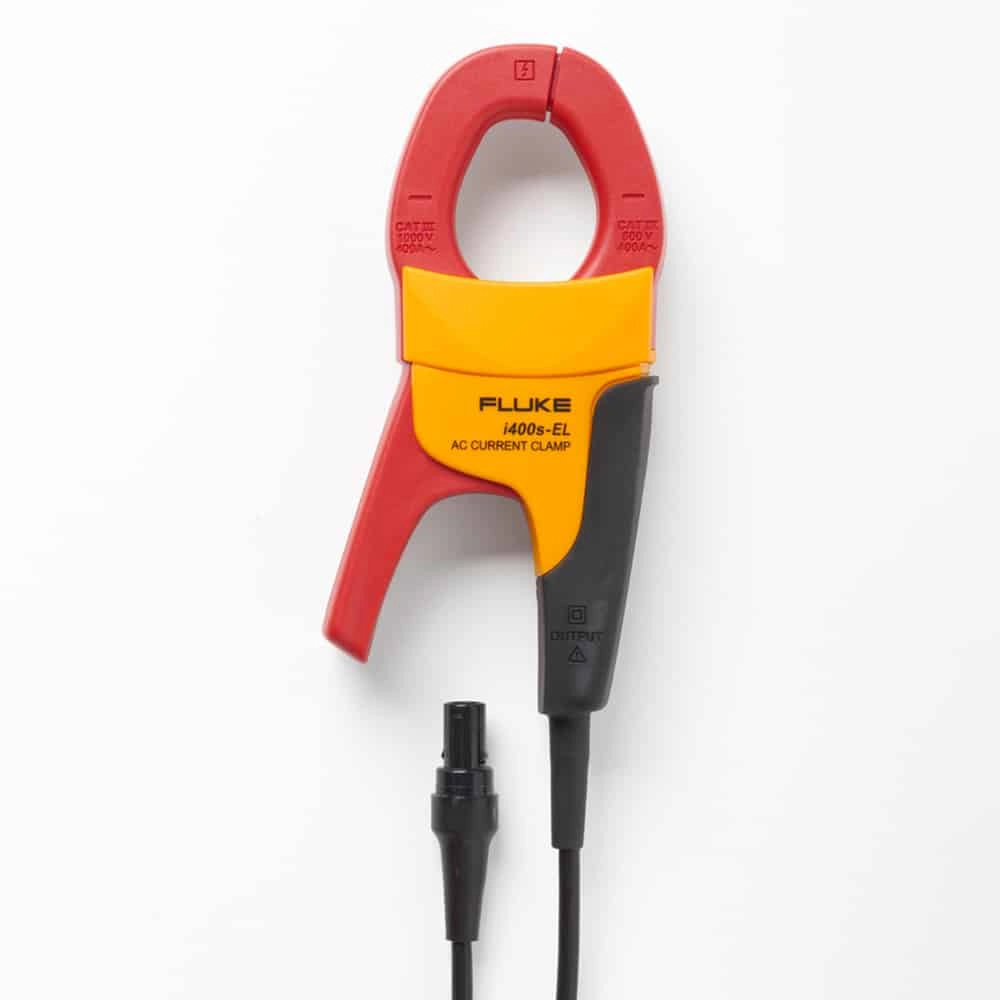

# i400s
Electrical Specifications | |
Nominal Current Range | 40 A Range: 0.5 to 40 A 400 A Range: 5 to 400 A |
Basic Accuracy | 40 A Range: 2% + 0.015 A (45 to 400 Hz) 400 A Range: 2% + 0.04 A (45-400 Hz) |
Phase Shift 40 A Range | 0.5 to 1 A: Unspecified 1 to 5 A: 4° 5 to 10 A: 3° 10 to 20 A: 3° 20 to 40 A: 2° 40 to 400 A: NA |
Phase Shift 400 A Range | 0.5 to 1 A: NA 1 to 5 A: NA 5 to 10 A: Unspecified 10 to 20 A: 2° 20 to 40 A: 2° 40 to 400 A: 1.5° |
Typical Bandwidth | 40 A Range: 5 to 10 kHz 400 A Range: 5 to 10 kHz |
Output Level(s) | 40 A Range: 10 mV/A 400 A Range: 1 mV/A |
Crest Factor | 40 A Range: ≤3 400 A Range: ≤3 to 300 A, ≤2.5 to 400 A |
Mechanical and General Specifications | |
Maximum Conductor Size | 1.25″ (32 mm) |
Output Cable Length | 8.2′ (2.5 m) |
BNC Adapter | Yes |
Dimensions | 5.9 x 2.7 x 1.2″ (150 x 70 x 30 mm) |
Weight | 0.25 lb (114 g) |
Safety Specifications | |
Safety | CAT IV, 600 V, CAT III, 1000 V |
Maximum Non-Destructive Current | 1000 V AC |
