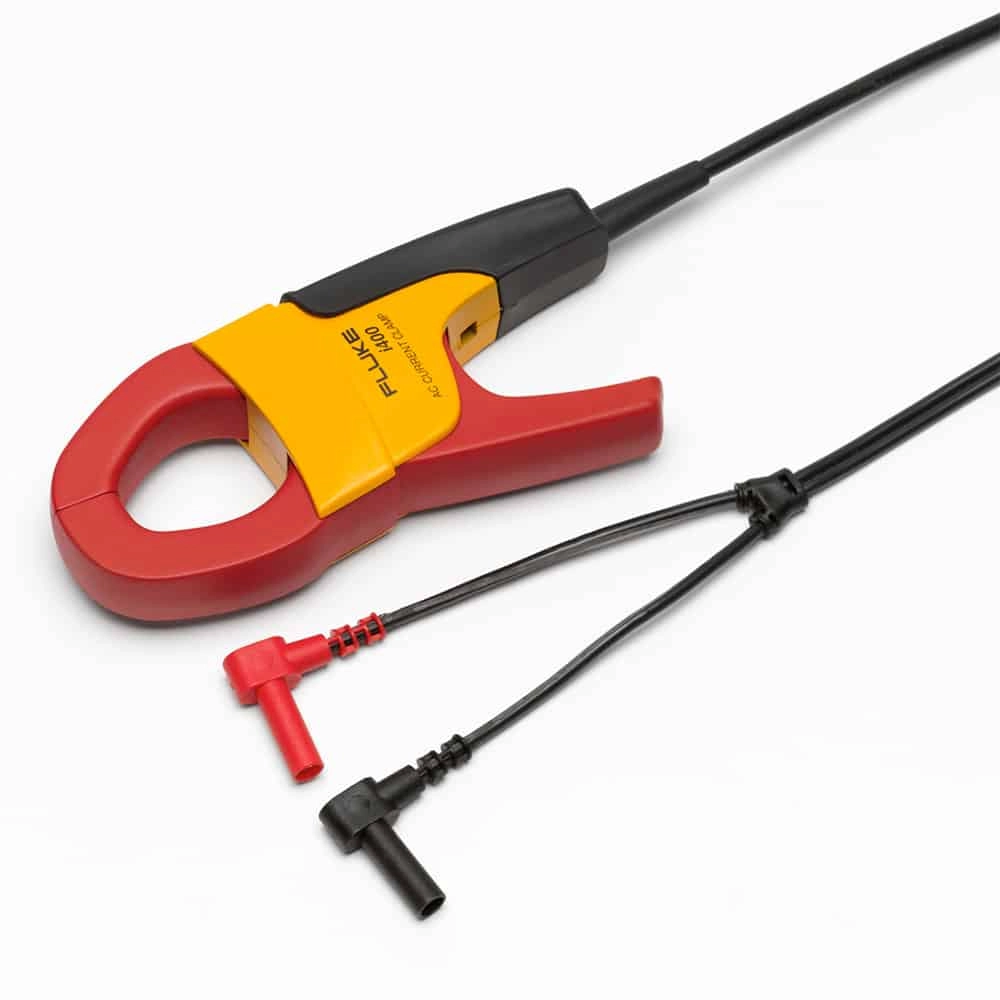

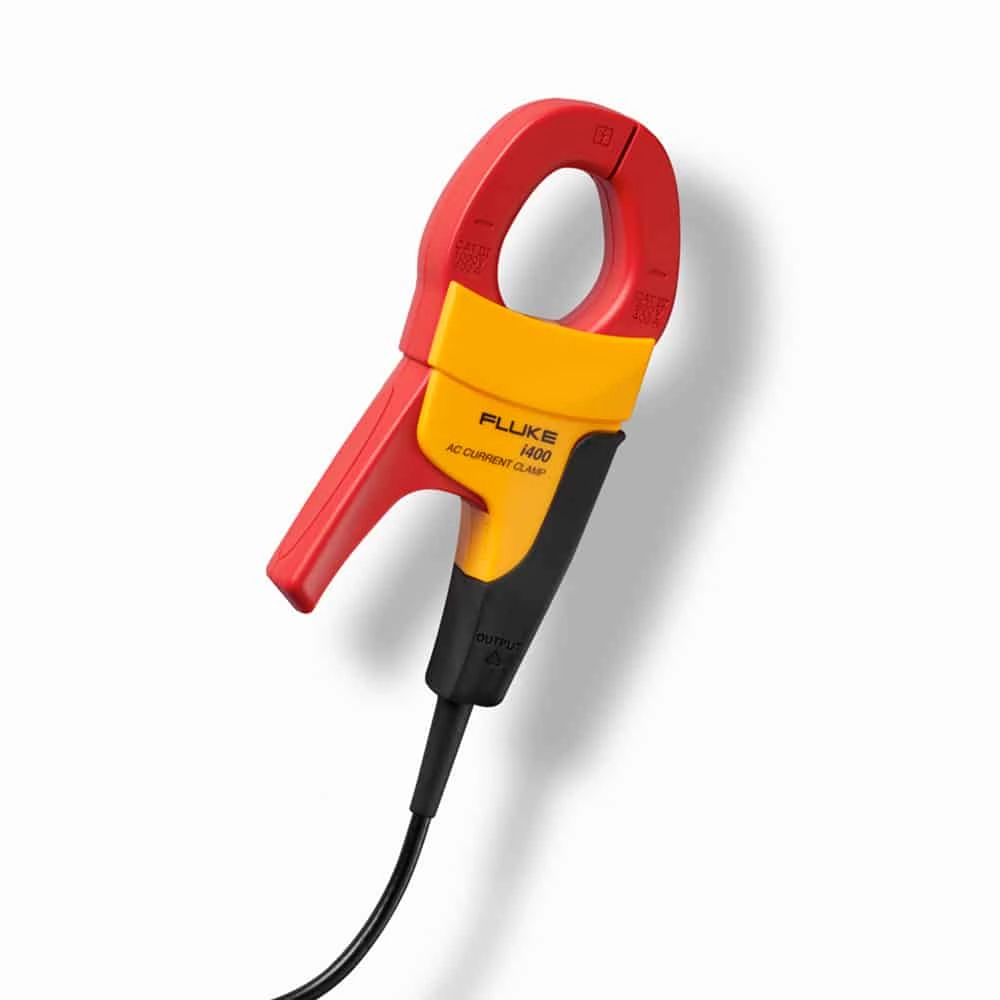

FLUKE i400 AC Current Clamp (400 A)

Model # i400

Companion to your DMM to measure up to 400 A AC
1mA/Amp output guarantees easy reading on you meter
Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating

BrandFLUKE
Model Numberi400

ADD TO MY RFQ LIST Add to your requistion list to get a quote.

Features
Specifications

Companion to your DMM to measure up to 400 A AC
1mA/Amp output guarantees easy reading on you meter
Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
Specially designed to offer maximum utility in a very compact shape
Take accurate current readings without breaking the circuit
Soft non-slippery overmold handle prevents from accidental touching live wiring
Max. conductor Ø 32 mm

General Specifications
Nominal Current Range	400 A
Continuous Current Range	1 to 400 A
Maximum Non-Destructive Current	1000 A
Lowest Measurable Current	1 A
Basic Accuracy	2% + 0.06 A 45 to 400 Hz % reading + floorspec
Useable Frequency	5 to 20 kHz
Output Level(s)	1 mA/A
Safety Specifications
Safety	CAT IV 600 V, CAT III, 1000 V
Maximum Voltage	1000 V AC rms from earth to ground, in compliance with EN61010
Mechanical and General Specifications
Maximum Conductor Diameter	1.25″ (32 mm)
Maximum Conductor Size (Busbar)	750 MCM
Output Cable Length	59″ (1.5 m)
Shrouded Banana Plugs	Yes
