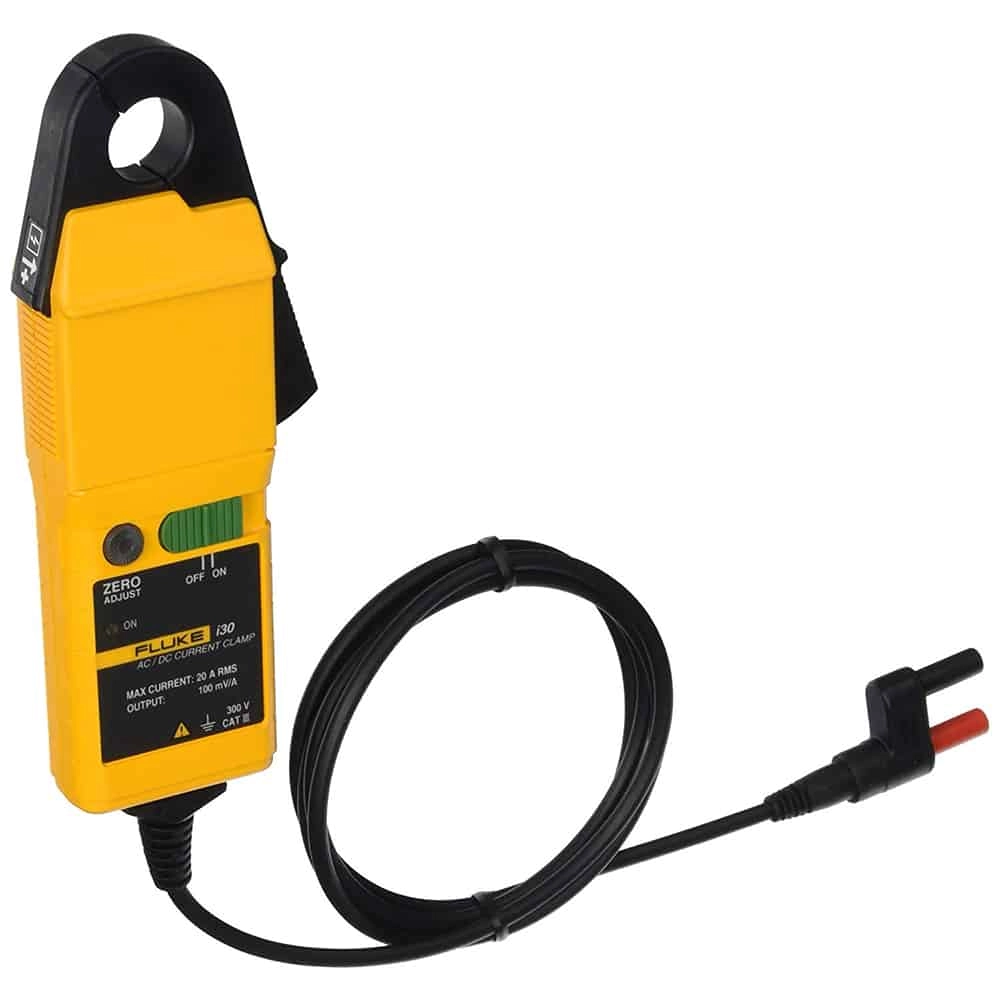

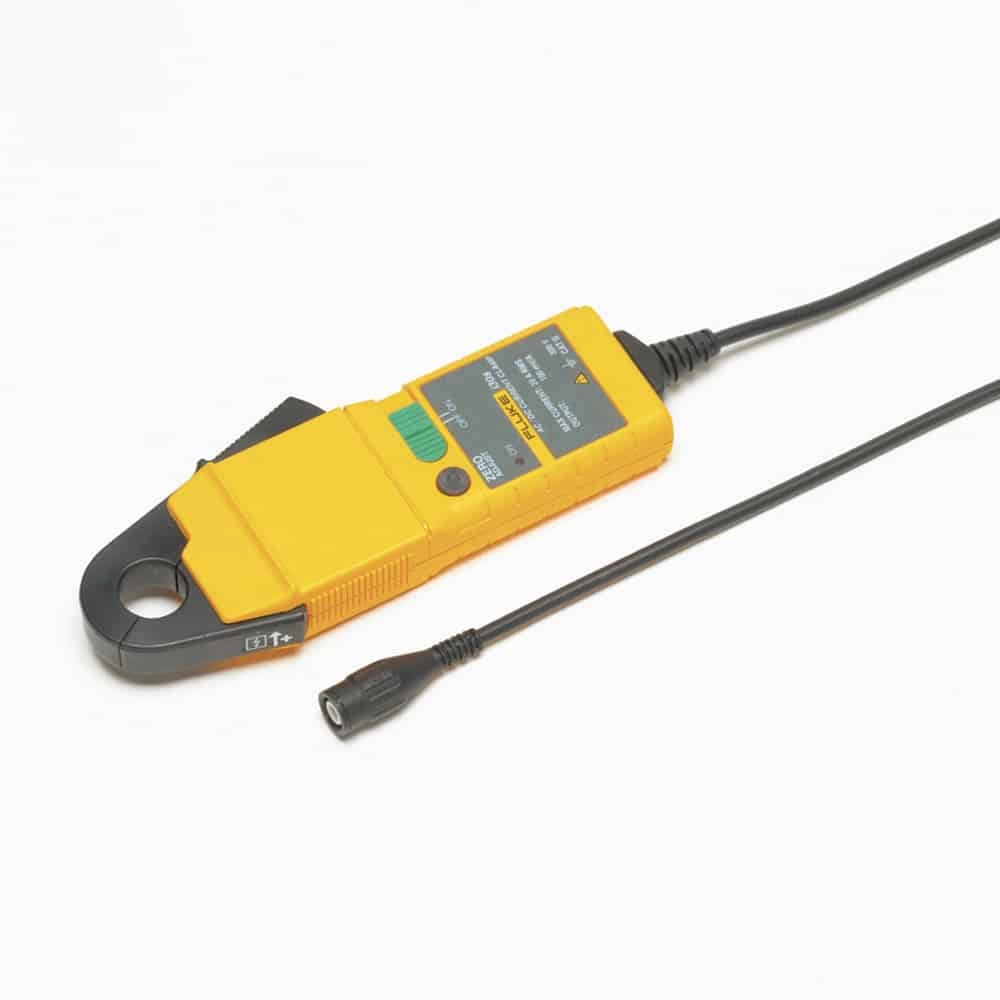

  • FLUKE i30 AC/DC Current Clamp (30A)

    # i30

    • The i30 current clamp is based on Hall Effect technology for use in measurement of both DC and AC current.
    • The i30 may be used in conjunction with multimeters, recorders and other suitable recording instruments
    FLUKE
    • FLUKE
    • i30
    • The i30 current clamp is based on Hall Effect technology for use in measurement of both DC and AC current.
    • The i30 may be used in conjunction with multimeters, recorders and other suitable recording instruments
    Electrical Specifications
    Specified current range 30 mA to 30 A DC, 30 mA to 20 A AC rms
    Usable current range 5 mA to 30 A DC, 30 mA to 20 A AC rms
    Crest Factor 1.4 in
    Output sensitivity 100 mV/A
    Accuracy (at +25°C) ±1% of reading ±2 mA
    Resolution ±1 mA
    Load impedance > 10 k Ohms and ≤ 100pF
    Conductor position sensitivity ±1% relative to center reading
    Frequency range DC to 20 kHz (-0.5 dB)
    Temperature coefficient ±0.01% of reading/°C
    Power supply 9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator
    Working voltage (see Safety Standards section) 300 V AC rms or DC
    General Specifications
    Maximum conductor size 19 mm diameter
    Output connection 4 mm safety connector
    Output zero Manual adjust via thumbwheel
    Cable length 1.5 meters
    Operating temperature range 0°C to +50°C
    Storage temperature range (with battery removed) -20°C to +85°C
    Operating humidity 15% to 85% (non-condensing)
    Weight 250 g
    Safety IEC 61010-1, Pollution Degree 2
    IEC 61010-2- 032: CAT III 300V
    Use of the probe on uninsulated conductors is limited to 300 V ac rms or dc andfrequencies below 1 kHz.
    EMC Compatibility IEC 61326-1: Portable Electromagnetic Environment
