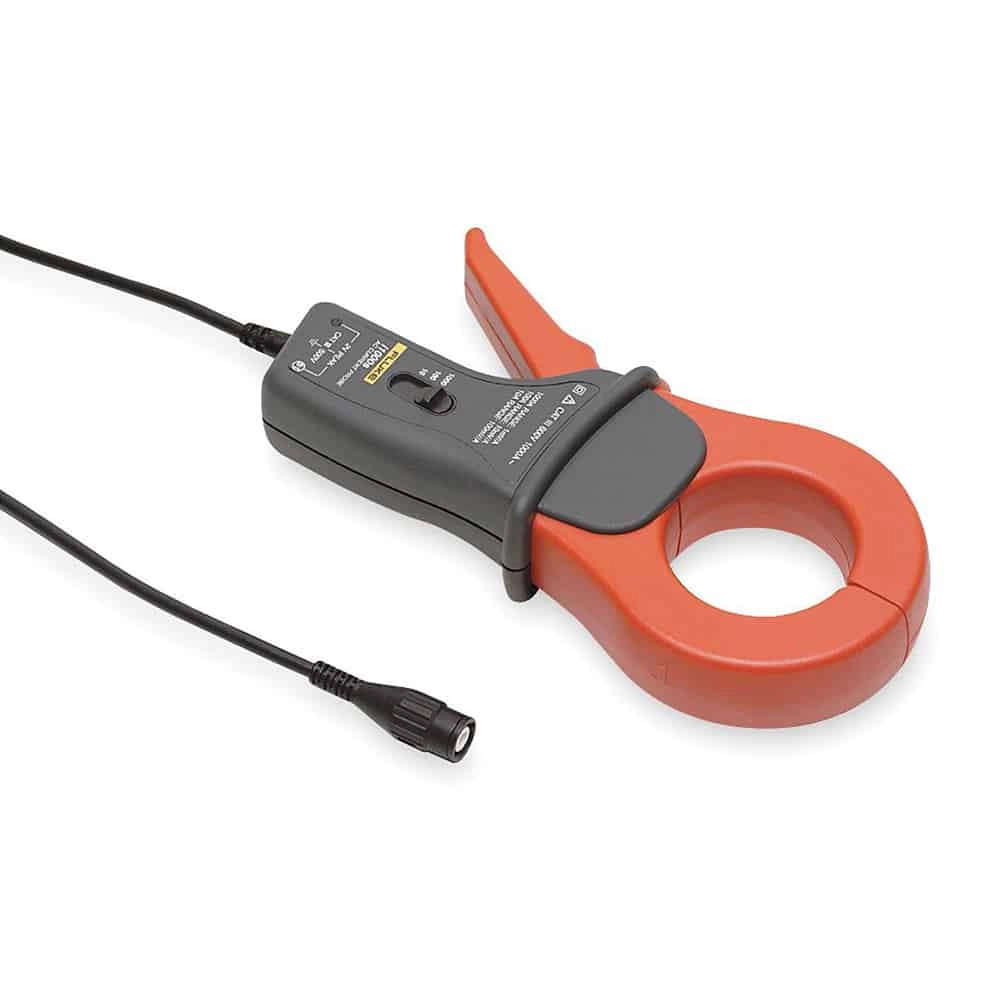

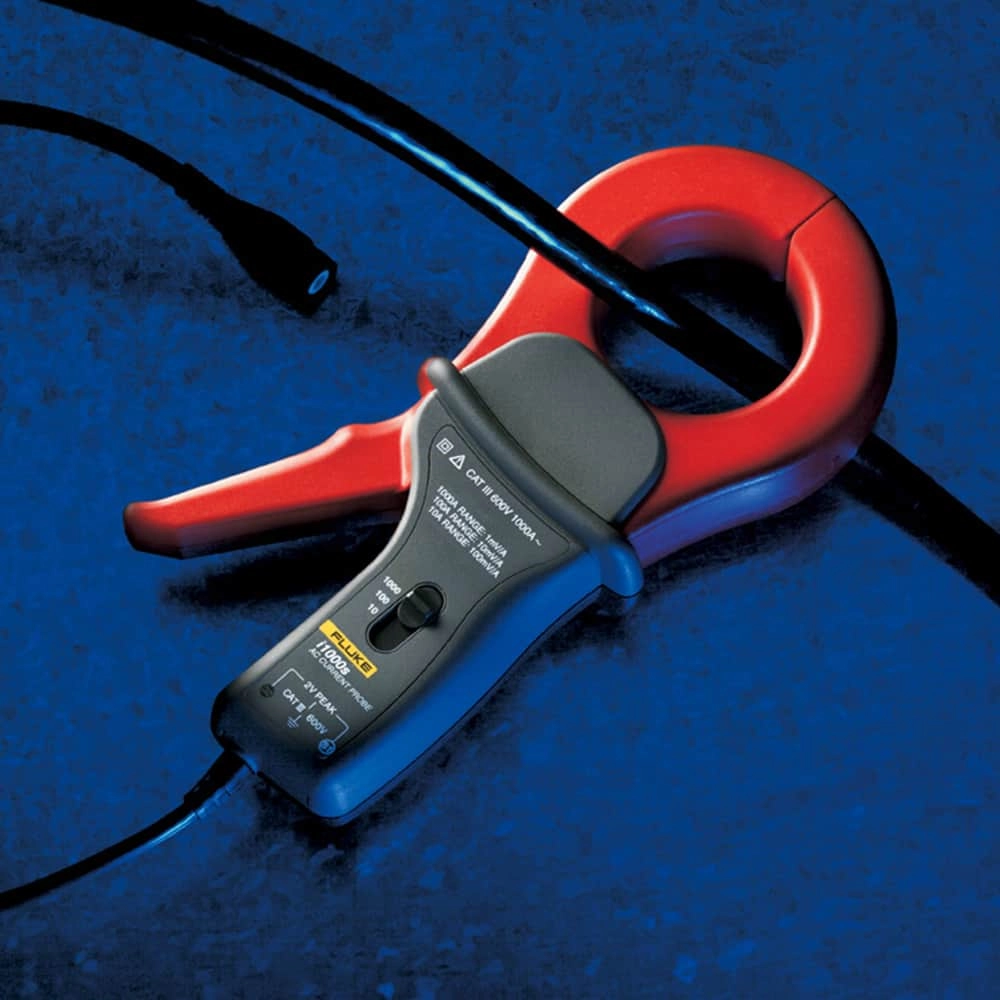

FLUKE i1000s AC Current Clamp (1000 A)

Model # i1000s

Allows accurate measurement of currents from 100 mA to 1000 A rms, 5 Hz to 100 kHz without breaking into the circuit
A passive filter eliminates noise and ring on rapidly rising di/dt waveform, ensuring accurate screen displays

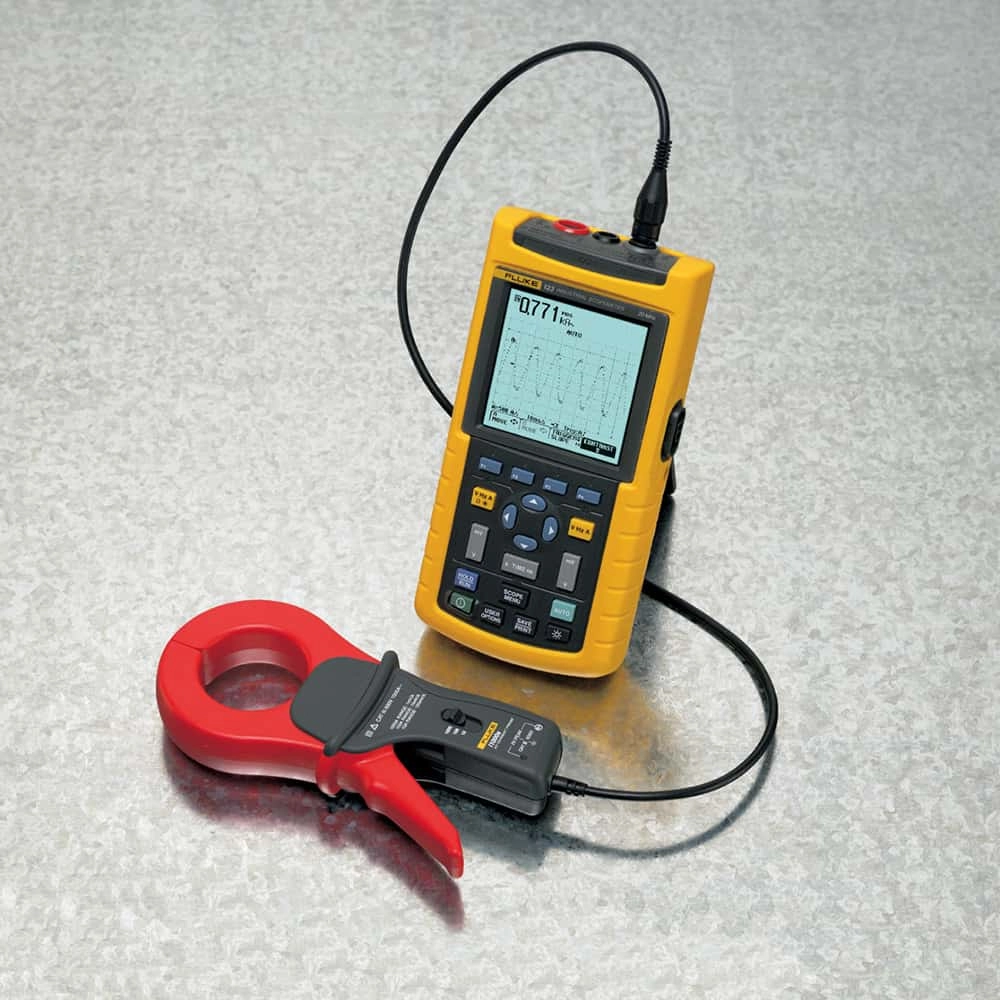

Connects directly to an oscilloscope through a reinforced coaxial cable and an insulated BNC connector

Allows accurate measurement of currents from 100 mA to 1000 A rms, 5 Hz to 100 kHz without breaking into the circuit
A passive filter eliminates noise and ring on rapidly rising di/dt waveform, ensuring accurate screen displays
Connects directly to an oscilloscope through a reinforced coaxial cable and an insulated BNC connector
Can be used with multimeters with optional PM9081/001 BNC/Banana adapter

Nominal Current Range	10 A, 100 A, 1000 A
Continuous Current Range	0.1 to 10 A 0.1 to 100 A 1 to 1000 A
Maximum Non-Destructive Current	2000 A
Lowest Measurable Current	0.1
Basic Accuracy	1% + 1 A (48 to 65 Hz) (% reading + floor spec)
Useable Frequency	5 Hz to 100 kHz
Output Level(s)	100 mv/A 10 mv/A 1 mv/A
Safety	CAT III, 600 V CAT IV, 300 V
Maximum Voltage	600 V AC
Maximum Conductor Diameter	2.12″ (54 mm)
Output Cable Length	5.25′ (1.6 m)
