Fluke FEV500/CCS2 Fast DC Charging Station Analyzer, CCS2

Model # FEV500/CCS2

Key Features

Qty:

Question about this product?

Comprehensive Testing: Performance and safety testing combined in one device

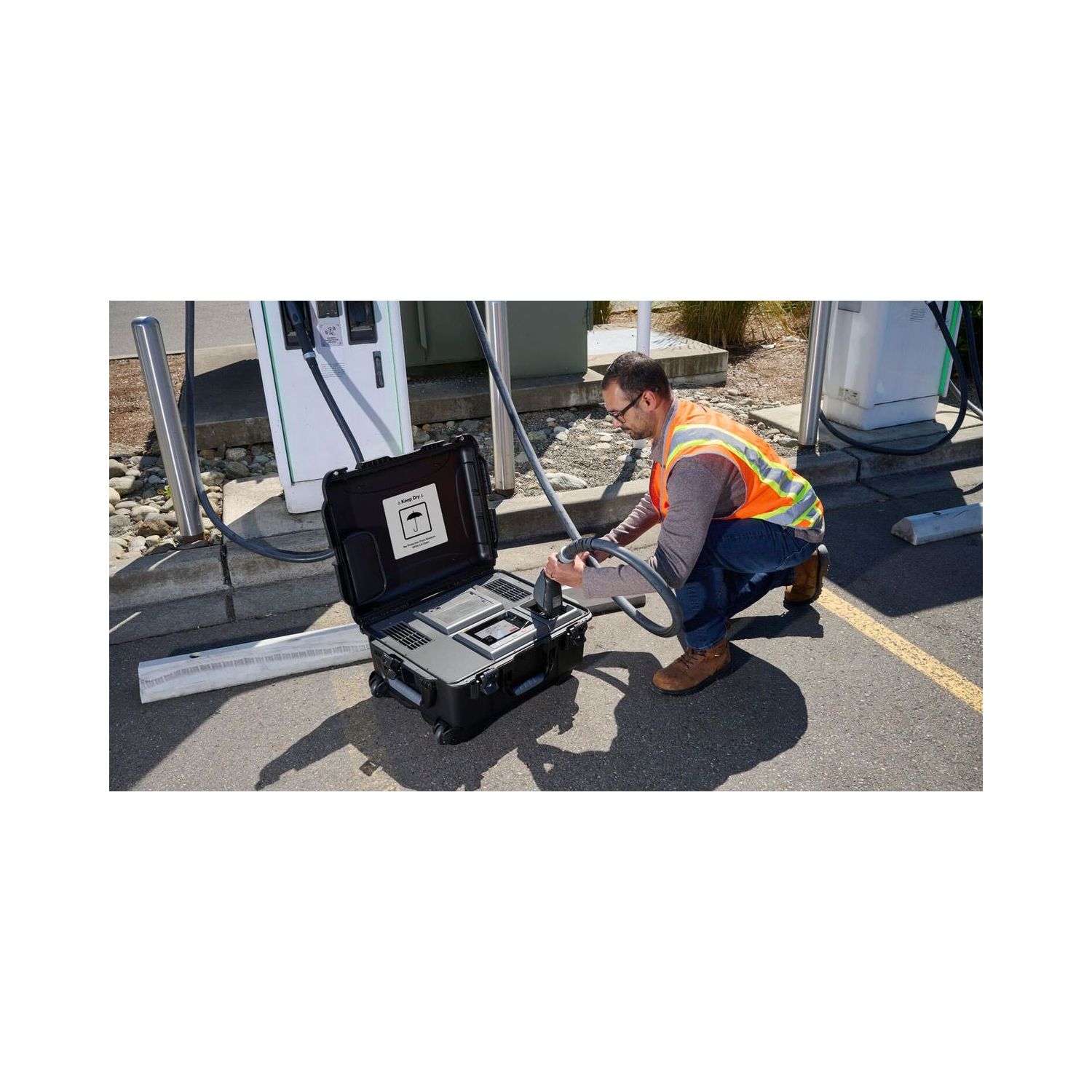

EV Simulation, No External Equipment Needed: Simulates electric vehicle charging during testing, eliminating the need for additional load banks, electric vehicles or multifunction testers. Verifies charging station operability and performance by simulating a kW load to mimic real charging sessions
Autotest Feature: Run pre-configured test sequences with automatic execution and clear pass/fail results. No need to use other equipment or reconfigure test leads
User-Friendly Interface: Intuitive touchscreen display visible in bright sunlight with guided workflows and for easy operation and interpretation of results
CCS Connectivity: Supports CCS connectors for widespread compatibility. Available in CCS1 or CCS2 models

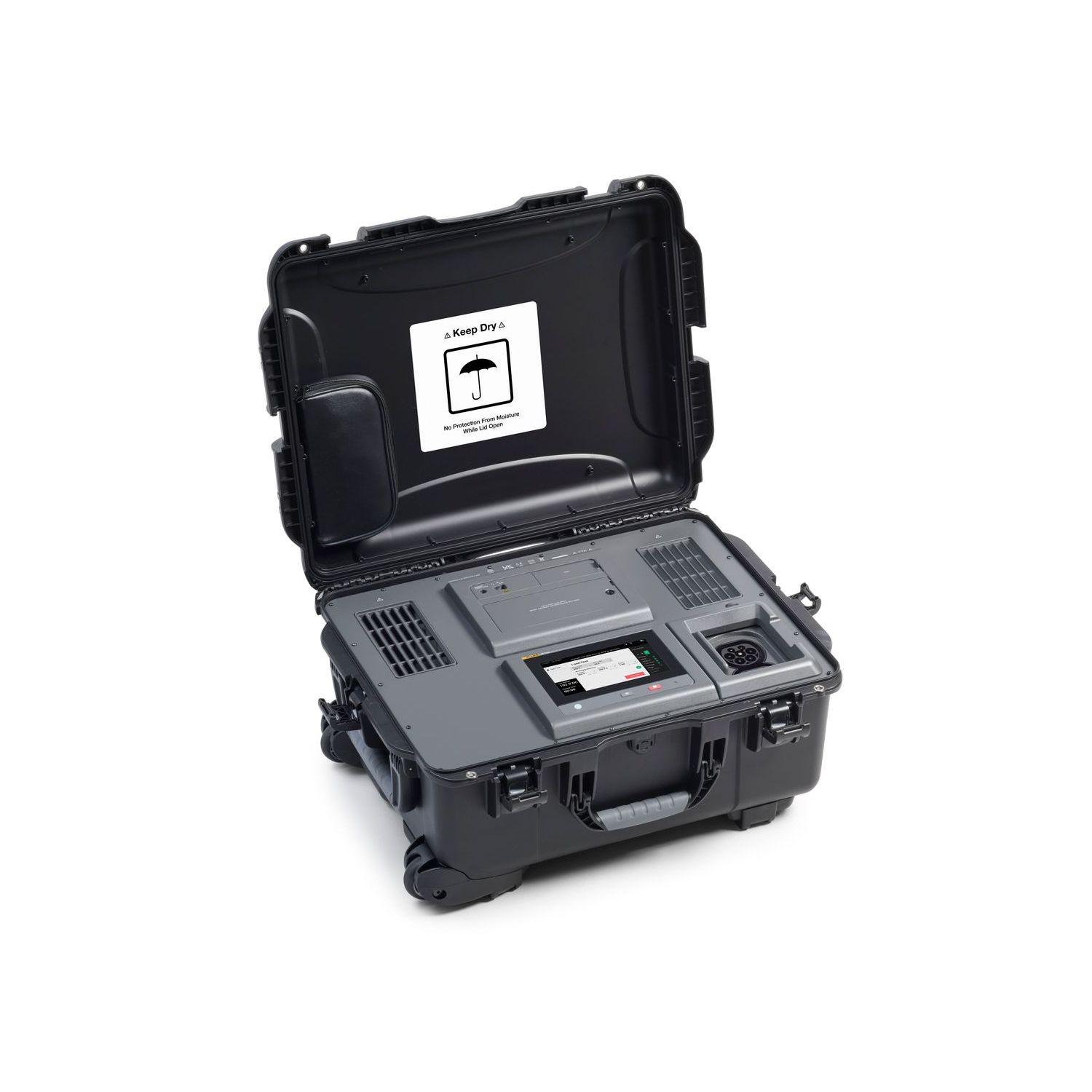

Portable and Durable: Rugged design ideal for field use, with a removable, rechargeable battery, no outlet required
Automatic Data Management: Tracks and stores unique EVSE and connection point IDs for streamlined asset management
TruTest™ Software: Facilitates documentation and reporting of results

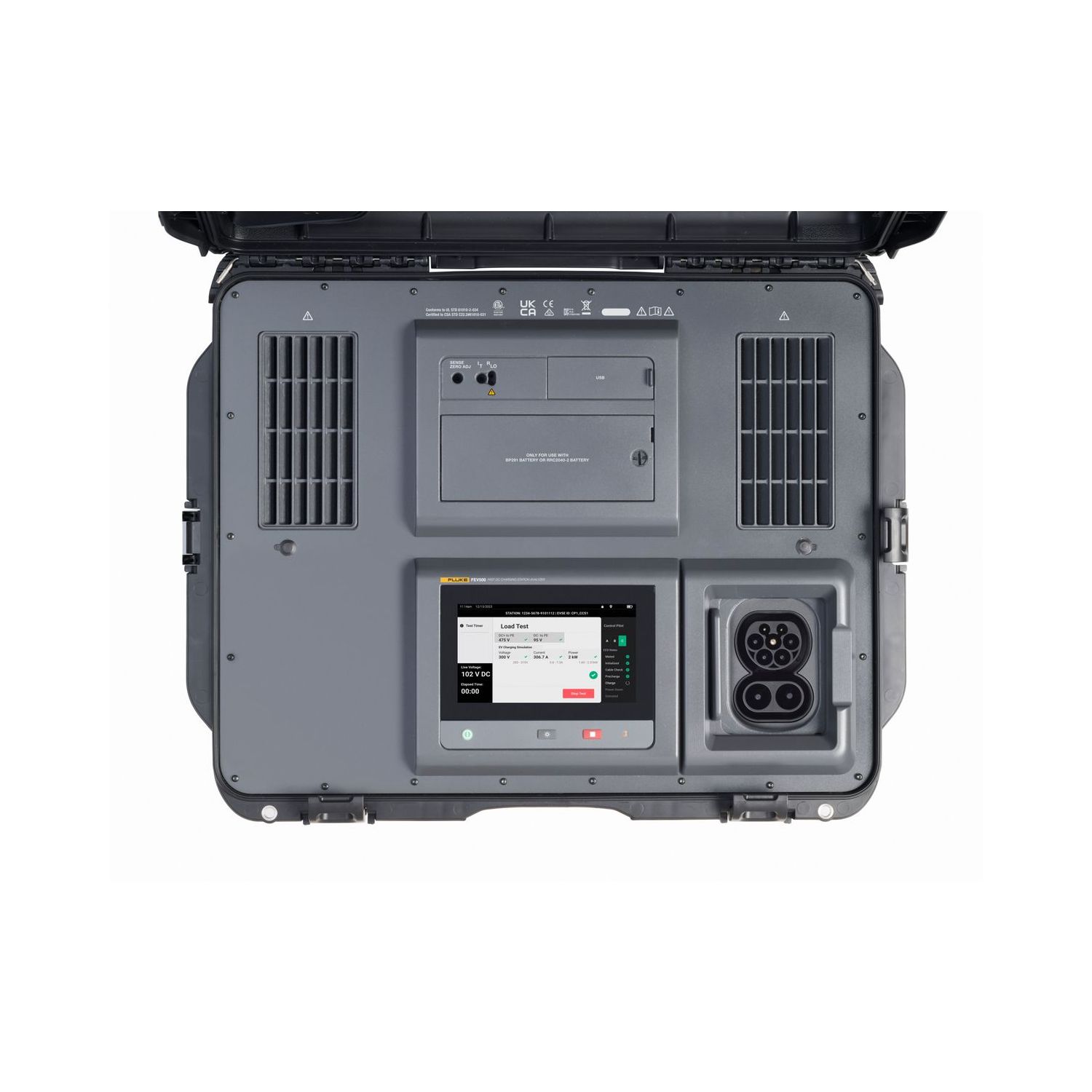

Display 7-inch capacitive touchscreen (1024 x 600) Brightness up to 1,700 cd/m² (auto-adjusted)
Keys Power on/off, Backlight, Stop Test
LED Indicators Green Power on
LED Indicators Red Low battery
LED Indicators Blue Charging
LED Indicators Amber Fan active when device is off
USB-C Ports USB-C power delivery charging, Flash drive TruTestTM connection, Calibration
GNSS Global navigation satellite receiver with internal antenna for time synchronization
Dimensions 650 × 508 × 300 mm (25.6 × 20 × 11.8 in)
Weight 26 kg (57.3 lb)
Battery Type Li-ion RRC2040-2
Battery Capacity 10.8 V, 6.8 Ah, 73.44 Wh
Battery Runtime 10 hours
Charging Time 3 hours (with 65W USB-C PD)
Fuse 11 A
Warranty 2 years
Operating Temperature -20 °C to 50 °C (-4 °F to 122 °F)
Storage Temperature -20 °C to 60 °C / 0 °C to 30 °C
Operating Altitude 3000 m
Storage Altitude 12000 m
Vibration IEC 60721-3-3 / 3M2
Ingress Protection IEC 60529
Ingress Protection, Lid Closed IP54
Safety IEC 61010-1 Pollution Degree 2
Charging Temp (Battery) 0 °C to 45 °C
