Fluke FEV500/CCS2 PRO Fast DC Charging Station Analyzer, CCS2 with TruTest software
Key Features
?
Question about this product?
Features
- Comprehensive Testing: Performance and safety testing combined in one device
- EV Simulation, No External Equipment Needed: Simulates electric vehicle charging during testing, eliminating the need for additional load banks, electric vehicles or multifunction testers. Verifies charging station operability and performance by simulating a kW load to mimic real charging sessions
- Autotest Feature: Run pre-configured test sequences with automatic execution and clear pass/fail results. No need to use other equipment or reconfigure test leads
- User-Friendly Interface: Intuitive touchscreen display visible in bright sunlight with guided workflows and for easy operation and interpretation of results
- CCS Connectivity: Supports CCS connectors for widespread compatibility. Available in CCS1 or CCS2 models
- Portable and Durable: Rugged design ideal for field use, with a removable, rechargeable battery, no outlet required
- Automatic Data Management: Tracks and stores unique EVSE and connection point IDs for streamlined asset management
- Trutest Software: Seamless integration with Fluke TruTest™ software for instant documentation, compliance reporting, and actionable maintenance insights
Technical Information
- Display 7-inch capacitive touchscreen (1024 x 600) Brightness up to 1,700 cd/m² (auto-adjusted)
- Keys Power on/off, Backlight, Stop Test
- LED Indicators Green Power on
- LED Indicators Red Low battery
- LED Indicators Blue Charging
- LED Indicators Amber Fan active when device is off
- USB-C Ports USB-C power delivery charging, Flash drive TruTestTM connection, Calibration
- GNSS Global navigation satellite receiver with internal antenna for time synchronization
- Dimensions 650 × 508 × 300 mm (25.6 × 20 × 11.8 in)
- Weight 26 kg (57.3 lb)
- Battery Type Li-ion RRC2040-2
- Battery Capacity 10.8 V, 6.8 Ah, 73.44 Wh
- Battery Runtime 10 hours
- Charging Time 3 hours (with 65W USB-C PD)
- Fuse 11 A
- Warranty 2 years
- Operating Temperature -20 °C to 50 °C (-4 °F to 122 °F)
- Storage Temperature -20 °C to 60 °C / 0 °C to 30 °C
- Operating Altitude 3000 m
- Storage Altitude 12000 m
- Vibration IEC 60721-3-3 / 3M2
- Ingress Protection IEC 60529
- Ingress Protection, Lid Closed IP54
- Safety IEC 61010-1 Pollution Degree 2
- Charging Temp (Battery) 0 °C to 45 °C
Downloads
Buy Fluke FEV500/CCS2 PRO DC Charging Station Analyzer

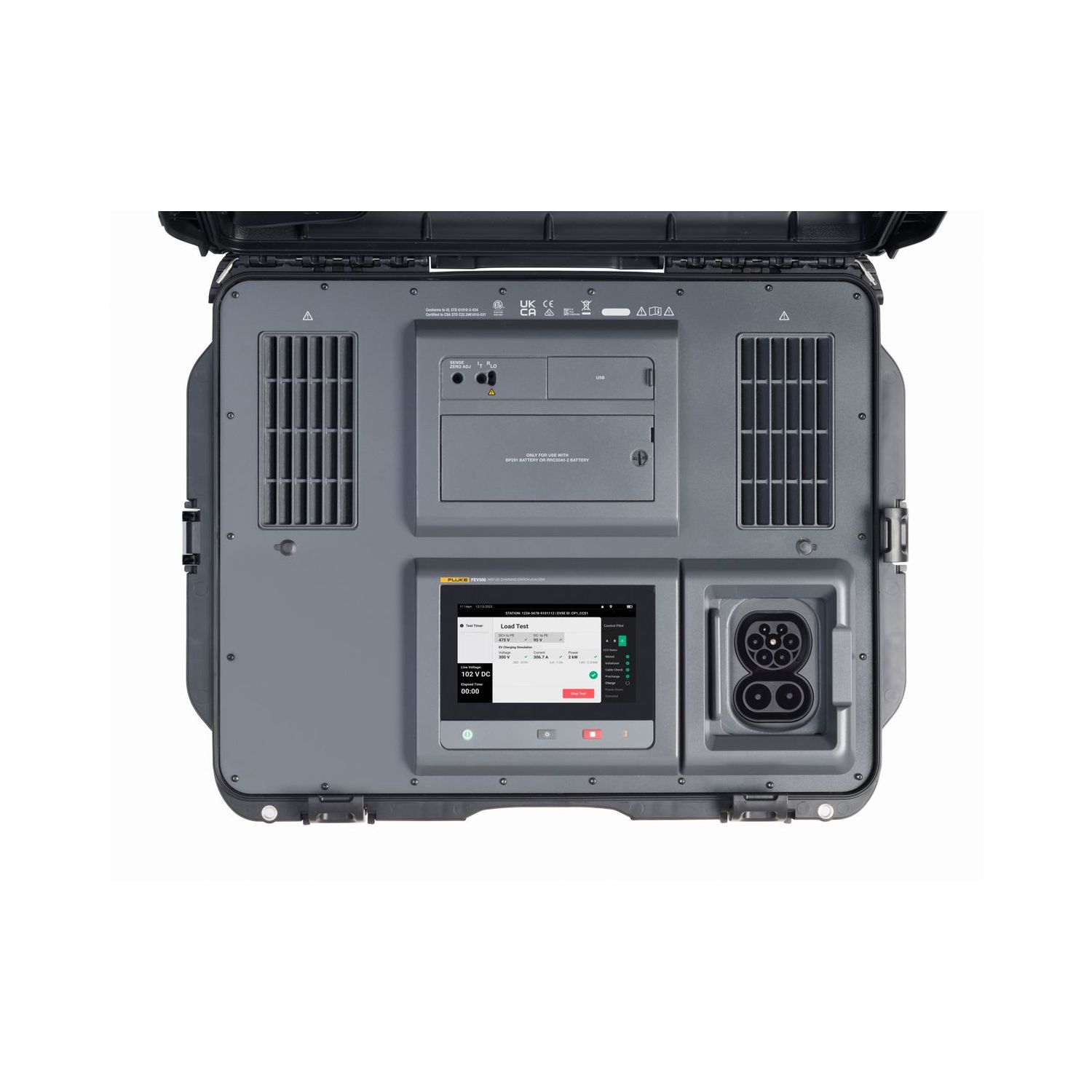

The Fluke FEV500/CCS2 PRO is a fast DC charging station analyzer designed to verify the performance & safety of CCS2 EV charging infrastructure. With built-in EV simulation, an Autotest function for pass/fail sequencing, and seamless TruTest software integration for compliance reporting, this analyzer is purpose-built for EV charger manufacturers, commissioning engineers, and station operators. The unit features a 7-inch sunlight-readable touchscreen, a rechargeable Li-ion battery delivering up to 10 hours of runtime, and a rugged IP54 housing for dependable field deployment.
ALL-IN-ONE EV TESTING

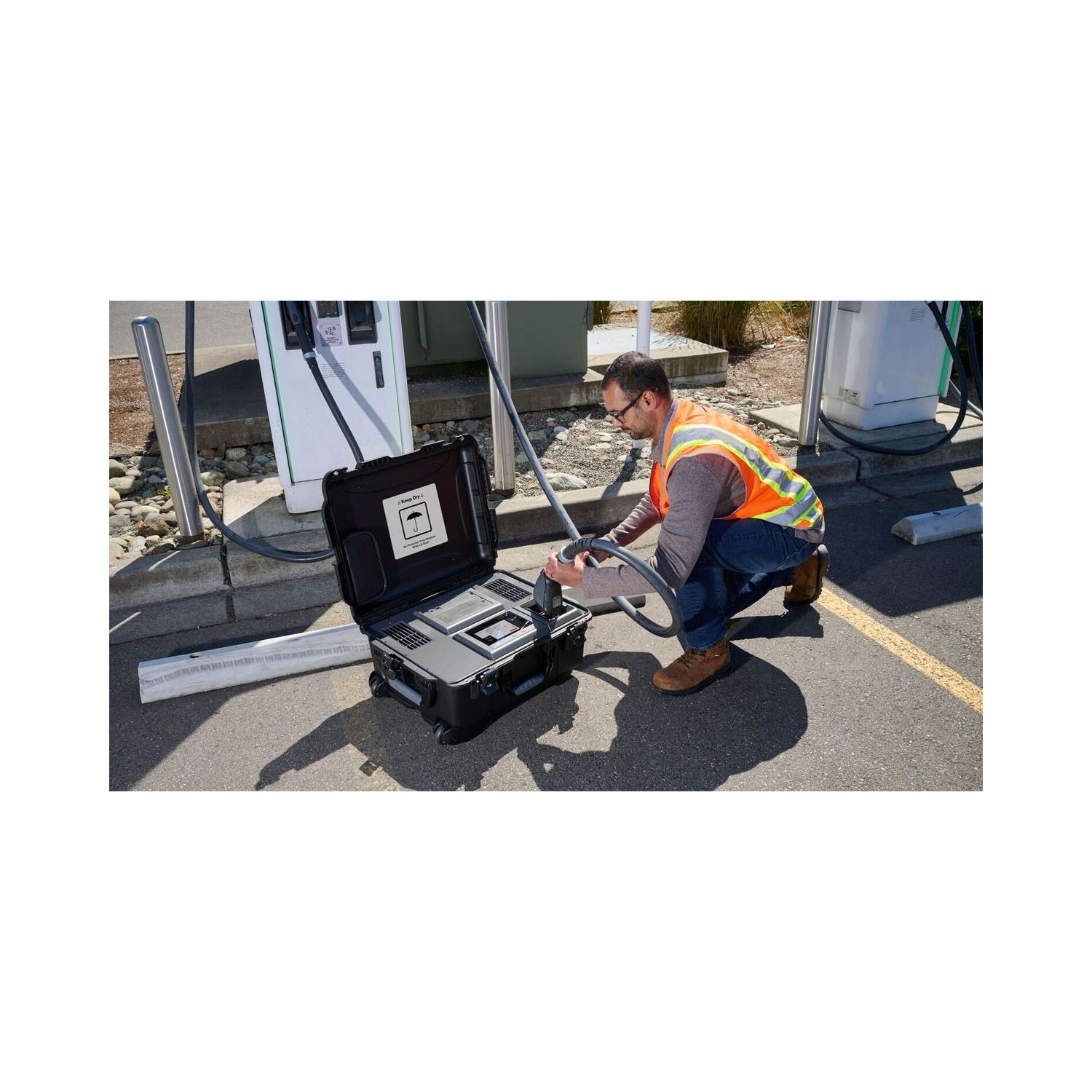

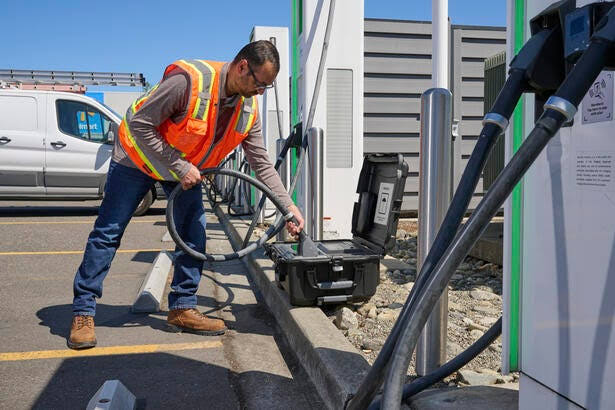

The Fluke FEV500/CCS2 PRO eliminates the need for external load banks, multifunction testers, or actual electric vehicles by simulating a real kW EV charging session directly through its CCS2 connector. This integrated approach allows technicians to validate charger operability, safety protocols, and energy delivery in one workflow. The Autotest feature runs pre-configured sequences with automatic execution and clear pass/fail results, dramatically cutting commissioning and routine inspection time.
SMART DOCUMENTATION
Equipped with an intuitive 7-inch capacitive touchscreen rated up to 1,700 cd/m² for clear visibility in direct sunlight, and a built-in GNSS receiver that automatically tags tests with location and time data, this analyzer streamlines on-site reporting from start to finish. Automatic data management captures unique EVSE and connection point IDs for asset tracking. At the same time, seamless integration with Fluke TruTest software turns raw test data into instant compliance reports and actionable maintenance insights.
