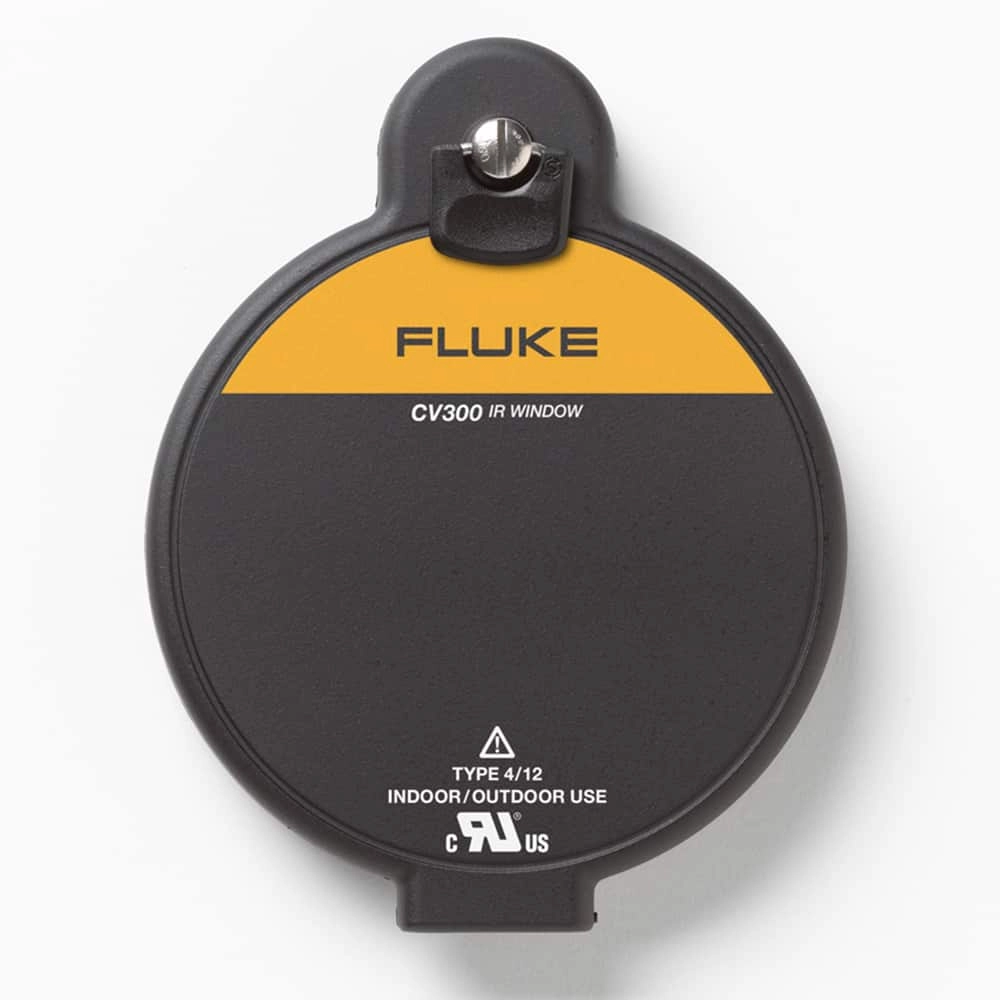

FLUKE CV300 75mm IR Windows; hand turn door latch

Model # CV300

Reduce the risk of arc-flash, increase the safety of personnel, reduce time and cost of preventative maintenance
Grounds instantly to metal enclosure with patent-pending AutoGround™ process
CLIRVU coating system eliminates moisture degradation and helps repel airborne dust and grime keeping both sides of the window clean

Reduce the risk of arc-flash, increase the safety of personnel, reduce time and cost of preventative maintenance
Grounds instantly to metal enclosure with patent-pending AutoGround™ process
CLIRVU coating system eliminates moisture degradation and helps repel airborne dust and grime keeping both sides of the window clean
Maintains panel arc test ratings up to 63kA for 30 cycles
Tested to the highest arc blast test ratings IEEE C37.20.7: 63 kA Arc tested at KEMA, UL 50/50E/50V, UL1558, IEC60529-1: IP67, IEC 60068, CSA C22.2 NO. 14-13:2012, and CE
NEMA Type 4/12 environmental rating for indoor or outdoor use
High strength zinc and aluminum alloy body material
IP67 rated against dust and moisture ingress
Convenience of both quick turn or security keyed access
Quick and easy installation; one hole with standard punch
Perfect for very hot and very cold environments—The exclusive ClirVu coating seals the optic prior to assembly to protect against moisture degradation
Unique identification plate for rapid location confirmation and faster repairs—ideal for working with Fluke thermal imagers featuring IR-PhotoNotes
Quick and easy installation

Size	75 mm
Voltage Range	Any
NEMA Environment Type	4’12 Indoor/Outdoor
Operating Temp.	-40℃ to +233℃ and +260℃ Intermittent
UL 50V component recognition	Yes
Door Latch	Hand Turn
Optic Insert Diameter	75 mm (2.96 in.)
Warranty	Lifetime replacement against manufacturer defects
