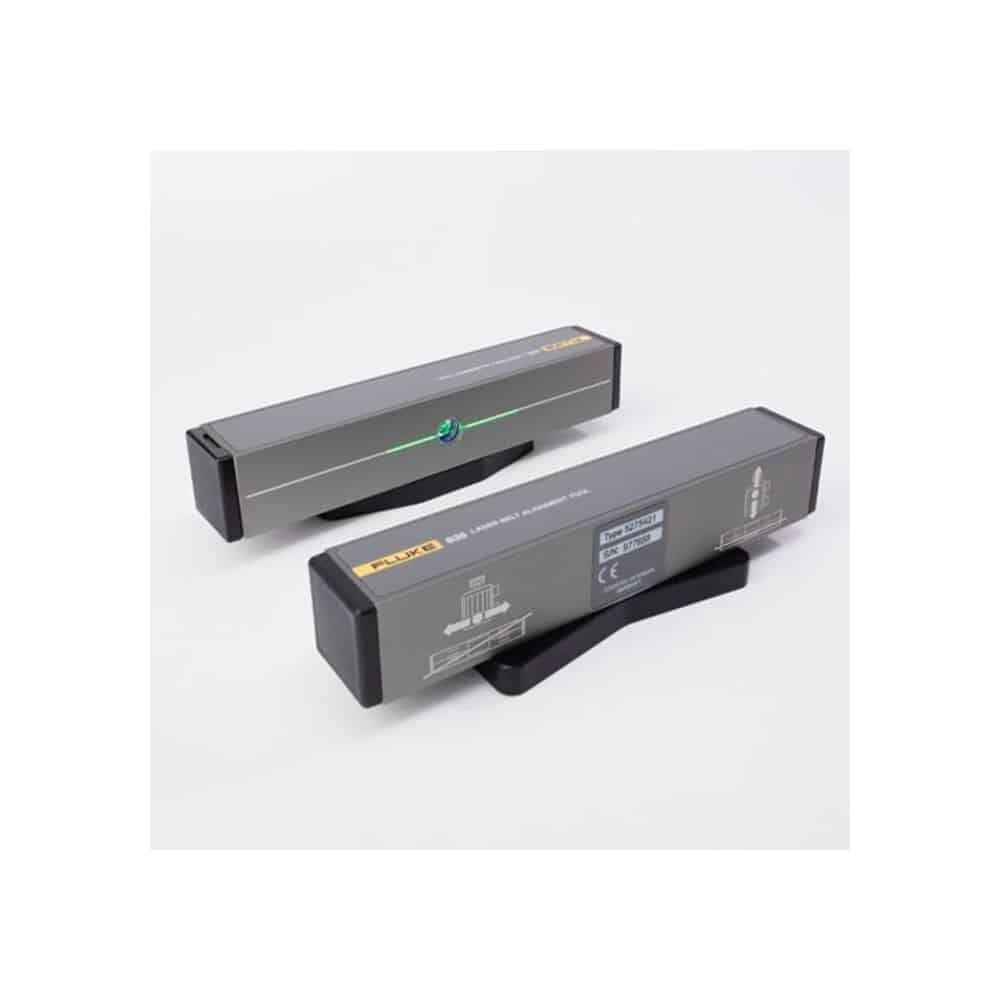

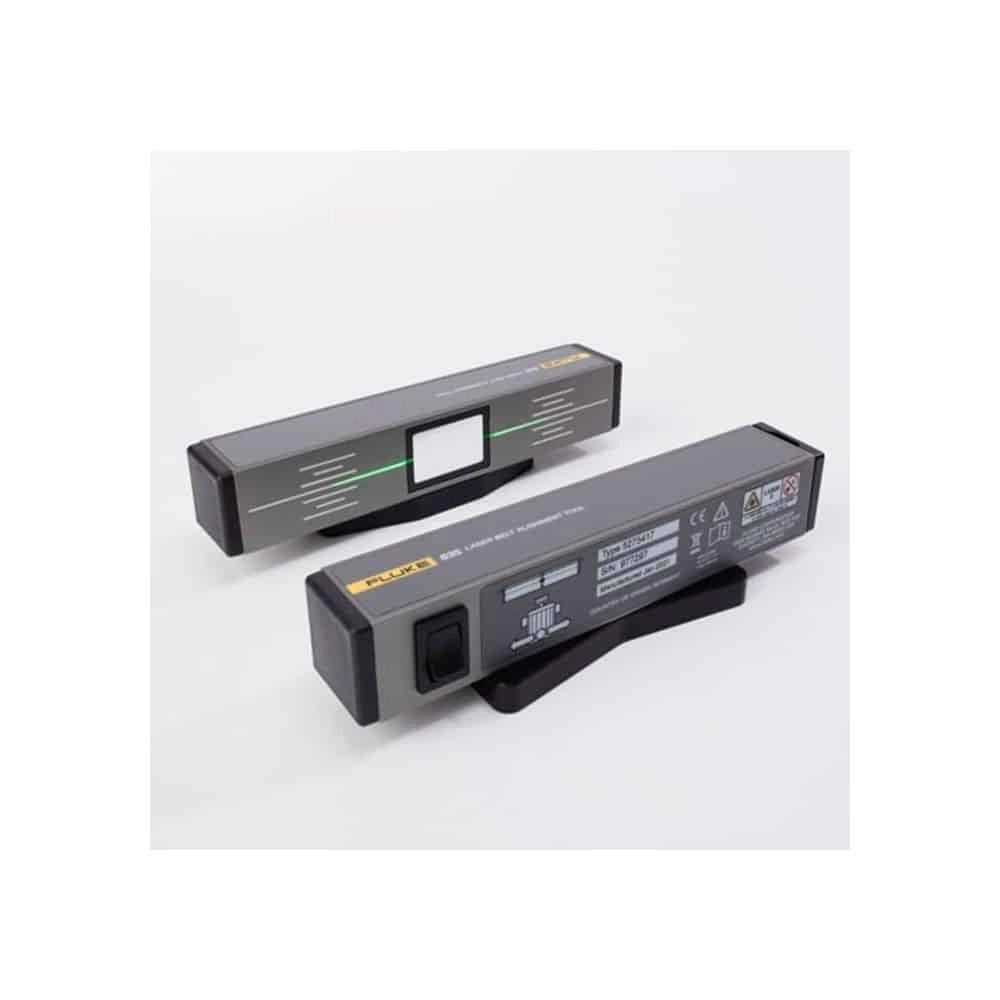

FLUKE 835 Laser Belt Alignment Tool, Green Laser, upto 10m, with Reflector
# 835
- Time-saving pulley alignment method requires no cross-check
- Shows offset, vertical, and horizontal angles simultaneously
- Live corrections validate when precision alignment is achieved
- Time-saving pulley alignment method requires no cross-check
- Shows offset, vertical, and horizontal angles simultaneously
- Live corrections validate when precision alignment is achieved
- Strong magnets mount onto virtually any pulley face
- Efficient, accurate one-person operation with no training needed
| Accuracy | 0.2˚ |
| Laser wavelength | 505 – 535 nm (green – more visible) |
| Output power | < 1.0 mW |
| Classification class | 2 |
| Measuring distance | 10 m between units |
| Laser line length | 7 m at 5 m distance |
| Controls | Laser ON/OFF rocker switch |
| Battery type | 4 AAA alkaline batteries |
| Operating time | 6 hours |
| Operating temp | -5˚C to 40˚C |
| Storage temp | -10˚C to 70˚C |
| Mounting method | Strong magnets |
| Weight | 0.3 kg |
| Dimensions | 37 x 40 x 170 mm |
| Housing | Gray anodized aluminum |
| Reflector Accuracy | 0.2˚ |
| Reflector Size | 21 x 32 mm |
| Reflector Mounting method | Strong magnets |
| Reflector Weight | 0.27 kg |
| Reflector Dimensions | 37 x 40 x 170 mm |
| Reflector Housing | Gray anodized aluminum |
- Fluke 835 Laser Unit
- Fluke 835 Reflector Unit

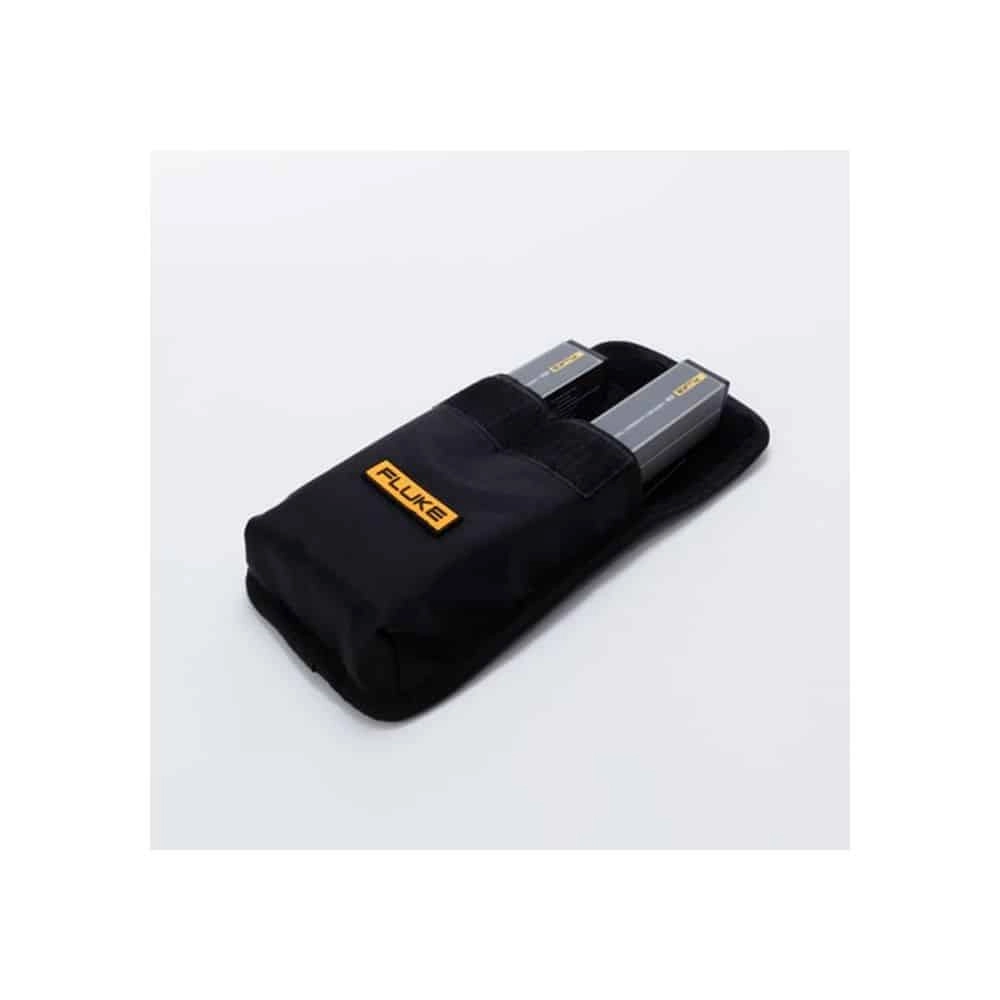

- Carrying Case
- Quick Reference Guide
- Safety Sheet
