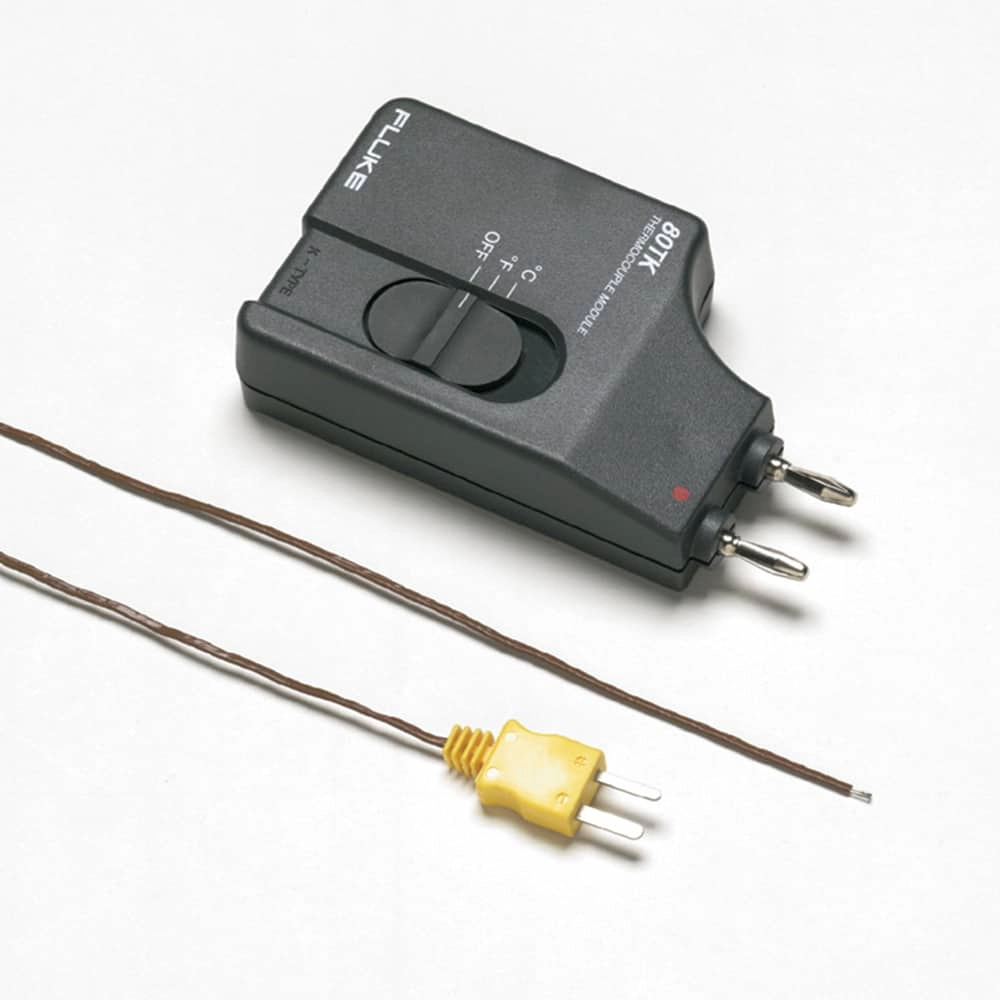

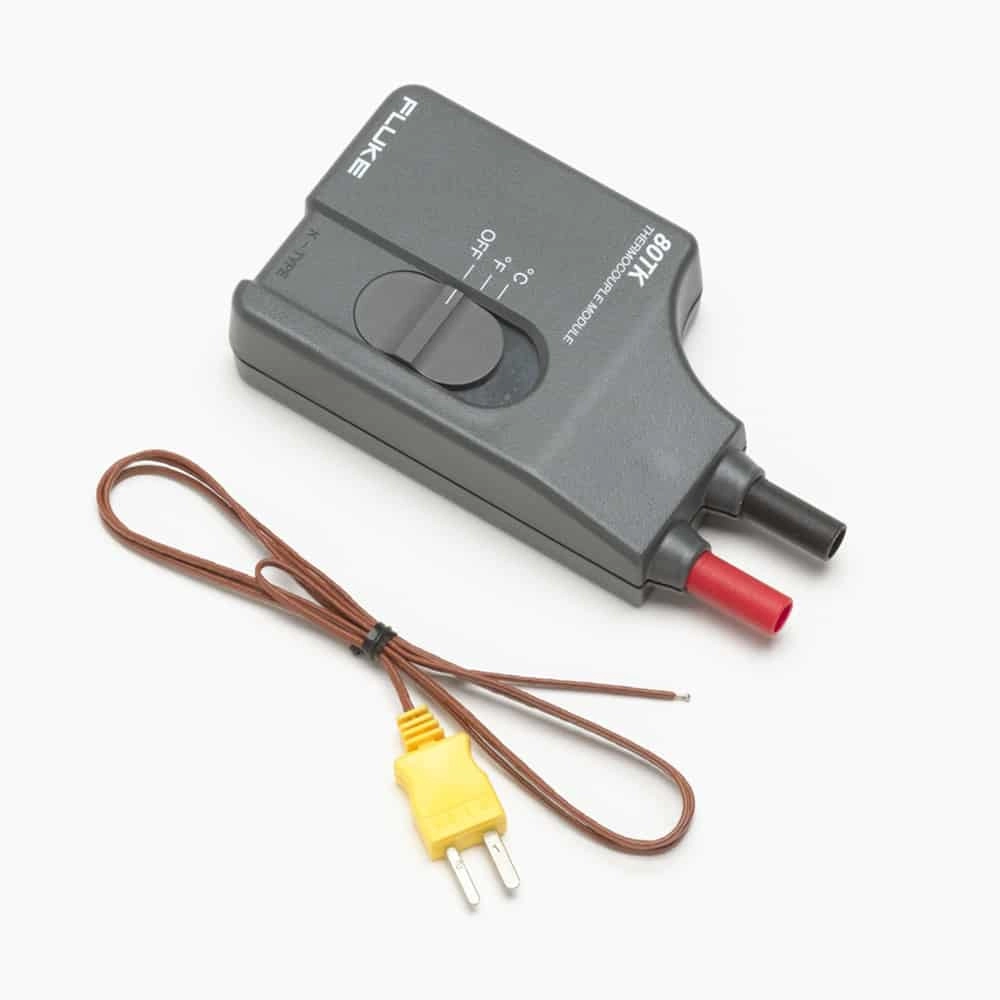

FLUKE 80TK Thermocouple Module (Type K)

Model # 80TK

Converts a DMM to a thermometer
For use with type-K thermocouples in low voltage applications (below 24 V AC, 60 V DC)
Measurement range: -58 to 1832°F (-50 to 1000°C) (probe dependent)

Converts a DMM to a thermometer
For use with type-K thermocouples in low voltage applications (below 24 V AC, 60 V DC)
Measurement range: -58 to 1832°F (-50 to 1000°C) (probe dependent)

Measurement Range	-58 to 1832°F (-50 to 1000°C)
Resolution	2000 count display: 0.1°F/C in 200 mV range; 1.0°F/C in 2 V range 3200 count display: 0.1°F/C in 300 mV range; 1.0°F/C in 3 V range 4000 count display: 0.1°F/C in 400 mV range; 1.0°F/C in 4 V range
Ambient Operating Range	32 to 122°F (0 to 50°C)
Storage Temperature	-40 to 140°F (-40 to 60°C)
Humidity	0 to 90% (32 to 95°F [0 to 35°C]) 0 to 70% (95 to 122°F [35 to 50°C])
Basic Accuracy (at 23 ±5°C Calibration)	-4 to 662°F (-20 to 350°C): 0.5% ± 3.6°F (0.5% ± 2°C) 664 to 932°F (351 to 500°C): 1.75% ± 3.6°F (1.75% ± 2°C) 933 to 1832°F (501 to 1000°C): 2.0% ± 3.6°F (2.0% ± 2°C) -58 to -5.8°F (-50 to -21°C): 2.5% ± 3.6°F typical (2.5% ± 2°C typical)
Battery	Type: Standard 9 V Battery (NEDA #1604, 6F22, 006P) Life: 1600+ hours, 6.5 V minimum
Output	¾” spaced banana plugs, 10 MΩ minimum load resistance
Overall Length	4 ⅝” (11.75 mm)
Weight	4.5 oz (126 g)
