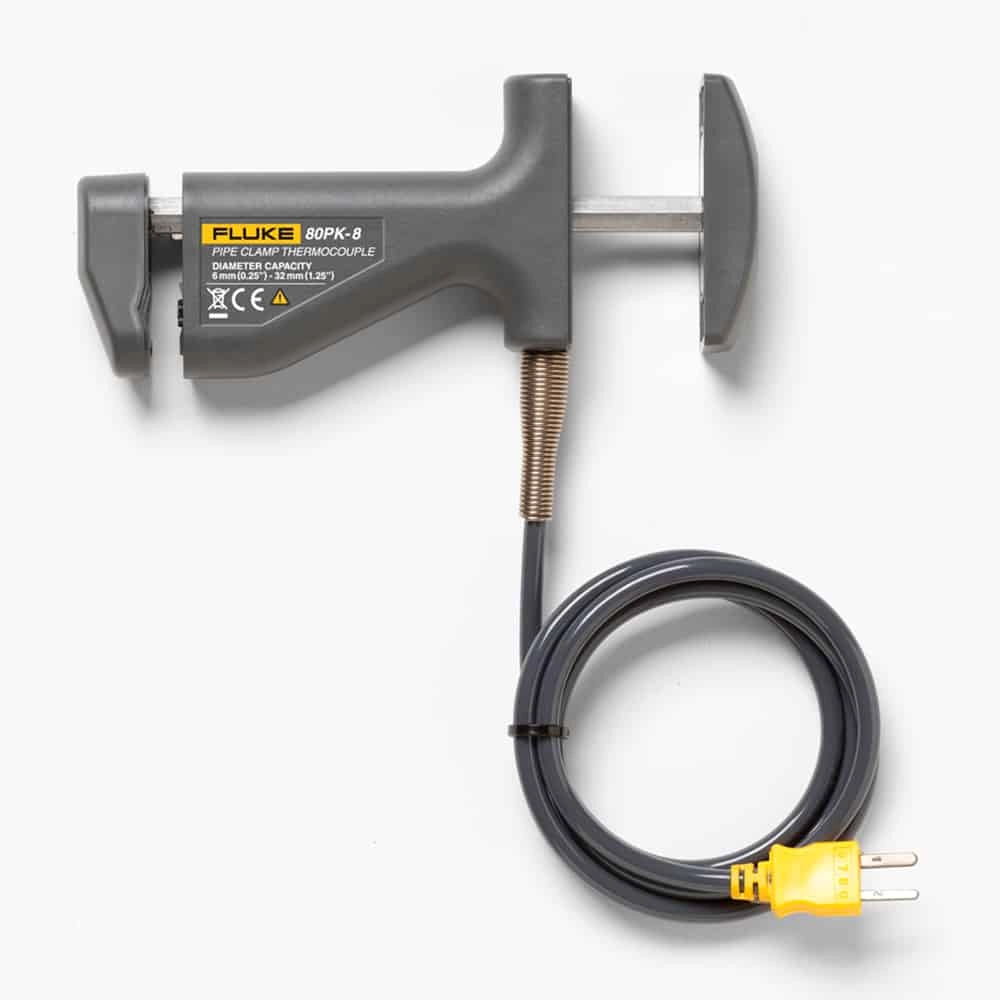

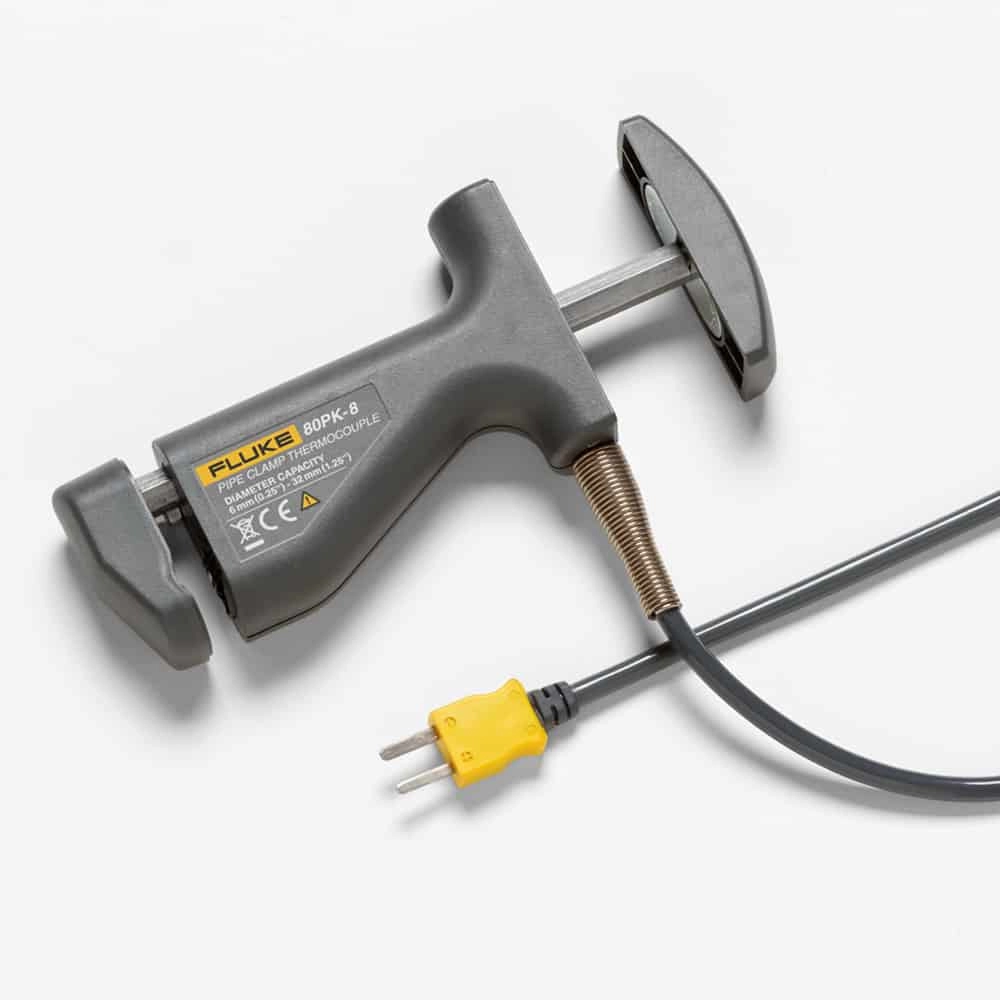

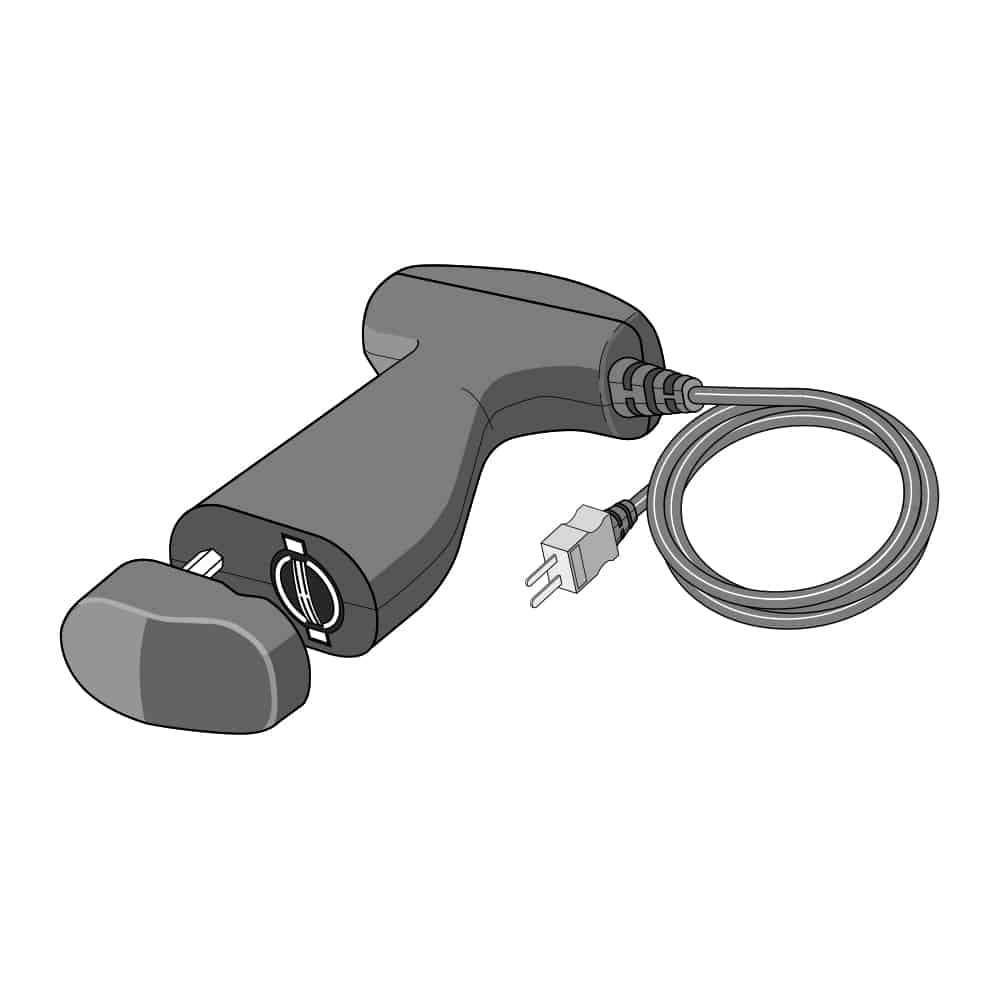

    FLUKE 80PK-8 Pipe Clamp Temperature Probe (Type K)

    # 80PK-8

    • Type-K thermocouple for fast temperature and superheat measurements of pipe surfaces
    • For pipe diameters: 32 mm to 64 mm (1.25 in to 2.5 in)
    • Measurement range: -29 ¡C to149 ¡C (-20 ¡F to 300 ¡F)
    FLUKE
    • FLUKE
    • 80PK-8
    • Type-K thermocouple for fast temperature and superheat measurements of pipe surfaces
    • For pipe diameters: 32 mm to 64 mm (1.25 in to 2.5 in)
    • Measurement range: -29 ¡C to149 ¡C (-20 ¡F to 300 ¡F)
    • Measurements are repeatable to 0.56 ¡C (1 ¡F)
    • Durable ribbon sensor
    • 1 m (39 in) lead
    Measurement Range -20 and 300°F (-29 and 149°C)
    Accuracy ±1.9°C (±3.4°F)
    Surface measurement accuracy of ±1.9 °C includes ±1.1°C variation in alloy
    plus probe contact and shunting uncertainty of ±0.8°C
    Repeatability ±1°F (±0.56°C)
    Output At 77°F (25°C) = 1.00 mV (Reference junction at 0°C)
    Seebeck Coefficient At 77°F (25°C) = 40.50 μV/°C
    Measurement Time (Time Constant) 0.5 seconds (5 time constants = 1 complete step change, i.e. 2.5 seconds)
    Maximum Voltage Rating 24 V ac rms, or 60 V dc
    Sensor Material Chromel-Alumel
    Cable Length 40″ (1 m)
    Cable Insulation Material: PVC
    Maximum temperature: 220°F (105°C)
    Minimum temperature: 20°F (-29°C)
    Conductor K Type AWG #24 stranded
    Probe Body PBT
    Maximum temperature: 300°F (149°C)
    Minimum temperature: 20°F (-29°C)
    Connector Mini-thermocouple connector with 0.312″ (7.925 mm) pin spacing
