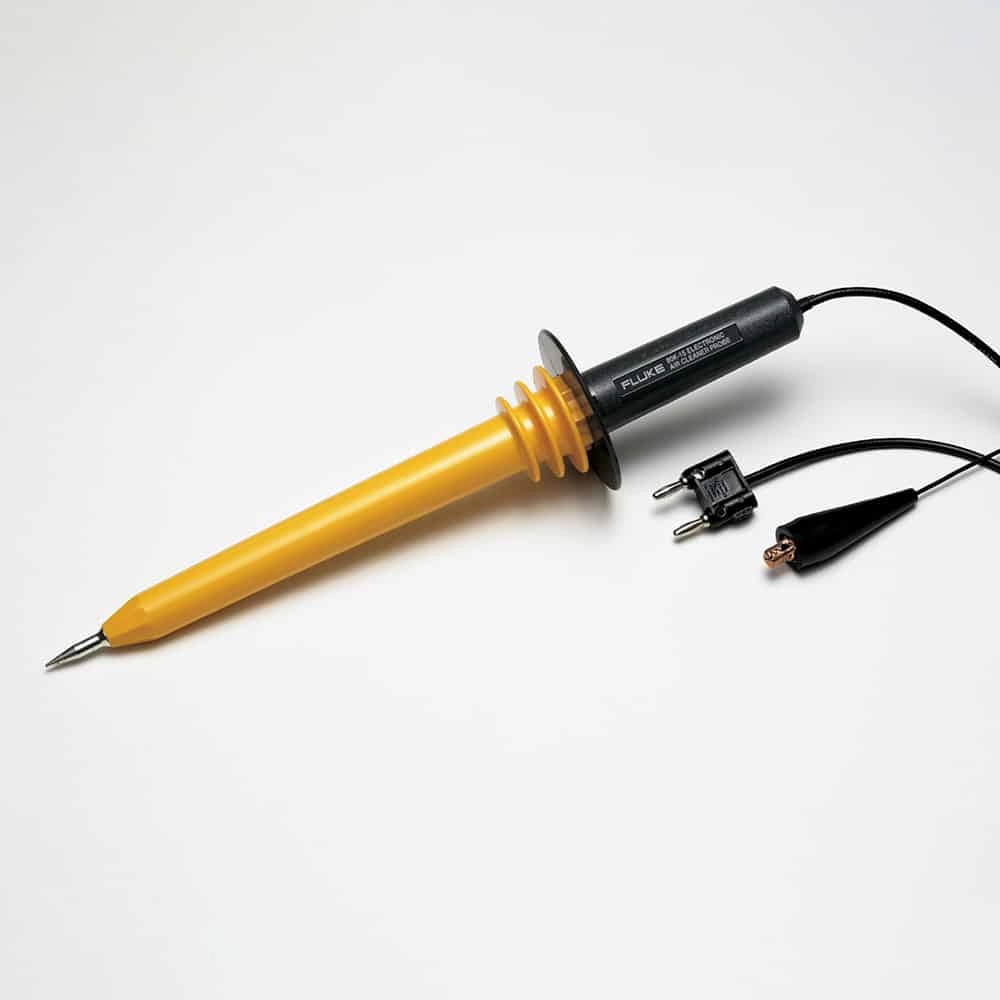

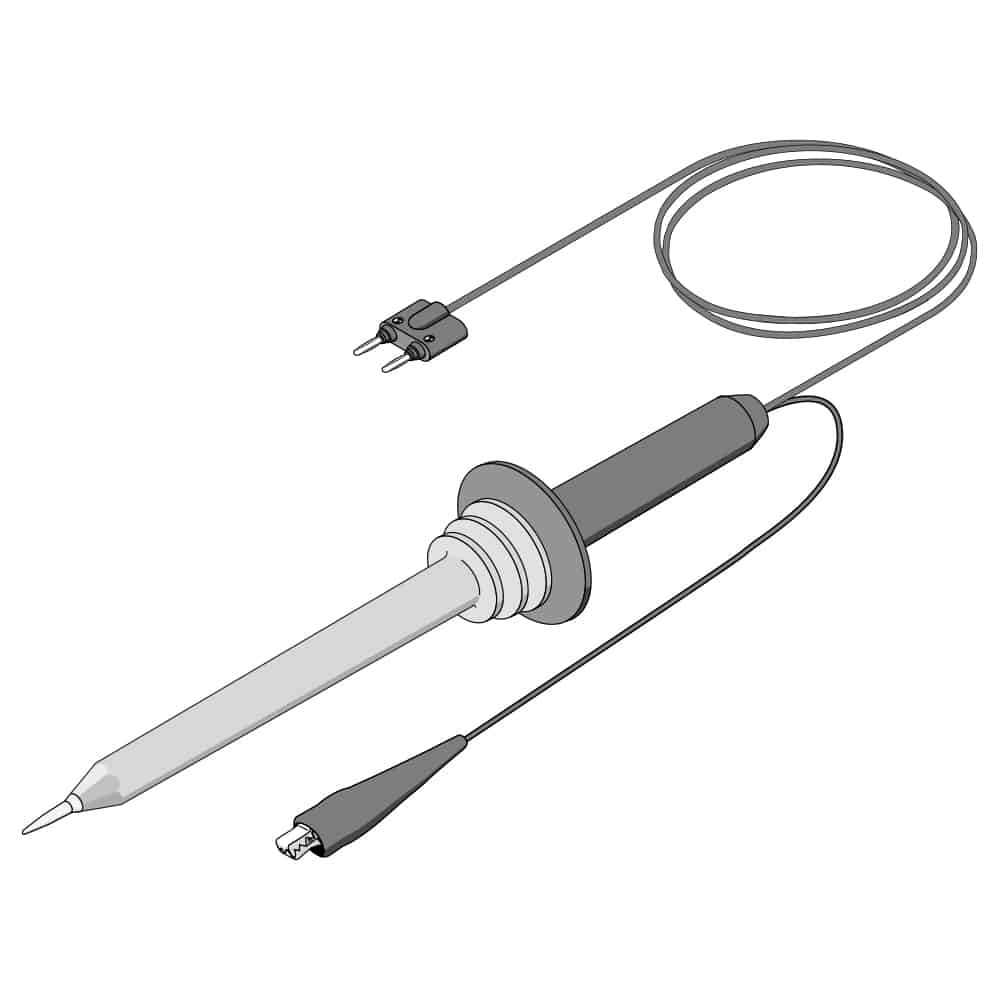

Fluke 80K-15 Probe, Electronic Air Cleaner

Features

• Voltage range: 0 to 15kV DC or peak AC; 10kV rms AC
• Basic accuracy: DC +/- 2% 60Hz: +/- 5%
• Division ratio: 1000:1
• Safety standards: IEC 1010-2-031:1993; Type B; 40 kV DC or peak AC; 28kV rms AC; Overvoltage Category I (voltage derived from limited energy transformer).
• Input resistance: 1000 Megohm

Technical Information

• Voltage Range 0 to 15 kV DC or peak AC, 10 kV rms AC
• Input Resistance 1000 MΩ
• Division Ratio 1000: 1
• Accuracy DC: ±2% in 50 to 113°F (10 to 45°C)
• AC ±5% at 60 Hz, in 68 to 86°F (20 to 30°C)
• Operating 32 to 122°F (0 to 50°C)
• Storage -4 to 140°F (-20 to 60°C)
• Relative Humidity 80% at 86°F (30°C)
• Altitude 6561.68' (2000 m)
• Dimensions 14 x 3" (36 x 7.5 cm)
