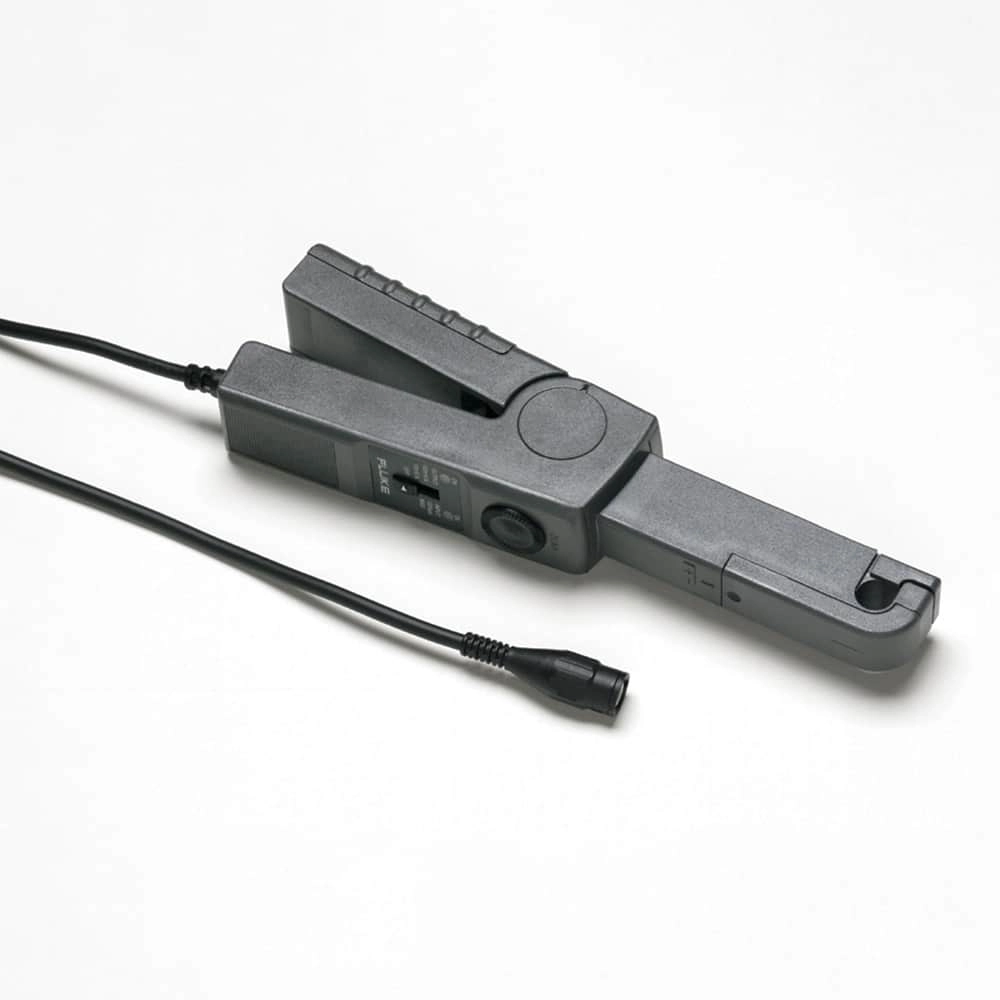

FLUKE 80i-110s AC/DC Current Clamp (100 A)

Model # 80i-110s

Current Range: 0.1 to 100A DC or 0.1 to 70A AC
Basic Accuracy (DC to 1kHz):
100mV/A setting: 50mA to 10A +/- 3% of reading + 50mA
10mV/A setting: 50mA to 40A +/- 4% of reading + 50mA
40A to 80A +/- 12% of reading + 50mA
80 to 100A +/- 15% of reading
Output Signal: 10A range: 100mV/A | 100A range: 10mV/A
Bandwidth: 1Hz to 20kHz
Working Voltage: 600V AC rms
Maximum Conductor Size: 11.8 mm (.46 inch) diameter
Safety Rating: IEC 1010 and CSA-C22.2 No. 1010-1 Installation Category II, Working Voltage 600V

Specifications
Nominal current range	10 A, AC/DC
Nominal current range	100 A, AC/DC
Continuous current range	0.1 A – 10 A AC/DC
Continuous current range	1 A – 100 A AC/DC
Maximum non-destructive current	140 A – 2 kHz
Lowest measurable current	0.1 A
Basic accuracy	100 mV/A setting: 50 mA to 10 A ±3% of reading +50 mA
	10 mV/A setting: 50 mA to 40 A ±4% of reading +50 mA
	40 A to 80 A ±12% of reading +50 mA
	80 to 100 A ±15% of reading
Useable frequency	DC – 100 kHz
Output level(s)	10 A range: 100 mV/A
Output level(s)	100 A range: 10 mV/A
Zero error adjustment	Yes
Safety Specifications
Safety	CAT II, 600 V
Safety	CAT III, 300 V
Maximum voltage	600 V
Mechanical and General Specifications
Warranty	1 year
Battery life	9 V, 55 h
Maximum conductor diameter	11.8 mm
Output cable length	1.6 m
BNC adapter	Yes
