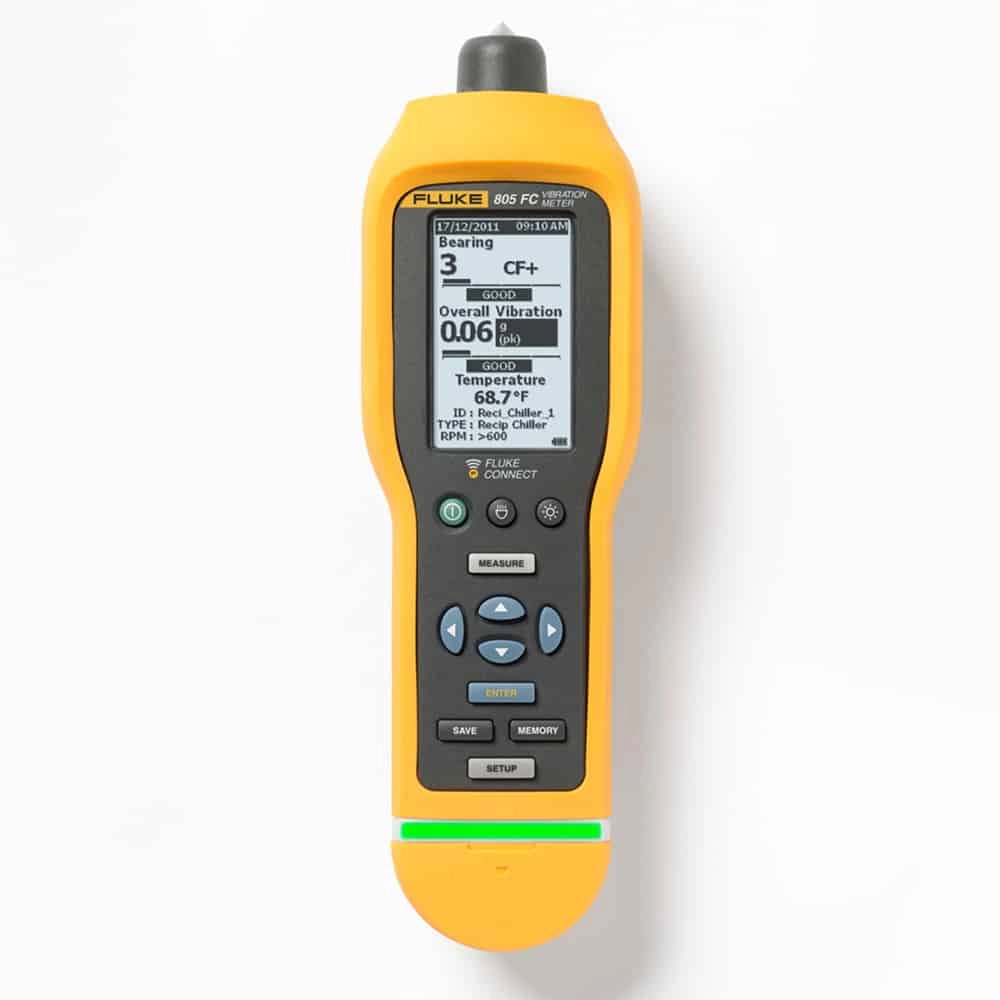

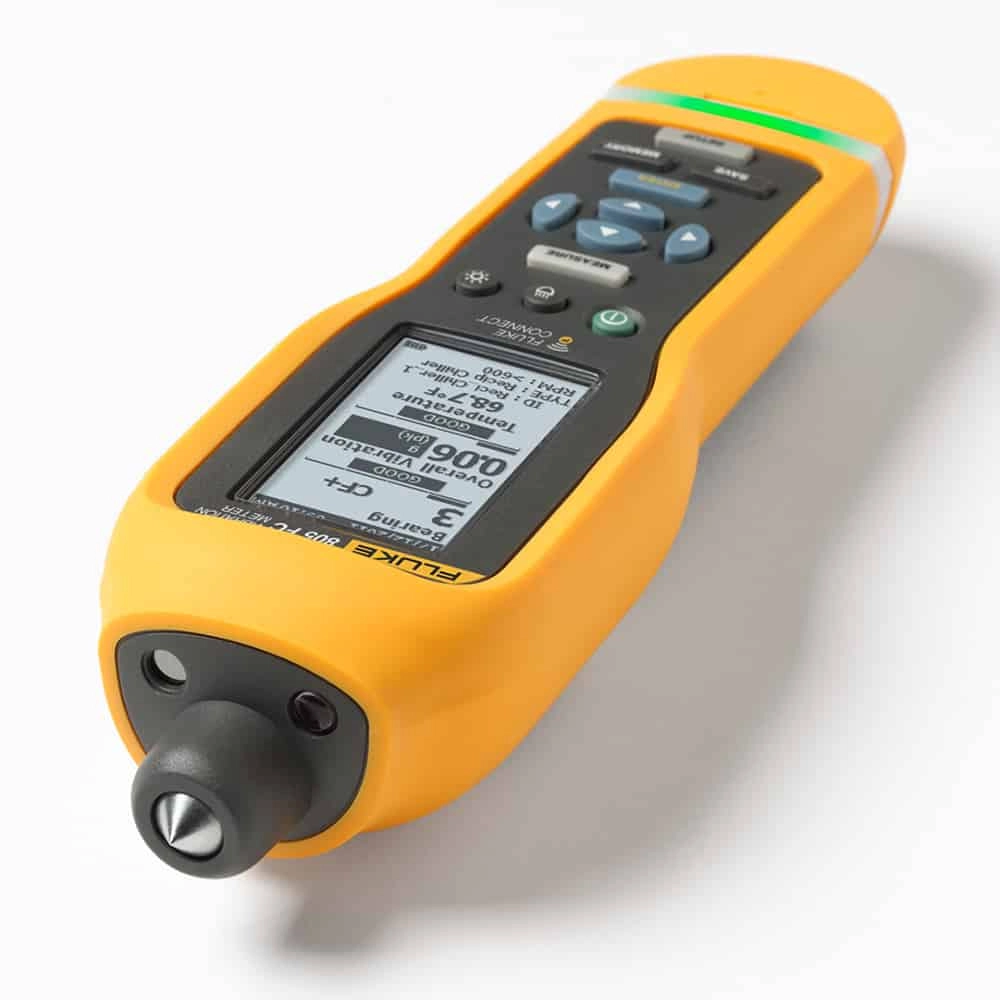

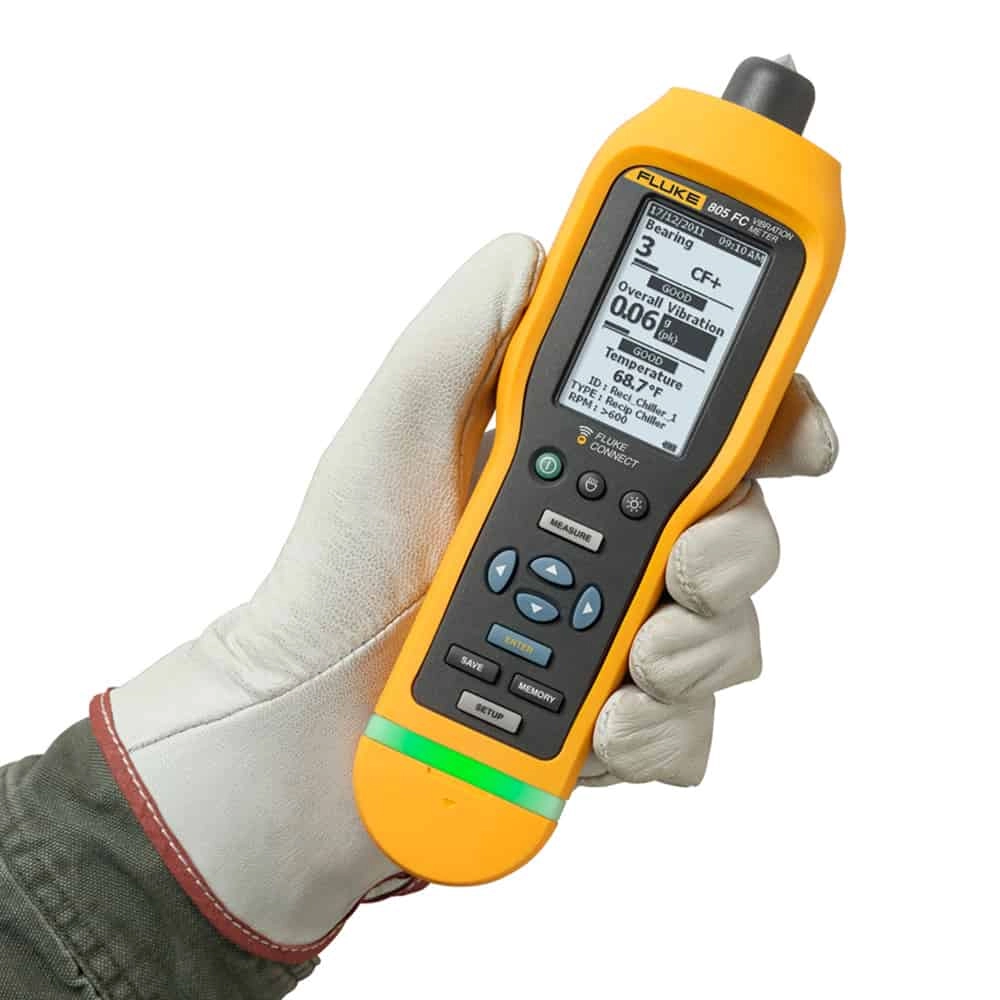

Fluke 805 FC Vibration Meter With Fluke Connect, 10 to 1000Hz

Model #   805 FC

?

Question about this product?

Speak to an expert

Features

  • Innovative sensor design minimizes measurement variations caused by device angle or contact pressure
  • Consistent data quality at both low and high frequency ranges
  • Four-level severity scale assesses urgency of problems for overall vibration and bearing condition
  • Exportable data via USB
  • Minimize measurement variations caused by device angle or contact pressure
  • Reliable, repeatable, accurate device for checking bearings and overall vibration
  • Features innovative sensor design that minimizes measurement variations caused by device angle or contact pressure
  • Provides consistent data quality at both low and high frequency ranges
  • Offers four-level severity scale to assess urgency of problems and bearing condition

Technical Information

  • Low frequency range10 Hz to 1,000 Hz
  • High frequency range4,000 Hz to 20,000 Hz
  • Vibration limit50 g peak (100 g peak-peak)
  • Signal to noise ratio80 dB
  • Sampling rateLow frequency: 20,000 Hz High frequency: 80,000 Hz
  • Sensor Sensitivity100 mV g ± 10%
  • Sensor Measurement Range0.01 g to 50 g
  • Amplitude Units Accelerationg, m/sec²
  • Amplitude Units Velocityin/sec, mm/sec
  • Amplitude Units Displacementmils, mm
  • Temperature Range-20 °C to 200 °C (-4 °F to 392 °F) (Infrared Thermometer)
  • Battery typeAA (2) Lithium Iron Disulfide
  • Size (L x W x H)24.1 cm x 7.1 cm x 5.8 cm (9.5 Inches x 2.8 Inches x 2.3 Inches)
  • Weight0.40 kg (0.89 lb)

Items Included

  • USB cabl
  • e Storage case
  • Belt holster
  • Quick reference guide
  • Two (2) AA batteries
