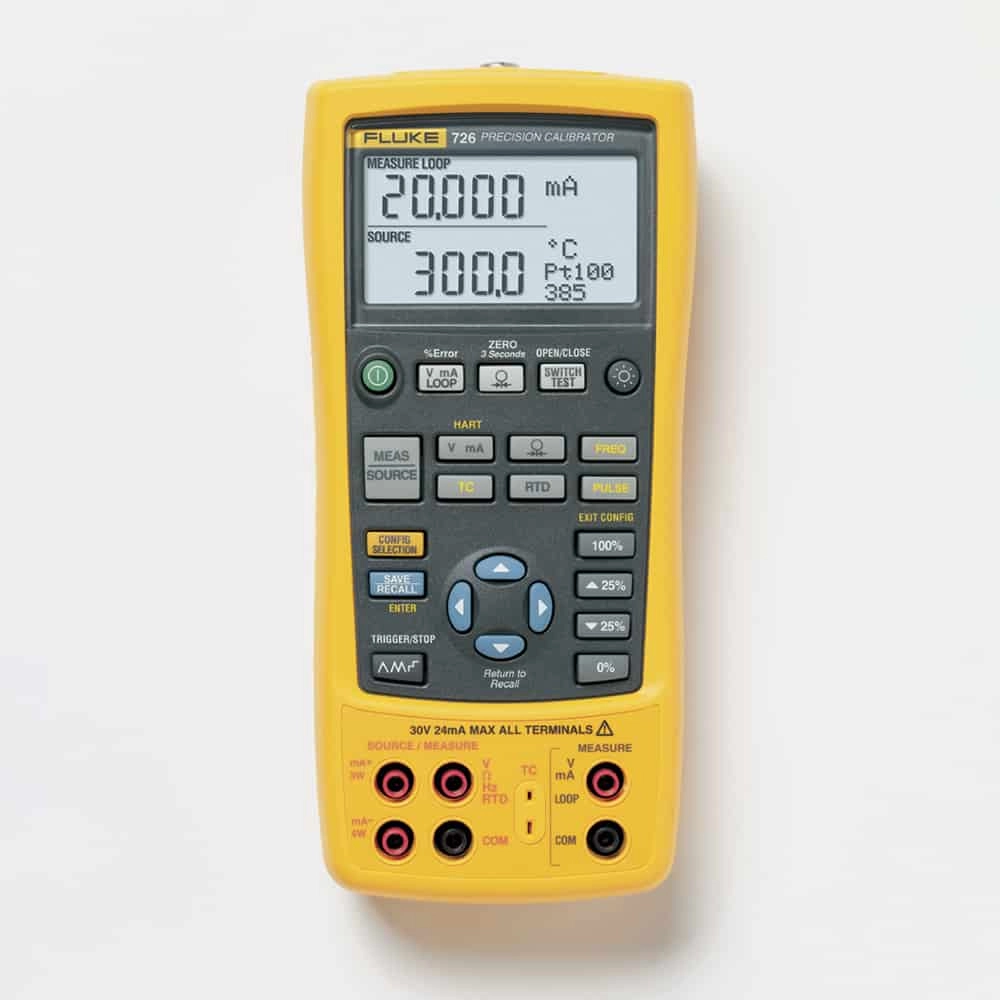

Fluke 726/APAC/EMEA Precision Multifunction Process Calibrator (APAC & EMEA)
Model # 726/APAC/EMEA
Key Features
?
Question about this product?
Features
- More precise measurement and calibration source performance; accuracies of 0.01%.
- Two separate channels; measure; source and view process signals simultaneously
- Measure volts; mA; RTDs; thermocouples; frequency; and resistance to test sensors and transmitters
- Source/simulate volts; mA; thermocouples; RTDs; frequency; and pressure to calibrate transmitters
- Capture the set, reset, and deadband of a pressure switch with the integrated switch test
Technical Information
- Voltage Measurement-10mV to 30V
- Current Measurement24mA
- Resistance0 to 4000Ω
- Frequency1 to 15kHz
- RampsSlow ramp, Fast ramp, 25% step-ramp
- Loop Power Voltage24V
- Loop Power Current22mA
- Steps25% of range, 100% of range
- Size130 x 236 x 61 mm (5.188 x 9.291 x 2.402 in)
