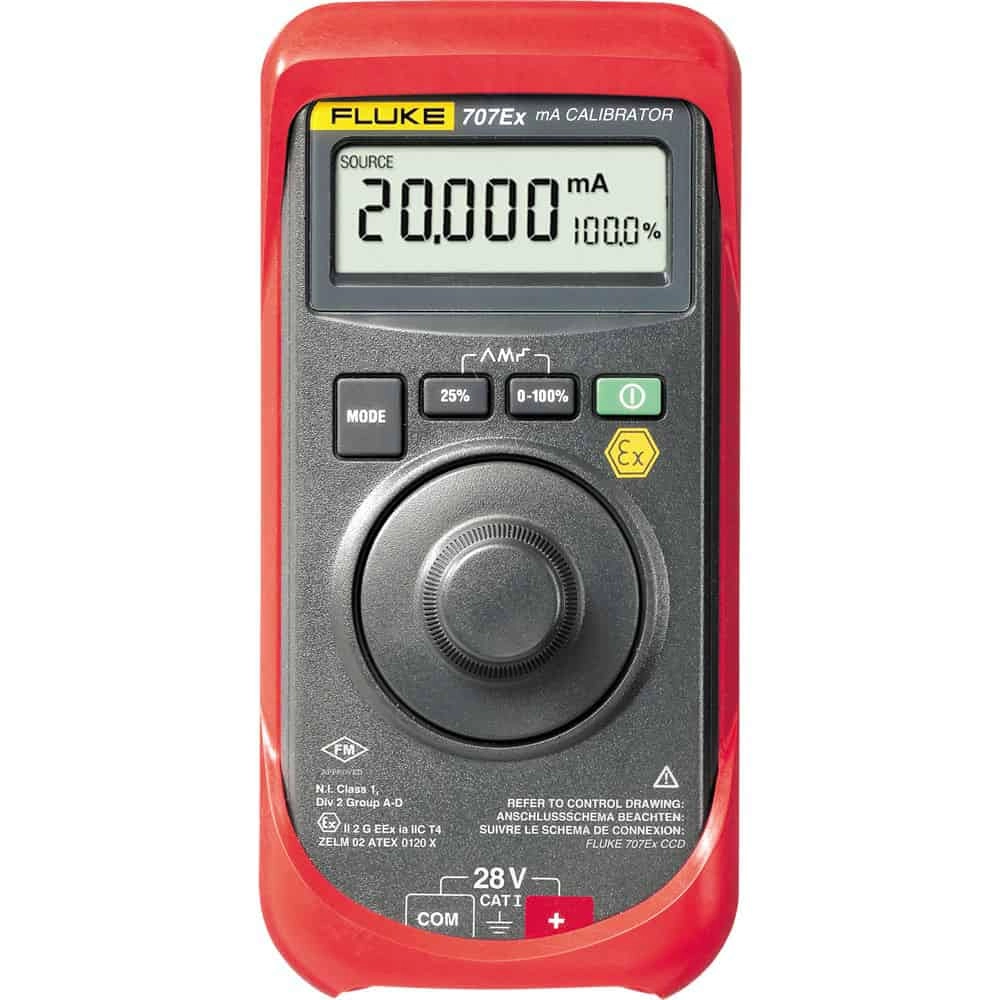

Fluke 707Ex Intrinsically Safe mA Loop Calibrator, 0 to 24mA

Model #   707Ex
Flr img

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • High Performance Intrinsically Safe Loop Calibrator For Use In Potentially Explosive Environments
  • Is certified in accordance with ATEX directive (Ex II 2 G Ex ia IIC T4) in Zones 1 and 2 and to operate in accordance with Factory Mutual N.I. Class 1, Division 2 areas Group A-D
  • Simultaneous mA and % readout for quick; easy; interpretation of readings.
  • mA accuracy of 0.015%; superior to other loop calibrators
  • 1 µA resolution for mA source; simulate and measure
  • Features large display and simple, quick-click interface for easy one-handed operation
  • Provides simultaneous mA and % readout for quick, easy interpretation of readings.
  • Delivers superior mA accuracy of 0.015%
  • Provides 1 µA resolution for mA source, simulate, and measure

Technical Information

  • Current Measurement0 to 24 mA
  • Resolution0.001 mA
  • Accuracy0.015% Rdg + 2 LSD
  • Loop powerWhile measuring mA, 24 V
  • Voltage measurement Range0 to 28 V DC
  • Resolution1 mV
  • Accuracy0.015% Rdg + 2 LSD
  • Operating temperature-10ºC to 55ºC
  • Storage temperature-40ºC to 60ºC
  • Humidity (without condensation)0 to 95% (0ºC to 30ºC);
  • Temperature coefficient-10ºC to 18ºC, 28ºC to 55ºC, ±.005% of range per ºC
  • Size152 x 70 x 41 mm

Items Included

  • Fluke 707EX Intrinsically Safe Loop Calibrator
  • Alligator test clips
  • Instruction manual (on CD-ROM)
  • Protective holster with Flex-Stand
  • Safety designed test leads
