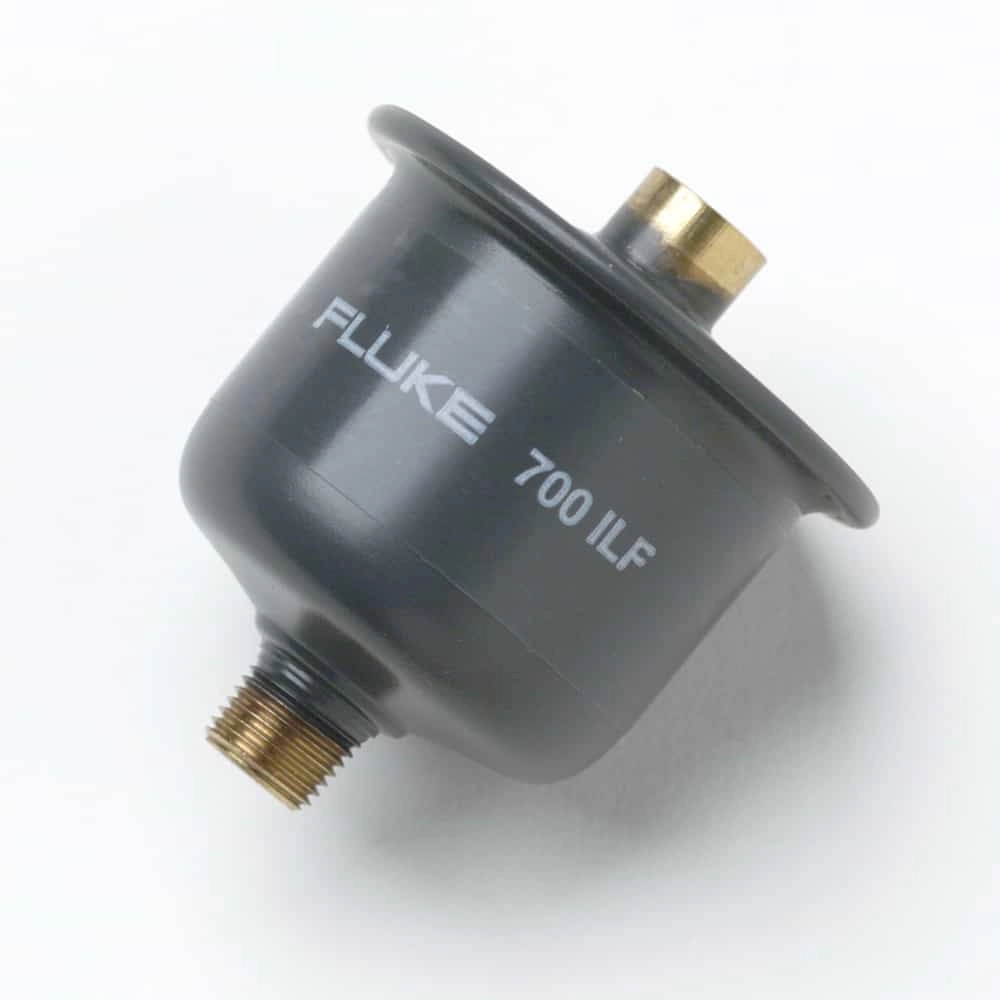

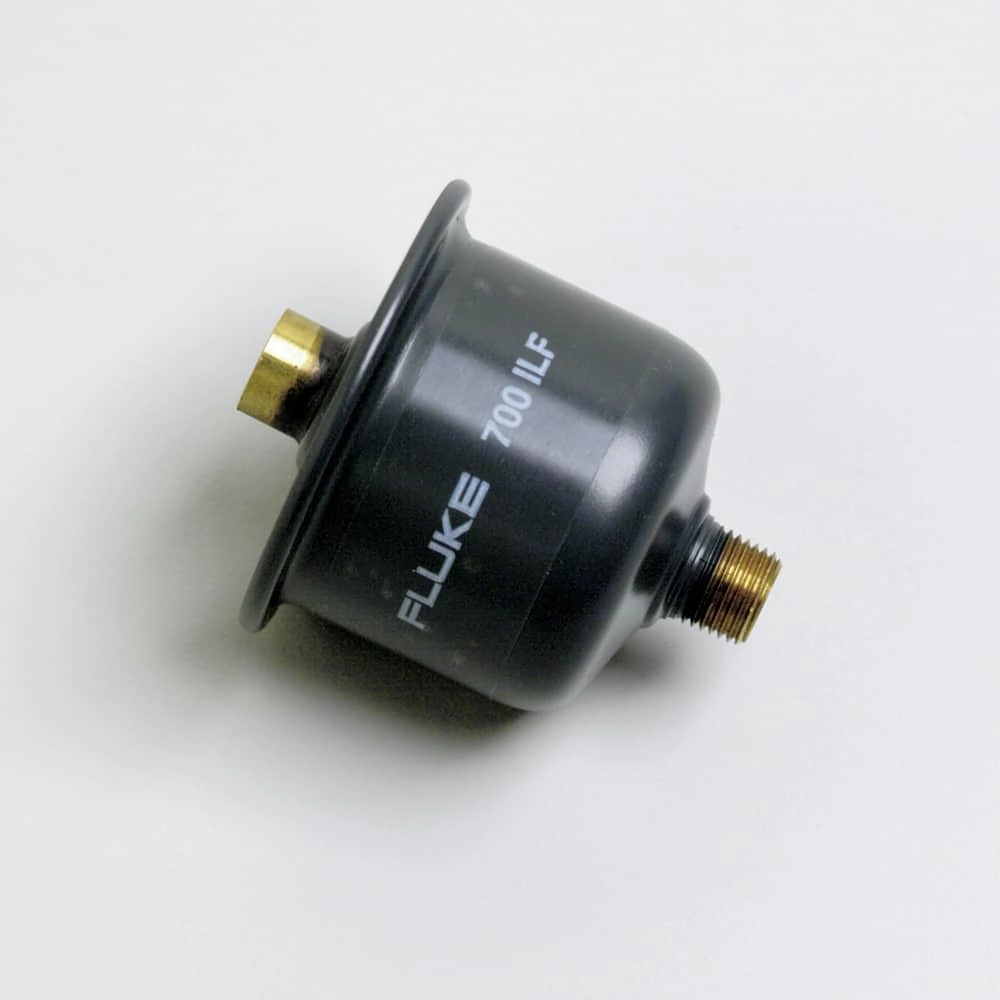

FLUKE 700ILF In-Line Filter

Model # 700ILF

This product has been discontinued by the manufacturer.

Can be used to isolate the calibrator from the incidental contract with fluids.
Particularly useful with the 718 calibrator to help keep moisture or oils from contaminating the on-board pump.
The Fluke 700ILF In-line Filter is specifically designed to trap fine particles from atmospheric air; compressed air; and instrument air.

Can be used to isolate the calibrator from the incidental contract with fluids.
Particularly useful with the 718 calibrator to help keep moisture or oils from contaminating the on-board pump.
The Fluke 700ILF In-line Filter is specifically designed to trap fine particles from atmospheric air; compressed air; and instrument air.
It is used with the Fluke 713; 717; or 718 Pressure Calibrators. It can also be used to absorb small quantities of liquid oil and water in droplet form.

General and Technical Specifications
Inlet fitting	1/8 in brass female NPT
Outlet fitting	1/8 in brass male NPT
Length	2.125 in
Flange diameter	1.875 in
Housing diameter	1.560 in
Max pressure	100 psi
Max pressure	100 psi
Max flow	10 SCFM
Burst pressure	375 psi
Filtration	1 micron
