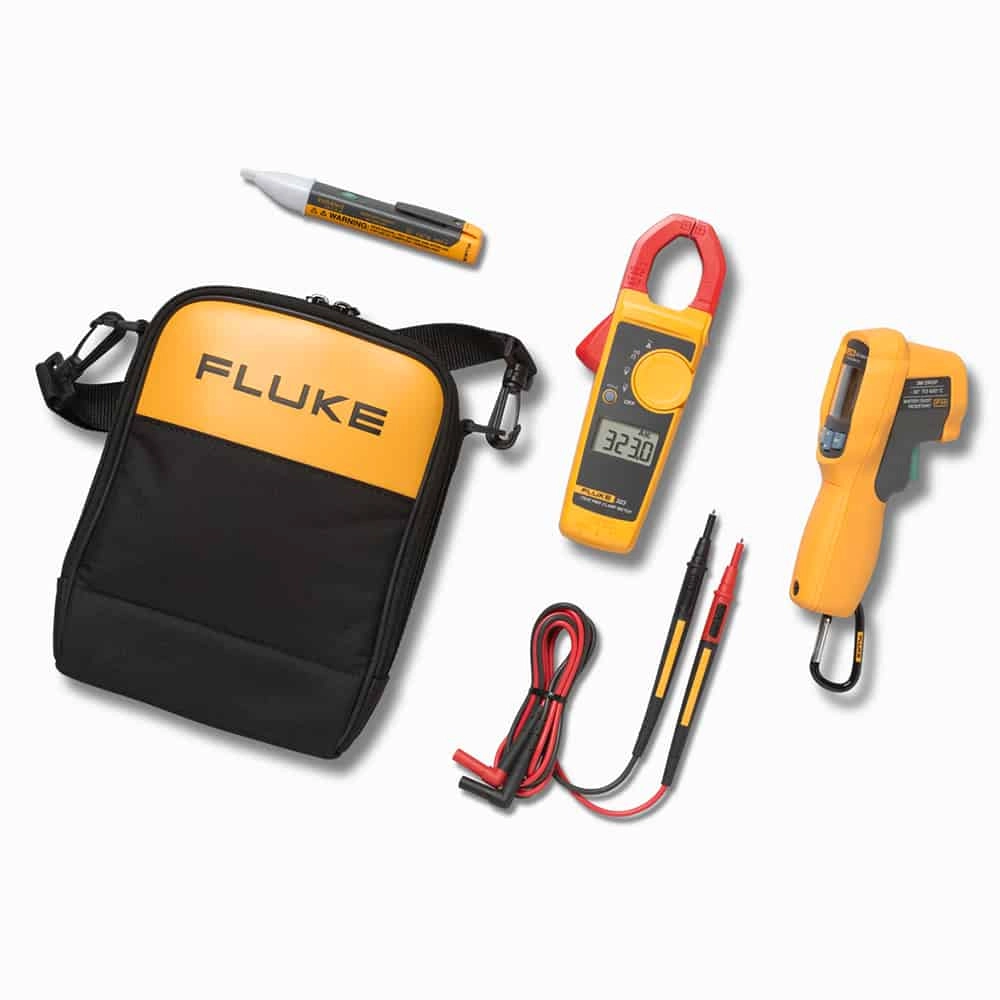

    FLUKE 62MAX+-323-1AC IR Thermometer, Clamp Meter and Voltage Detector Kit

    # 62MAX+-323-1AC

    • Dust and water-resistant: IP54 rated.
    • Rugged: 3-meter (9.8-foot) drop tested.
    • Ergonomically designed: Completely redesigned for a more natural hand fit.
    FLUKE
    • FLUKE
    • 62MAX+-323-1AC

    Quantity:

    - +
      ADD TO MY TOOLBOX
    Where to buy this product?
    • Fluke 62 MAX+. Small in size. Big on toughness.
      • Dust and water-resistant: IP54 rated.
      • Rugged: 3-meter (9.8-foot) drop tested.
      • Ergonomically designed: Completely redesigned for a more natural hand fit.
      • Distance to spot: 12:1.
      • Dual lasers: Identifies area to be measured.
      • Large, backlit display: Makes data easier to read, even in dark areas.

      Fluke 323 True-rms Clamp Meter.Rugged. Reliable. Precise.

      • 400 A AC current measurement.
      • 600 VAC and DC voltage measurement.
      • True RMS AC voltage and current for accurate measurements on non-linear signals.
      • Resistance measurement up to 40 kΩ with continuity detection.
      • Slim, ergonomic design.
      • CAT IV 300V/CAT III 600 V safety rating.

      Fluke 1AC II VoltAlert™ Voltage Detector

      • Voltbeat™ technology and continuous self-test, so always know it’s working.
      • Upon detection, tip glows and beeper sounds.
      • Voltage detection of 90 to 1000 VAC.
      • CAT IV 1000 V for added protection.

      Fluke C115 Soft Case

      • Lightweight soft case to provide optimal protection and accessory storage.
    Temperature Range -22 to 1202°F (-30 to 650°C)
    Accuracy ±34.7°F (±1.5°C) or ±1.5% of reading, whichever is greater
    14 to 32°F (-10 to 0°C): ±2.0
    -22 to 14°F (-30 to -10°C): ±3.0
    Response Time (95%) <500 ms (95% of reading)
    Spectral Response 8 to 14 microns
    Emissivity 0.10 to 1.00
    Optical Resolution 12:1 (calculated at 90% energy)
    Display Resolution 0.2°F (0.1°C)
    Repeatability of Readings ±0.8% of reading or <±2°F (1.0°C), whichever is greater
    Power AA Battery
    Battery Life 8 hours with laser and backlight on
    Operating Temperature 32 to 122°F (0 to 50°C)
    Storage Temperature -4 to 140°F (-20 to 60°C), without battery
    Operating Humidity 10% to 90% RH non-condensing at 86°F (30°C)
    Operating Altitude 6561.7′ (2000 m) above mean sea level
    Storage Altitude 39,370.08′ (12,000 m) above mean seal level
    Drop Test 9.8′ (3 m)
    Dimensions 6.88 x 3.34 x 2.95″ (175 x 85 x 75 mm)
    Weight 0.56 lbs (255 g)
    IP Rating IP 54 per IEC 60529
    Vibration and Shock IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms
    EMC EN 61326-1:2006 EN 61326-2:2006
    Standards and Agency Approval Compliance: EN/IEC 61010-1: 2001
    Laser safety: FDA and EN 60825-1 Class II
    • Thermometer
    • Clamp Meter
    • Voltage Detector
    • Carrying Case
