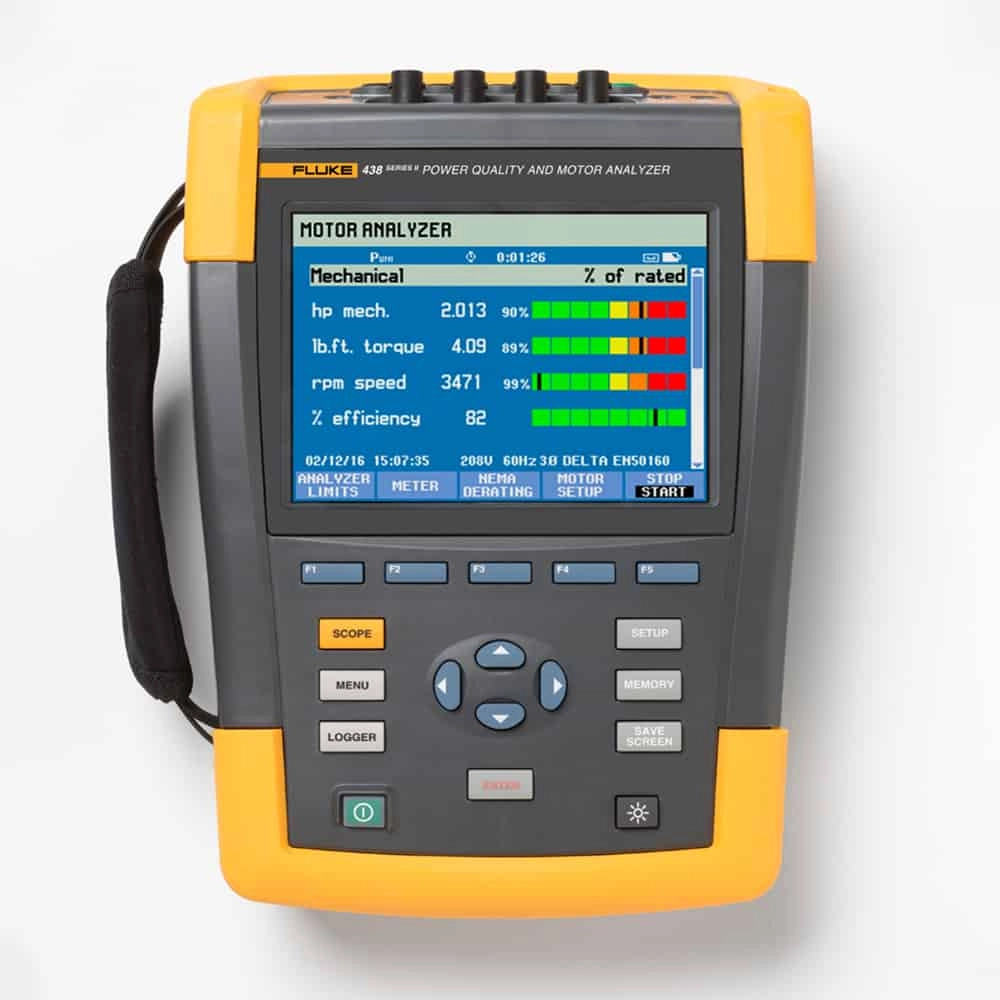

Fluke 438-II/BASIC Power Quality And Motor Analyzer(With O Clamps And FC ), CAT IV 600V, 6000A
Model # 438-II/BASIC
Key Features
?
Question about this product?
Features
- The 438-II Power Quality Analyzer & Motor Analyzer helps you effectively evaluate electrical and mechanical performance just by hooking up voltage and measuring current, providing you with an unprecedented level of data.
- Brings key motor analysis parameters like speed, torque and mechanical power and calculates motor efficiency without mechanical sensors
- Includes full power quality and electrical energy analyzer functionality
- Highest safety rating in industry; 1000 V CAT III / 600 V CAT IV
- Calculates mechanical power and efficiency without mechanical sensors. Just connect to the input conductors
- Measures electrical power parameters such as voltage, current, power, apparent power, power factor, harmonic distortion and unbalance to identify characteristics that impact motor efficiency
- Identify power quality issues such as dips, swells, transients, harmonics and unbalance
- Uses PowerWave data capture to capture fast RMS data, and show half-cycle averages and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.)
- Offers waveform capture function to capture 100/120 cycles (50/60 Hz) of each detected event, in all modes, without set-up
Technical Information
- Voltage1 V to 1000 V phase to neutral (DC or AC RMS)
- Poweri430-Flex: max 6000 MW
- Energyi430-Flex 10x: Depends on clamp scaling and V nominal
- Phase Angle-360° to +0°
- Operating Temperature0°C ~ +40°C; +40°C ~ +50°C excl. battery
- Storage Temperature-20°C ~ +60°C
Items Included
- Test lead set
- i430 Thin flexible current probes (4)
- Battery
- Power adapter
- Combination WiFi/SD card
- Soft carry case
- CD Rom with PowerLog 430-II software and user documentation
