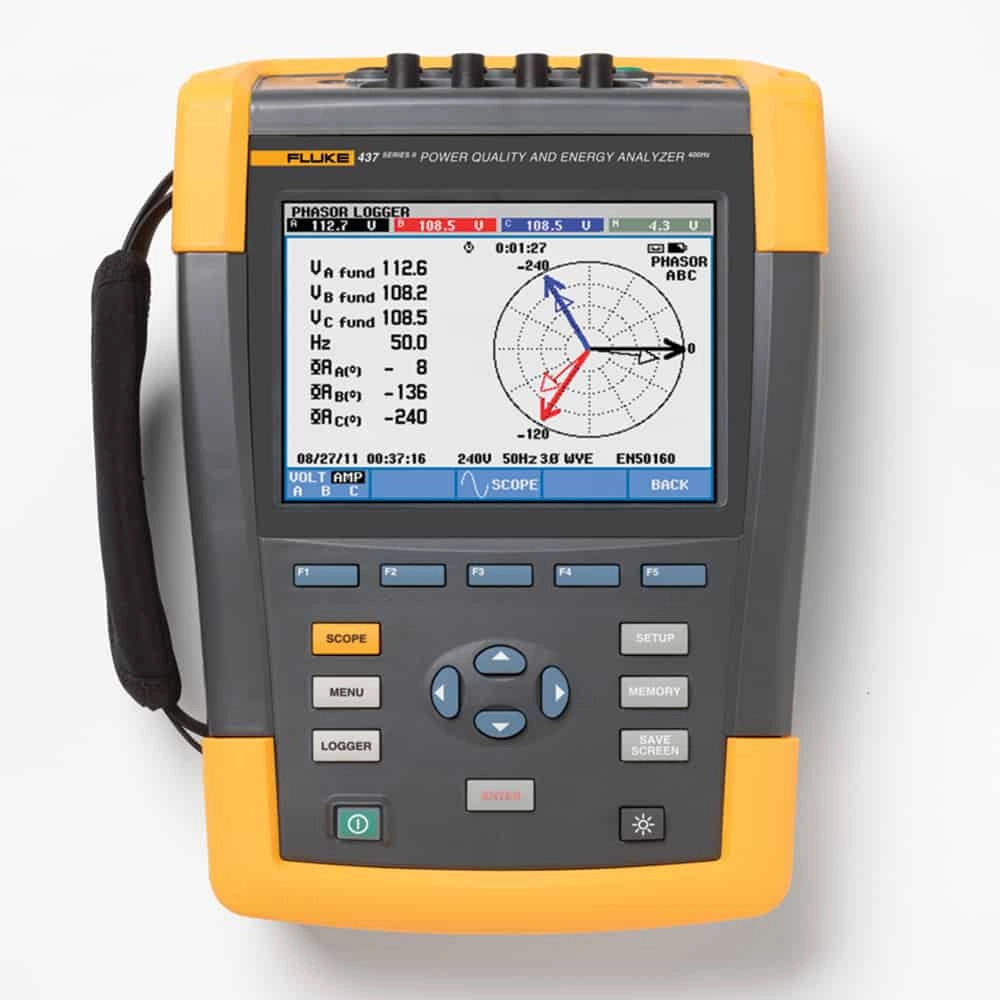

Fluke 437-II Power Quality Monitor And Energy Analyzer, CAT IV 600V, 6000A
Model # 437-II
Key Features
?
Question about this product?
Features
- 400 Hz operation for use in avionic and military applications
- Shipboard power measurement system analyzes according to MIL-STD 1399 to automatically give a full evaluation of voltage, current and power
- Advanced Power Quality Health— At-a-glance power quality health data in real-time so you have the data you need, when you need it
- Power Inverter Efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp.
- PowerWave Data Capture: Capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.).
- Energy Loss Calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint the fiscal costs of energy losses.
Technical Information
- Voltage1 V to 1000 V phase to neutral (DC or AC RMS)
- Poweri430-Flex: max 6000 MW
- Energyi430-Flex 10x: Depends on clamp scaling and V nominal
- Phase Angle-360° to +0°
- Operating Temperature0°C ~ +40°C; +40°C ~ +50°C excl. battery
- Storage Temperature-20°C ~ +60°C
Items Included
- BC430 Power Adapter
- International Plug Adapter Set
- BP290 (Single Capacity Li-ion Battery) 28 Wh (7 hours or more)
- TLS430 Test Lead and Alligator Clip Set
- WC100 Color Coding Clips and Regional Decals
- i430flex-TF, 24 inch (61 cm) Length, 4 Clamps
- 16GB Wi-Fi SD card
- PowerLog on CD (includes operator manuals in PDF format)
- USB Cable A-B Mini
