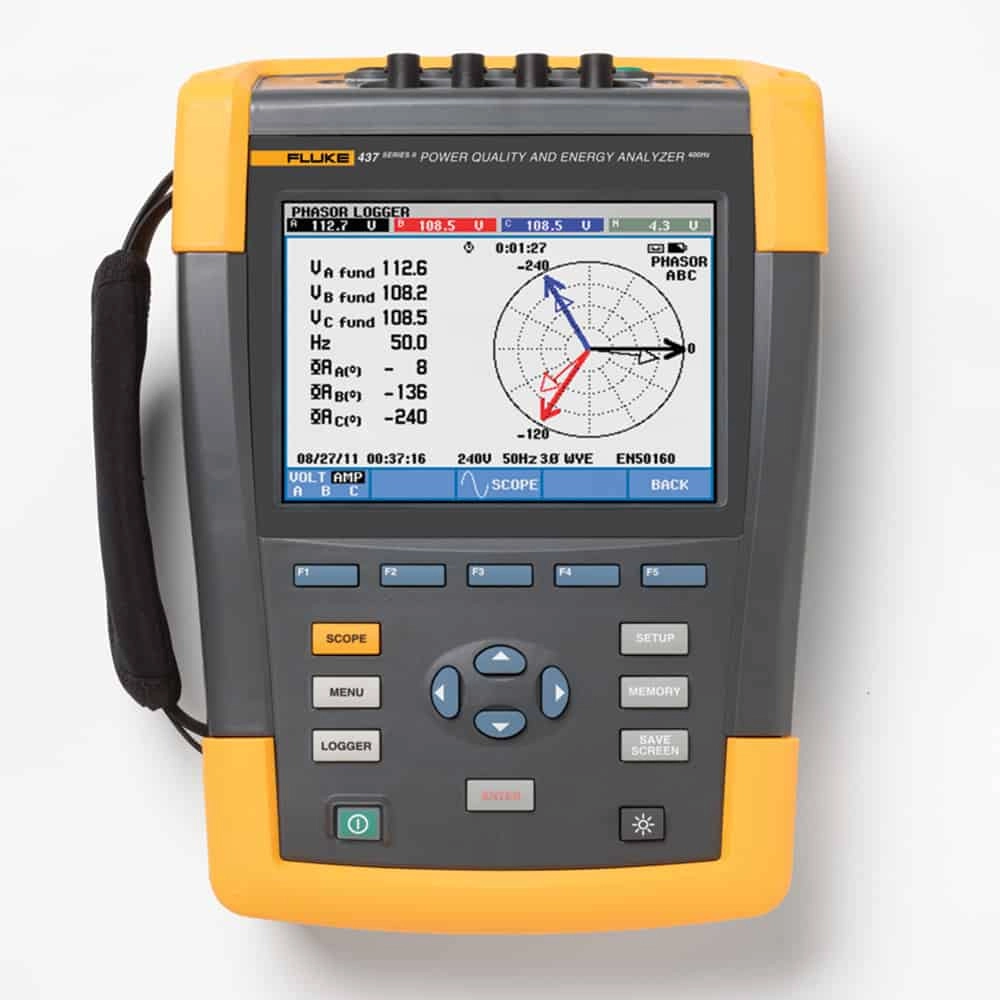

Fluke 437-II/INTL Power Quality Analyzer, CAT IV 600V, 6000A
Model # 437-II/INTL
Key Features
?
Question about this product?
Features
- 400 Hz Measurement: By increasing the power frequency to 400 Hz, transformers and motors can be much smaller and lighter than at 50 or 60 Hz, which is an advantage in aircrafts, submarines, space crafts, and other military equipment and hand-held tools. The 437 II model captures power quality measurements for these types of avionic and military systems.
- Power Inverter Efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp.
- PowerWave Data Capture: Capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.).
- Energy Loss Calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint the fiscal costs of energy losses.
- Advanced Power Quality Health— At-a-glance power quality health data in real-time so you have the data you need, when you need it
- Shipboard power measurement system analyzes according to MIL-STD 1399 to automatically give a full evaluation of voltage, current and power
Technical Information
- Voltage1 V to 1000 V phase to neutral (DC or AC RMS)
- Poweri430-Flex: max 6000 MW
- Energyi430-Flex 10x: Depends on clamp scaling and V nominal
- Phase Angle-360° to +0°
- Operating Temperature0°C ~ +40°C; +40°C ~ +50°C excl. battery
- Storage Temperature-20°C ~ +60°C
Items Included
- BC430 Power Adapter International Plug Adapter Set
- BP290 (Single Capacity Li-ion Battery) 28 Wh (7 hours or more)
- TLS430 Test Lead and Alligator Clip Set
- WC100 Color Coding Clips and Regional Decals
- i430flex-TF
- 24 inch (61 cm) Length
- 4 Clamps
- 8 GB SD Card
- PowerLog on CD (includes operator manuals in PDF format)
- USB Cable A-B Mini
