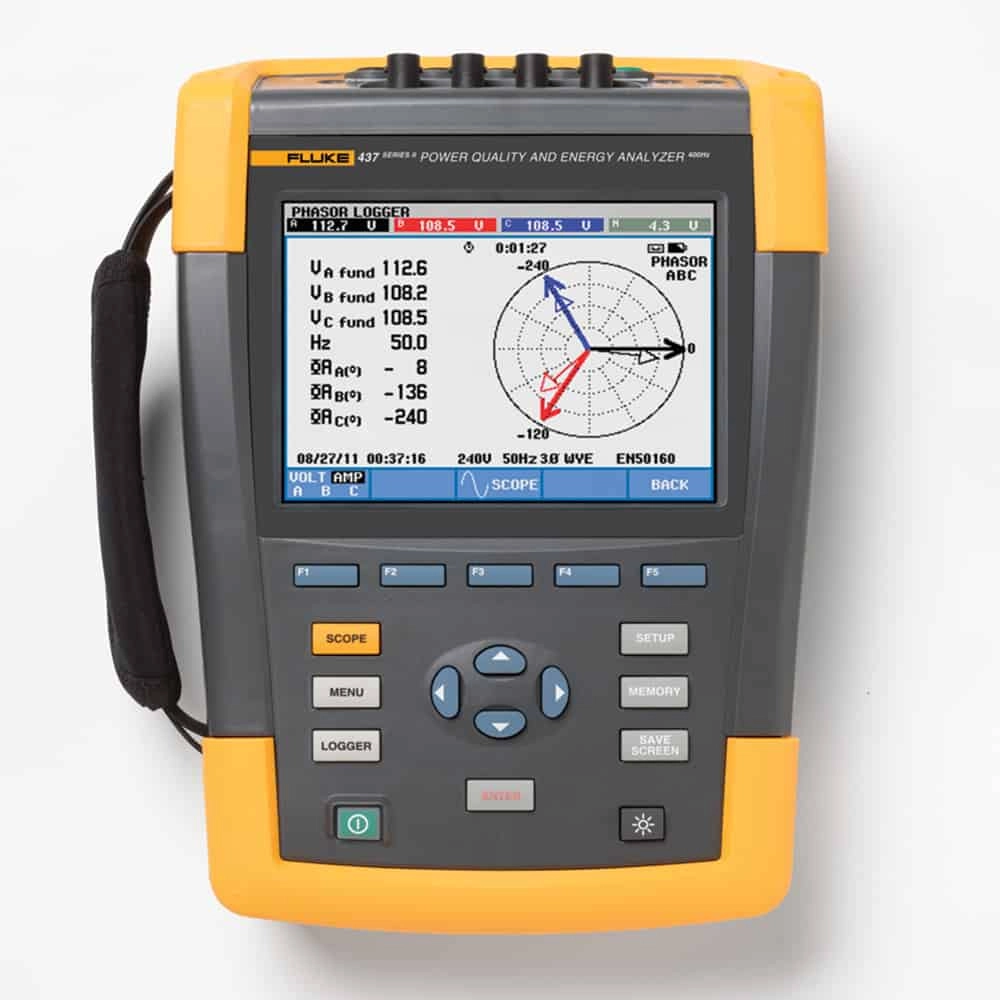

Fluke 437-II/BASIC 400 Hz Power Quality And Energy Analyzer (With O Clamps), CAT IV 600V, 6000A
Model # 437-II/BASIC
Key Features
?
Question about this product?
Features
- The Fluke 437-II is a Class A compliant three-phase power quality analyzer that help you locate, predict, prevent and troubleshoot problems in single phase and three phase power distribution systems. Great for Marine, Military, and Aero Applications. In addition to all the standard features of the Fluke 434-II, the Fluke 437-II offers additional features for the more demanding application.
- Shipboard power measurement system analyzes according to MIL-STD 1399 to automatically give a full evaluation of voltage, current and power
- Advanced Power Quality Health— At-a-glance power quality health data in real-time so you have the data you need, when you need it
- Power Inverter Efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp.
- PowerWave Data Capture: Capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.).
- Energy Loss Calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint the fiscal costs of energy losses.
Technical Information
- Voltage1 V to 1000 V phase to neutral (DC or AC RMS)
- Poweri430-Flex: max 6000 MW
- Energyi430-Flex 10x: Depends on clamp scaling and V nominal
- Phase Angle-360° to +0°
- Operating Temperature0°C ~ +40°C; +40°C ~ +50°C excl. battery
- Storage Temperature-20°C ~ +60°C
Items Included
- Fluke 437-II/BASIC Power Quality Analyzer BC430 Power Adapter International Plug Adapter Set BP290 (Single Capacity Li-ion battery) 28 Wh (7 hours or more) TLS430 Test Lead and Alligator Clip Set WC100 Color Coding Clips and Regional Decals 8 GB SD Card
