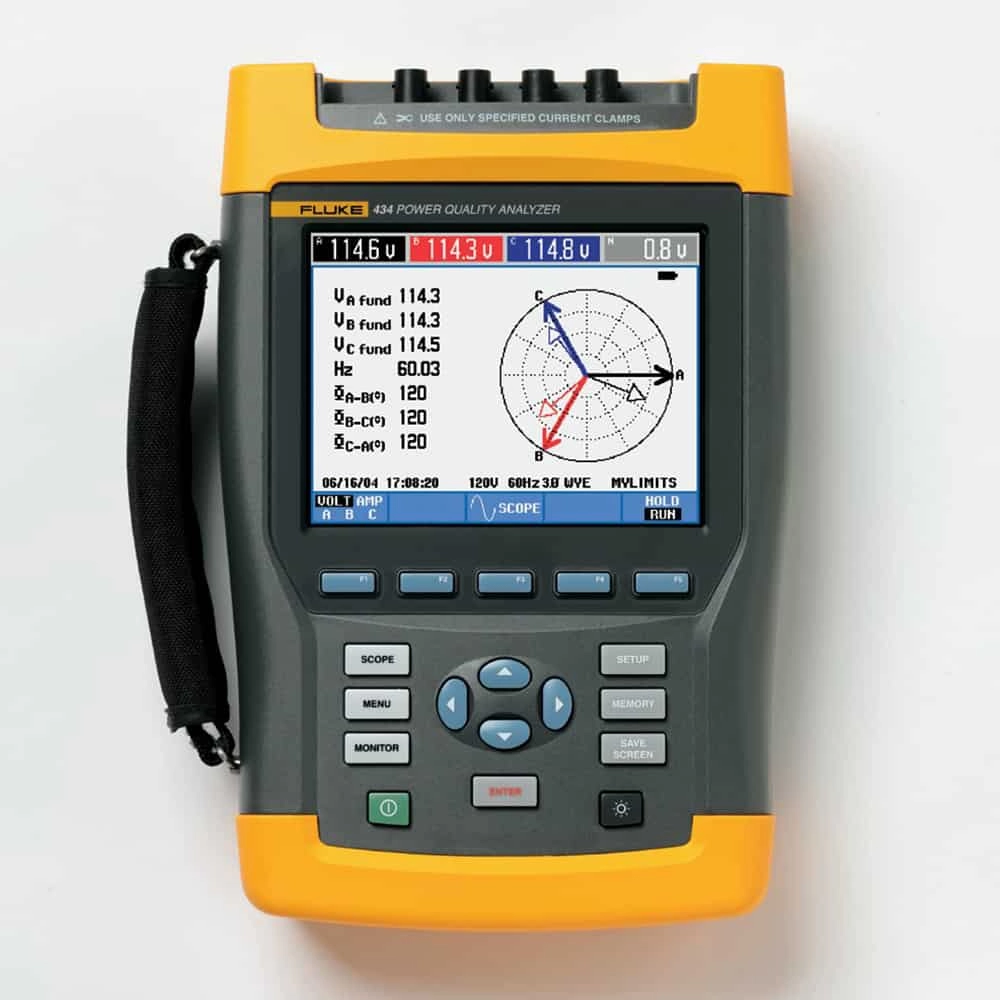

Fluke 434-II/BASIC Power Quality And Energy Analyzer (With O Clamps), CAT IV 600V, 6000A
Model # 434-II/BASIC
Key Features
?
Question about this product?
Features
- Energy loss calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint true system energy losses in dollars (other local currencies available)
- Power inverter efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp
- Troubleshoot: Analyze the trends using the cursors and zoom tools
- Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance
- Measure all three phases and neutral: With included four flexible current probes with enhanced thin flex design to fit into the tightest places.
- Advanced power quality health—At-a-glance power quality health data in real time so you can make better maintenance decisions
- Easily see how motor startups are affecting electrical system performance
- Fluke Connect® compatible* – view data locally on the instrument, via Fluke Connect mobile app and PowerLog 430-II desktop software
Technical Information
- Voltage1 V to 1000 V phase to neutral (DC or AC RMS)
- Poweri430-Flex: max 6000 MW
- Energyi430-Flex 10x: Depends on clamp scaling and V nominal
- Phase Angle-360° to +0°
- Operating Temperature0°C ~ +40°C; +40°C ~ +50°C excl. battery
- Storage Temperature-20°C ~ +60°C
Items Included
- BC430 Power Adapter
- International Plug Adapter Set
- BP290 (Single Capacity Li-ion Battery) 28 Wh (8 hours or more)
- TLS430 Test Lead and Alligator Clip Set
- WC100 Color Coding Clips and Regional Decals
- 16GB Wi-Fi SD card (8GB SD card for /INTL models)
- PowerLog on CD (includes operator manuals in PDF format)
- USB Cable A - Mini B C1740 Soft Case
